Island 16 Family

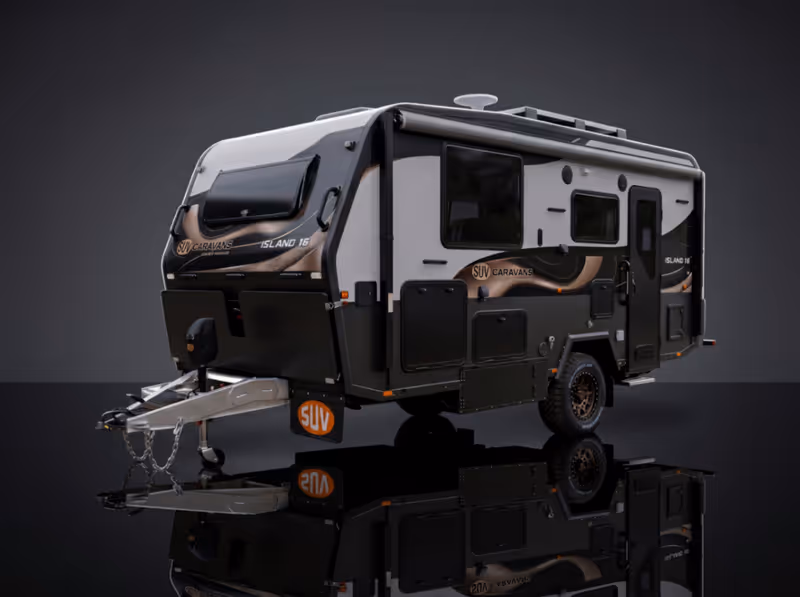

Images from SUV Caravans
- From
- $80,995
- Max weight (ATM)
- 3,000kg
- Sleeps
- 4
- Length
- 6.7 m
Floor plans
About the Island 16 Family
The Island 16 Family is a 6.7 metre caravan for four, with an island queen bed for the parents and full-size bunks for the kids. Each bunk has its own window, fan and reading light. SUV Caravans says it was purpose-built for Queensland families.
Who does it sleep?
- Parents: a queen island bed with an innerspring mattress and walk-around access.
- Kids: two full-size bunk beds, each 700 x 1900mm.
Bathroom
The family ensuite has the shower and the toilet in separate rooms. A wall-mounted washing machine is standard.
Inside
An inside coffee nook has a 157 litre upright fridge freezer, a microwave, a sink and a rangehood. An induction cooktop is also standard inside. The seating has a removable table, and storage runs to cupboards and hanging space. Bedside tables have storage drawers. Roof-mounted reverse-cycle air conditioning and 12 volt fans handle the temperature.
Outdoor kitchen
The stainless steel outside kitchen swings out 90 degrees, with a four-burner gas stove and a wind guard. Pantry drawers and a stainless steel fold-down bench sit with it, and a pantry slide suits a 95 litre Trakmate fridge freezer. A full-length electric roll-out awning covers the area.
Chassis and running gear
- Chassis: fully galvanised, with galvanised suspension arms, approved by an Australian engineer.
- Suspension: SUV's Series 4 Recovery Suspension with twin shocks and heavy-duty springs.
- Wheels: alloys with all-terrain tyres, and a spare underneath.
- Brakes: 12 inch electric brakes with a breakaway system.
- Recovery: two rear recovery points and a spare bolt-on stub axle.
- Body: XPS high-density foam walls on a honeycomb floor.
- Hitch: an Alko hitch to suit a 50mm ball.
Power and water
- Batteries: 628 amp hours of lithium batteries.
- Solar: 800 watts of roof-mounted panels.
- Inverter: a 3000 watt Renogy inverter.
- Charging: a Renogy DC-DC charger with a built-in solar charge controller.
- Fresh water: two tanks, about 200 litres in total, plus a mains water connection.
- Grey water: a 70 litre tank, with fresh and grey water monitoring.
- Gas and hot water: holders for two 4kg gas bottles, and an integrated gas hot water system.
Optional extras
- TV: a 12 volt smart TV.
- Fridge: a 95 litre Trakmate fridge freezer for the pantry slide.
- Annexe: an enclosable annexe with a floor, walls, skirt and anti-flapper kit.
- Hitch: a DO35 off-road hitch.
- Toilet: a composting toilet.
What will tow it?
- ATM (aggregate trailer mass): 3,000kg, the most it can weigh fully loaded.
- Tare: 2,550kg, its empty weight as built.
- GTM (gross trailer mass): 2,780kg, the most its axles can carry when hitched.
- Payload: 450kg for water, gas and gear. Full water tanks use about 200kg of it.
To tow it fully loaded, your vehicle needs a braked towing capacity of at least 3,000kg. SUV Caravans lists its weights as approximate.
Where to buy
SUV Caravans has showrooms in Caboolture, Cairns, Coffs Harbour, Rockhampton and Townsville. It recommends collecting from a dealership, so you get a full handover. Freight delivery is available on request.
Warranty
- Whole van: 12 months from delivery, on defects in material and workmanship.
- Chassis: a 5-year fatigue warranty, on vans from 2025 onwards.
- Cover: new vans only.
Technical specifications
About SUV Caravans
SUV Caravans sells off-road caravans, pop-tops and camper trailers. It has showrooms in Queensland and New South Wales, including Caboolture, Cairns and Coffs Harbour. Its range runs from compact hybrids for couples to family vans with triple bunks, and camper trailers with slide-out beds.
