Island 16

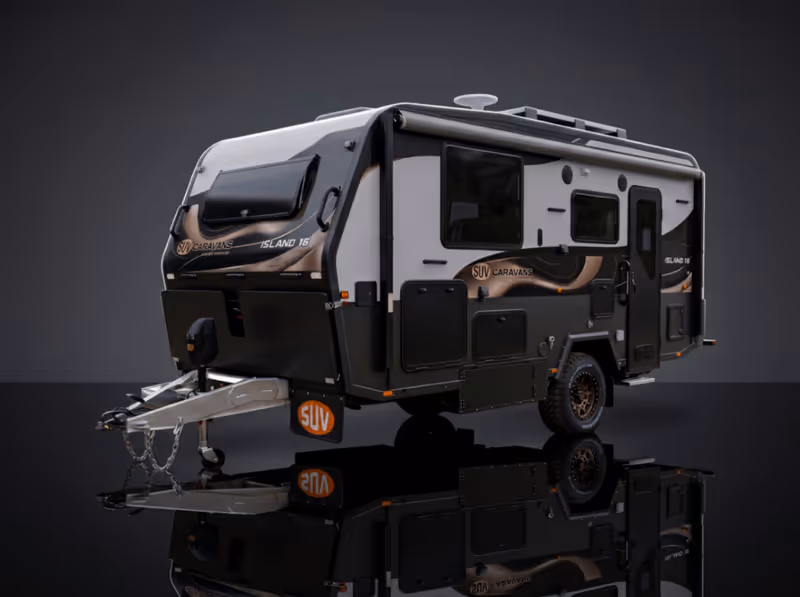

Images from SUV Caravans
- From
- $80,995
- Max weight (ATM)
- 3,000kg
- Sleeps
- Up to 3
- Length
- 6.7 m

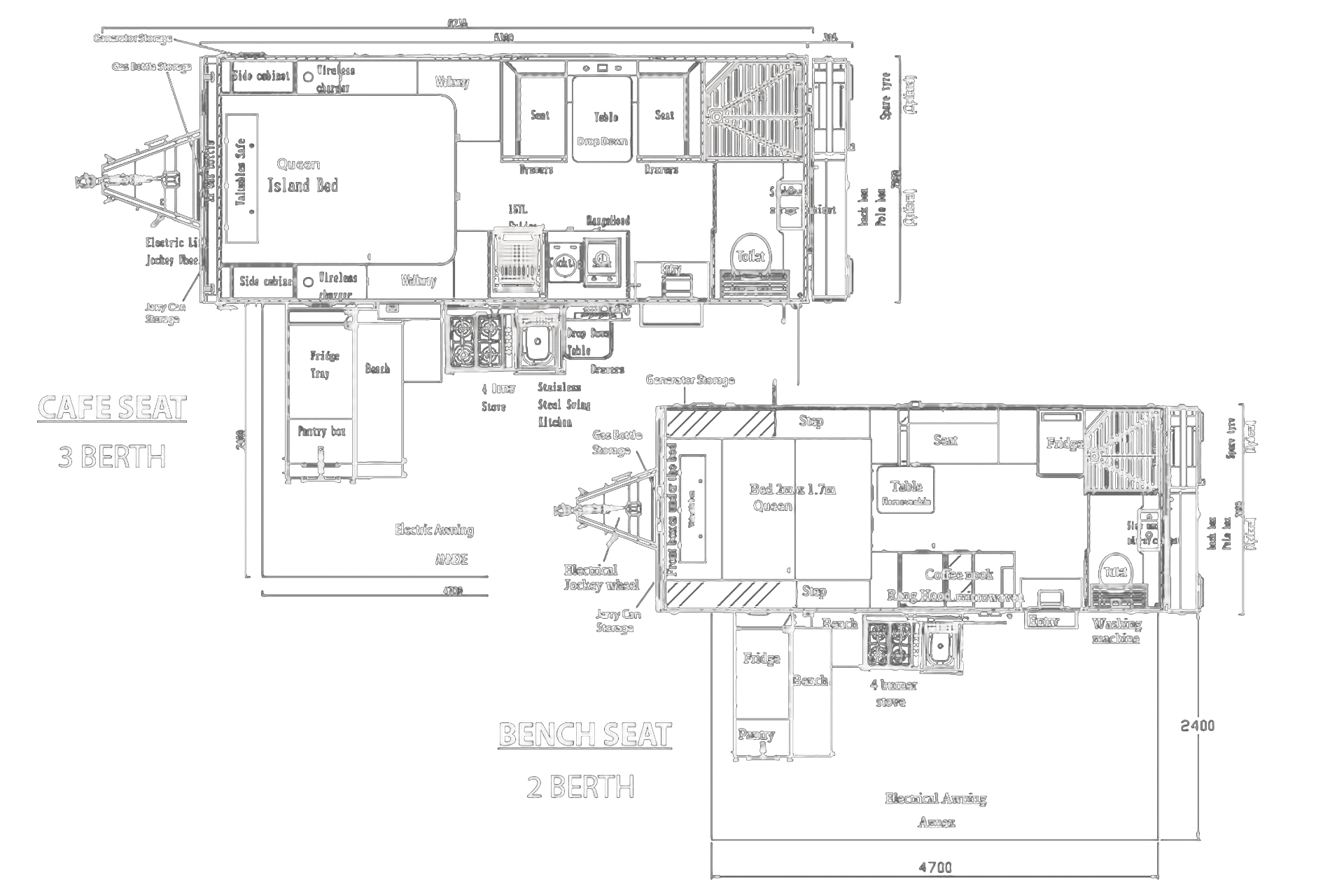

Floor plans
About the Island 16
The Island 16 is a 6.7 metre caravan that sleeps two or three, built around a walk-around island queen bed. Its ensuite has a separate shower and toilet, plus a washing machine. SUV Caravans says it has 17 feet of usable internal space.
Who does it sleep?
The main bed is a queen island bed with an innerspring mattress, with bedside tables either side. SUV Caravans lists it as sleeping two or three, for couples and families.
Inside
An inside coffee nook holds a 157 litre upright fridge freezer, a microwave and a sink. It also has an induction cooktop, a rangehood and storage drawers. The seating comes as cafe seating or a bench seat, your choice. Roof-mounted reverse-cycle air conditioning and 12 volt fans are standard. Windows have privacy glass and midge-proof fly screens.
Outdoor kitchen
The stainless steel outside kitchen swings out 90 degrees, with a four-burner gas stove and a wind guard. Pantry drawers and a fold-down bench connect to it, and a pantry slide suits a 95 litre Trakmate fridge freezer. A full-length electric roll-out awning covers the area.
Chassis and running gear
- Chassis: fully galvanised, with galvanised suspension arms, approved by an Australian engineer.
- Suspension: SUV's Series 4 Recovery Suspension with twin shocks and heavy-duty springs.
- Wheels: alloys with all-terrain tyres, and a spare underneath.
- Brakes: 12 inch electric brakes with a breakaway system.
- Recovery: two rear recovery points and a spare bolt-on stub axle.
- Body: XPS high-density foam walls on a honeycomb floor.
- Hitch: an Alko hitch to suit a 50mm ball.
Power and water
- Batteries: 628 amp hours of lithium batteries.
- Solar: 800 watts on the roof.
- Inverter: a 3000 watt Renogy inverter.
- Charging: a smart charger and a Renogy DC-DC charger with a built-in solar charge controller.
- Fresh water: two tanks, about 180 litres in total, plus a mains water connection.
- Grey water: a 70 litre tank, with fresh and grey water monitoring.
- Gas and hot water: holders for two 4kg gas bottles, and an integrated gas hot water system.
Optional extras
- TV: a 12 volt smart TV.
- Fridge: a 95 litre Trakmate fridge freezer for the pantry slide.
- Annexe: an enclosable annexe with a floor, walls, skirt and anti-flapper kit.
- Hitch: a DO35 off-road hitch.
- Toilet: a composting toilet.
What will tow it?
- ATM (aggregate trailer mass): 3,000kg, the most it can weigh fully loaded.
- Tare: 2,550kg, its empty weight as built.
- GTM (gross trailer mass): 2,780kg, the most its axles can carry when hitched.
- Payload: 450kg for water, gas and gear. Full water tanks use about 180kg of it.
To tow it fully loaded, your vehicle needs a braked towing capacity of at least 3,000kg. SUV Caravans lists its weights as approximate.
Where to buy
SUV Caravans has showrooms in Caboolture, Cairns, Coffs Harbour, Rockhampton and Townsville. It recommends collecting from a dealership, so you get a full handover. Freight delivery is available on request.
Warranty
- Whole van: 12 months from delivery, on defects in material and workmanship.
- Chassis: a 5-year fatigue warranty, on vans from 2025 onwards.
- Cover: new vans only.
Technical specifications
About SUV Caravans
SUV Caravans sells off-road caravans, pop-tops and camper trailers. It has showrooms in Queensland and New South Wales, including Caboolture, Cairns and Coffs Harbour. Its range runs from compact hybrids for couples to family vans with triple bunks, and camper trailers with slide-out beds.
