Navigator F1 Island
Images from SUV Caravans
- From
- $61,995
- Max weight (ATM)
- 2,920kg
- Sleeps
- 2
- Length
- 6.7 m

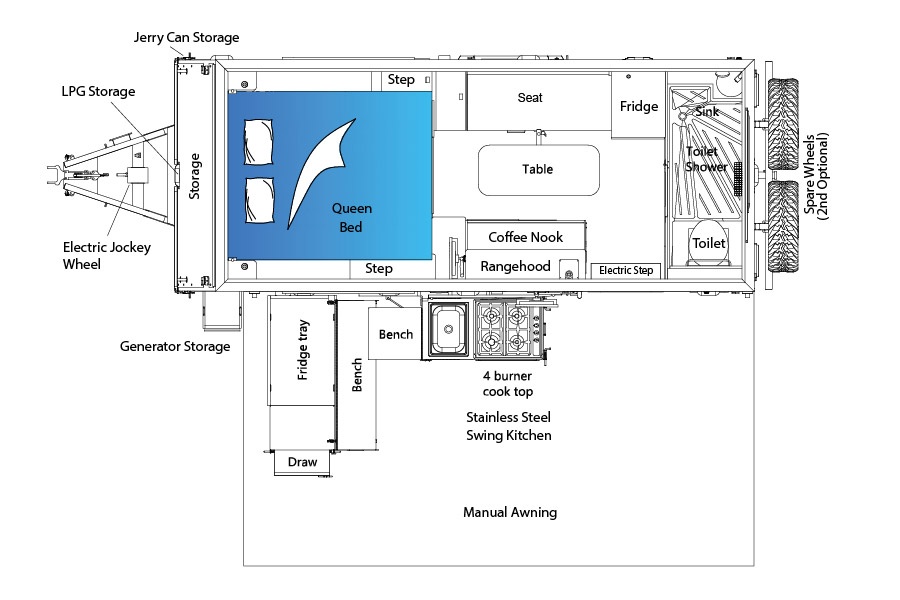

Floor plans

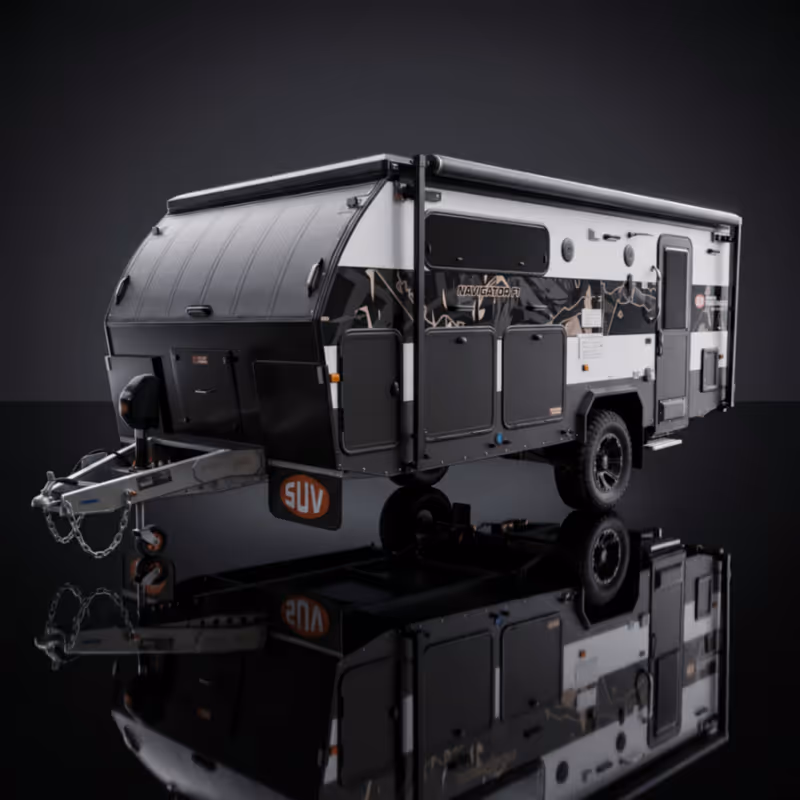

About the Navigator F1 Island
The SUV Caravans Navigator F1 Island is a 6.7 metre pop-top caravan for two. It has a walk-around queen island bed, a large bench seat and an ensuite with a separate toilet and shower. SUV Caravans lists it for couples, with an electric lift roof.
Who does it sleep?
Two, on a queen island bed you can walk around. Reading lights, 12 volt outlets and USB ports sit beside the bed.
Inside
SUV Caravans says the kitchenette now has an induction cooktop, a sink and a rangehood. A 110 litre upright fridge sits inside. The full internal ensuite has a separate toilet and shower, with a flush cartridge toilet. With the roof down it stands 2,580mm high, and 3,200mm with the roof raised.
Outdoor kitchen
The external kitchen swings away from the van and cooks on a four-burner gas stove. It comes with a fridge slide, pantry drawers and a stainless steel fold-down bench. A full-length rollout awning and an electric fold-down step are standard.
Chassis and running gear
- Chassis: fully galvanised, with the drawbar and suspension approved by an Australian engineer.
- Suspension: Series 4 independent suspension with twin shocks and heavy-duty springs.
- Recovery points: two at the rear.
- Wheels: 16 inch rims with all-terrain tyres, and a spare under the front drawbar.
- Brakes: 12 inch electric brakes with a breakaway system.
- Body: XPS high-density foam walls and a honeycomb floor.
Power and water
- Solar: 600 watts on the roof.
- Batteries: 270 amp hours of lithium batteries.
- Inverter: a 2,000 watt Renogy inverter charger, plus a 30 amp smart charger.
- Road charging: a Renogy dual input 50 amp DC-DC charger with a 50 amp solar charge controller.
- Fresh water: two tanks, about 180 litres in total, plus a 70 litre grey tank.
- Tank monitoring: fresh and grey water levels.
- Hot water: a gas system, with two gas bottle holders.
Optional extras
- Fridge: a 95 litre Trackmate fridge freezer.
- Comfort: 12 volt oscillating fans and a positive pressure system.
- Annexe: enclosable, with floor, walls, skirt and anti-flapper kit.
- TV: a smart TV with a roof-mounted antenna.
- Spare: a rear spare tyre and mounting bracket.
- Hitch and jockey wheel: a DO35 hitch upgrade and an electric lift jockey wheel.
What will tow it?
- ATM (aggregate trailer mass): 2,920kg, the most it can weigh fully loaded.
- Tare: 2,420kg, its empty weight.
- GTM (gross trailer mass): 2,738kg, the most its wheels can carry while hitched.
To tow it fully loaded, your vehicle needs a braked towing capacity of at least 2,920kg. SUV Caravans lists these weights as approximate.
Warranty and where to buy
SUV Caravans covers new vans for 12 months from delivery against defects in material and workmanship. From 2025 onwards, the chassis also has a 5-year fatigue warranty.
SUV Caravans has showrooms in Caboolture, Cairns, Coffs Harbour, Rockhampton and Townsville. It recommends picking up from a dealership for a full handover, and freight delivery is available on request.
Technical specifications
About SUV Caravans
SUV Caravans sells off-road caravans, pop-tops and camper trailers. It has showrooms in Queensland and New South Wales, including Caboolture, Cairns and Coffs Harbour. Its range runs from compact hybrids for couples to family vans with triple bunks, and camper trailers with slide-out beds.
