X2-N Tourer
Images from Patriot Campers
- From
- $43,900
- Max weight (ATM)
- 1,600kg
- Length
- 3.7 m
About the X2-N Tourer
The Patriot Campers X2-N Tourer is a 3.7 metre off-road camper trailer with a roof rack for a tent, bikes or kayaks, priced from $43,900. Patriot builds it on the Gold Coast in Queensland for singles and couples. It combines the core features of the X2 Tourer with an Exorack roof system.

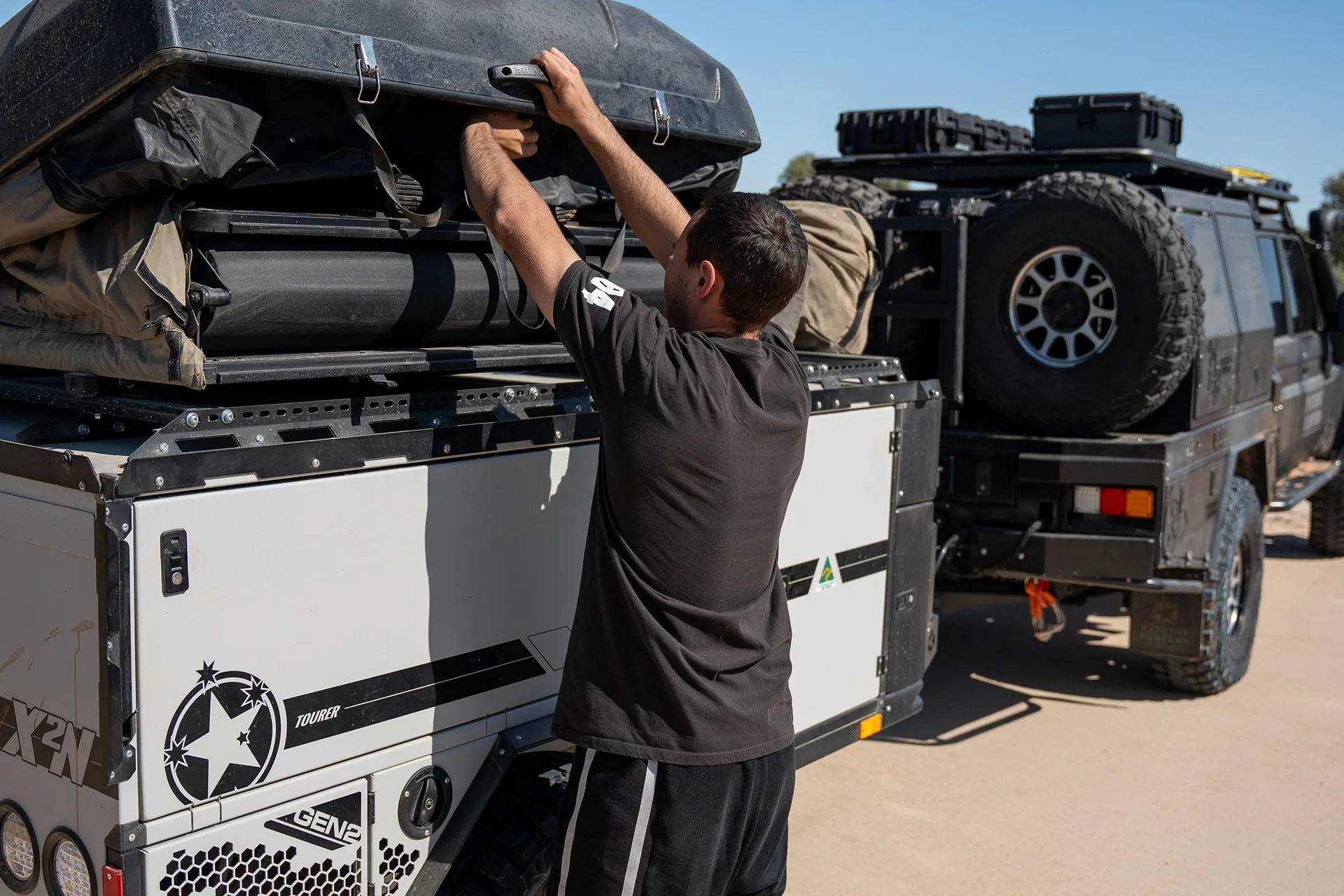

The roof and storage
The Exorack has five aluminium bars and measures 2,000 by 1,380 millimetres. A three-step ladder climbs from the drawbar, with a tread plate to stand on. The front box, a cabin on the driver's side and a rear drawer hold bulky gear, and Patriot lists 2,050 litres of storage. Every door has lockable compression latches.

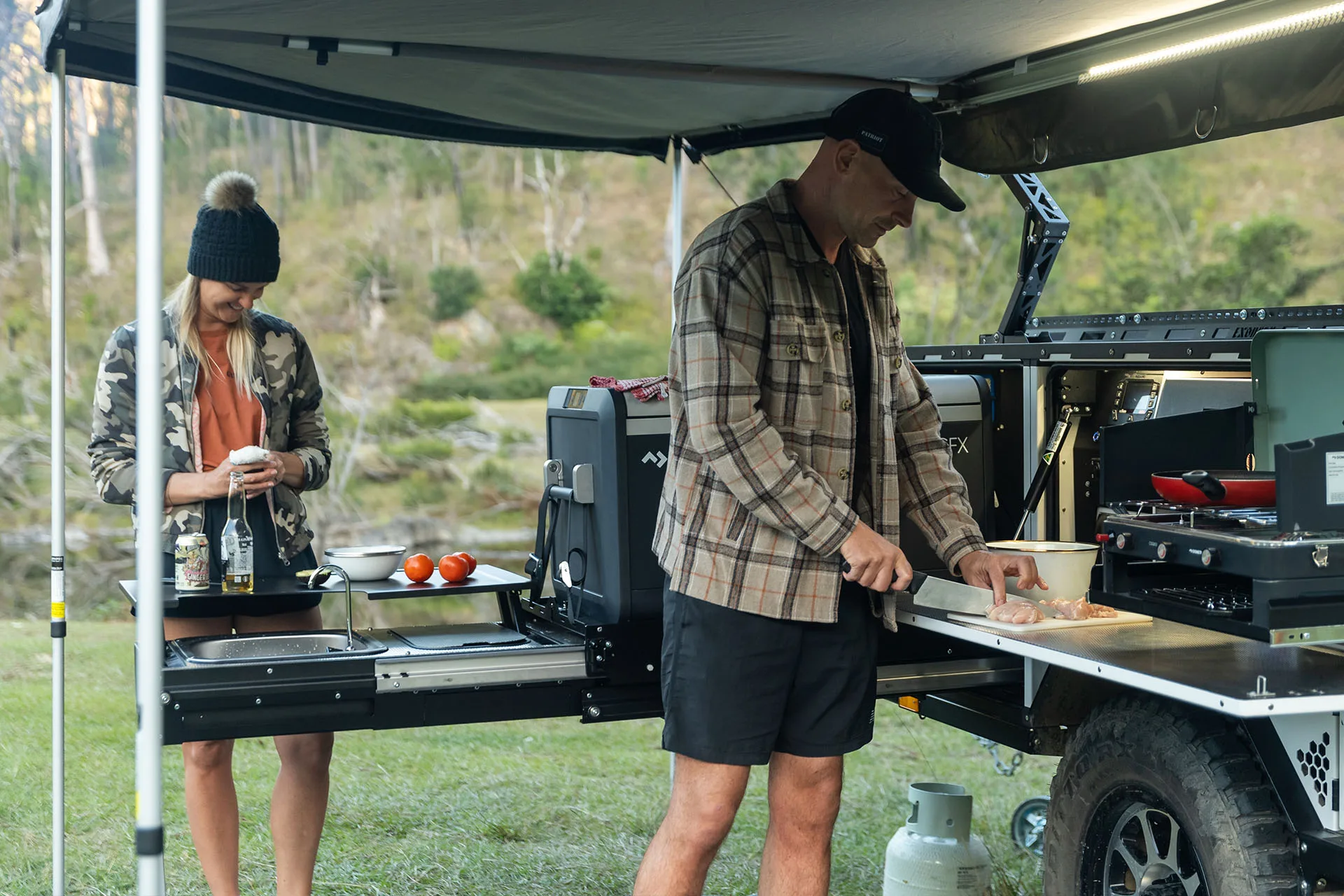

Kitchen and awning
The L-shaped kitchen has a Dometic twin-burner gas stove and grill, a stainless steel sink and a scratch-resistant stainless bench. Plates and cutlery sit in drawers, and the fridge slide takes a 75 litre Dometic fridge, sold as an option.
The PCOR awning has built-in poles and guy ropes, and Patriot rates it at 12.25 metres of coverage with UPF 50+ sun protection. LED lights run along the awning.
Chassis and off-road gear
- Chassis: hot-dipped galvanised Rigilite steel, extended as standard, with a space-saver spare underneath.
- Body: composite panels bonded to sheet metal, with no welding, in concrete grey decals.
- Suspension: X-Cruise coil suspension, with an airbag upgrade as an option.
- Brakes: 12 inch electric drums.
- Wheels: 17 inch steel wheels with 33 inch mud-terrain tyres.
- Recovery points: two, each rated to 800kg.
- Departure angle: 36 degrees.
- Warranty: five years, limited, on the chassis and structural components of every Patriot camper.
Power and water
- Battery: one 100 amp-hour lithium battery, run by a Redarc Rogue system with a Redvision display and app control.
- Charging: from a solar input, from the tow vehicle, or from mains power through the supplied 240 to 12 volt charger.
- Water: one 150 litre tank.
- Gas: holders for two 4.5kg bottles.
- USB: charging ports in the kitchen and at the rear.
Optional extras
Patriot says options change the final cost.
- Power: a second 100 amp-hour lithium battery, and a 1,200 watt Redarc RS3 inverter with movable power outlets.
- Hot water: a gas hot water system with a shower rose.
- Roof and storage: extra Exorack bars, a slide-out rear drawer and a carpet kit for the storage compartments.
- Kitchen: a Dometic CFX75 fridge kit, a myCOOLMAN 78 litre dual-zone fridge, or a BBQ swing-away in the front box.
- Outdoors: awning wind walls, awning-to-kitchen infill panels, and PCOR 261 rims.
How big is it?
- Length: 3.7 metres.
- Width: 1.86 metres.
- Height: 1.65 metres.
What will tow it?
- ATM (aggregate trailer mass): 1,600kg, the most it can weigh fully loaded.
- Tare: 800kg, its empty weight as built. Patriot says this figure may vary.
- Payload: 800kg for water, gas and gear. A full water tank uses about 150kg of it.
- Ball weight: 140kg, which Patriot calls drawbar weight.
To tow it fully loaded, your vehicle needs a braked towing capacity of at least 1,600kg.
Where to buy
Patriot's website has a build-and-price tool, a catalogue download and showroom appointment bookings. Patriot also sells through dealers in Australia.
Technical specifications
About Patriot Campers
Patriot Campers builds off-road camper trailers at its plant on the Gold Coast in Queensland, where it employs more than 100 people. Its range runs from the 3.7 metre X-series camper trailers to the larger ST Supertourers, the biggest of which is 6.8 metres long. Every Patriot has a five year limited warranty on the chassis and structural components.
