Legend Caravans at a glance
- ›Legend Caravans currently offers 8 caravan ranges in Australia, spanning full off-road, hybrid, on-road.
- ›Every Legend Caravans model here is priced on application, so you get a figure from the dealer.
- ›ATM spans 2,800-3,000kg, against a market median of 3,000kg.
Computed live from published manufacturer data across every range we track.
About Legend Caravans
Legend Caravans build off-road, on-road and hybrid caravans from Somerton in Melbourne's north, and state that all Legend caravans are made and manufactured in Australia. Every range uses an aluminium frame assembled with a self-piercing rivet system rather than welding, with a one-piece fibreglass roof and a rot-free honeycomb floor. Each range page offers six to eleven floorplans at different lengths.
Current model range (8)
Contact for pricing

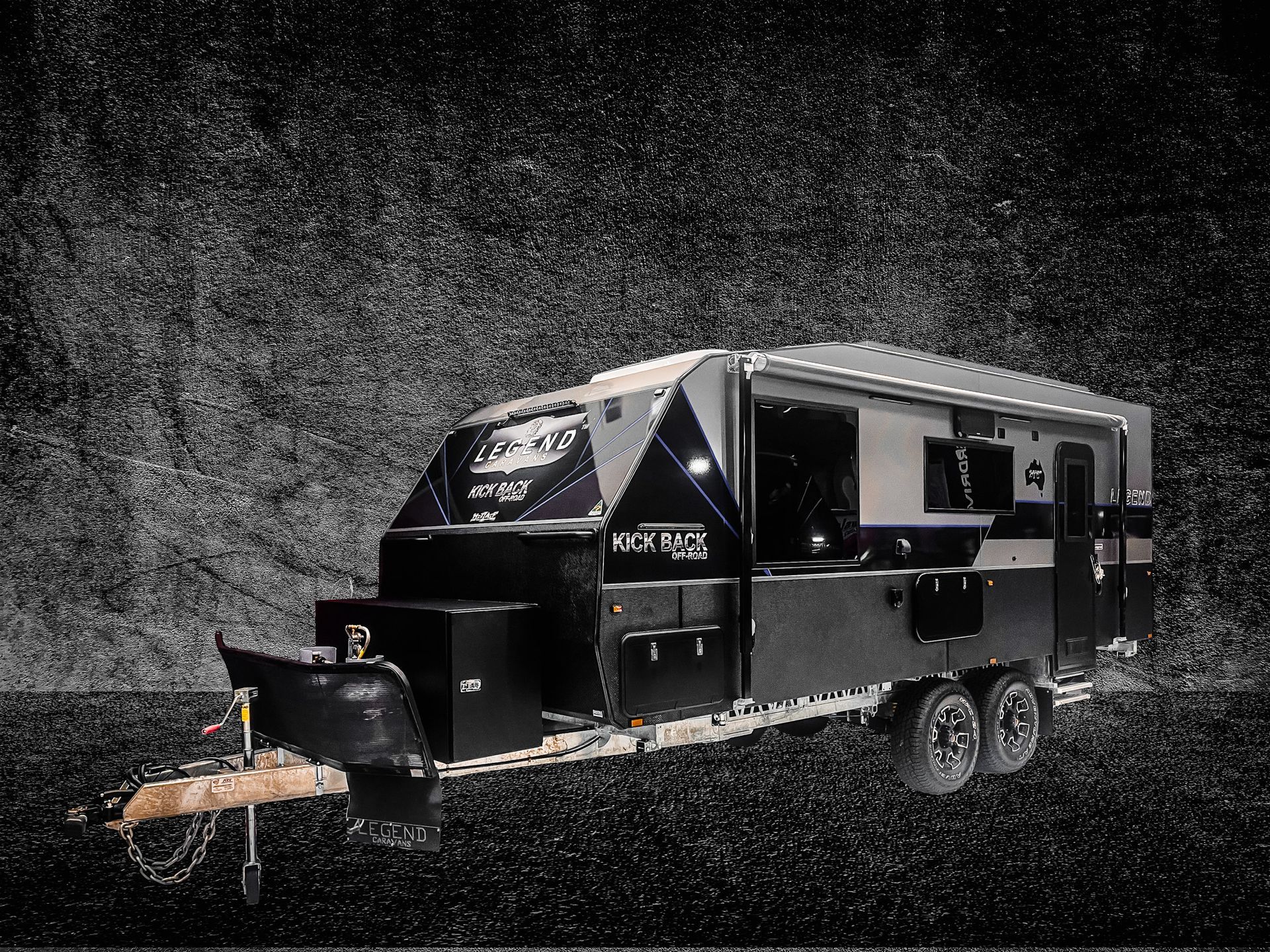

Kick Back Ultimate Performa
Kick Back is Legend's mid-range off-road van, on the Legend truss chassis with Cruisemaster XT airbag suspension and 12 inch electric brakes. Seven floorplans run from 18ft 6in to 23ft. The electrical package is a Victron Multiplus-II inverter with a 400Ah lithium battery and twin solar regulators.

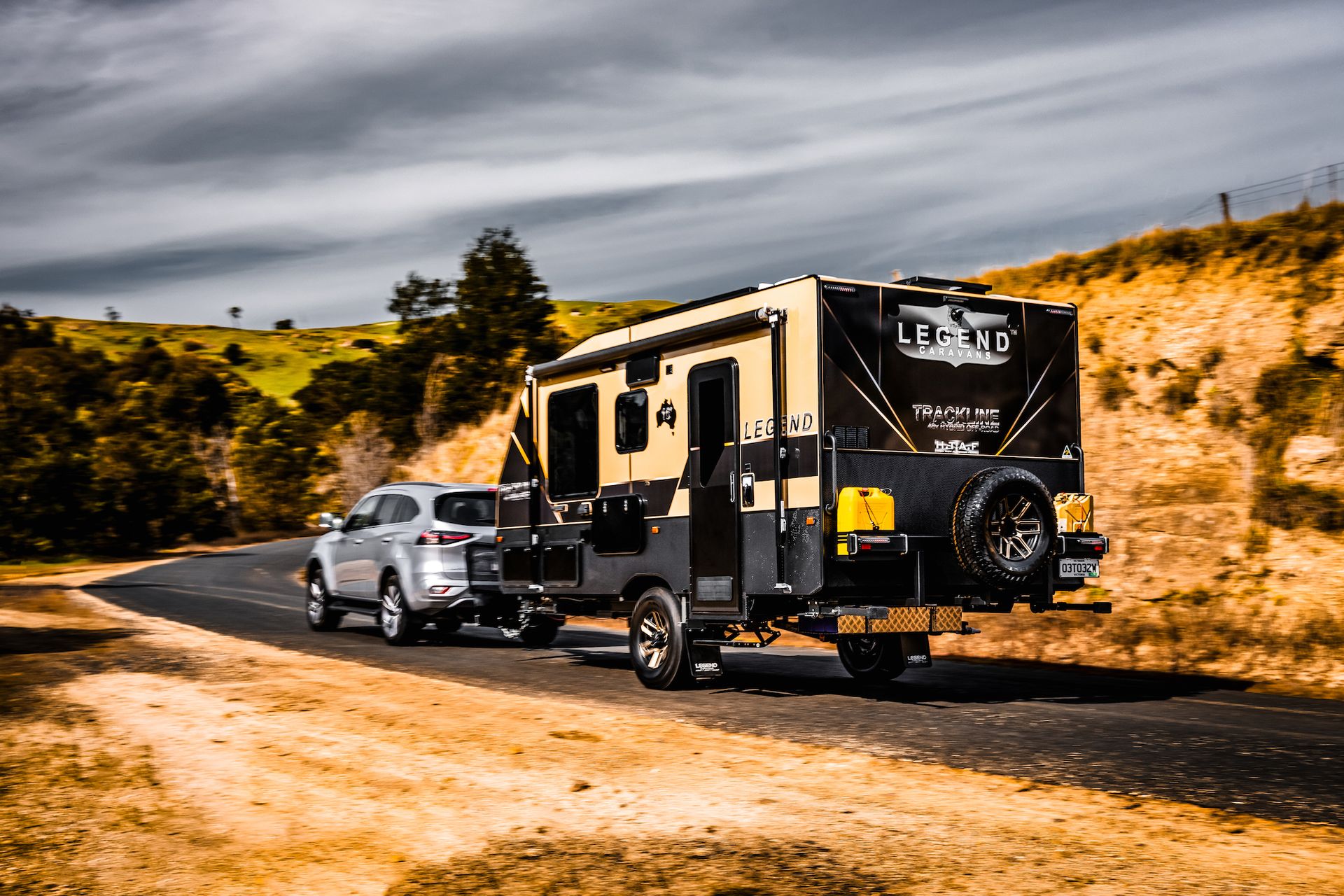

Legend Hybrid (Trackline 48V Standard)
This is the standard-specification sibling of the Ultimate Hybrid ERV, on the same body but a lighter electrical package and a lower ATM. Seven floorplans are offered in the 15ft and 16ft sizes, all single axle on Cruisemaster XT suspension. Power is a 48 volt lithium battery with a 2600W inverter and 600W of solar.

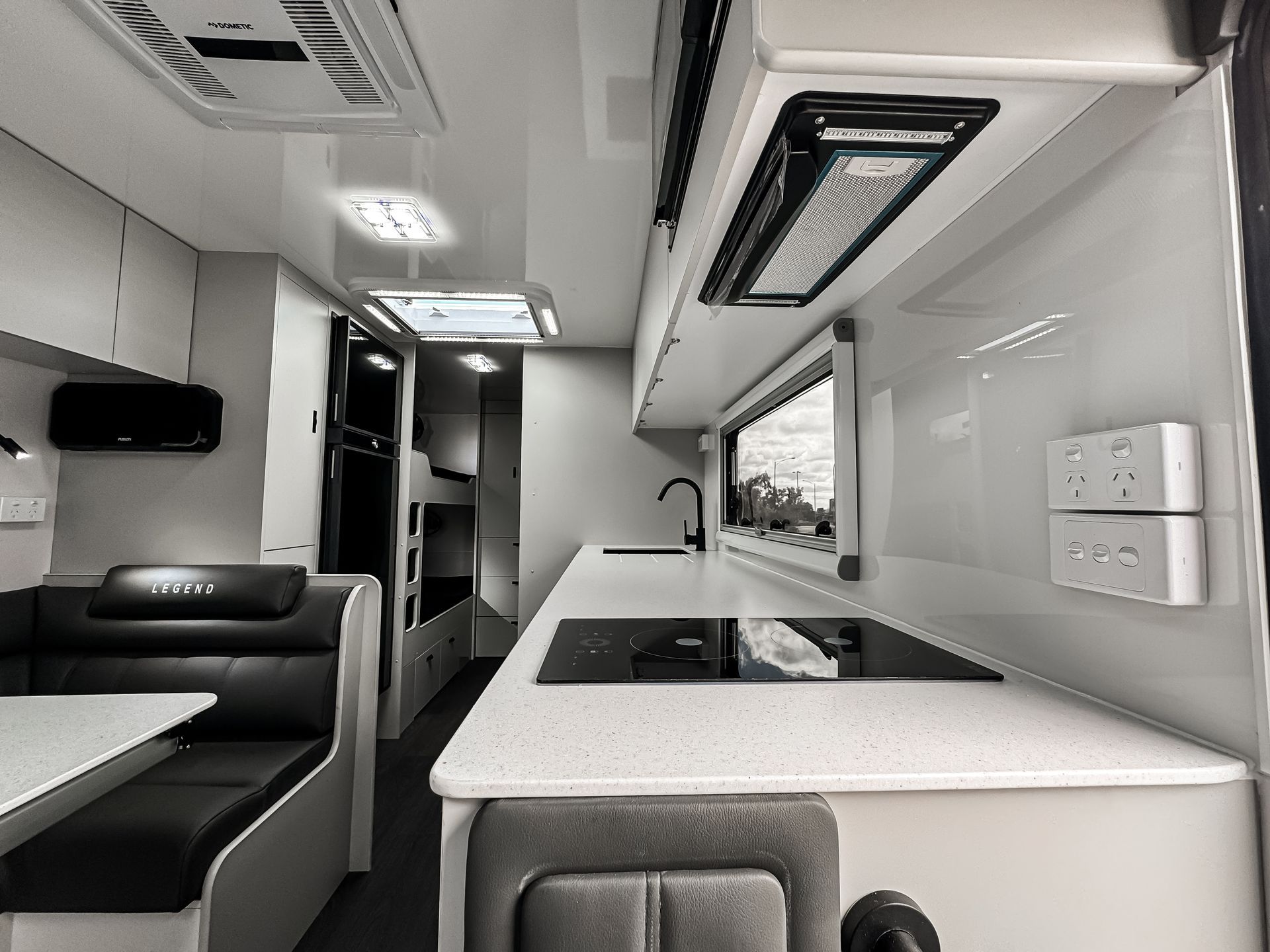

Trackline Bunka Family Series
The Trackline Bunka is Legend's off-road family van, with six floorplans from 19ft 6in to 24ft 6in. It runs a Cruisemaster XT airbag unit with remote control and a Cruisemaster DO35 hitch. The battery is a 48 volt lithium pack quoted in kilowatt hours, with 800W of solar and a 3600W continuous inverter.

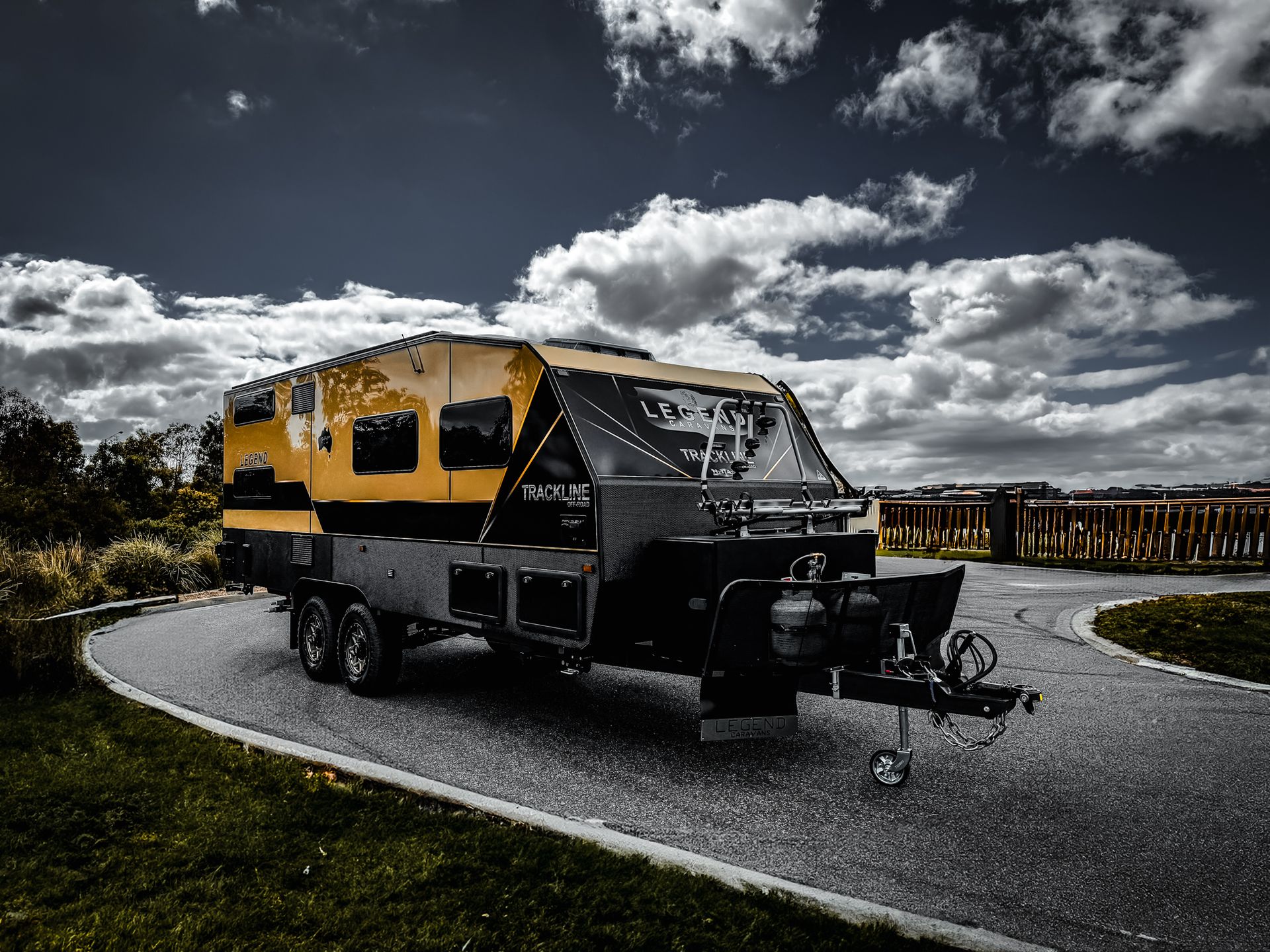

Trackline Off-Road
Trackline Off-Road sits on an 8 inch Australian-made chassis with a 150mm A-frame, Cruisemaster XT suspension and a DO35 hitch rated to 3500kg. Ten floorplans run from 17ft 6in to 21ft 6in, in single and tandem axle configurations. This is the Legend range with a full published weight table across every layout.

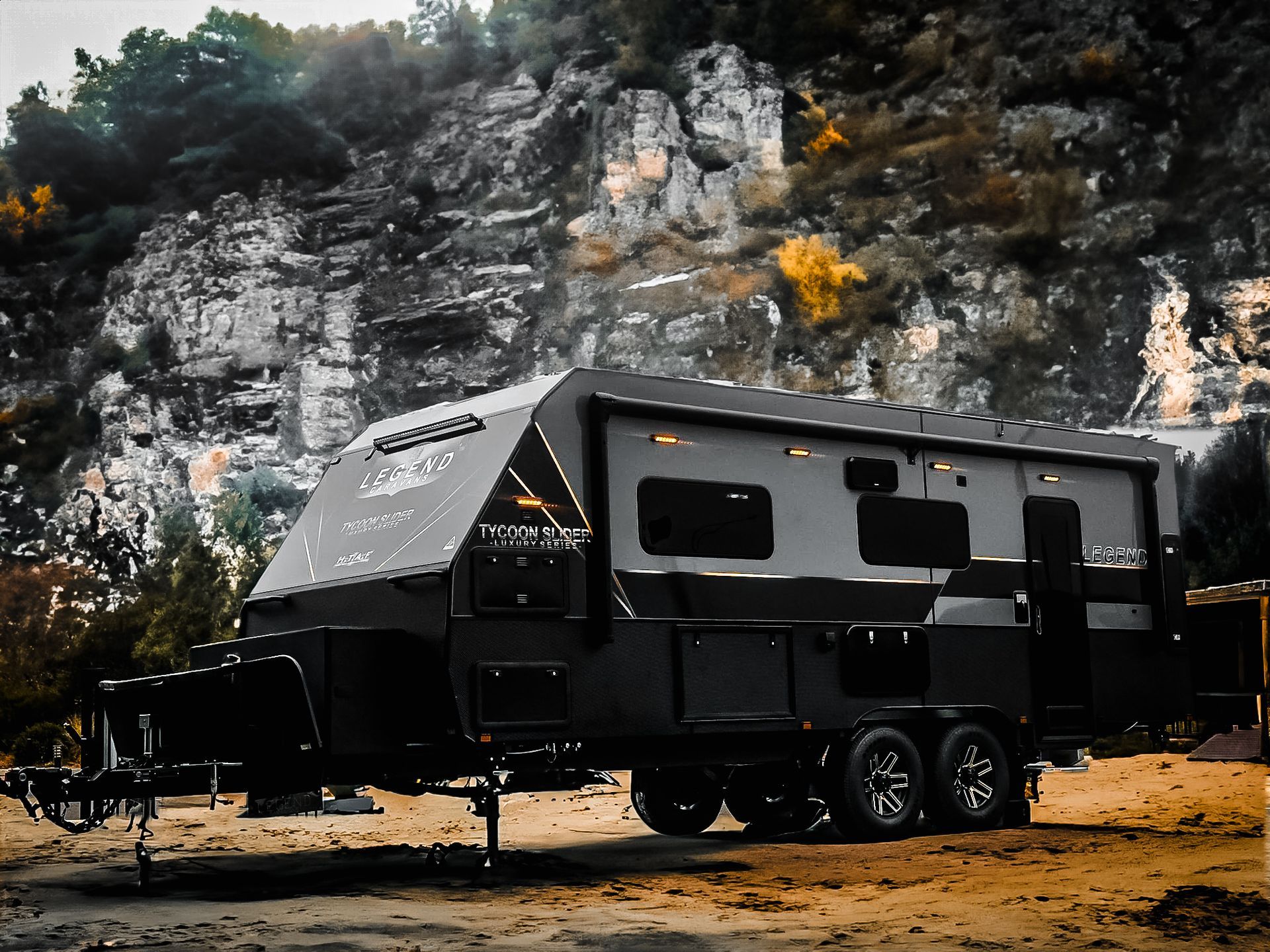

Tycoon Slider Luxury Series
The Tycoon Slider is Legend's on-road luxury range, and the tallest inside at 2062mm of internal height. Eleven floorplans run from 21ft 6in up to a 27ft tri-axle, which makes it the longest van Legend build. Suspension is Cruisemaster XT coil with 12 inch electric brakes.

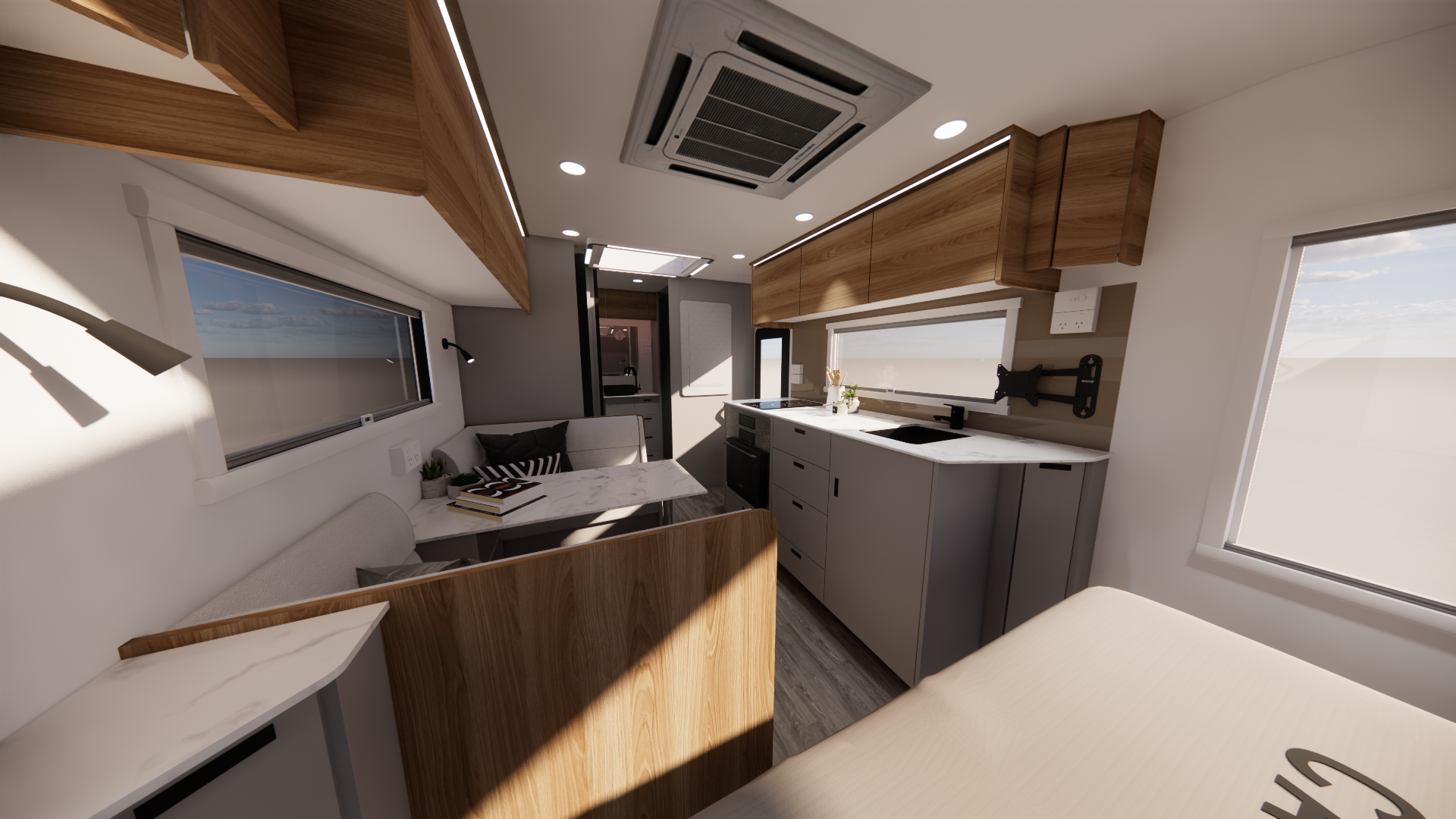

Wild Native
Wild Native is Legend's on-road touring van, and the lowest of the range at 2980mm of travel height. Six floorplans run from 18ft 6in to 21ft 6in, on the same aluminium frame and one-piece fibreglass roof as the off-road models.

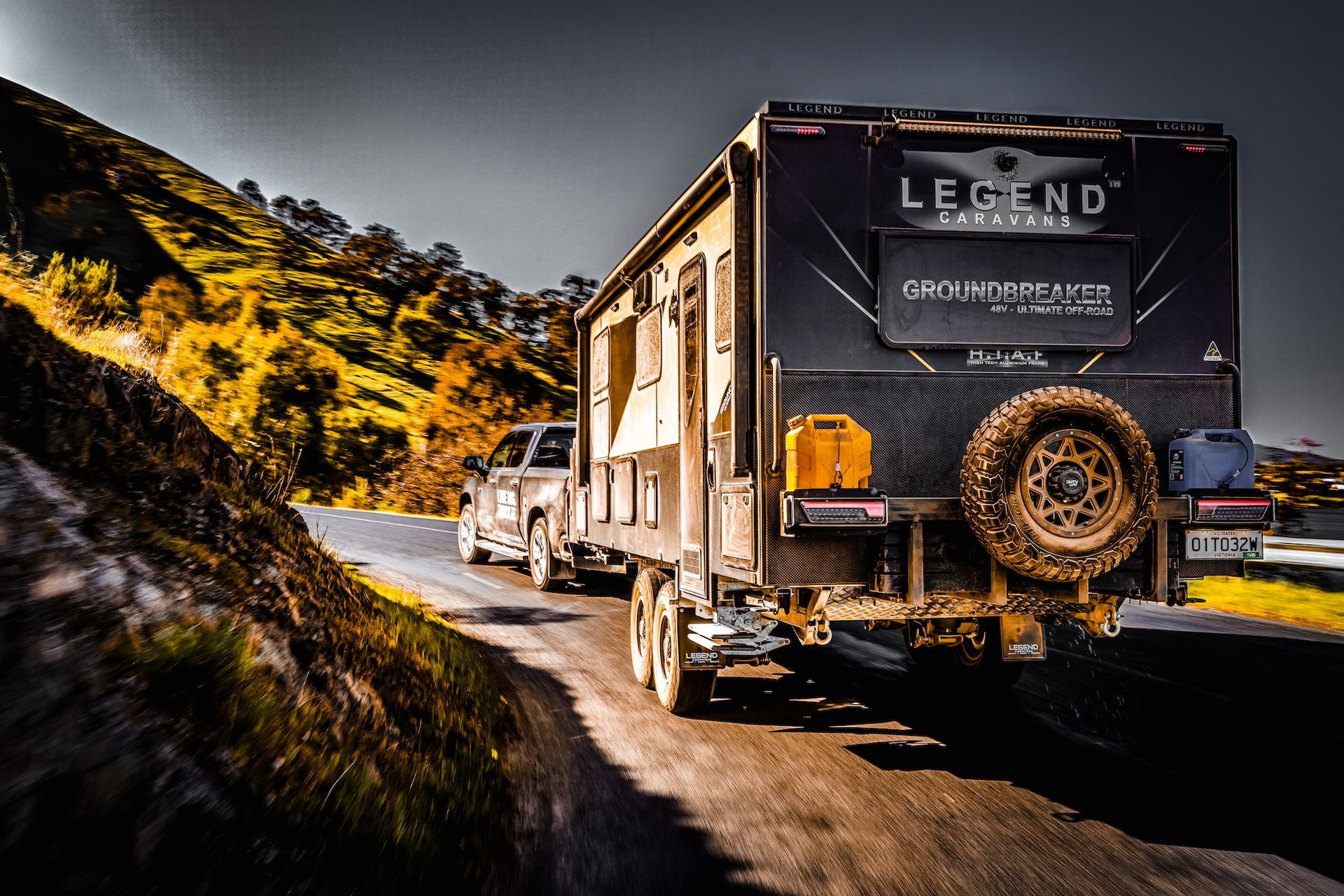

Groundbreaker Ultimate Off-Road
The Groundbreaker is Legend's flagship off-road van, and the one built around a 48 volt electrical system rather than the usual 12 volt setup. It runs a Cruisemaster DO45 hitch and ATX airbag suspension with body control, on a hot-dipped galvanised truss chassis. Eight floorplans are offered, from 5975mm to 7195mm of body length.

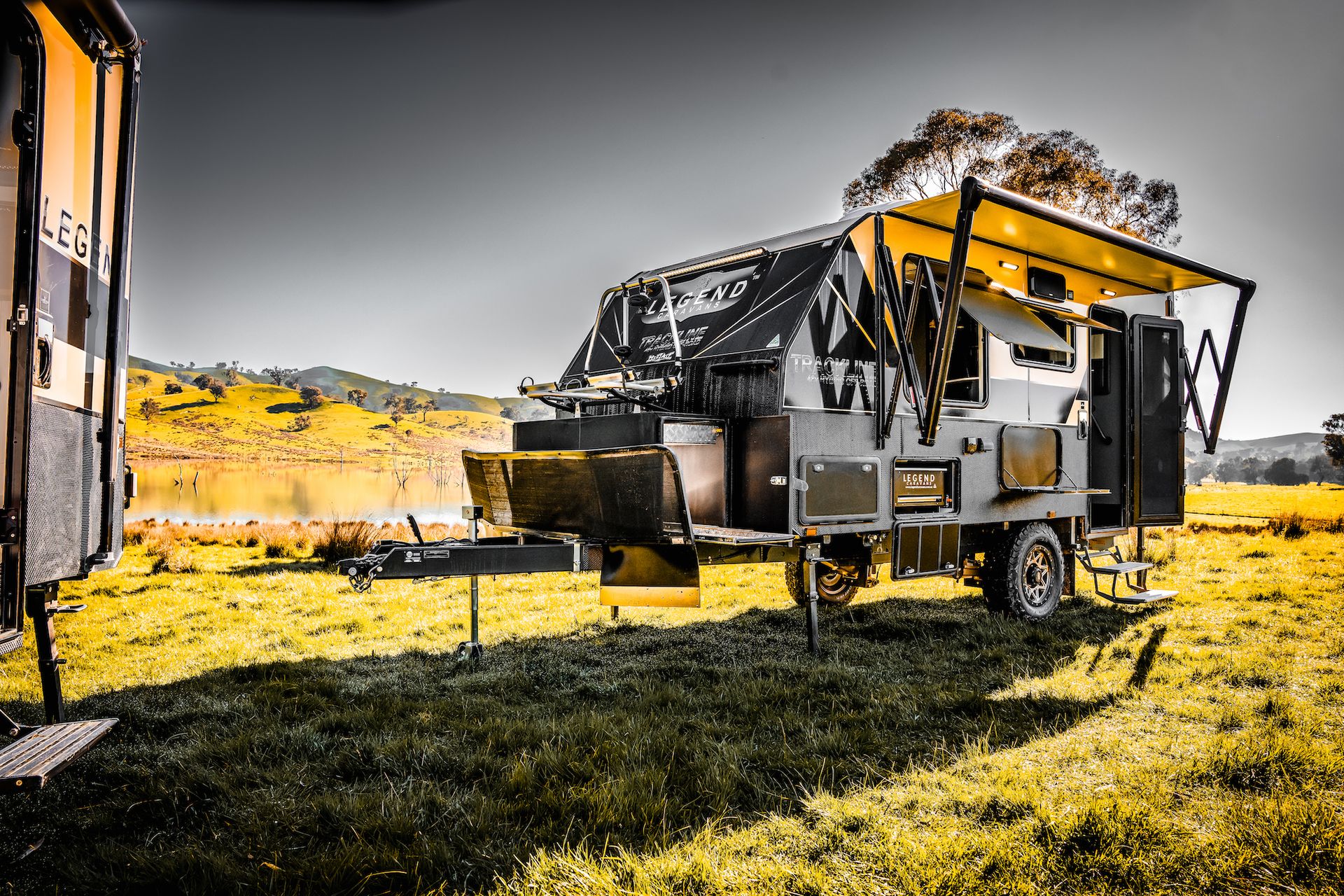

Legend Ultimate Hybrid ERV
The Ultimate Hybrid ERV is Legend's fully electric hybrid, on a single axle with Cruisemaster ATX airbag suspension and 12 inch hydraulic disc brakes. Eight floorplans are offered in the 15ft to 17ft 6in sizes. Power comes from a 48 volt lithium battery with a 5000W Victron inverter and 800W of solar.
