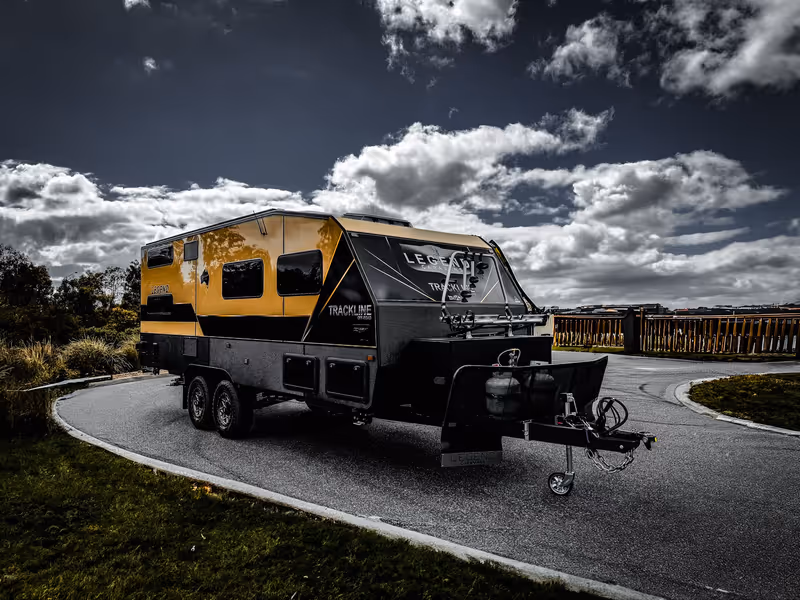

Trackline Off-Road

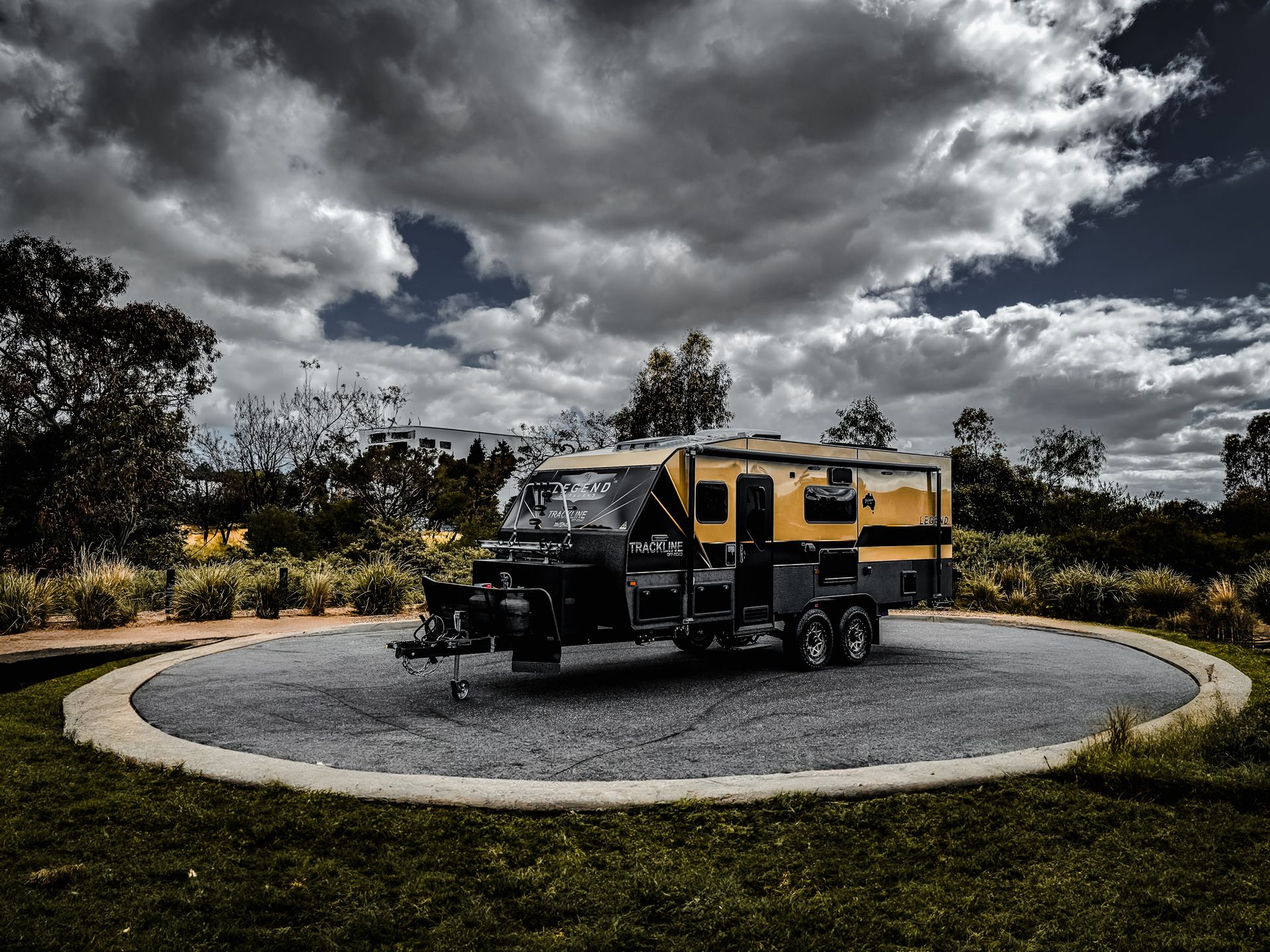

Images from Legend Caravans
- Max weight (ATM)
- 2,800kg
- Sleeps
- 2

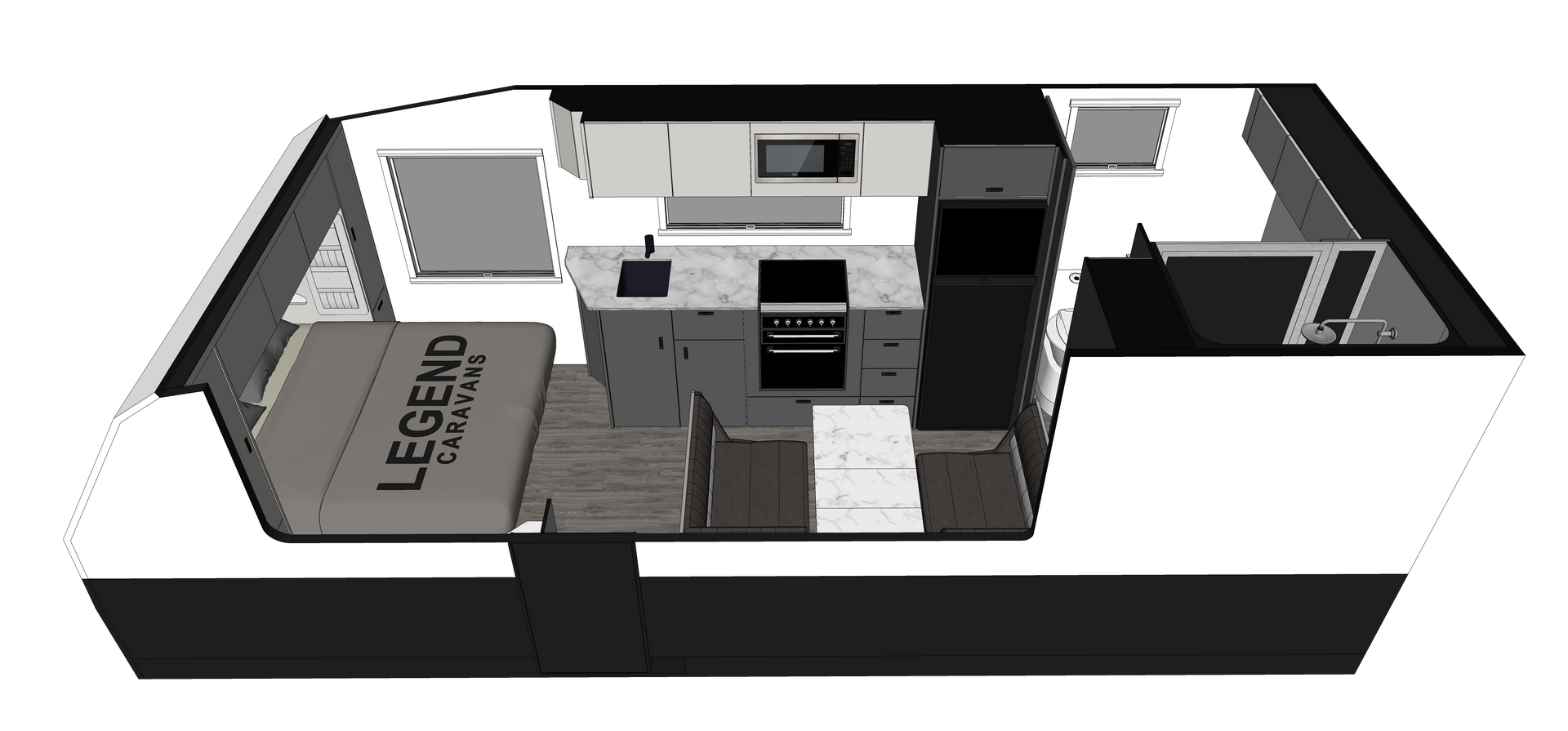

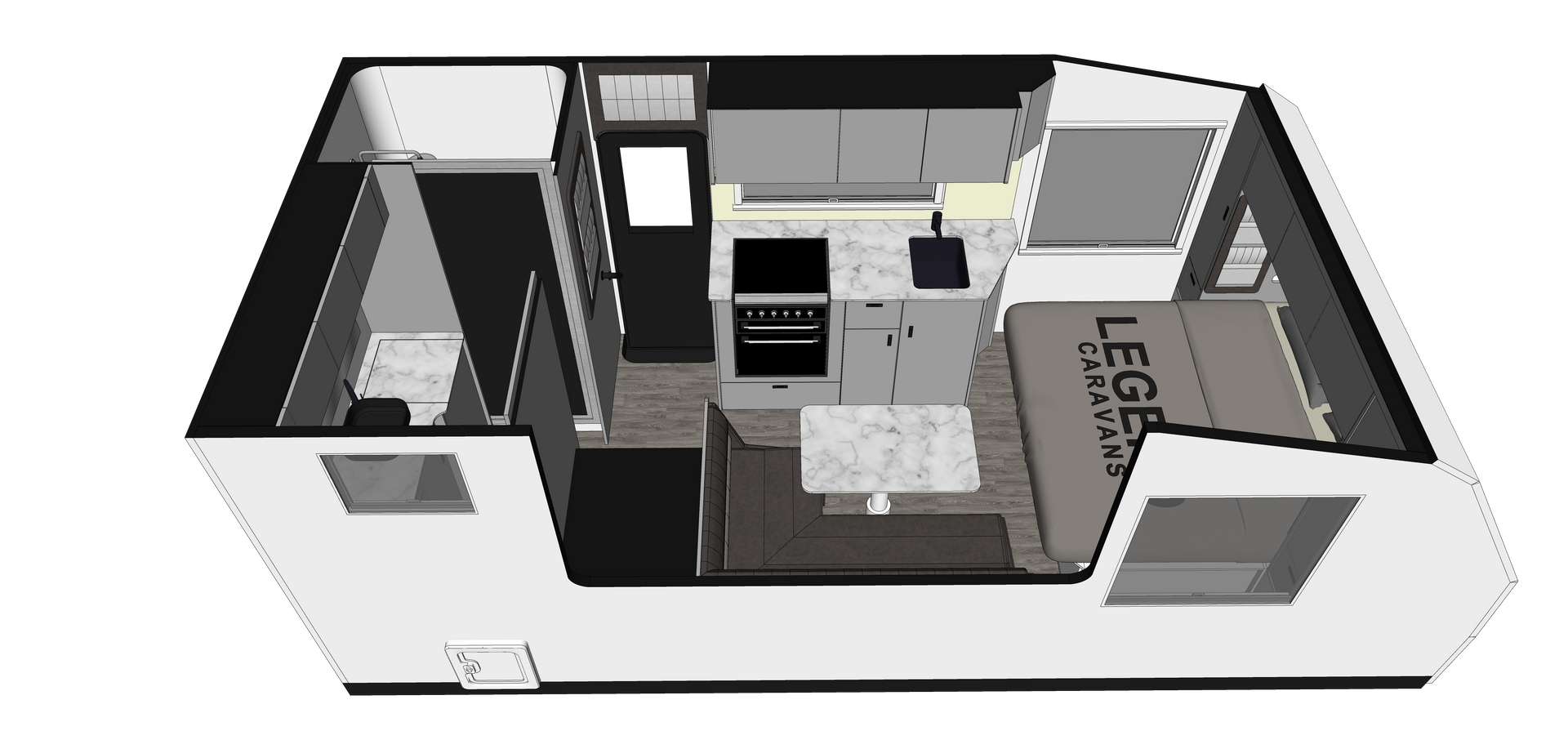

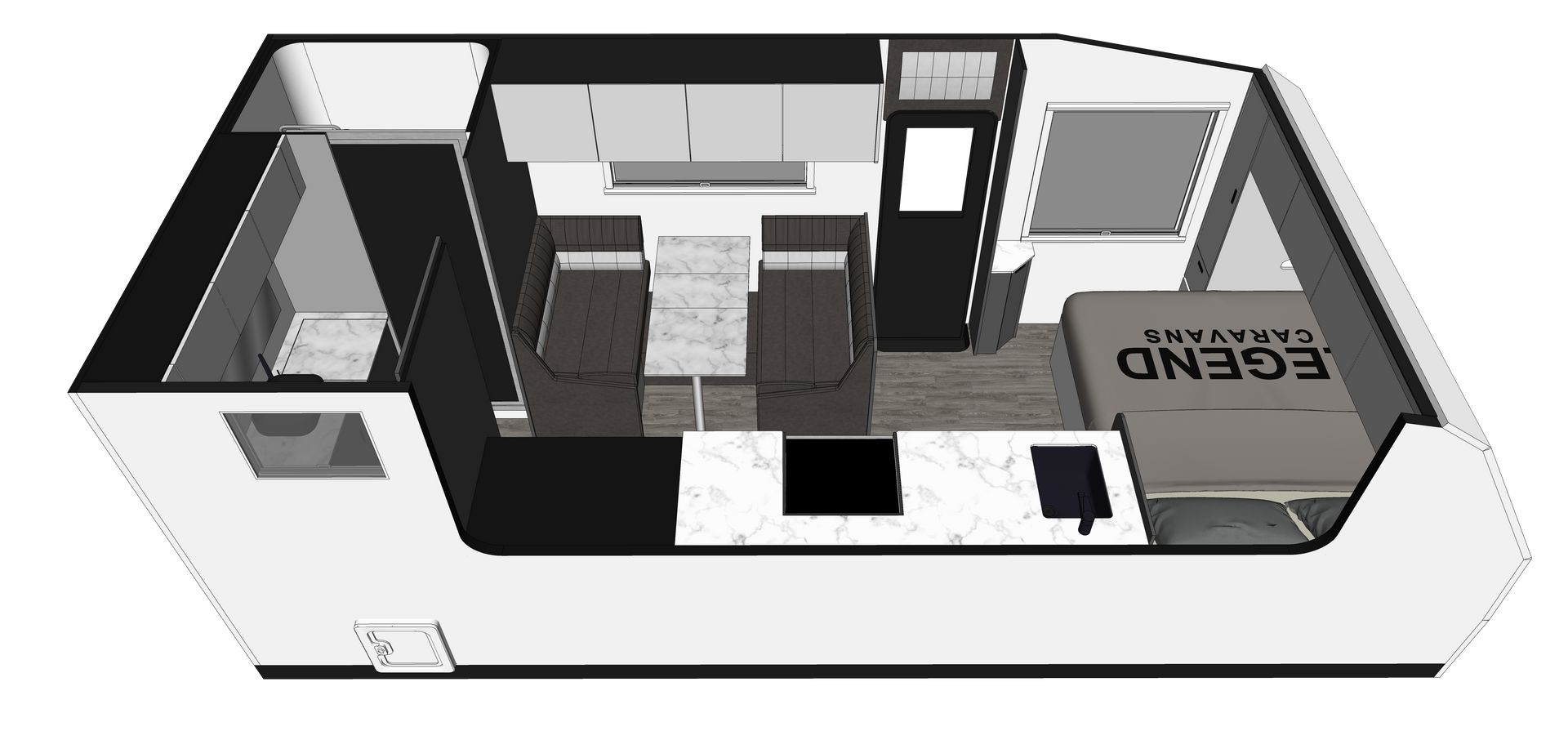

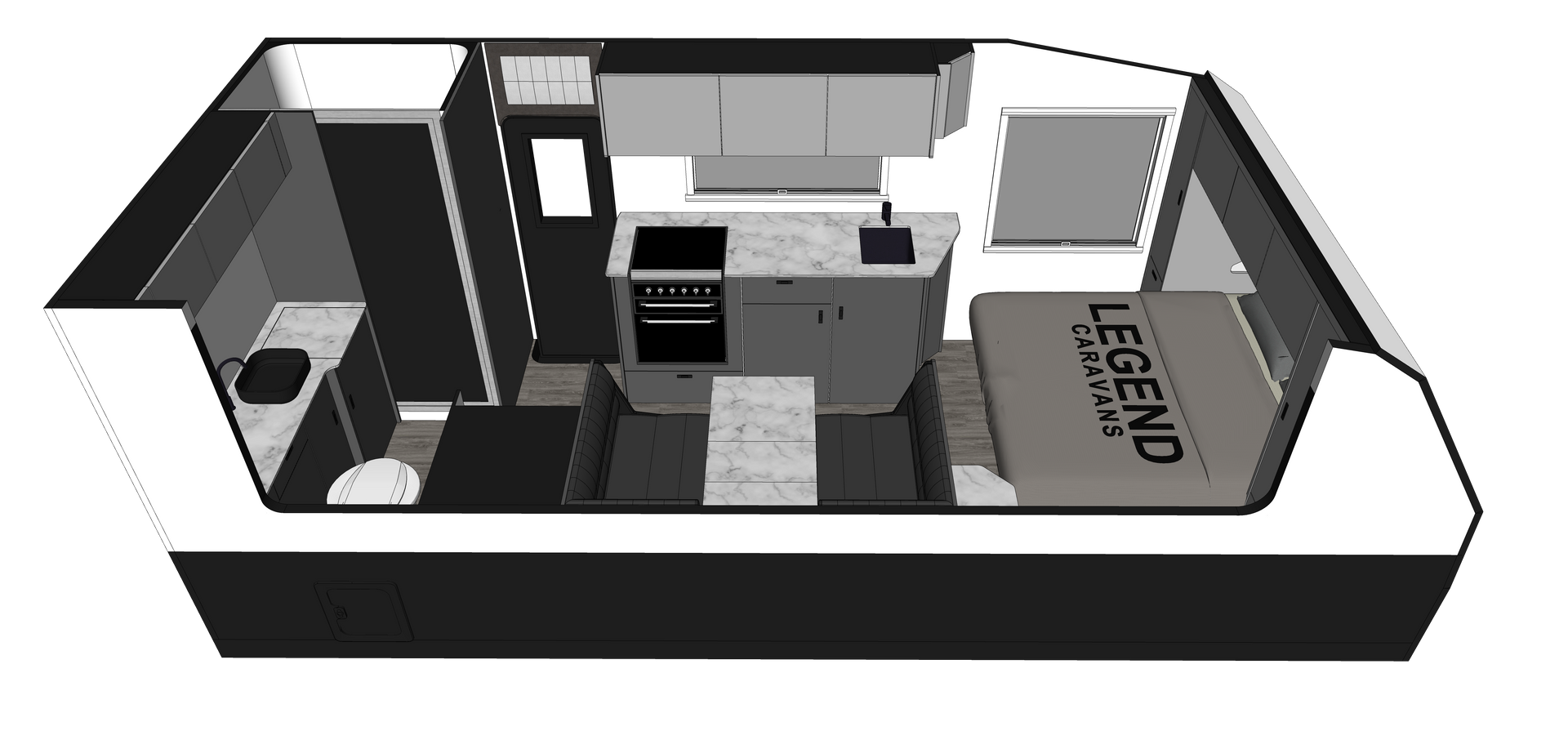

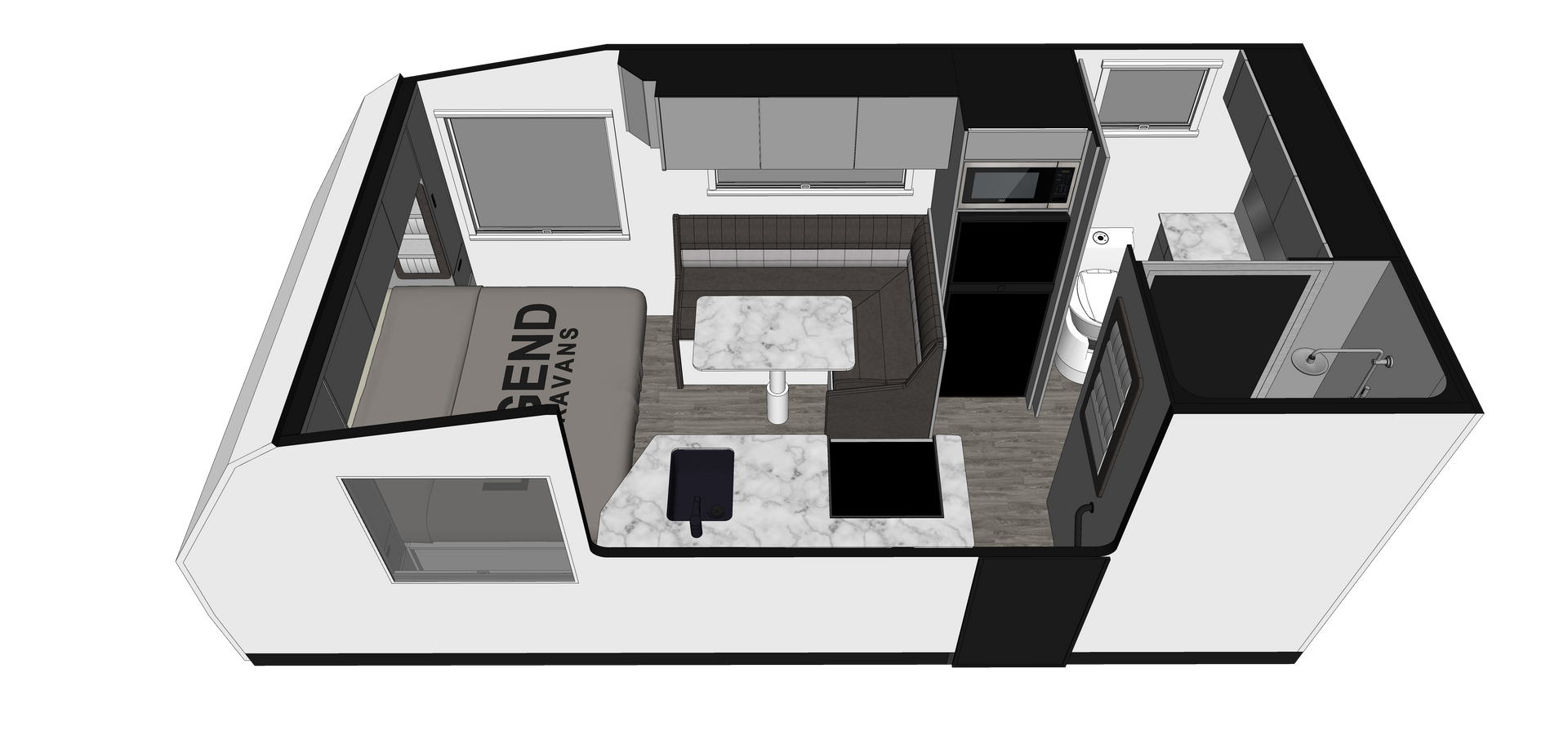

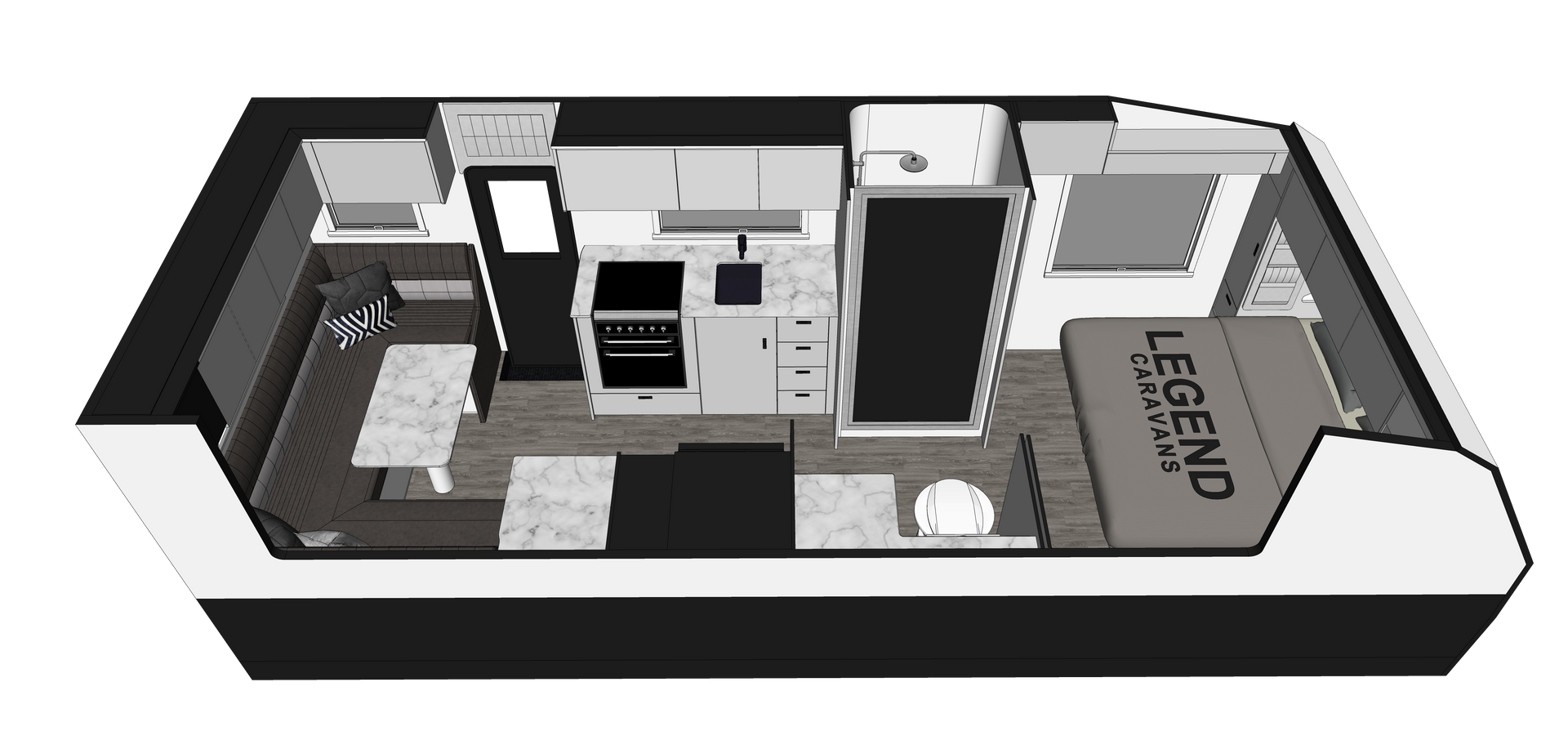

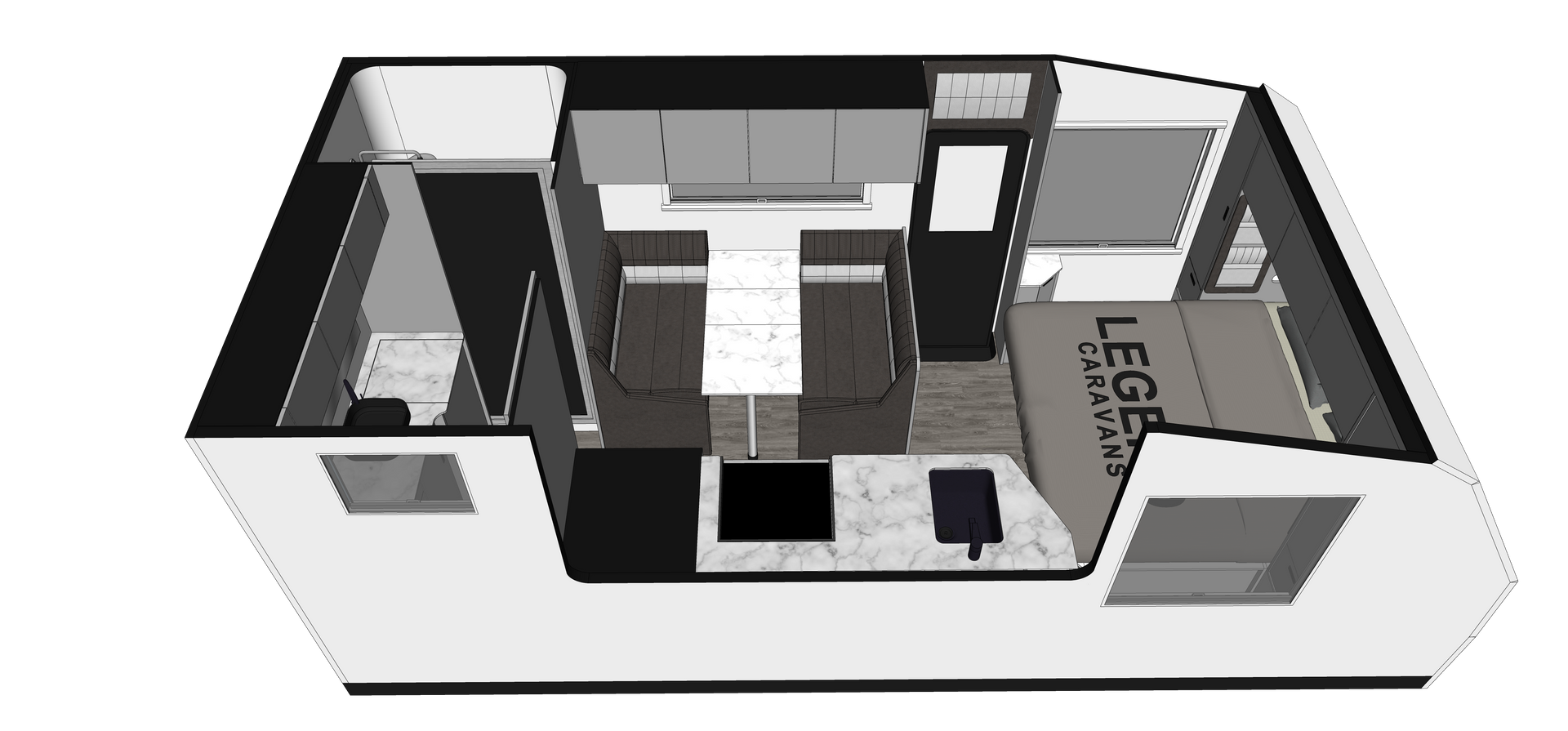

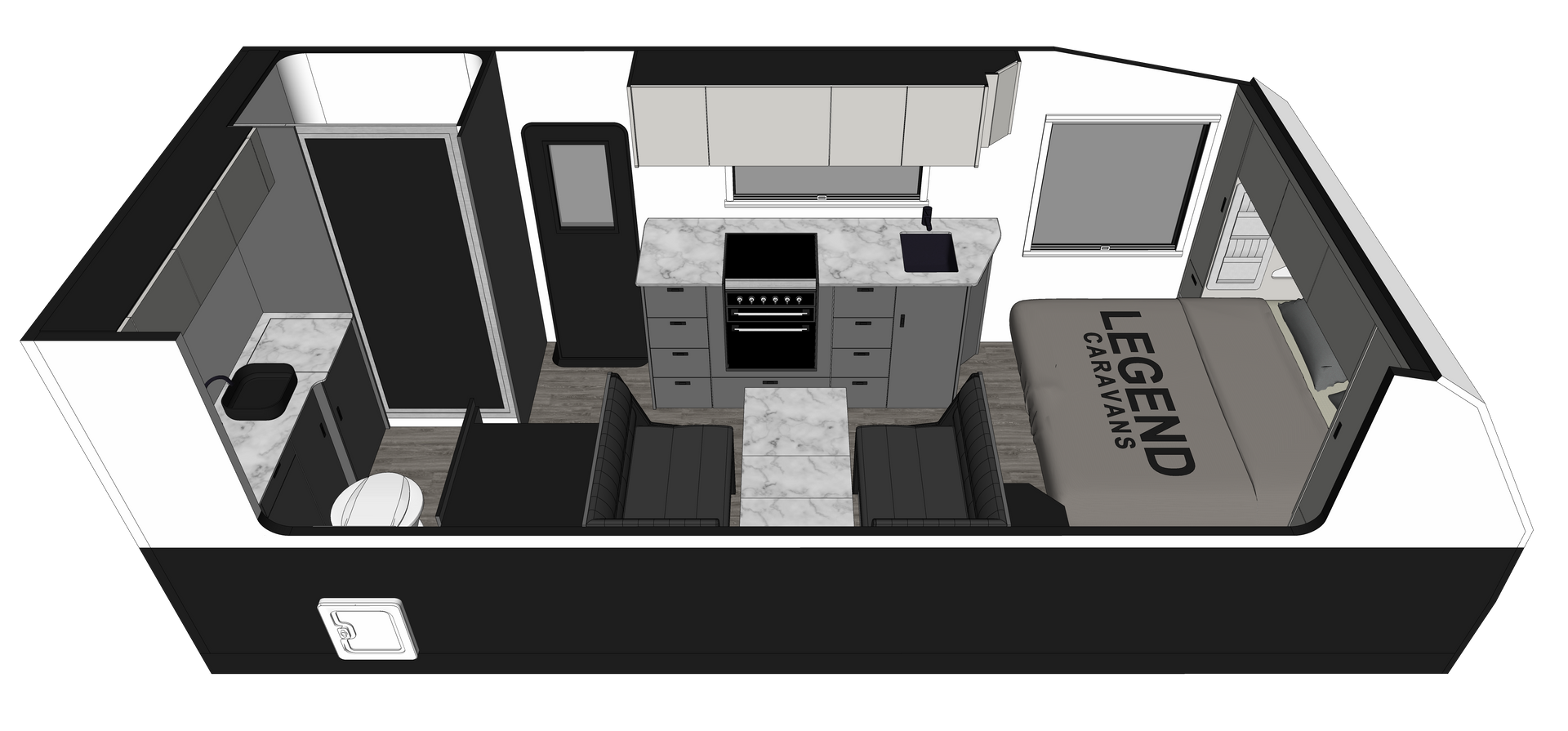

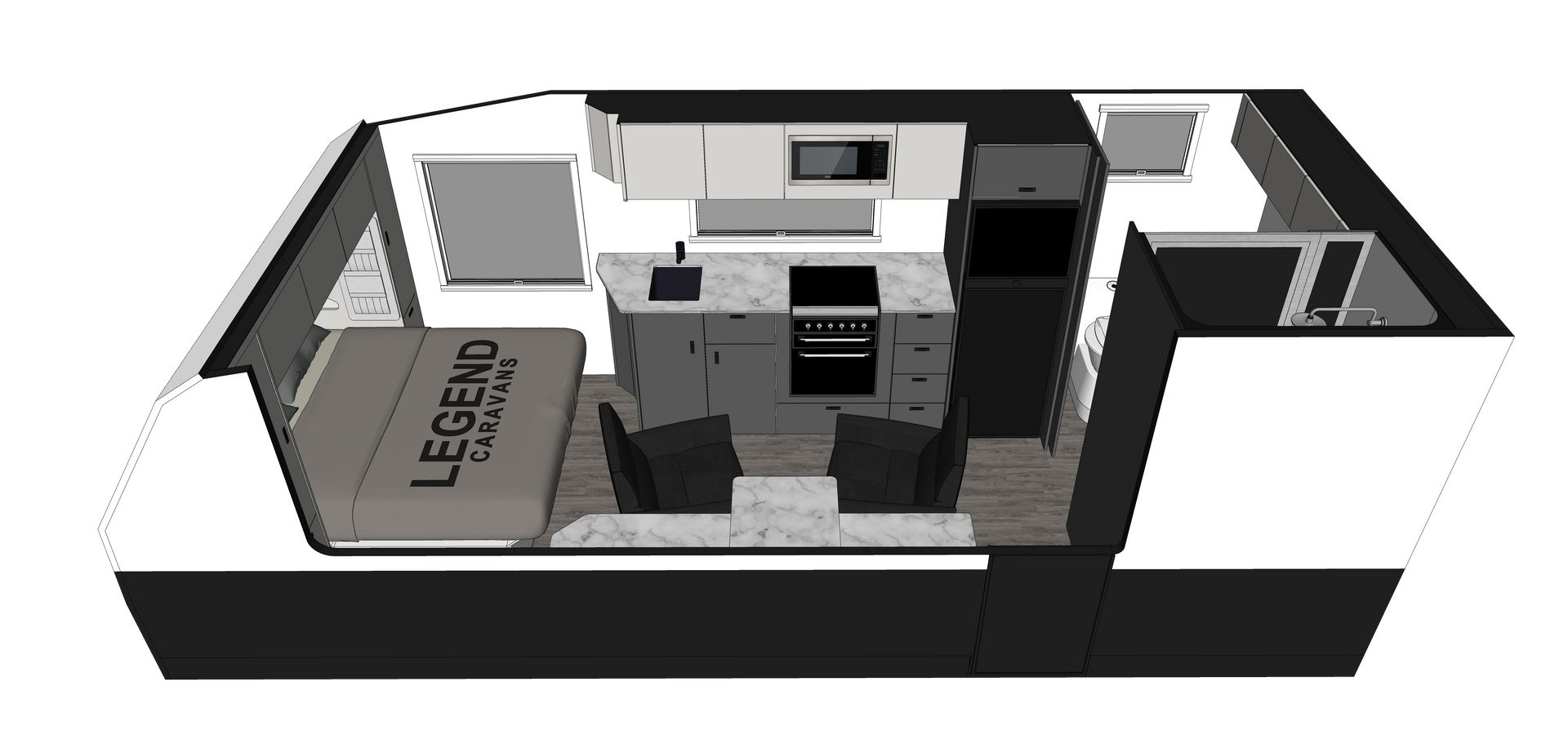

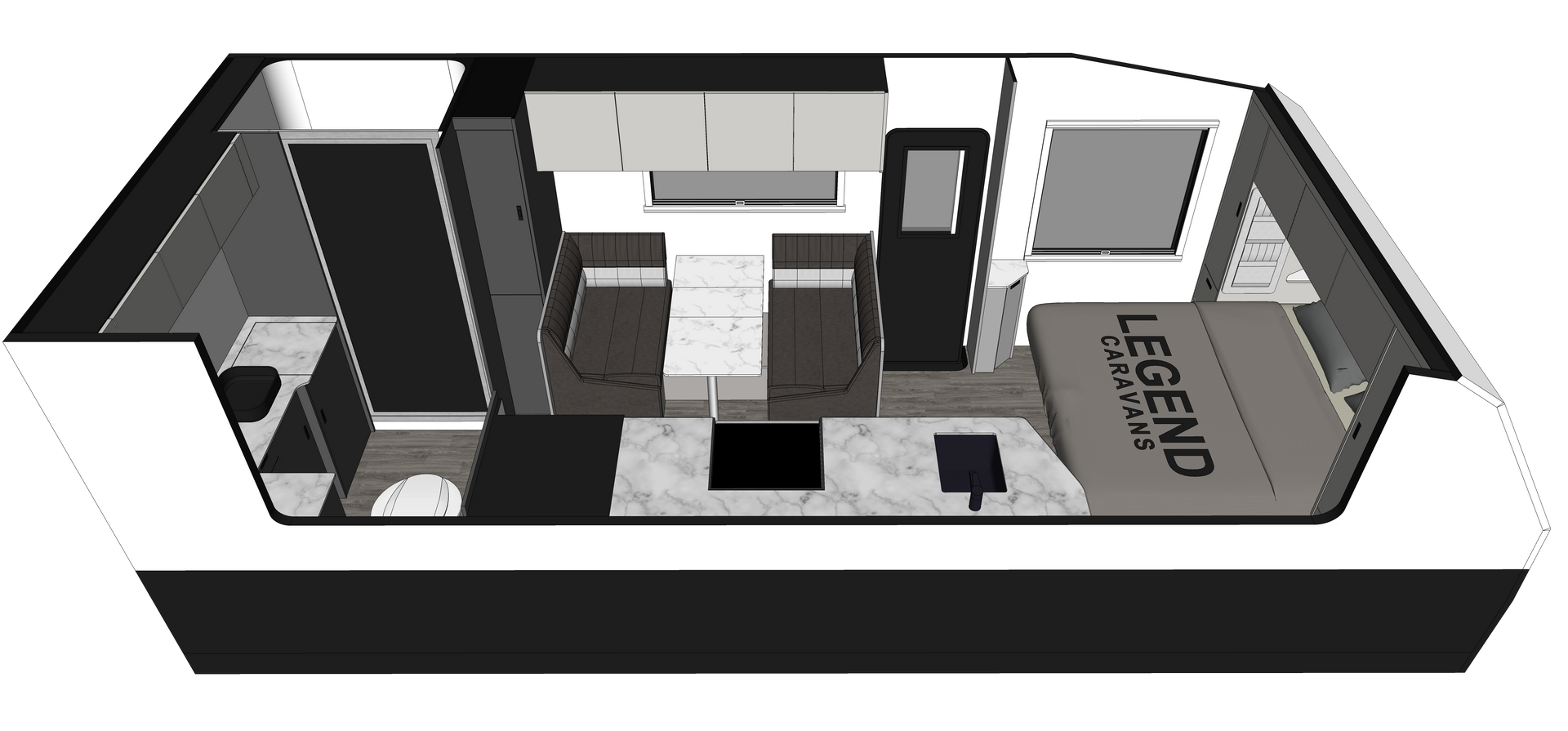

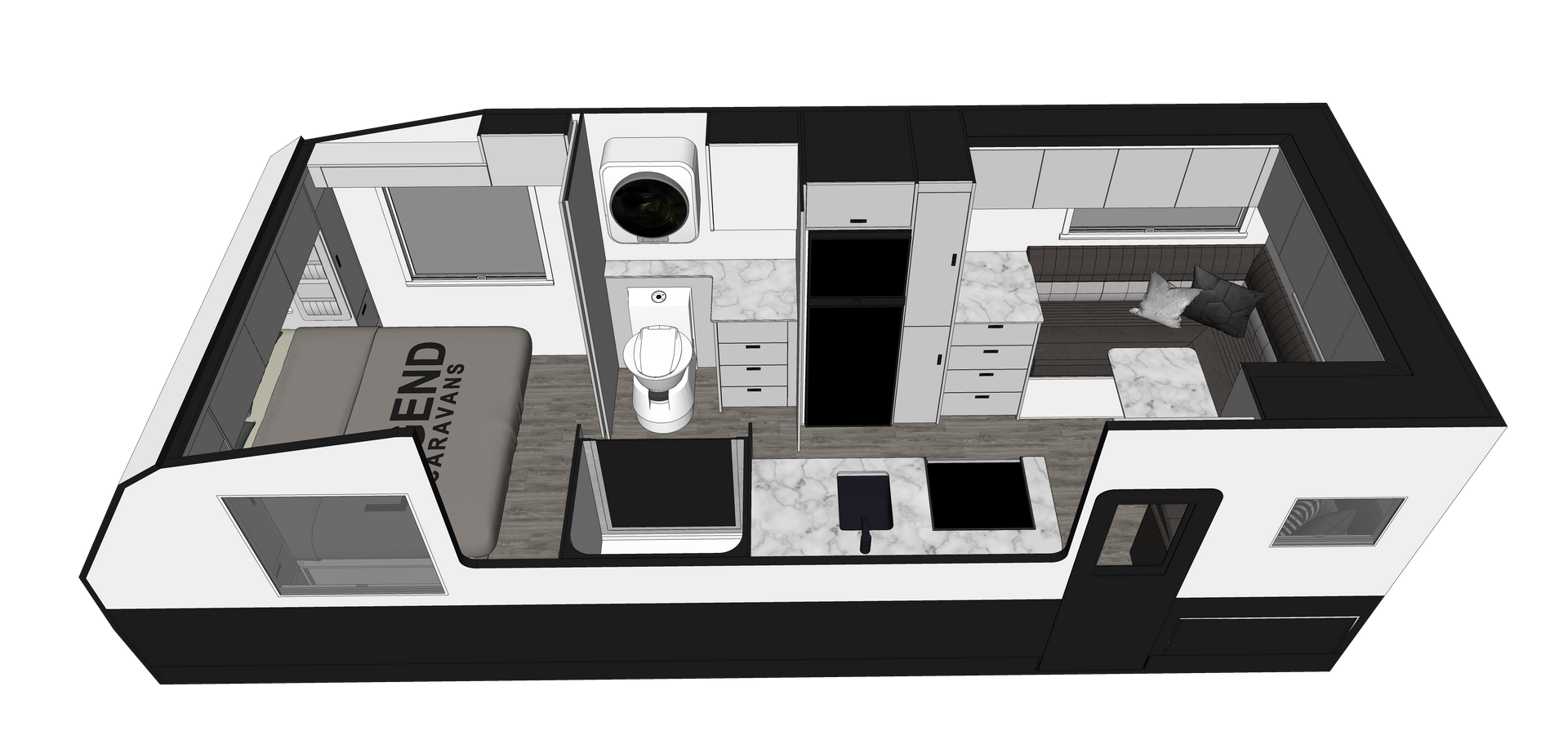

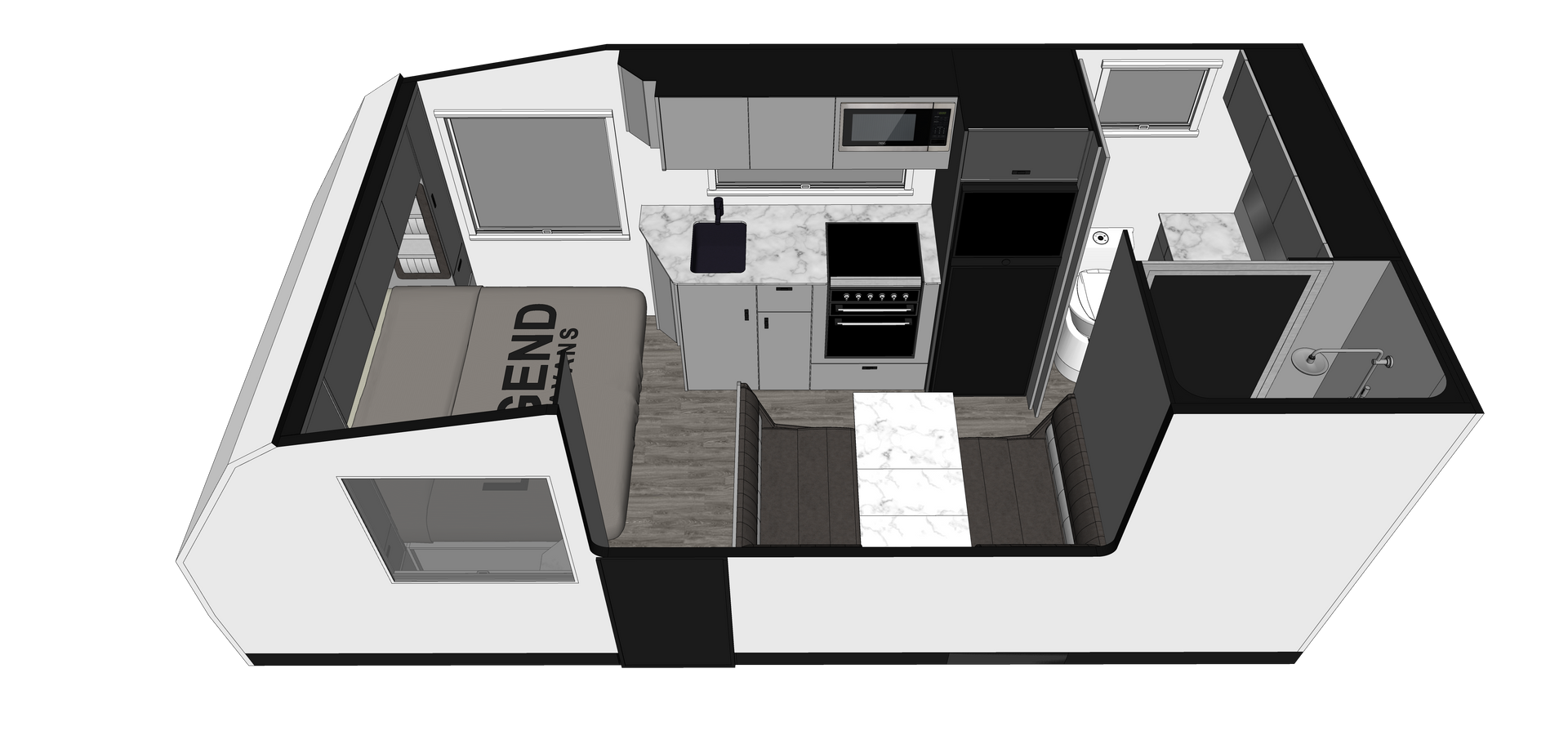

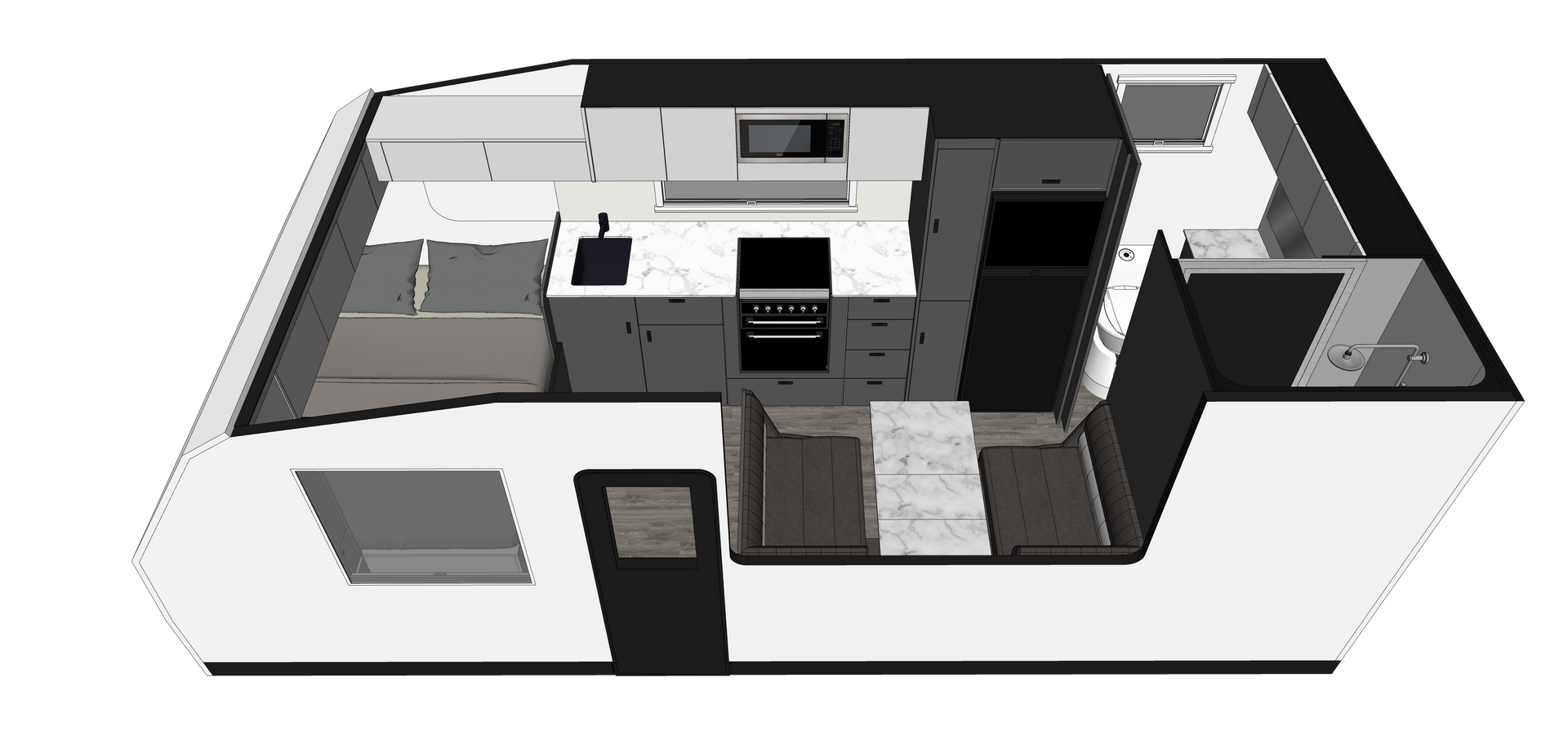

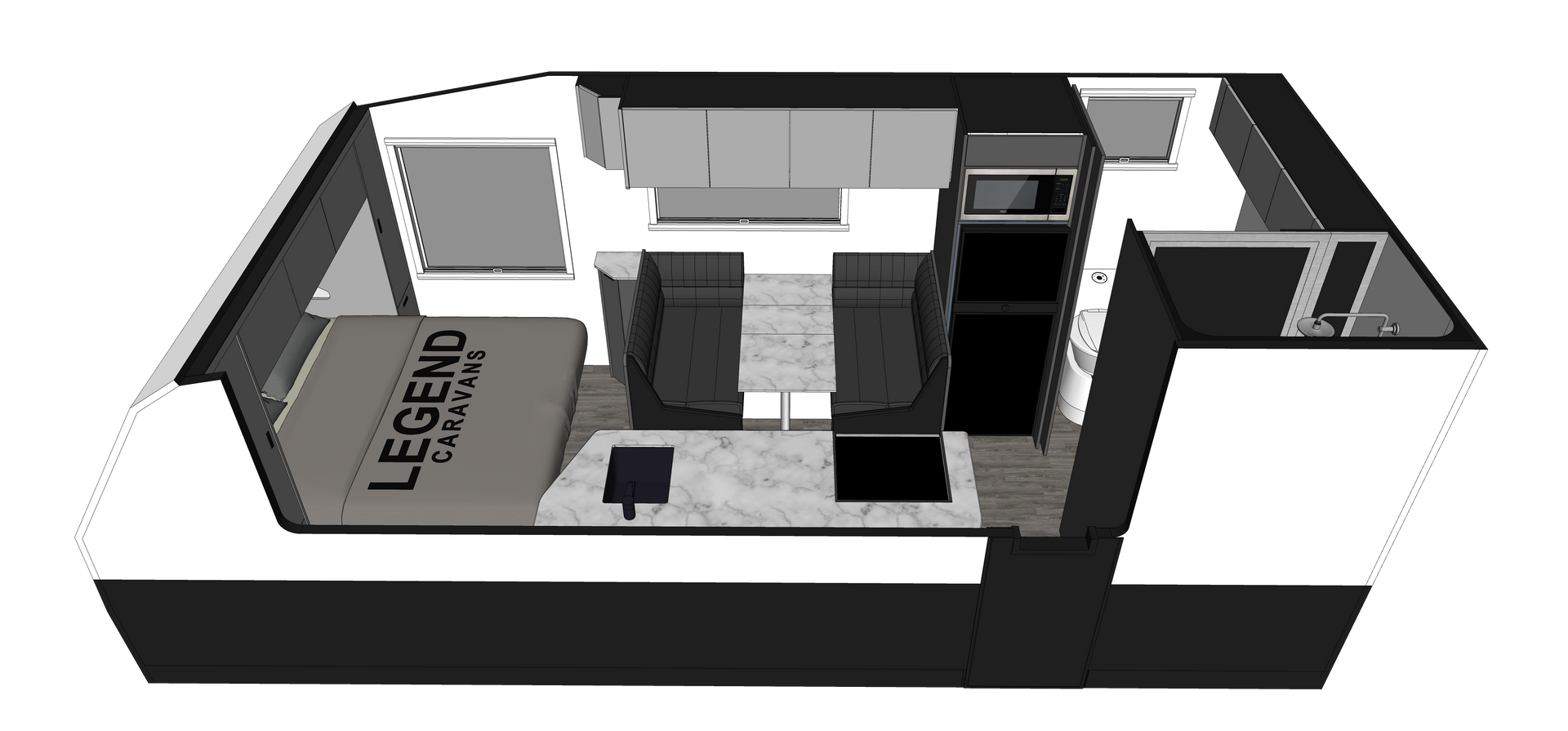

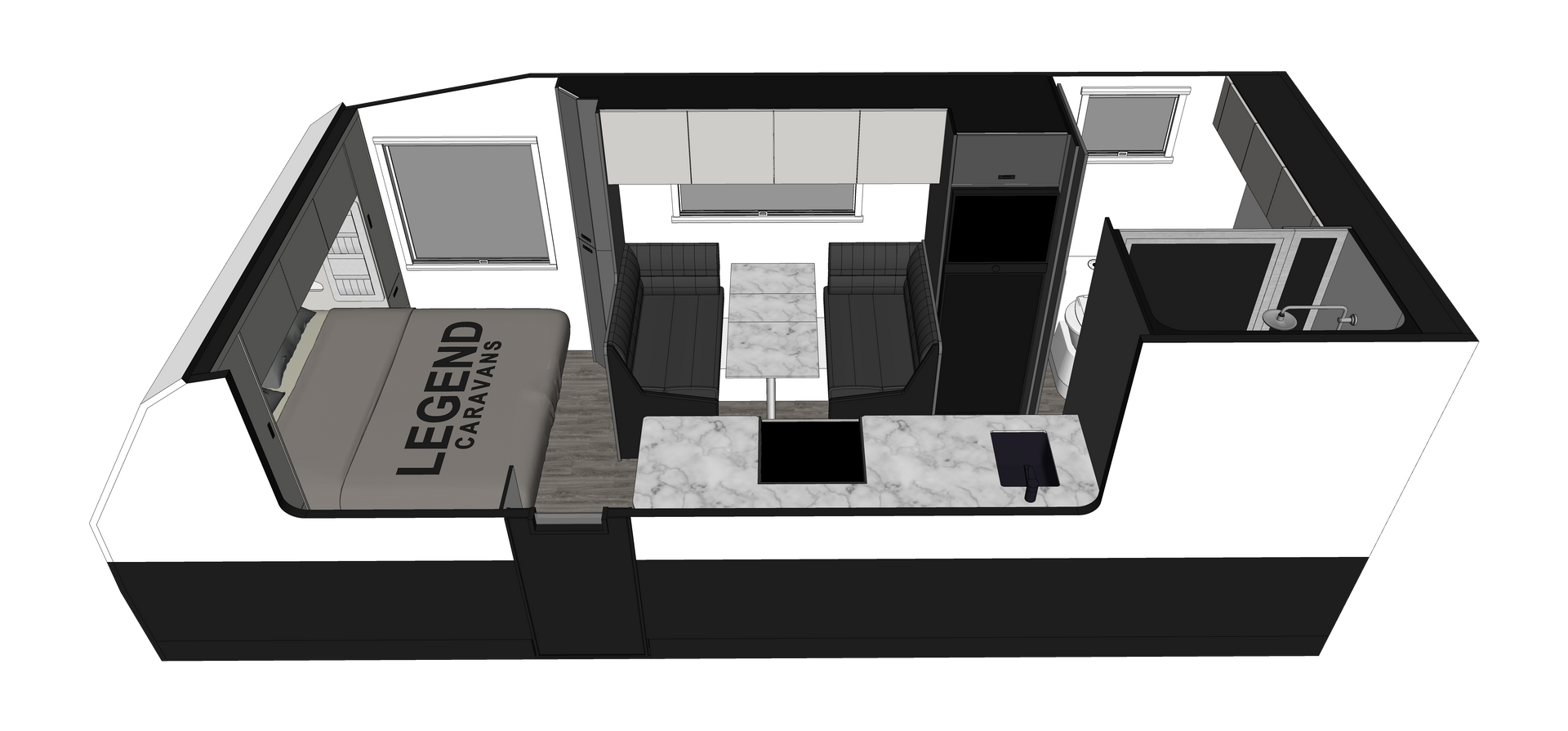

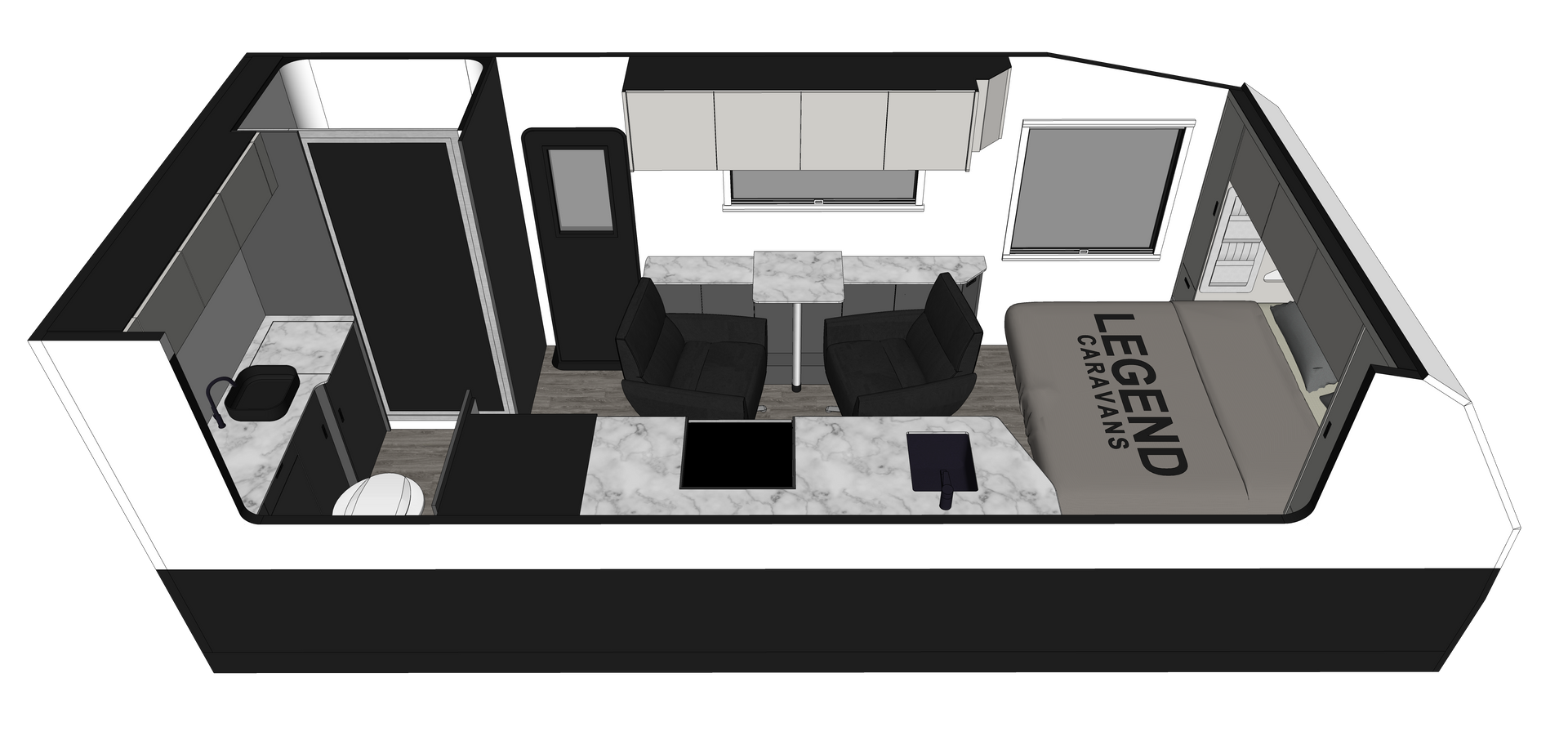

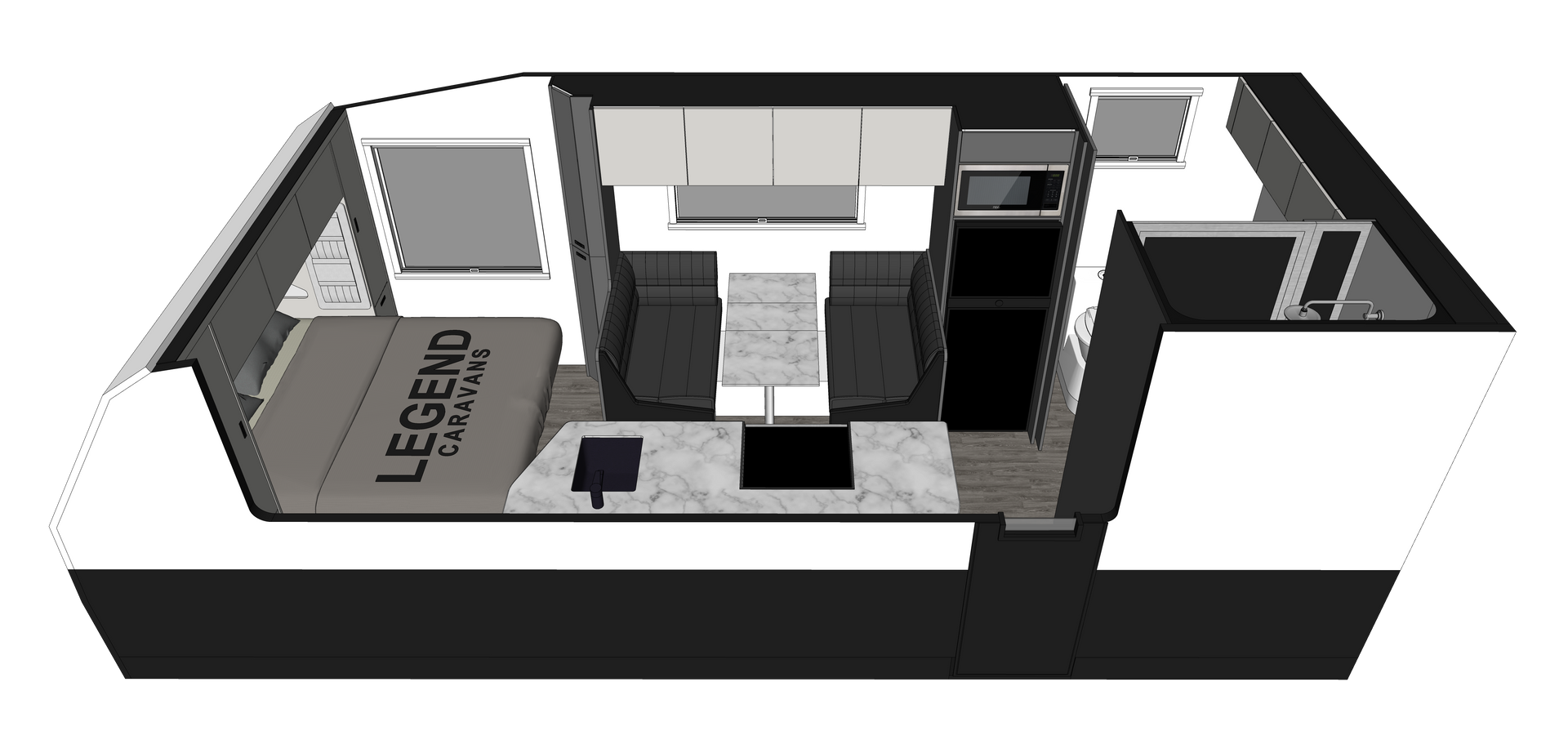

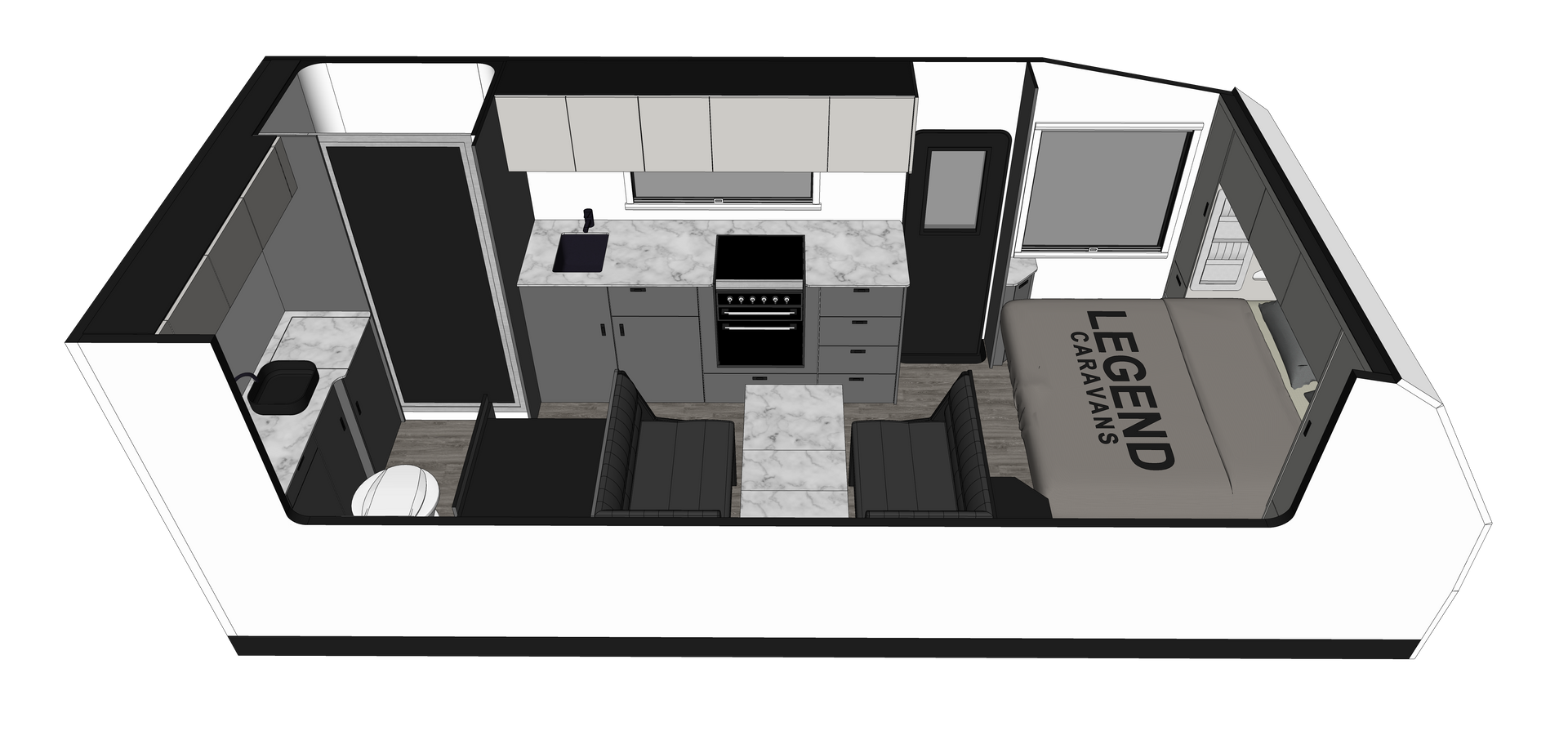

Floor plans

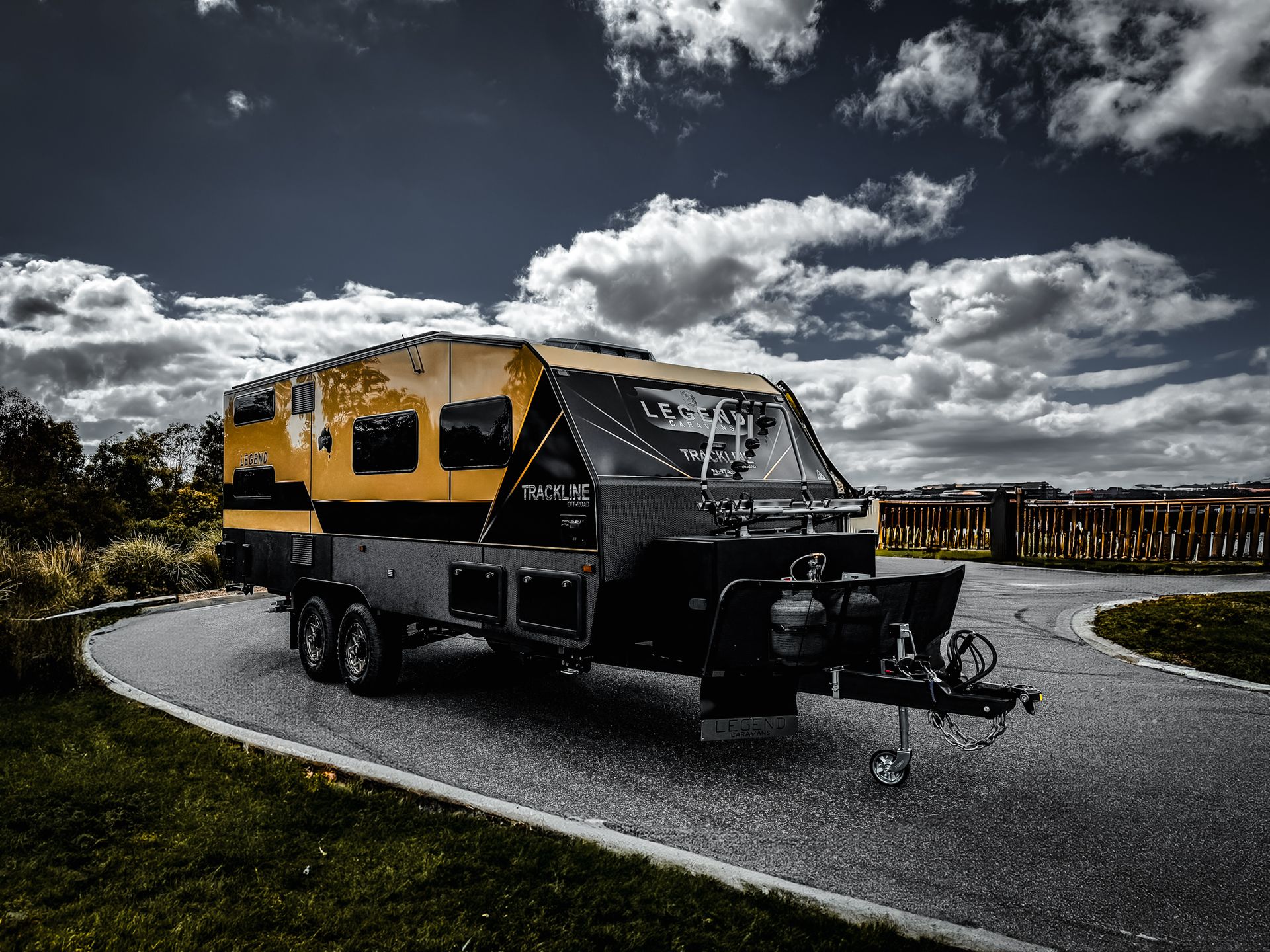

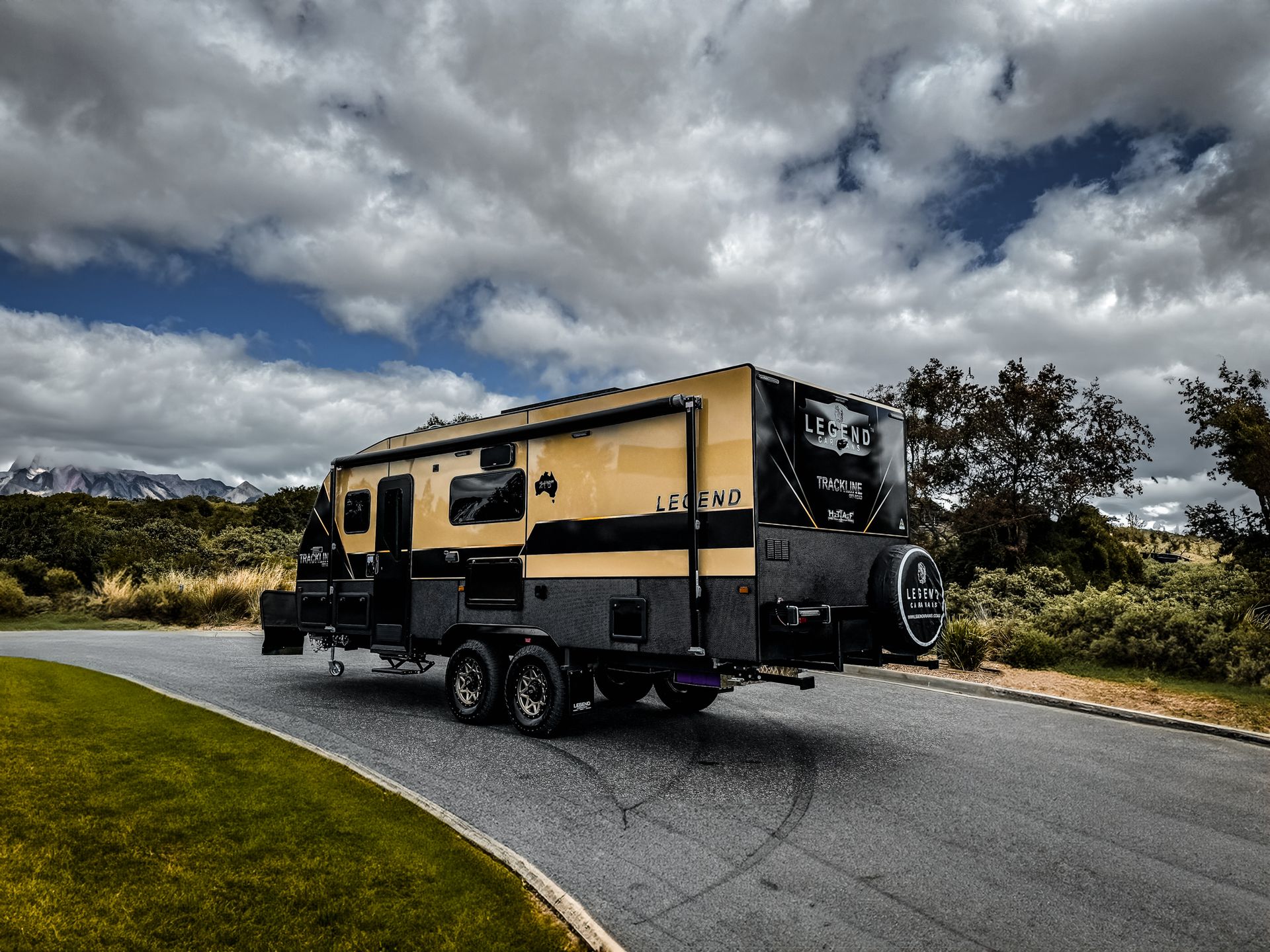

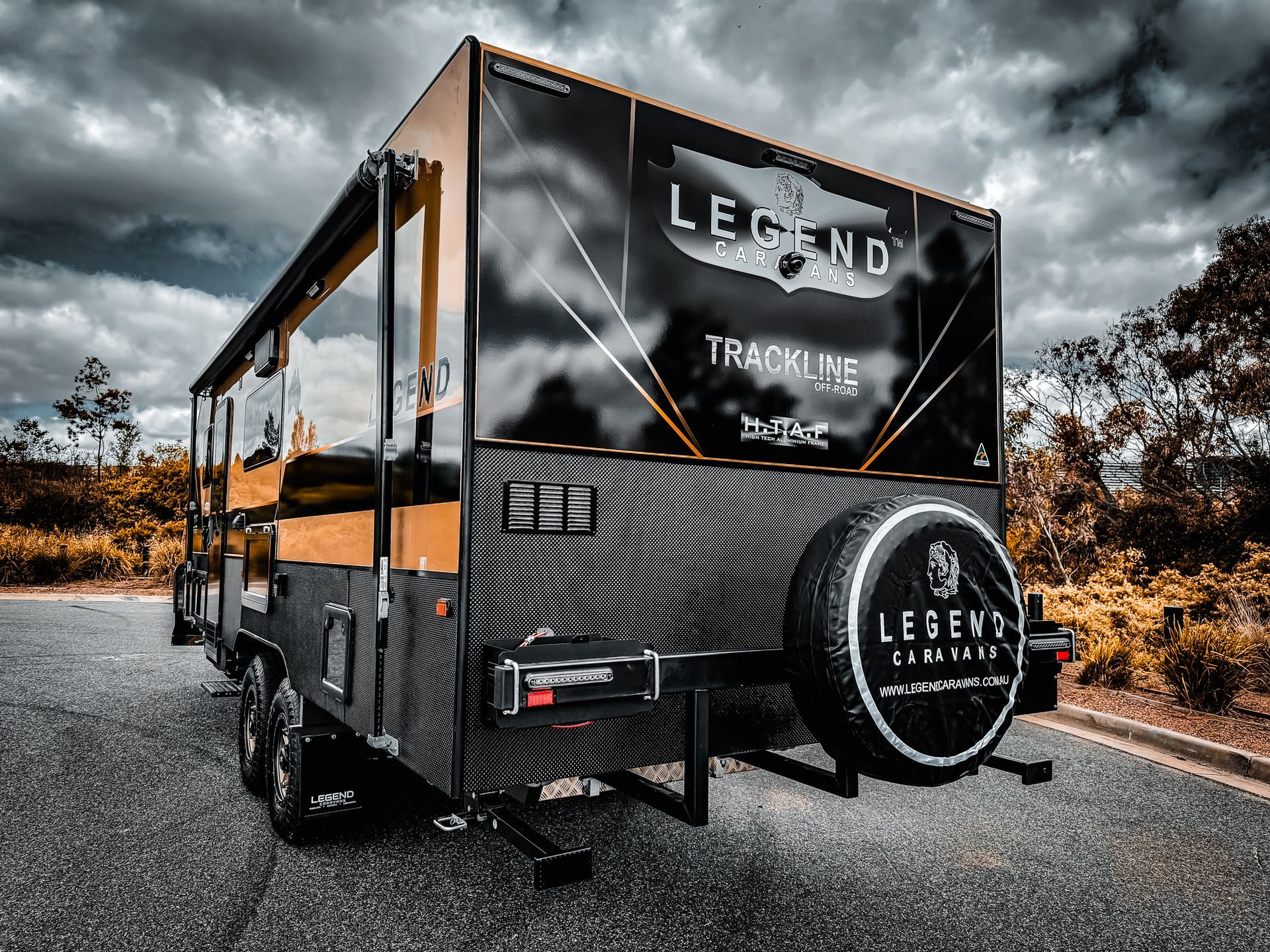

About the Trackline Off-Road
The Trackline Off-Road is a Legend off-road caravan in ten floorplans from 17 feet 6 inches to 21 feet 6 inches. Legend's estimated tare runs from 2,200kg to 2,780kg, with an ATM of 2,800kg or 3,500kg. It sits on an 8 inch Australian made chassis with Cruisemaster XT suspension, a 200 amp hour lithium battery and 400 watts of solar.
Which floorplans are there?
- 17 feet 6 inches: two floorplans, one with a front door.
- 18 feet 6 inches: three floorplans.
- 19 feet 6 inches: three floorplans.
- 20 feet 6 inches and 21 feet 6 inches: one floorplan each.
- Axles: single or tandem.
- Lounge: a luxury lounge, cafe, L-shape, bench or club style on selected layouts.

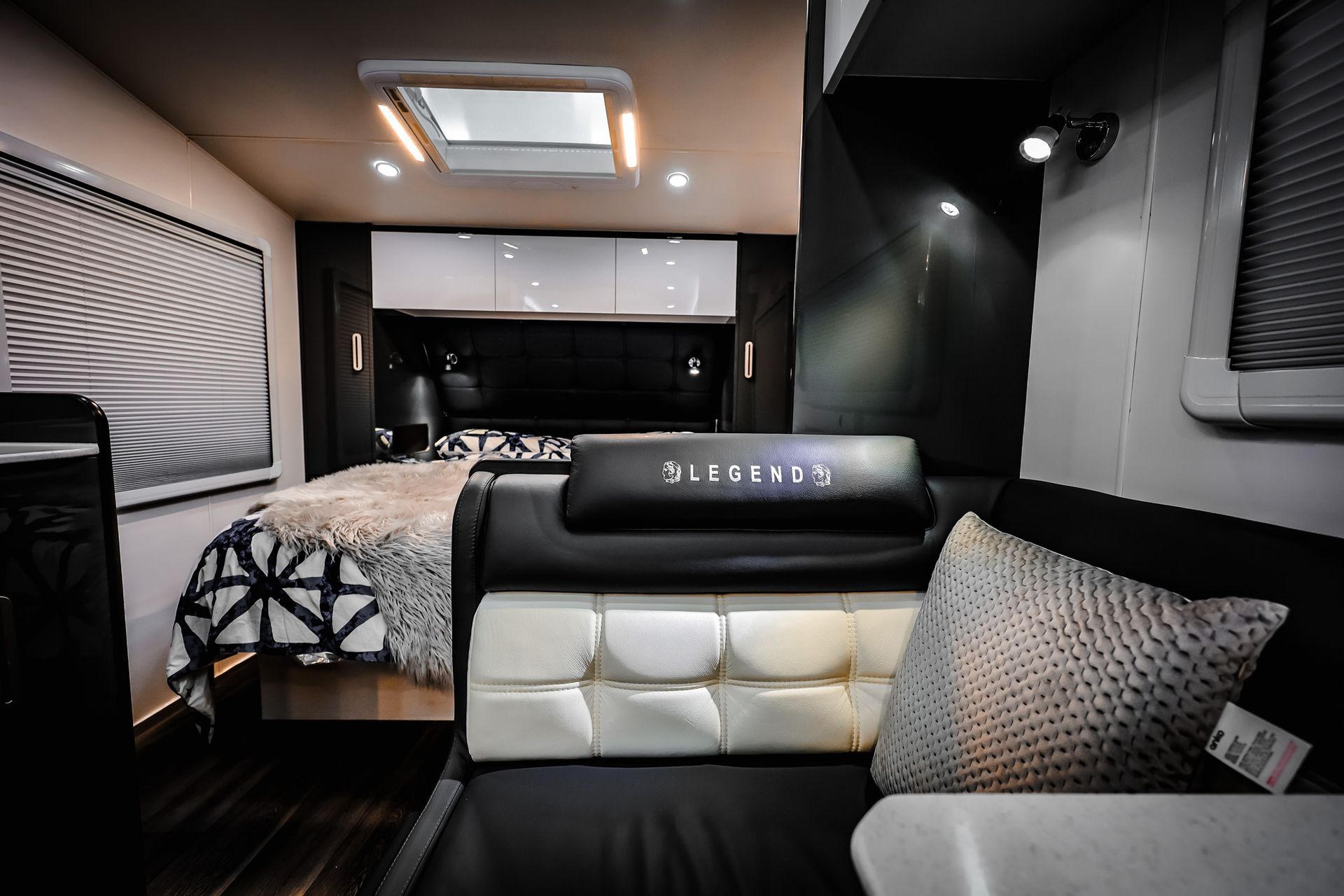

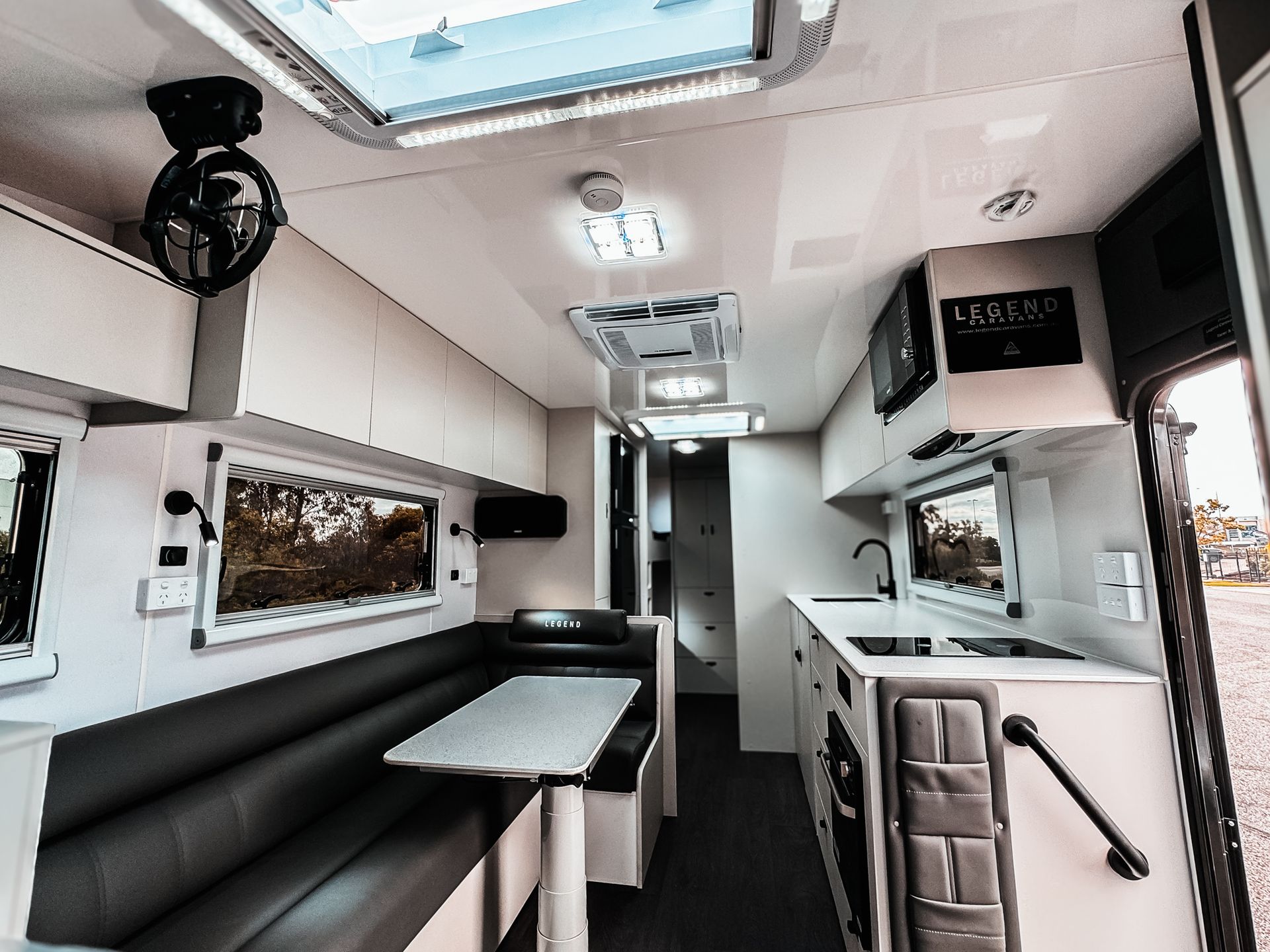

Inside
- Bed: a lift up bed frame on struts.
- Bathroom: a ceramic bowl cassette toilet and a toilet roll holder, plus an external hot and cold shower.
- Walls: rot free internal walls.
- Drawers: soft close lockable drawers and soft close hinges.
Kitchen
- Cooking: a four burner gas cooker with an oven, and a microwave.
- Fridge: a 188 litre two door fridge.
- Benchtops: solid surface.
Build
- Chassis: an 8 inch Australian made chassis with a 150mm A-frame.
- Suspension: Cruisemaster XT.
- Brakes: 12 inch electric brakes, with rated recovery points.
- Hitch: a Cruisemaster DO35 hitch rated to 3,500kg.
- Frame: aluminium joined with Hanrob self piercing rivets.
- Body: aluminium composite walls, a one piece honeycomb floor and a one piece insulated fibreglass roof.
Power and water
- Battery: a 200 amp hour lithium battery with a Victron battery management system.
- Solar: two 200 watt panels.
- Charging: a 30 amp DC-DC charger with solar input, and a battery monitor.
- Water: two 95 litre fresh tanks and a 110 litre grey tank.
- Hot water: a gas and electric hot water system.
Weights by length
- 17 feet 6 inches: about 2,200kg to 2,220kg tare, 200kg ball weight and a 2,800kg ATM (aggregate trailer mass).
- 18 feet 6 inches: about 2,400kg tare, 120kg or 220kg ball weight and a 3,500kg ATM.
- 19 feet 6 inches: about 2,480kg tare, 120kg ball weight and a 3,500kg ATM.
- 20 feet 6 inches: about 2,600kg tare, 210kg ball weight and a 3,500kg ATM.
- 21 feet 6 inches: about 2,780kg tare, 250kg ball weight and a 3,500kg ATM.
What will tow it?
Your vehicle needs a braked towing capacity of at least 2,800kg for a 17 foot 6 inch floorplan, or 3,500kg for the longer floorplans. Check the floorplan's ball weight against your towball limit as well.
How to buy
Legend's showroom is at 2 Florey Court, Somerton, in Melbourne. It also lists dealers in Victoria, Western Australia, New South Wales, South Australia and Queensland. Legend says "All Legend Caravans are made and manufactured in Australia with the latest technology and machinery that help us produce a great product."
Technical specifications
About Legend Caravans
Legend Caravans build off-road, on-road and hybrid caravans from Somerton in Melbourne's north, and state that all Legend caravans are made and manufactured in Australia. Legend says every range uses an aluminium frame assembled with a self-piercing rivet system rather than welding, with a one-piece fibreglass roof and a honeycomb floor.
