Legend Ultimate Hybrid ERV

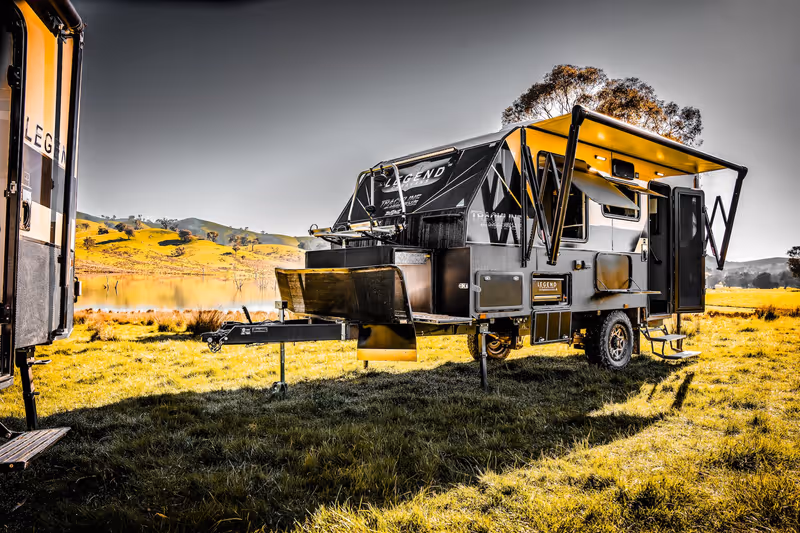

Images from Legend Caravans
- Max weight (ATM)
- 3,000kg
- Sleeps
- 2

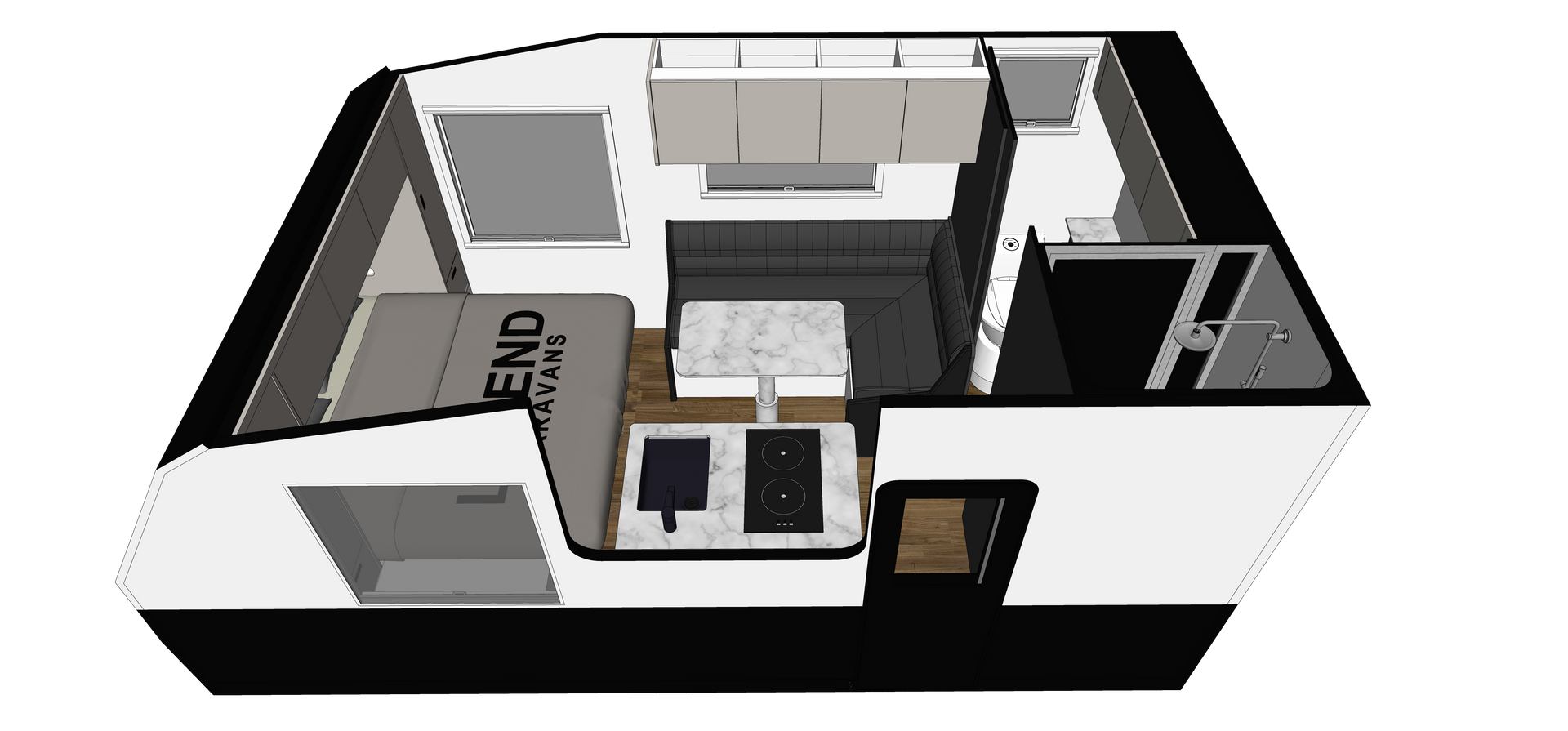

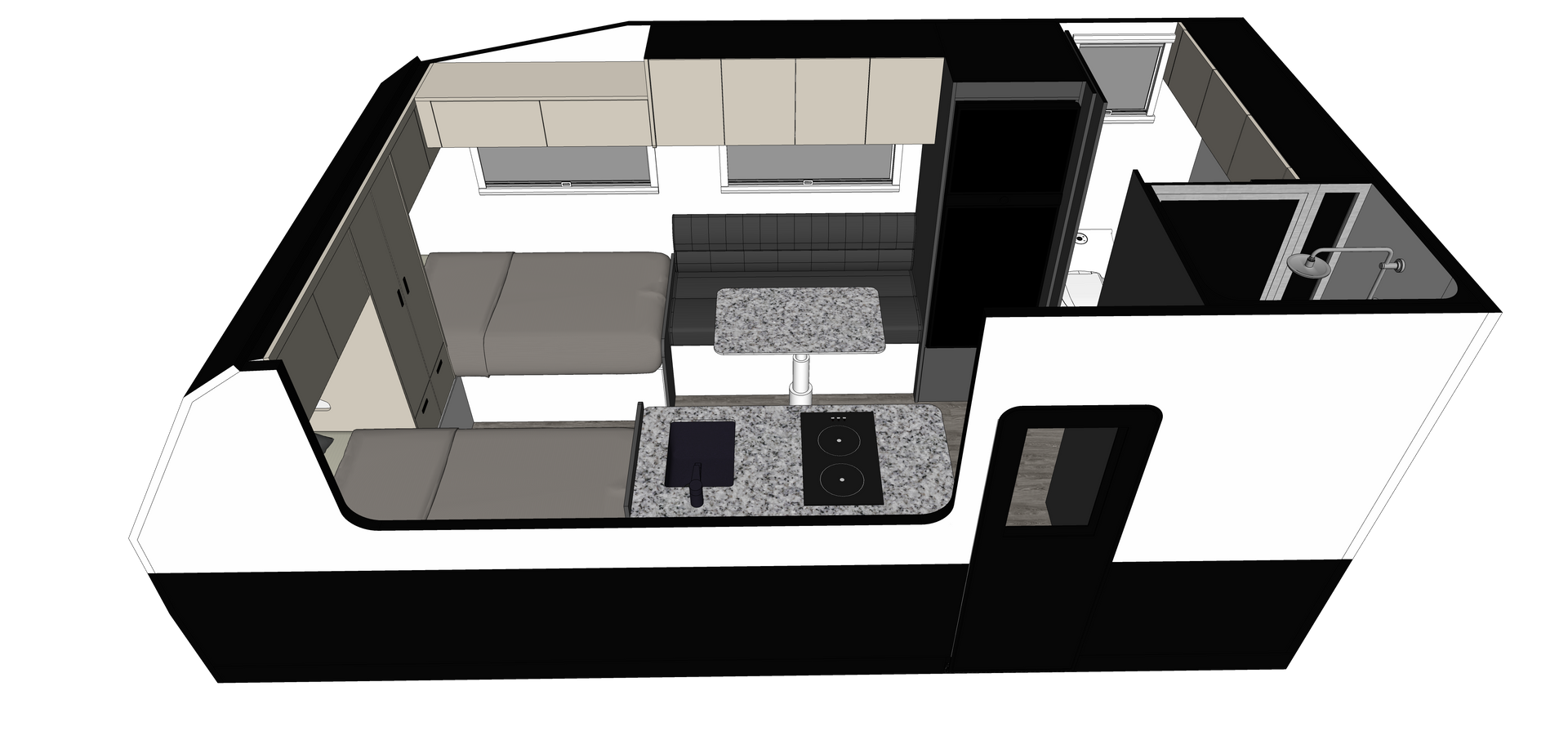

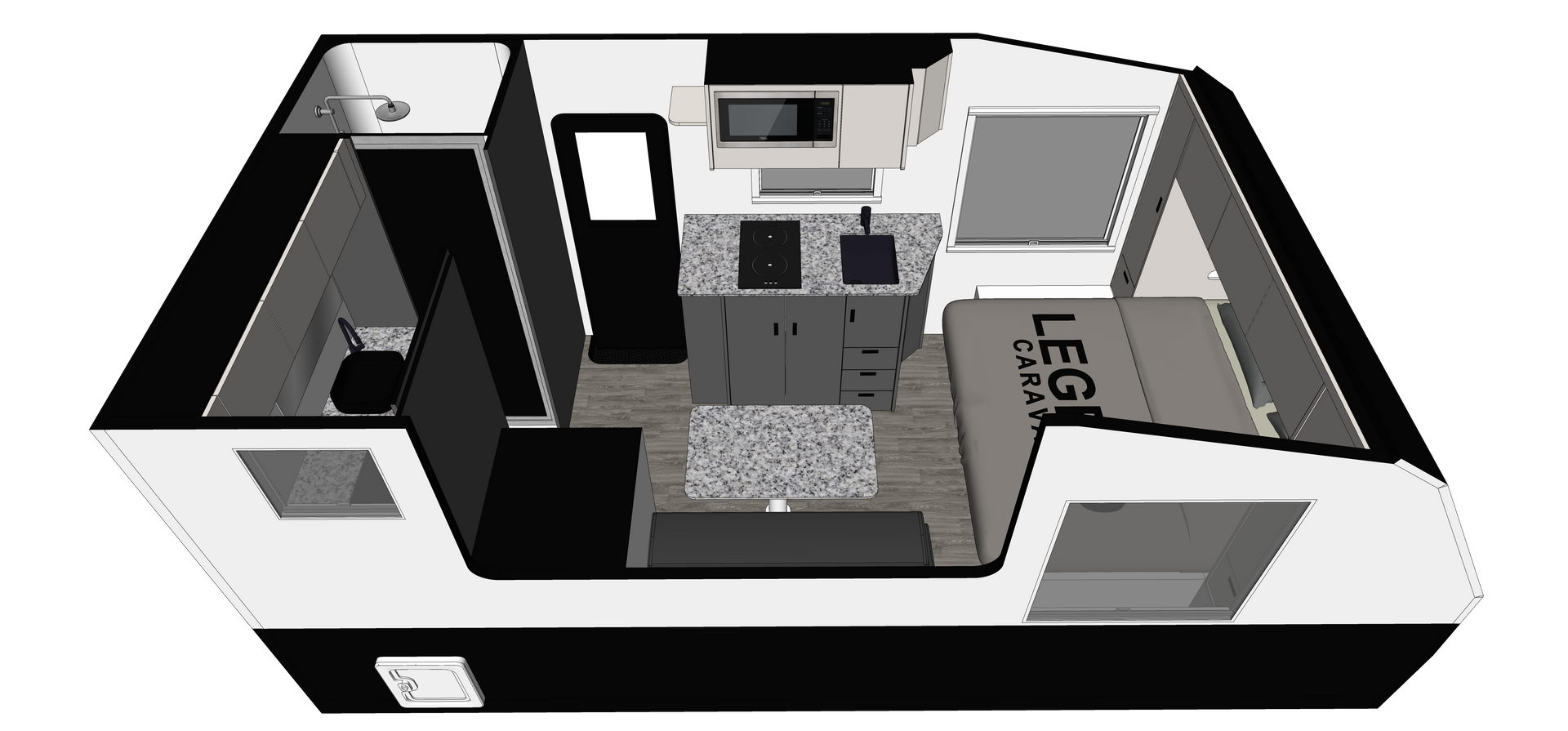

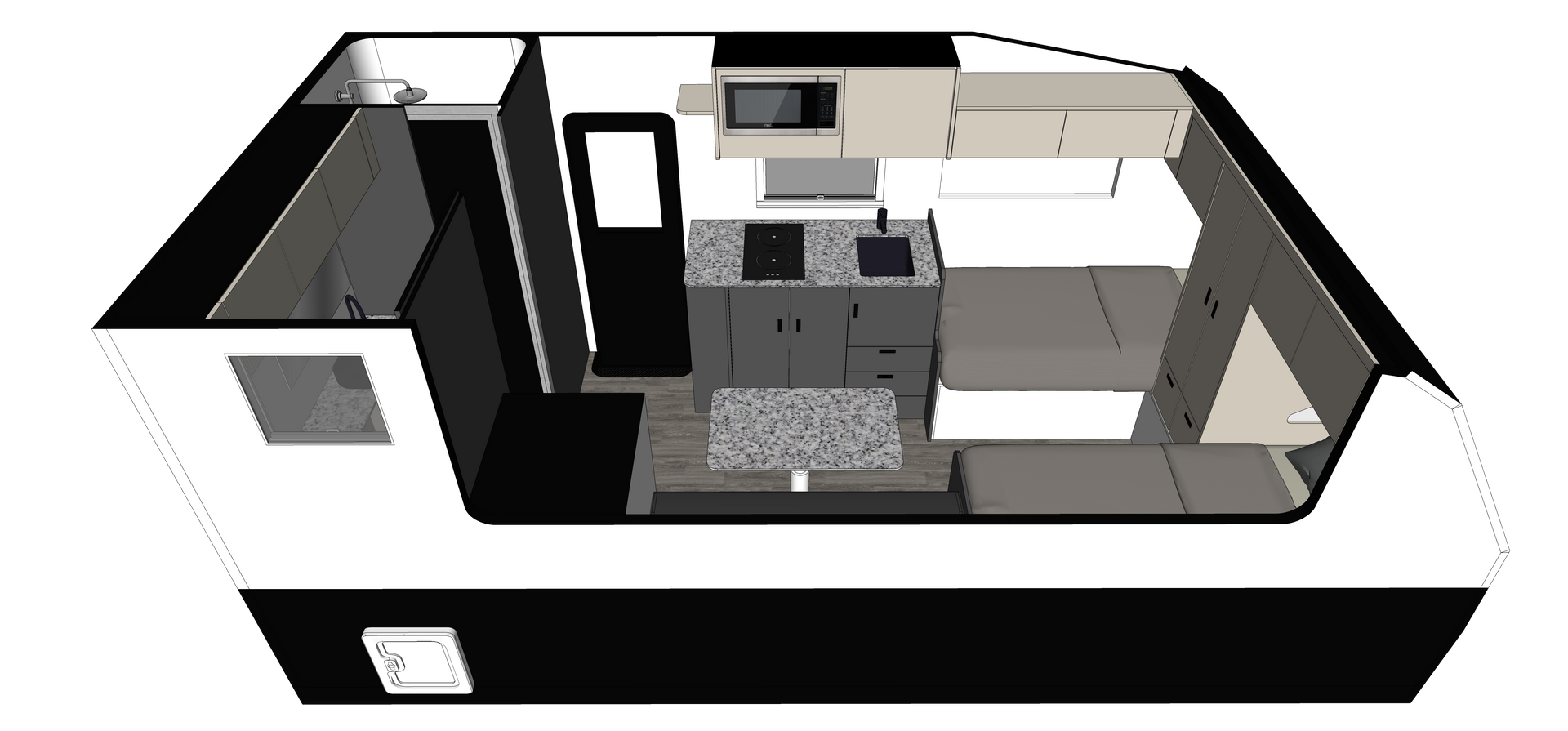

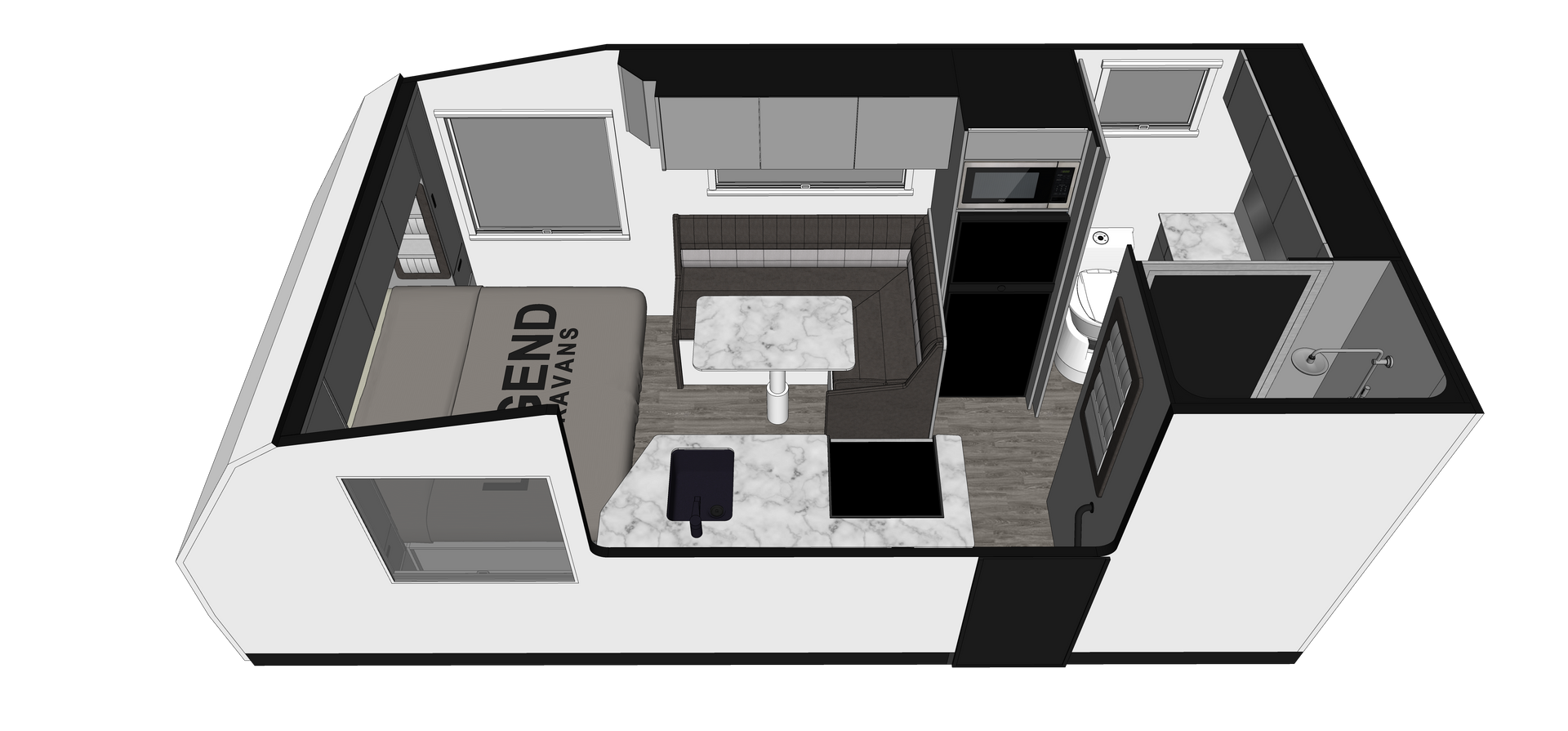

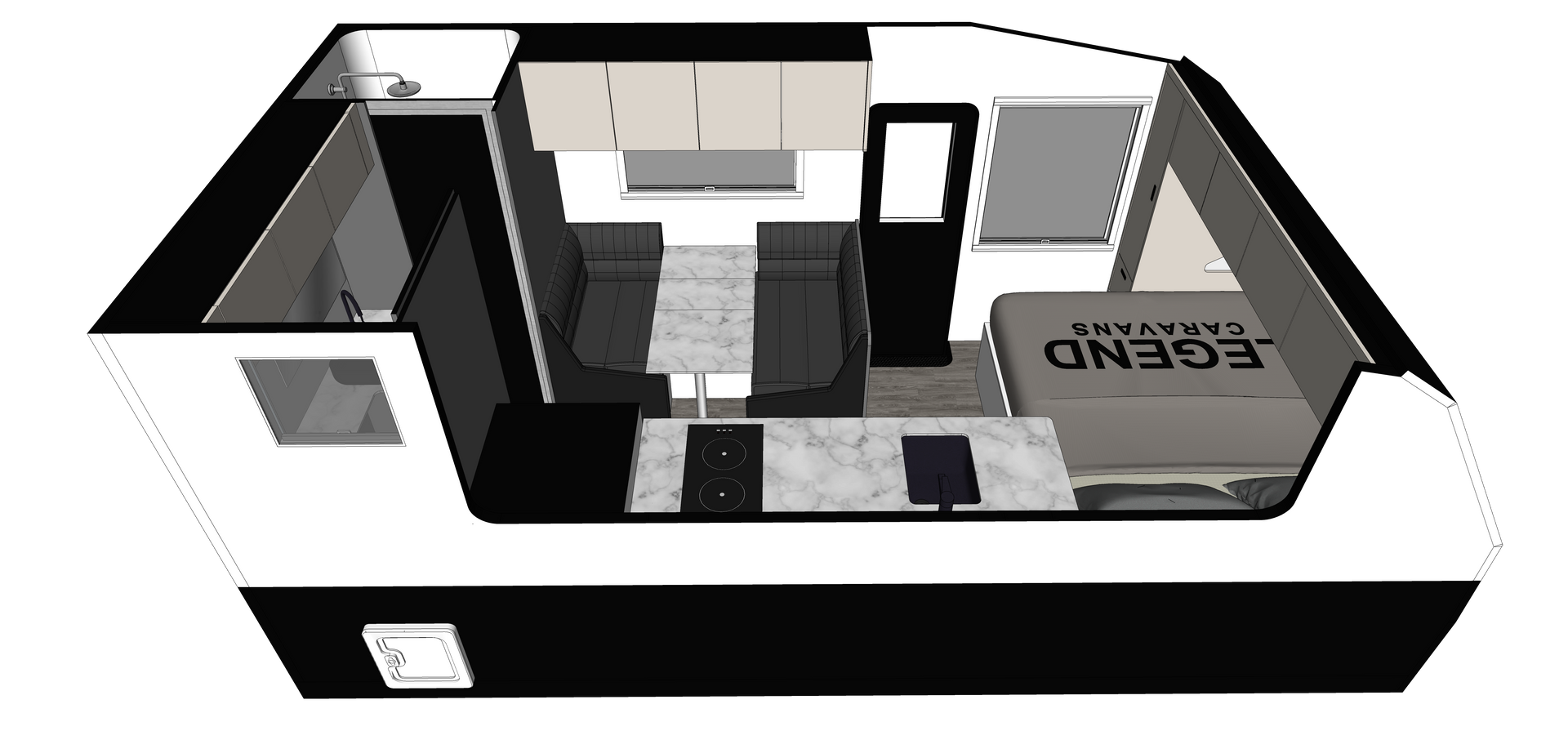

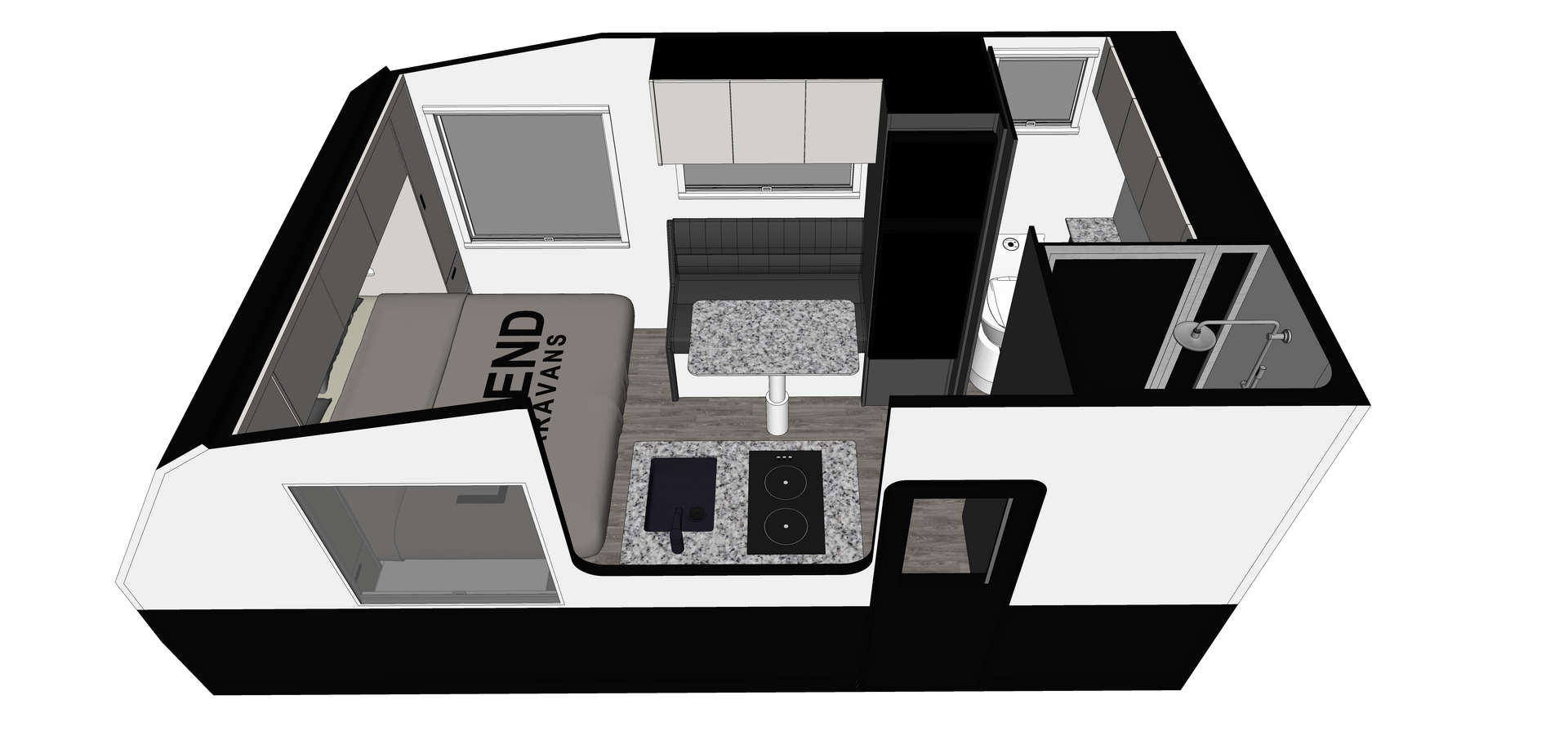

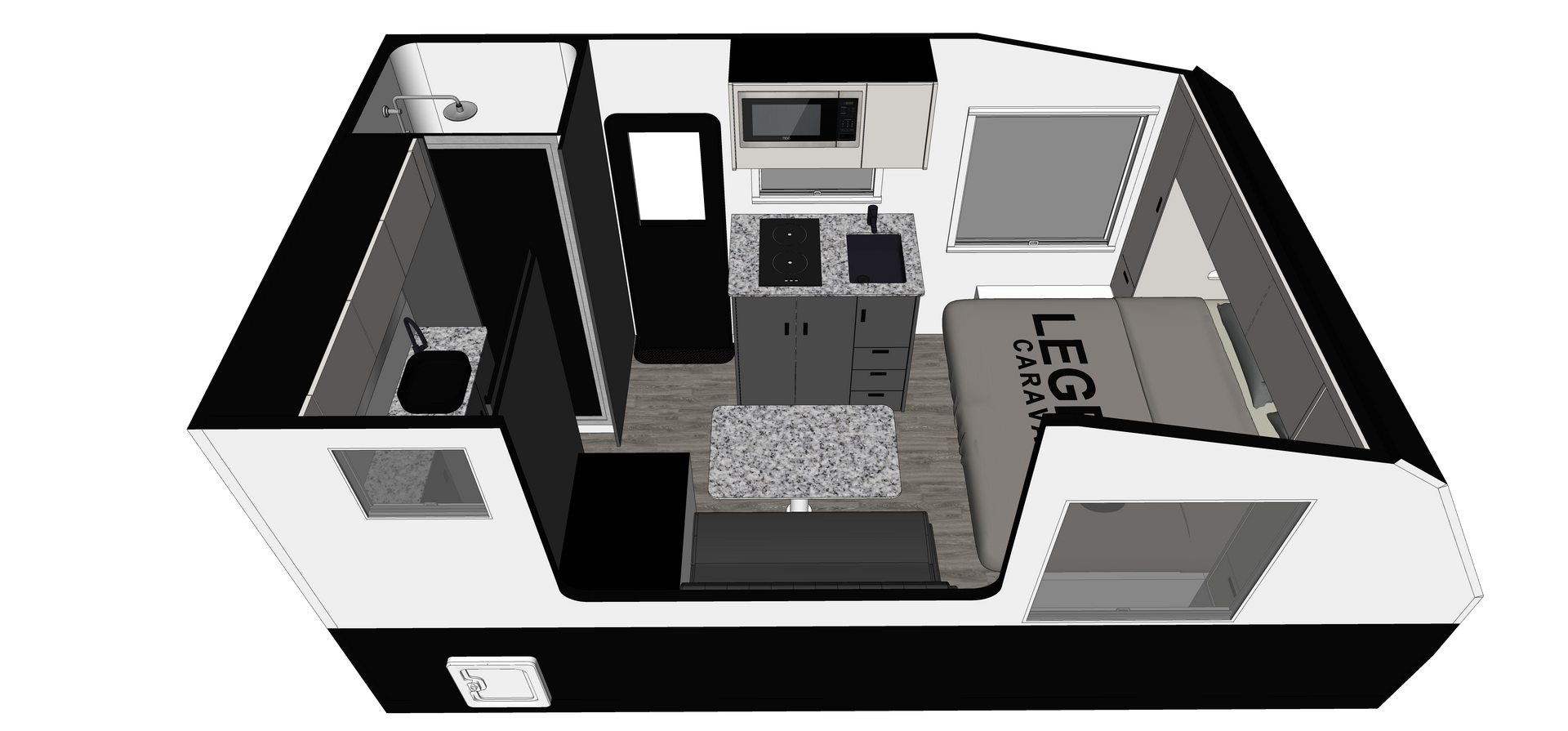

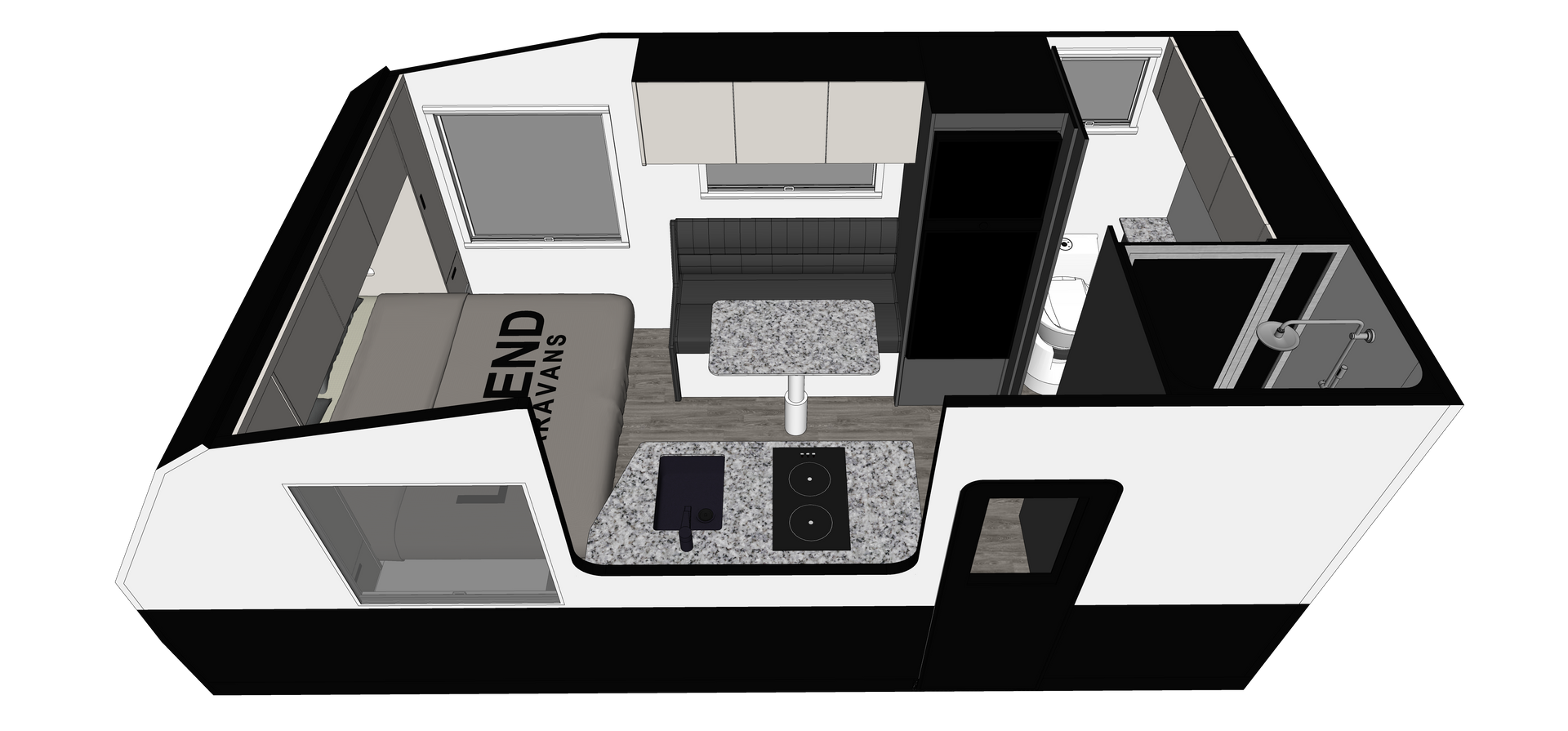

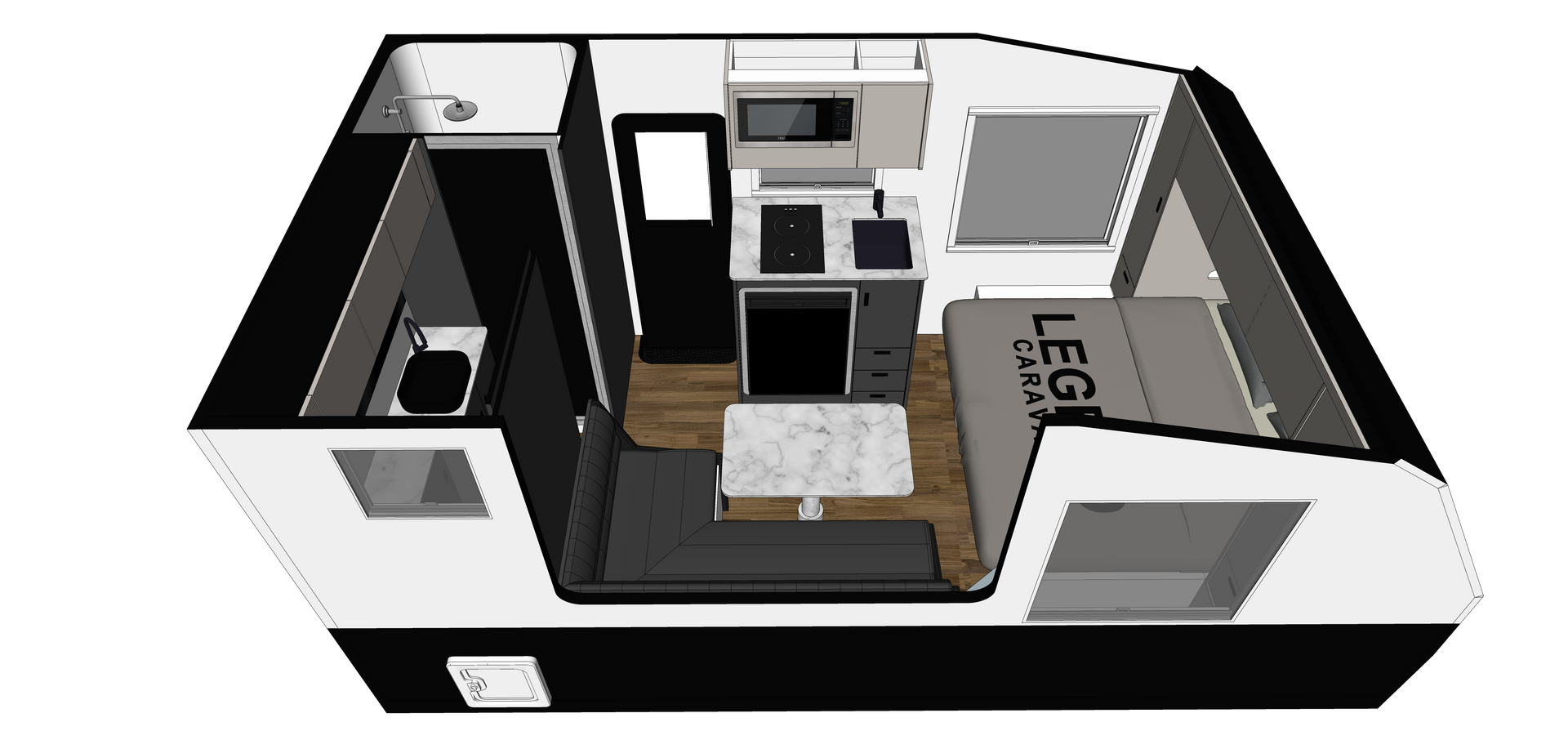

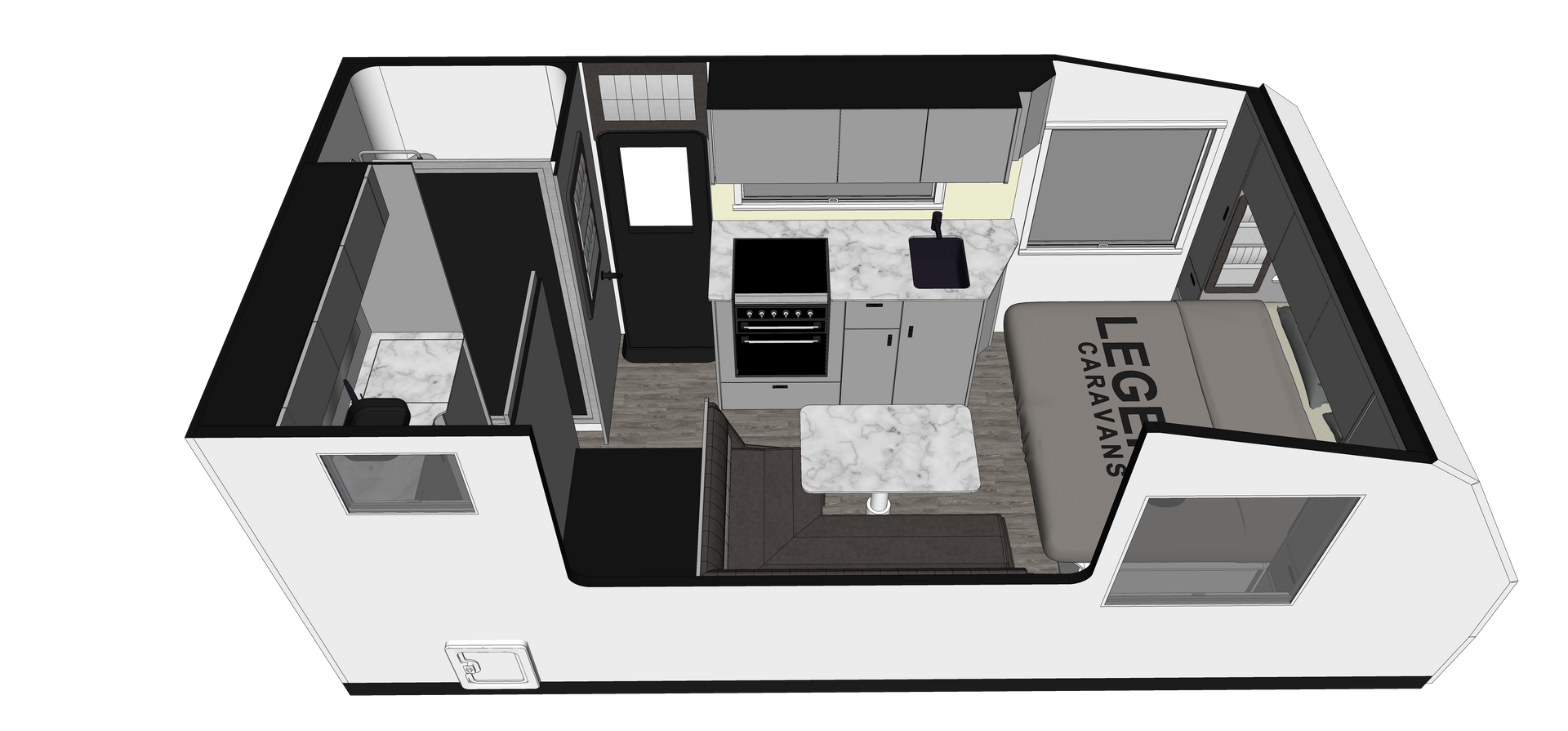

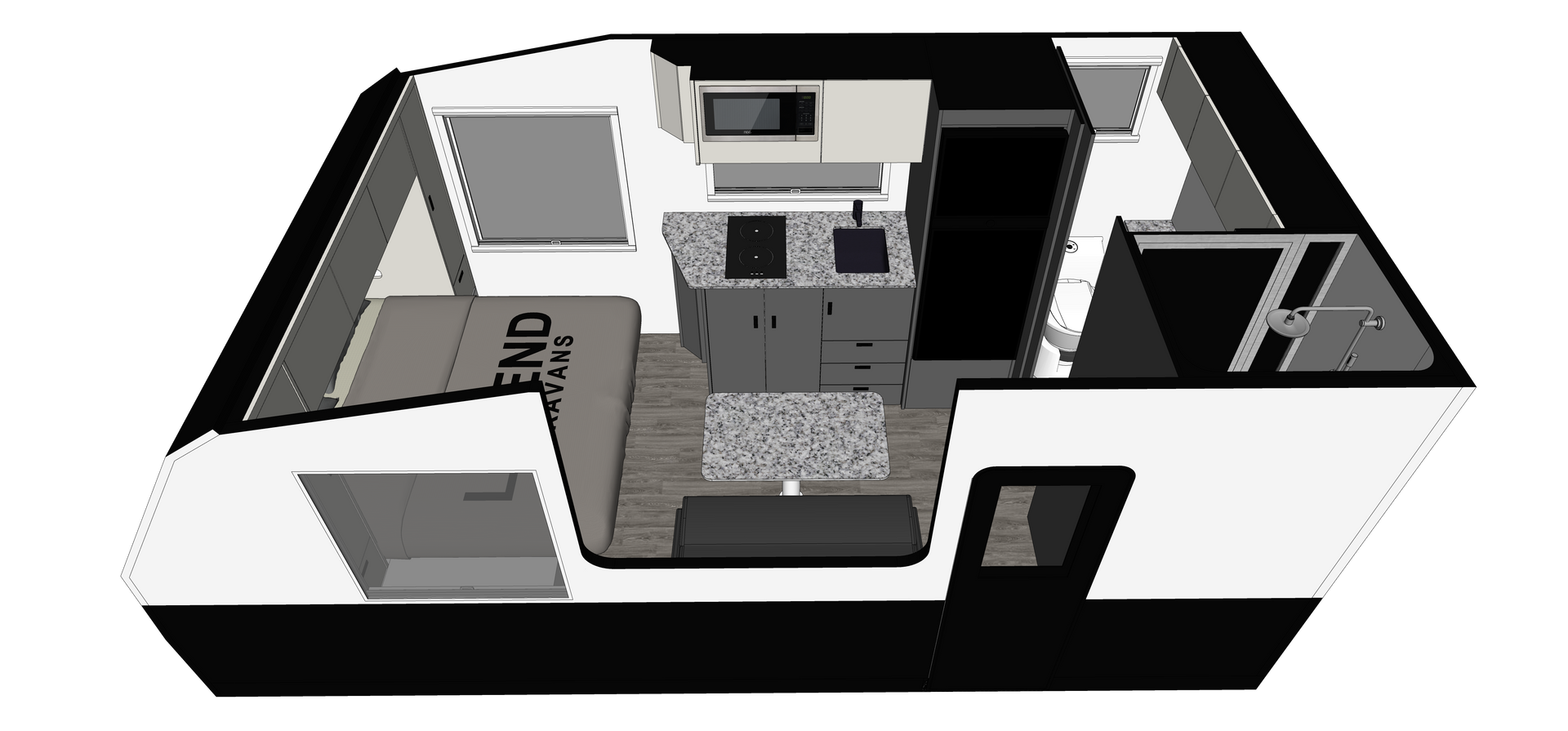

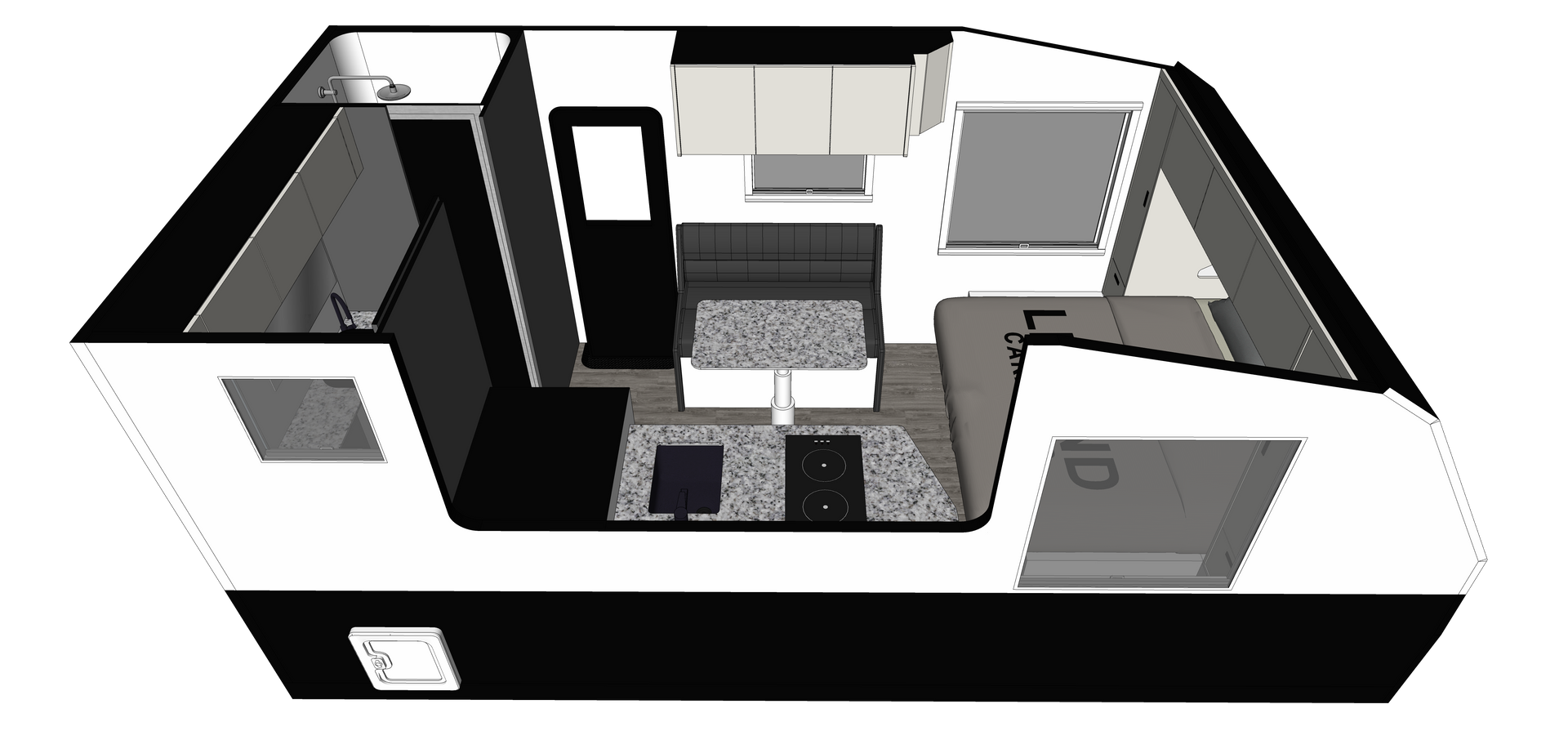

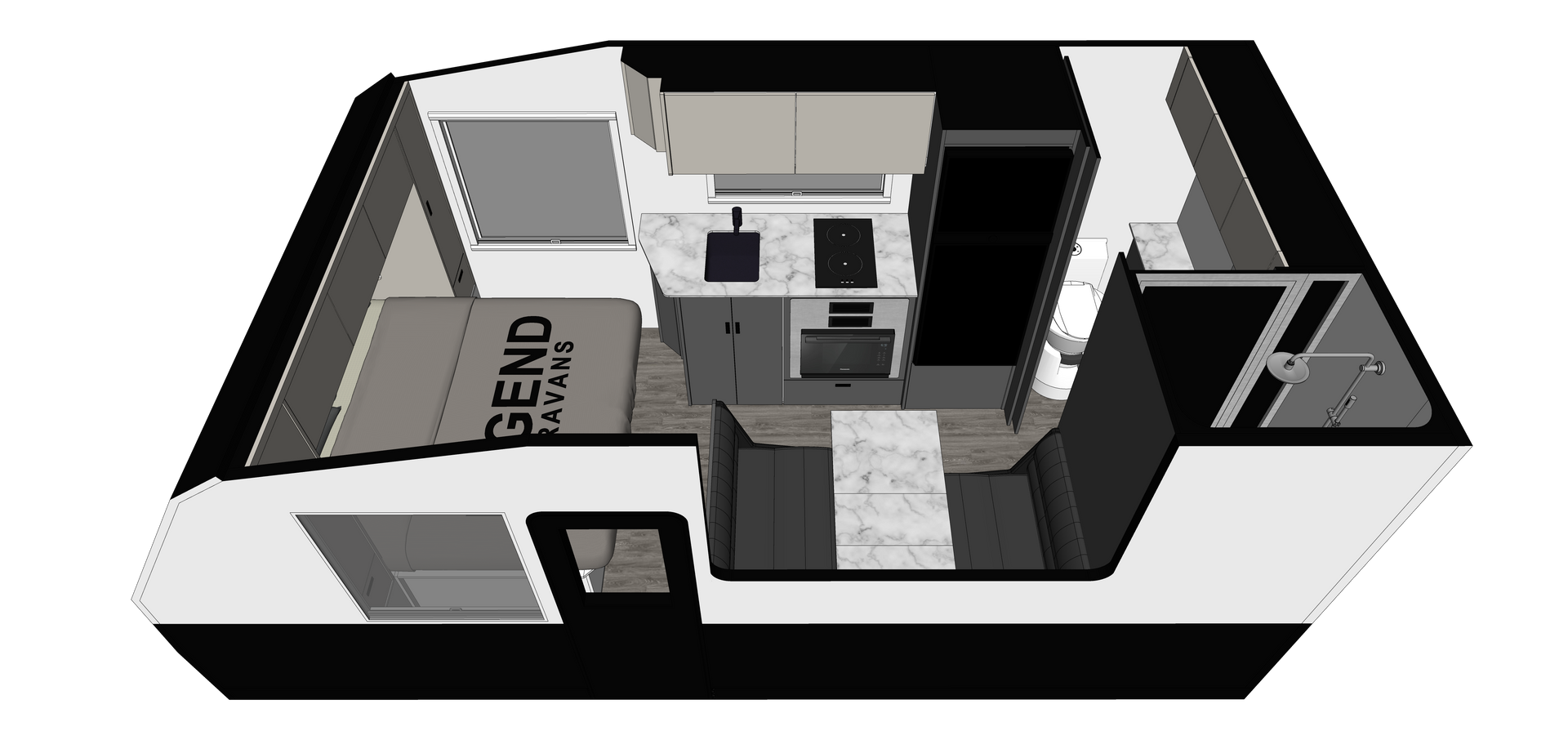

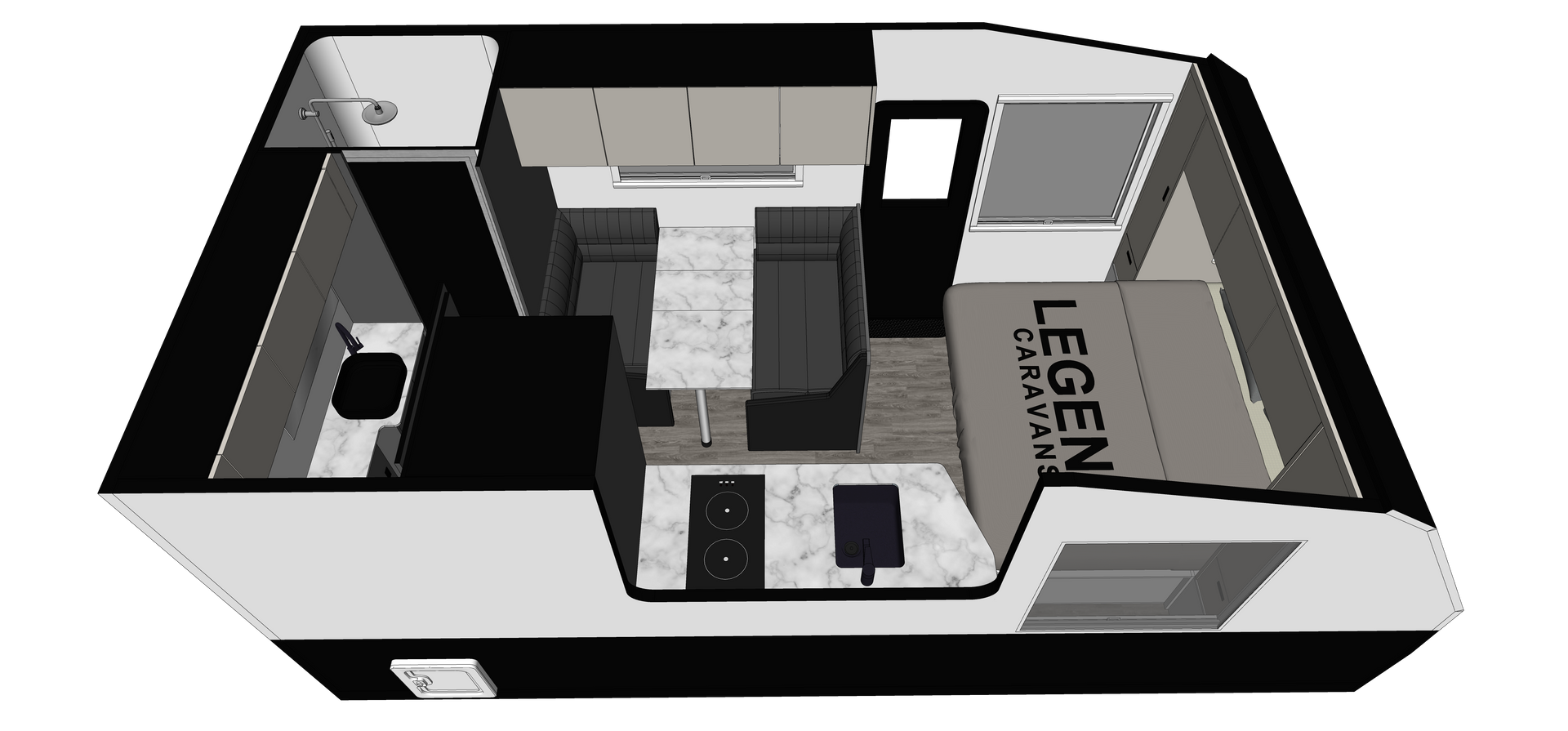

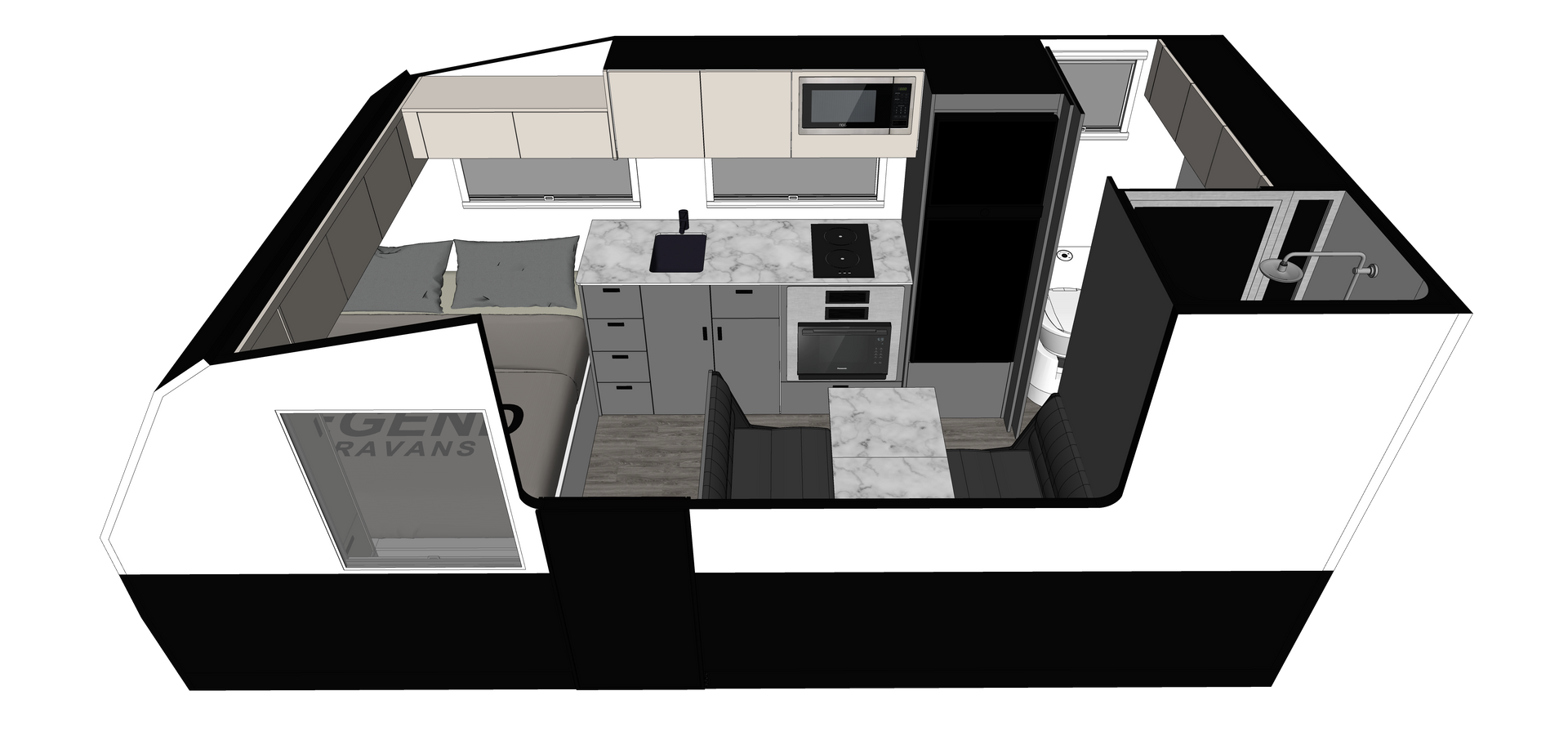

Floor plans
About the Legend Ultimate Hybrid ERV
The Legend Ultimate Hybrid ERV is a single axle off-road hybrid caravan in eight floorplans of 15, 16 and 17 feet 6 inches. It runs a 48 volt 4.8kWh lithium battery, 800 watts of solar and a Victron 5,000 watt inverter. It rides on Cruisemaster ATX airbag suspension with 12 inch hydraulic disc brakes, at a 3,000kg ATM.
Which floorplans are there?
- 15 feet: one floorplan.
- 16 feet: six floorplans, including a single bed layout.
- 17 feet 6 inches: one floorplan.

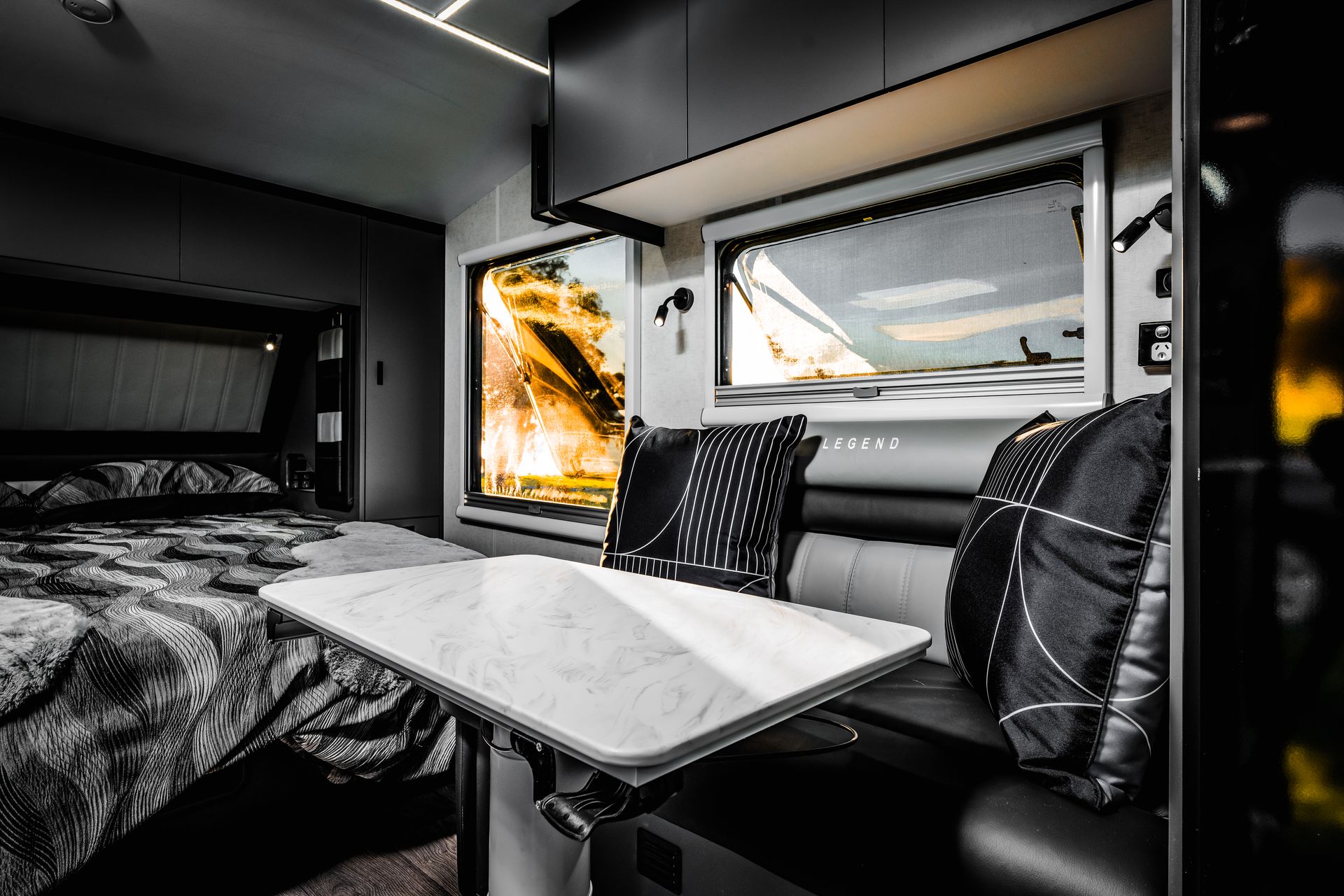

- Lounge: a 100% leather bench lounge with headrests, and a telescopic turntable table leg.
Inside

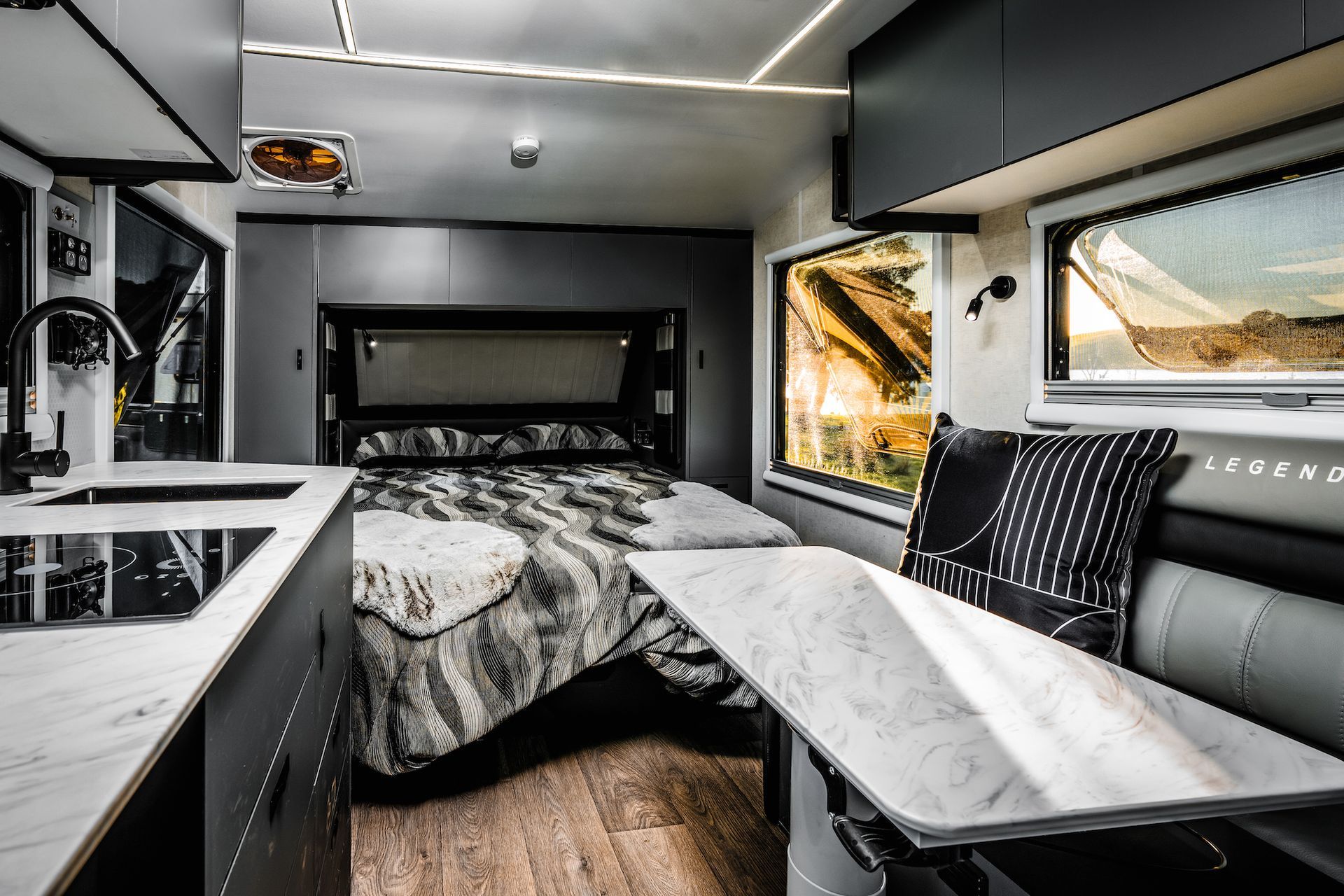

- Bed: a lift up bed frame with an innerspring pillow top mattress.

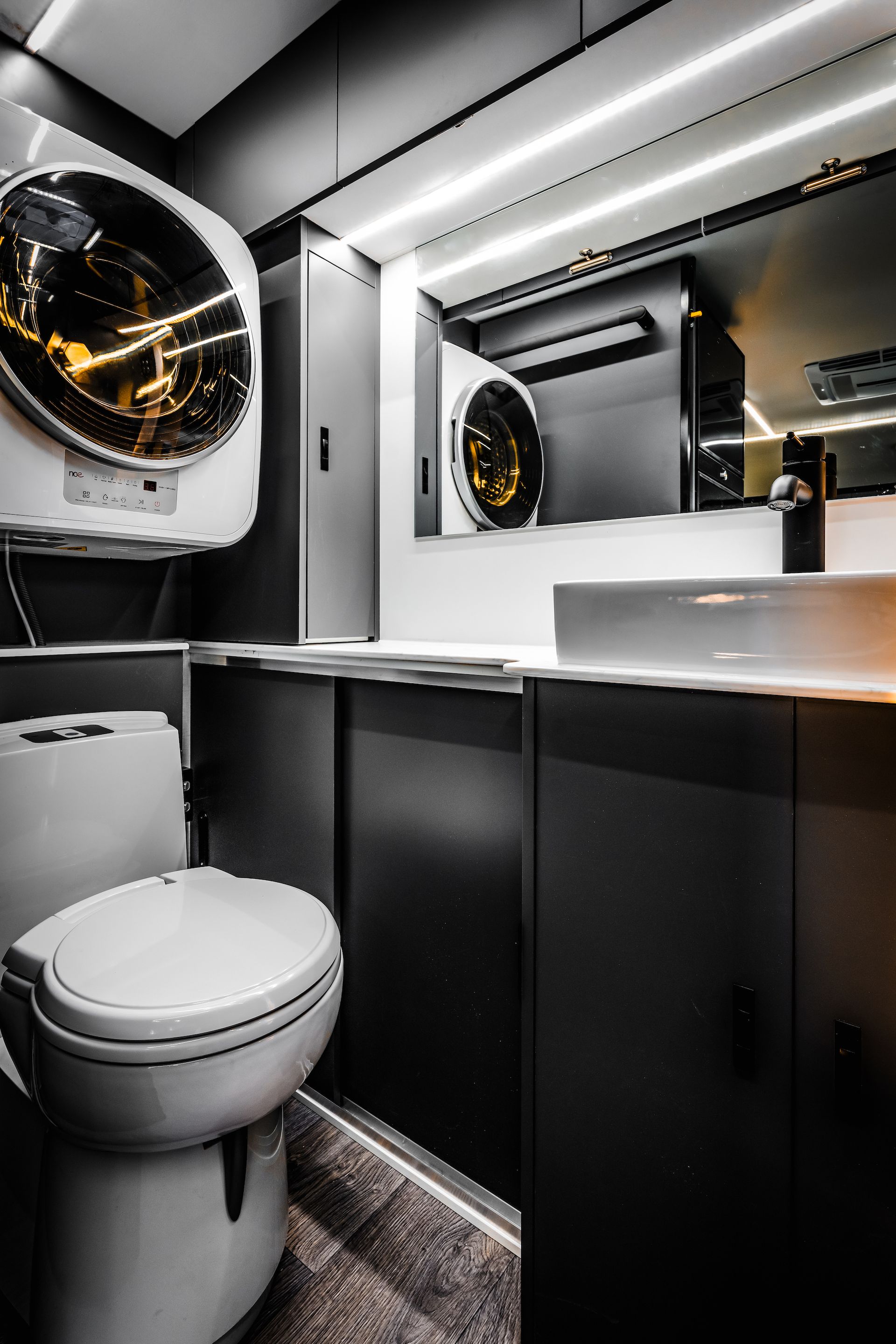

- Ensuite: a full size shower, a ceramic bowl cassette toilet, a washing machine and a shaving cabinet.
- Climate: reverse cycle air conditioning and a diesel heating system.
- Headroom: a 1.96m ceiling, on a flat floor with no wheel arches inside.
Kitchen
- Cooking: a dual induction cooktop and a microwave.
- Fridge: a 188 litre two door fridge.
- Benchtops: solid surface, with a recessed square sink and a three way filter tap.
- Outside: an electric outdoor kitchen.
Build
- Chassis: a Legend truss chassis with a 150mm A-frame.

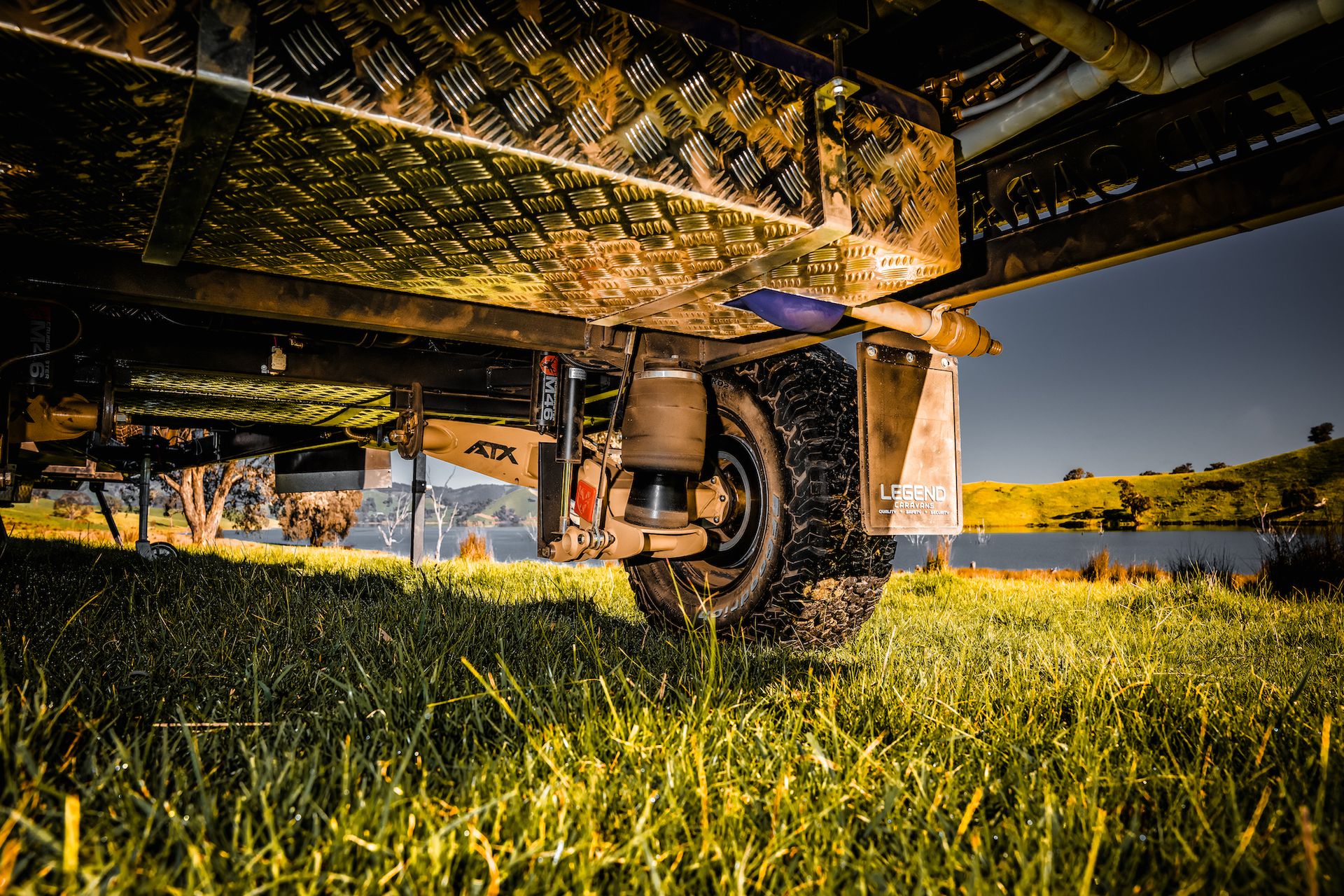

- Suspension: Cruisemaster ATX airbags, controlled remotely.
- Brakes: 12 inch ventilated hydraulic disc brakes.
- Hitch: a Cruisemaster DO35 hitch with a 3,000kg rating.
- Wheels: 16 inch wheels on 265/75/16 mud terrain tyres.
- Body: aluminium composite walls, a one piece honeycomb floor and a one piece insulated fibreglass roof.
- Extras: recovery points, skid plates, a dust reduction unit and an RV wifi system.
Power and water
- Battery: a 48 volt 4.8kWh lithium battery, expandable with up to two more 4.8kWh batteries.
- Inverter: a Victron MultiPlus 5,000 watt inverter.
- Charging: a 120 amp DC-DC charger and a 48 volt MPPT solar regulator.
- Solar: four 200 watt 48 volt panels, 800 watts in all.
- Water: two 95 litre fresh tanks and a 110 litre grey tank.
- Hot water: an electric hot water system.
What will tow it?
Legend lists a 3,000kg ATM (aggregate trailer mass) on every floorplan. Your vehicle needs a braked towing capacity of at least 3,000kg. Ask Legend for the tare and ball weight of the floorplan you choose, and check the ball weight against your towball limit.
How to buy
Legend's showroom is at 2 Florey Court, Somerton, in Melbourne. It also lists dealers in Victoria, Western Australia, New South Wales, South Australia and Queensland. Legend says "All Legend Caravans are made and manufactured in Australia with the latest technology and machinery that help us produce a great product."
Technical specifications
About Legend Caravans
Legend Caravans build off-road, on-road and hybrid caravans from Somerton in Melbourne's north, and state that all Legend caravans are made and manufactured in Australia. Legend says every range uses an aluminium frame assembled with a self-piercing rivet system rather than welding, with a one-piece fibreglass roof and a honeycomb floor.
Price on application - the dealers below price it to the spec you choose.
