Trackline Bunka Family Series
Images from Legend Caravans
- Max weight (ATM)
- 3,500kg
- Sleeps
- 2

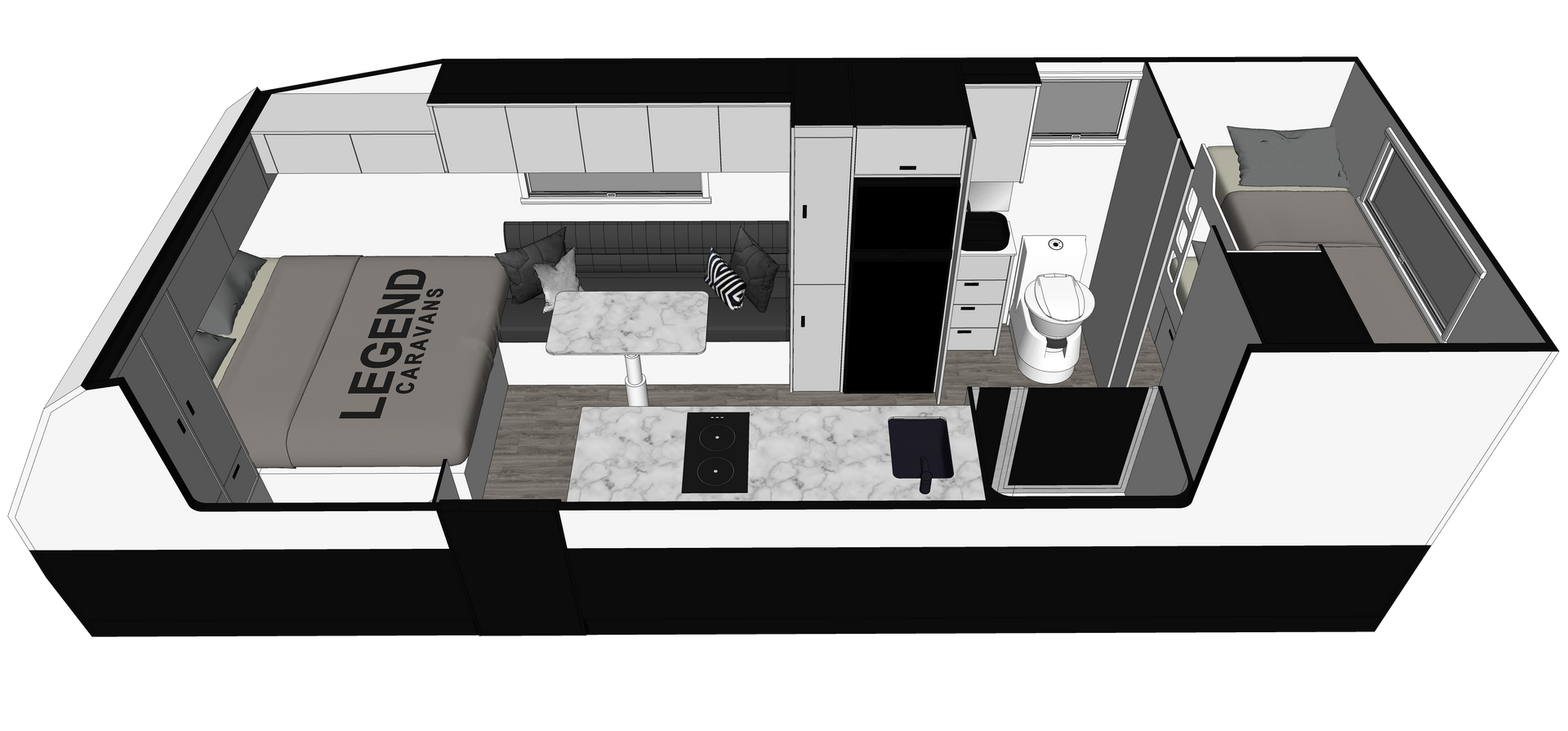

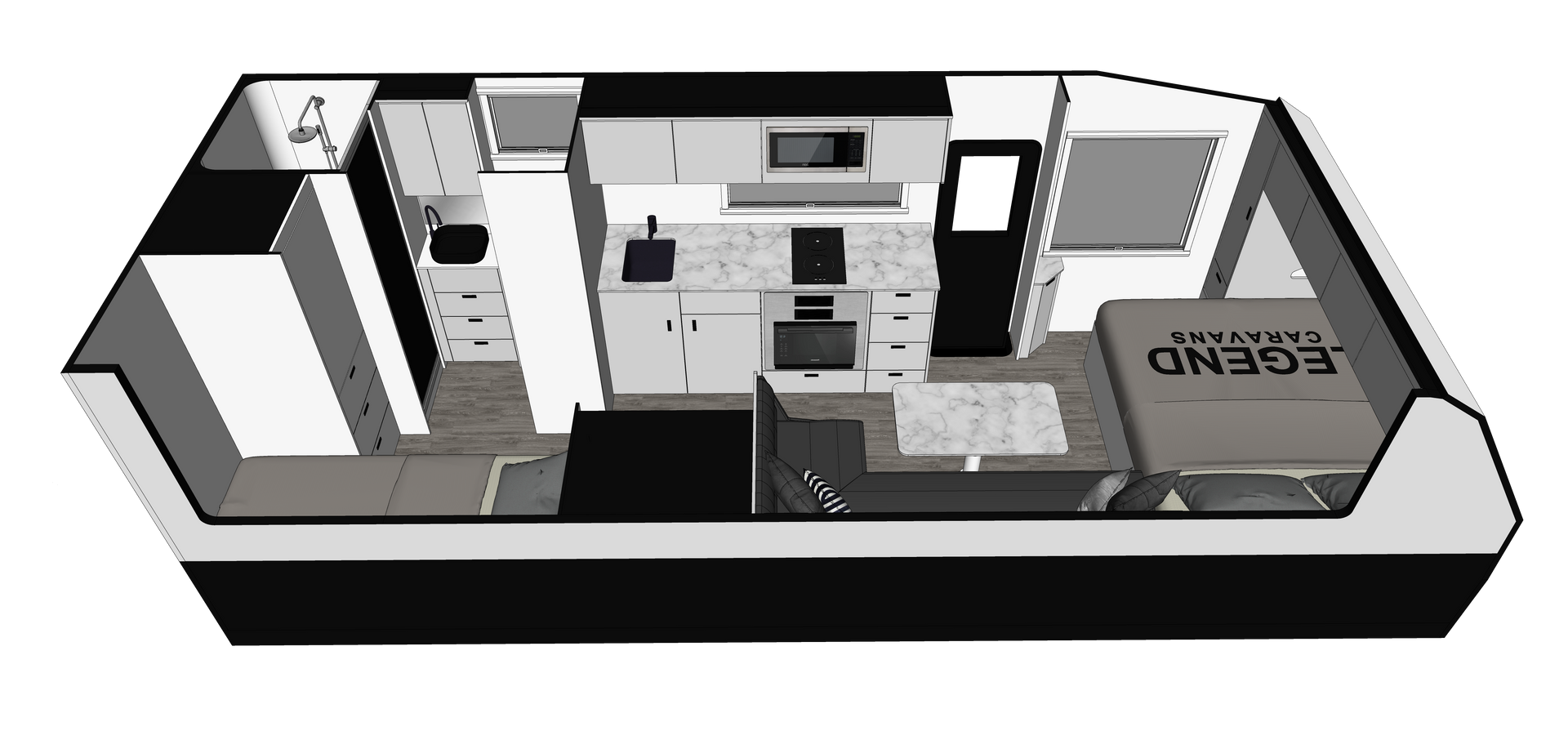

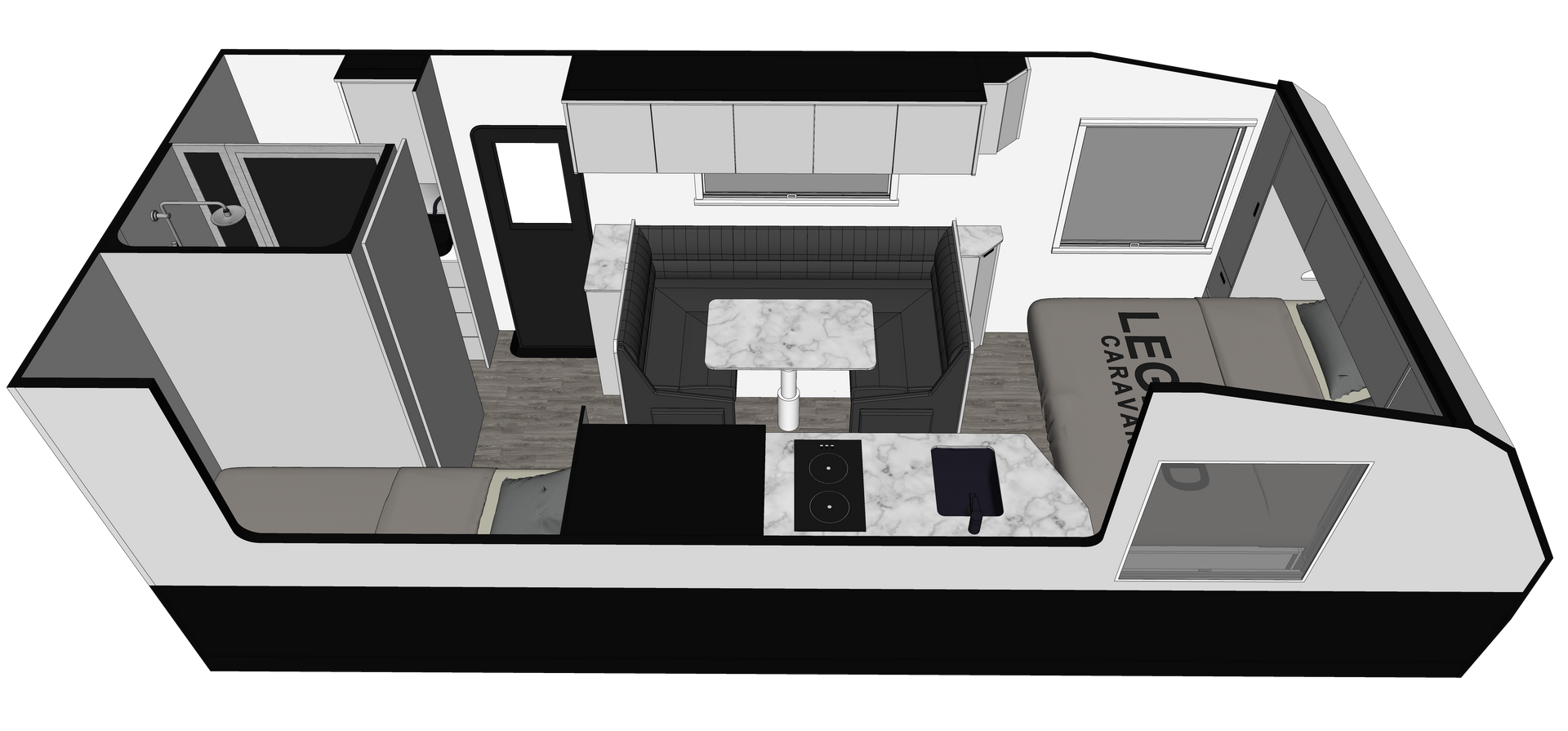

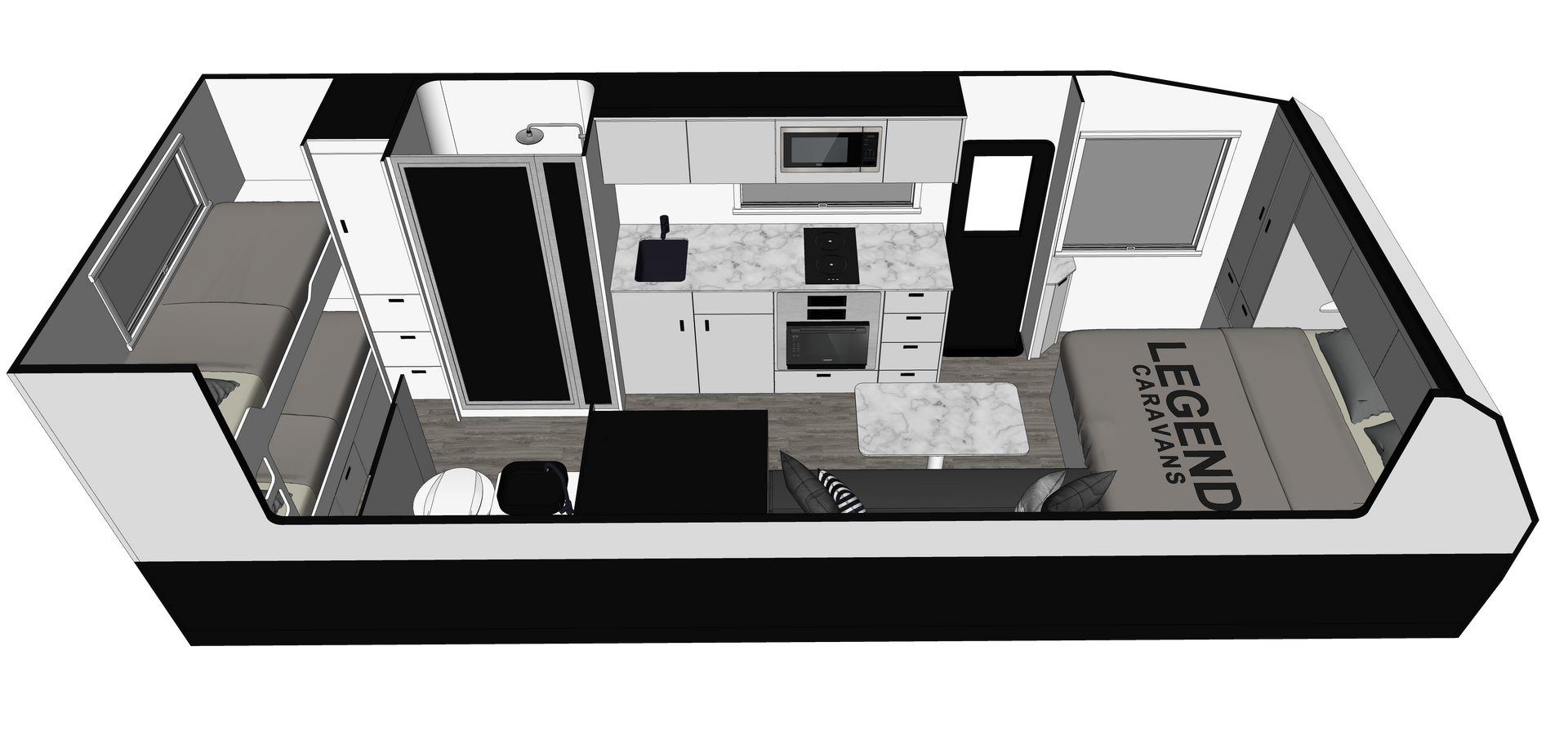

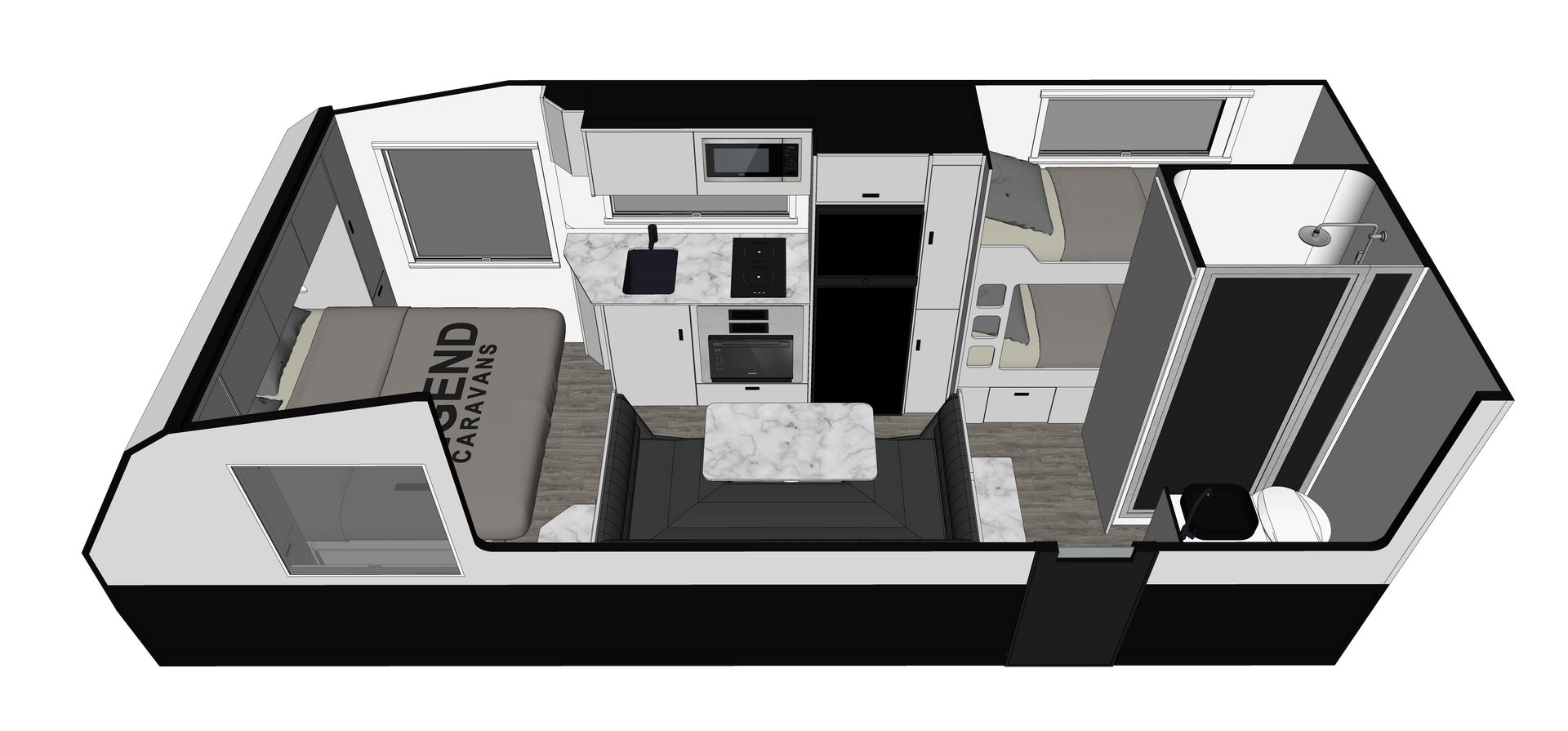

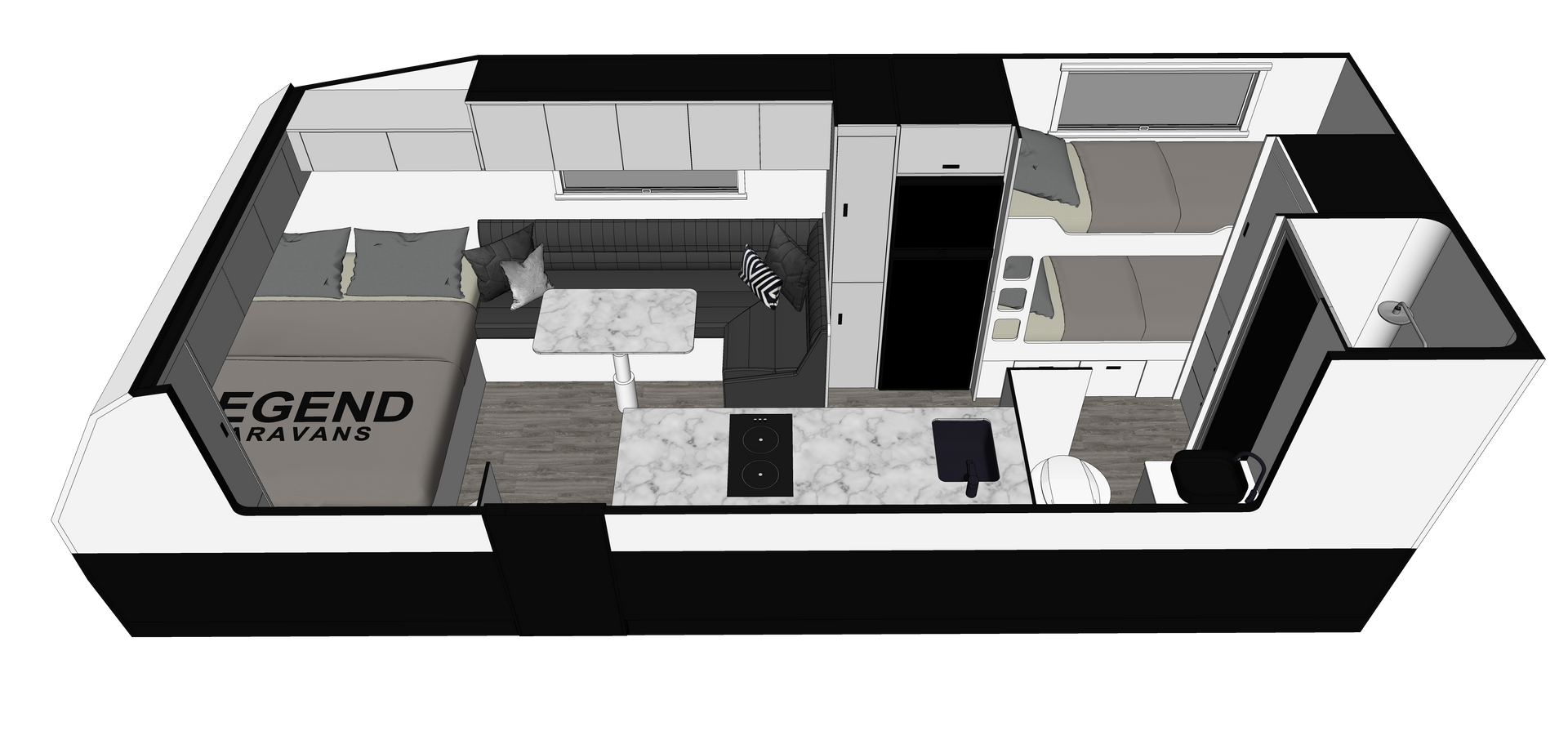

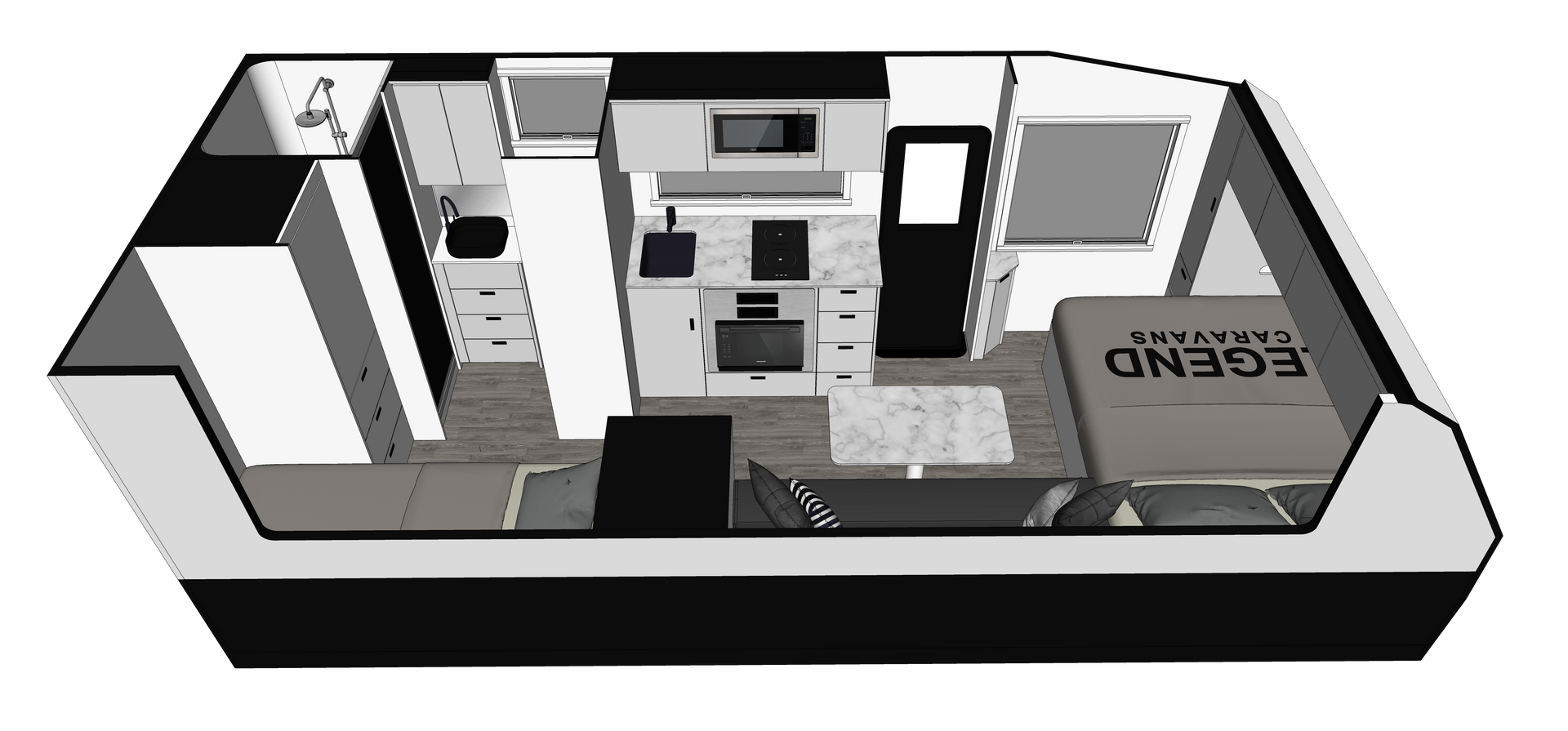

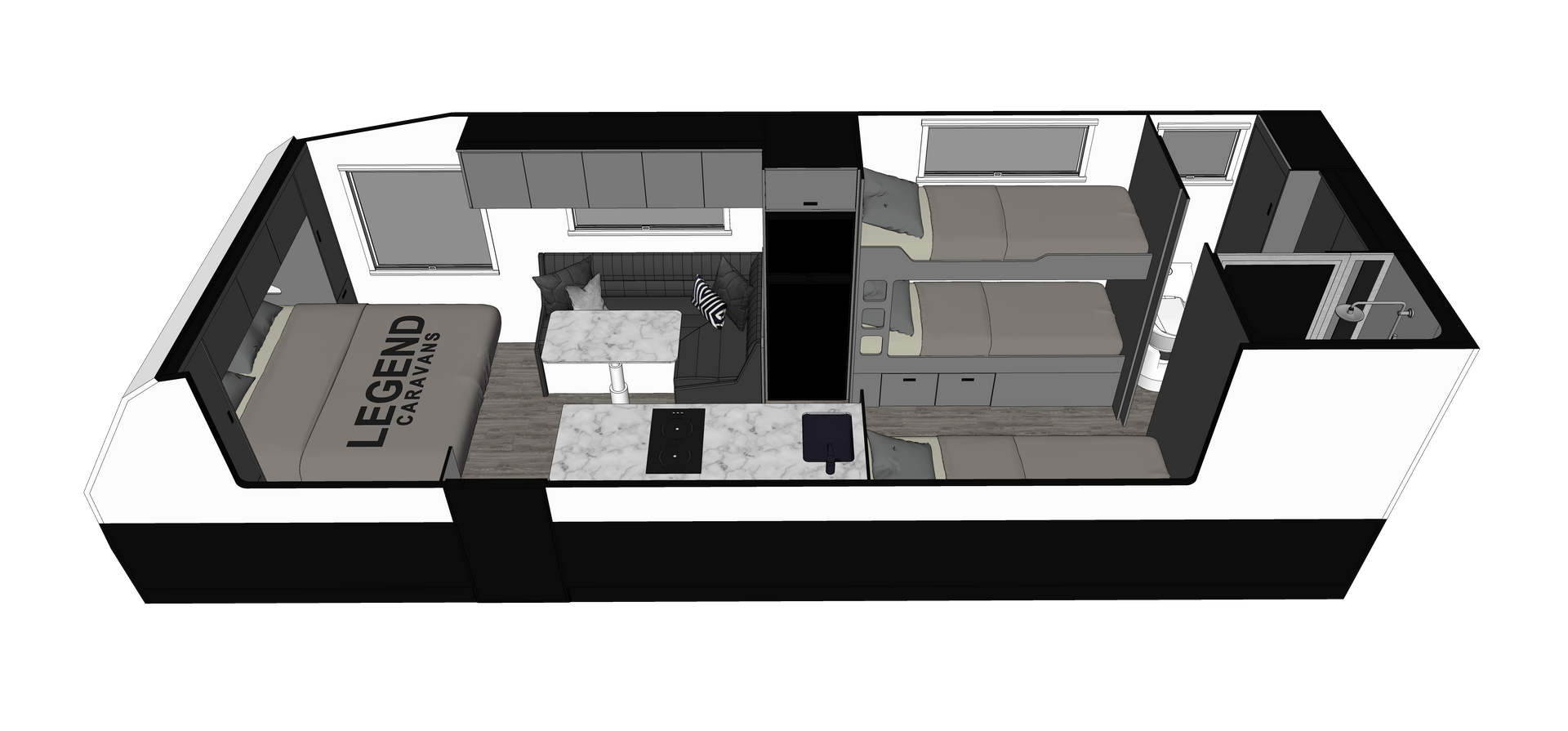

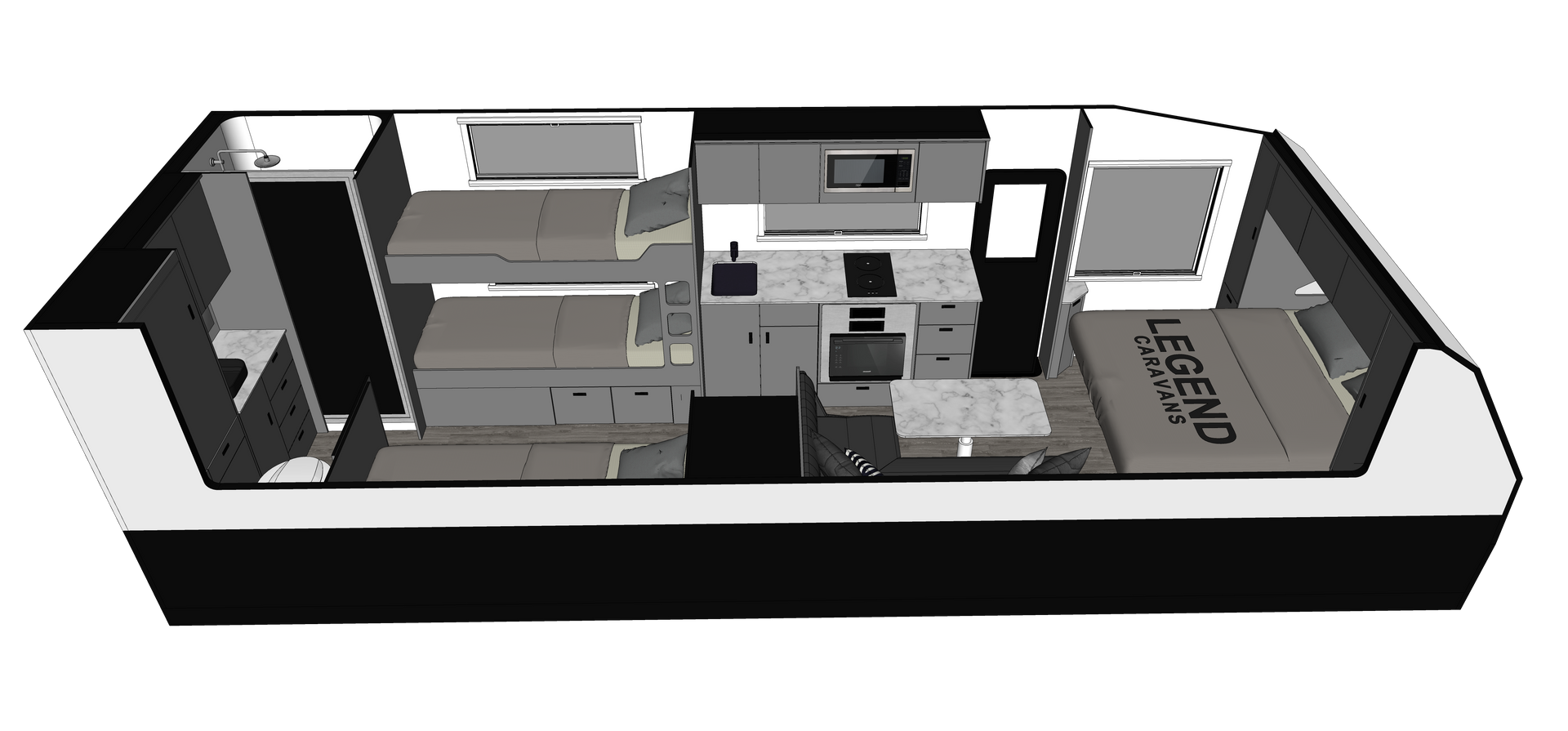

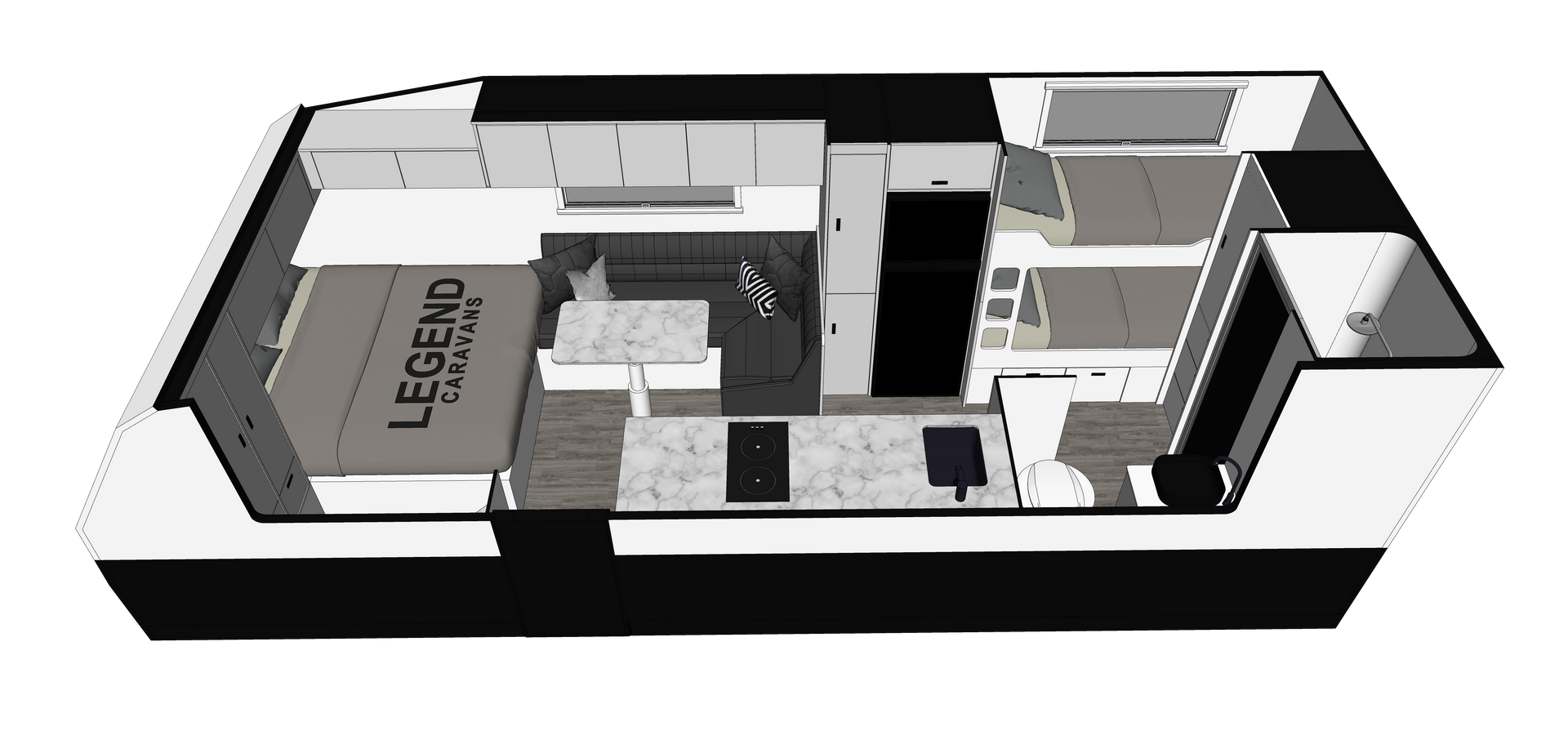

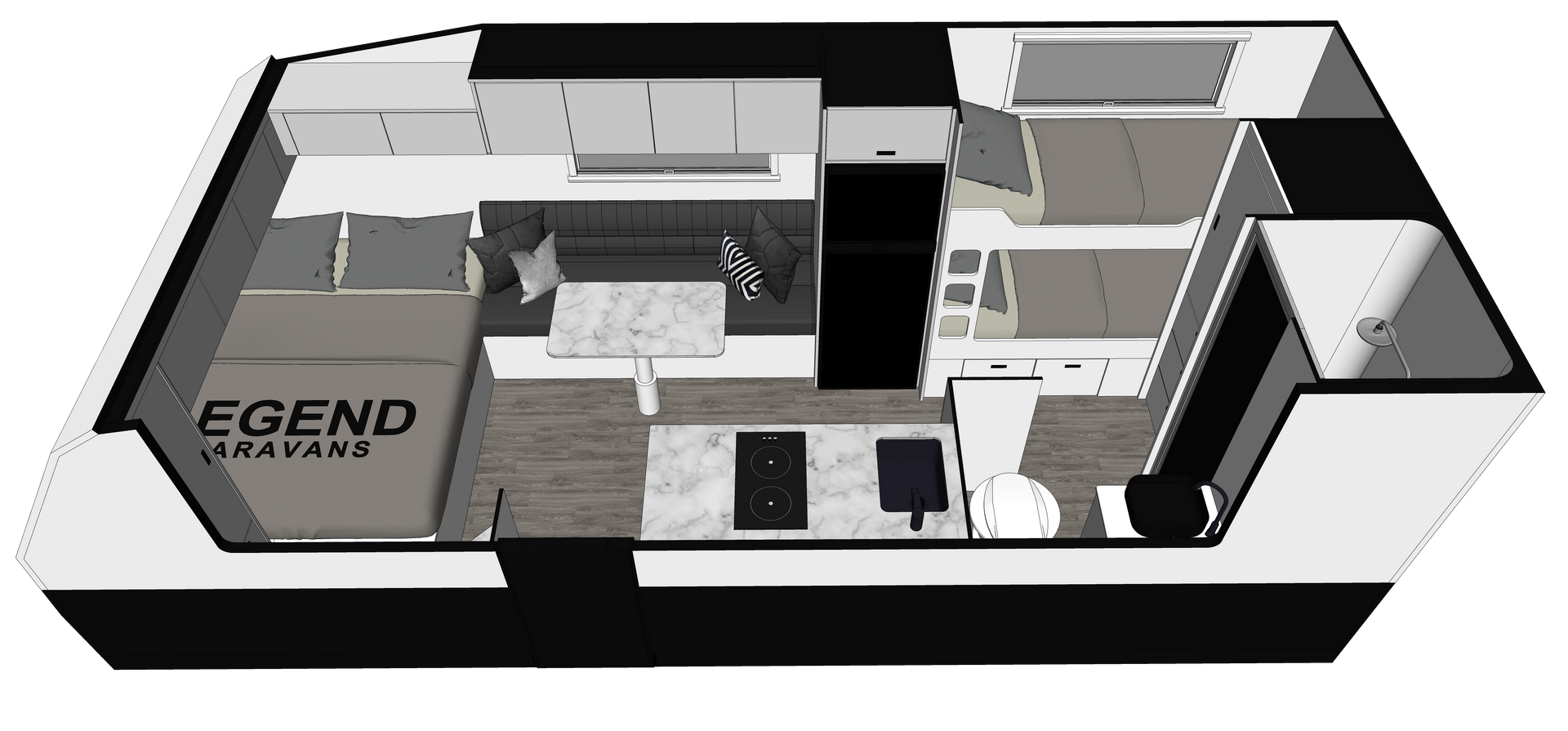

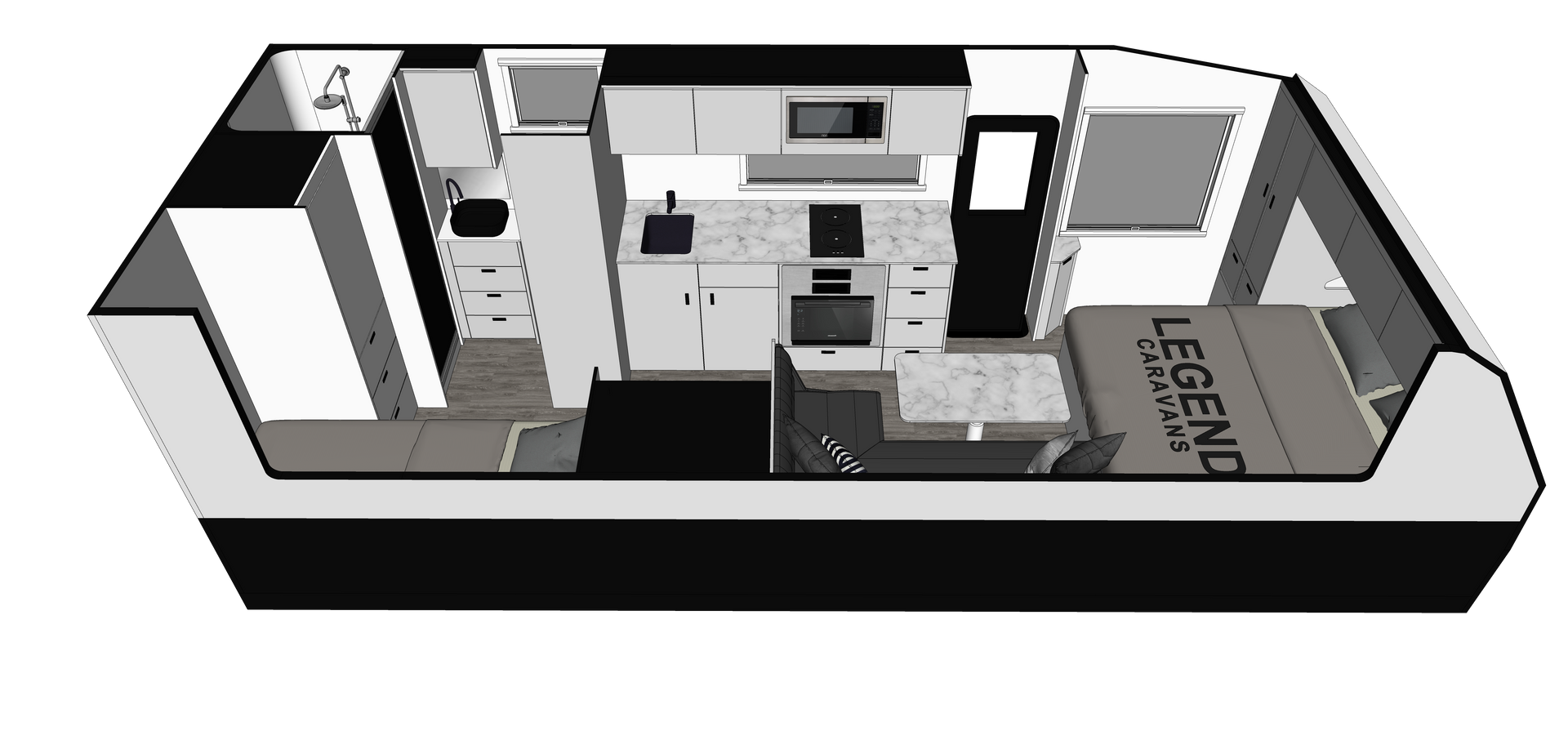

Floor plans
About the Trackline Bunka Family Series
The Trackline Bunka Family Series is a Legend off-road caravan in six floorplans from 19 feet 6 inches to 24 feet 6 inches. It runs a 48 volt 5kWh lithium battery, upgradeable to 15kWh, with 800 watts of solar and a 3,600 watt inverter. It comes in tandem or triple axle form on Cruisemaster XT airbag suspension, and the ATM is 3,500kg or 4,500kg.
Which floorplans are there?
- 19 feet 6 inches, 20 feet 6 inches and 21 feet 6 inches: four floorplans between them.
- 22 feet 6 inches and 24 feet 6 inches: one floorplan each.
- Axles: tandem or triple.
- Lounge: a luxury lounge, cafe, L-shape, bench or club style on selected layouts.
Inside
- Bed: a lift up bed frame on struts.

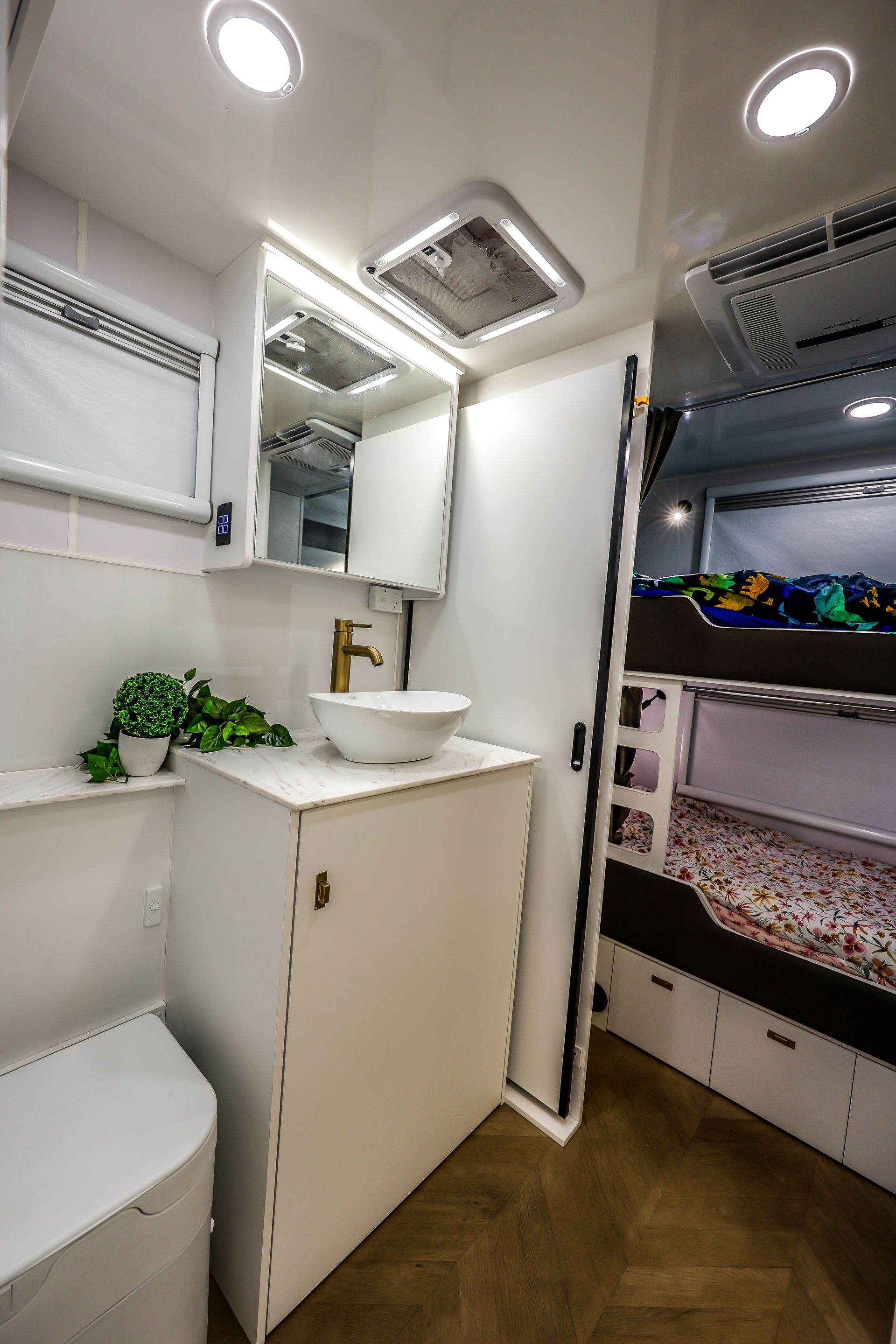

- Bathroom: a ceramic bowl cassette toilet and a toilet roll holder, plus an external hot and cold shower.
- Floor: a flat floor with no wheel arches inside.
- Drawers: soft close lockable drawers and soft close hinges.

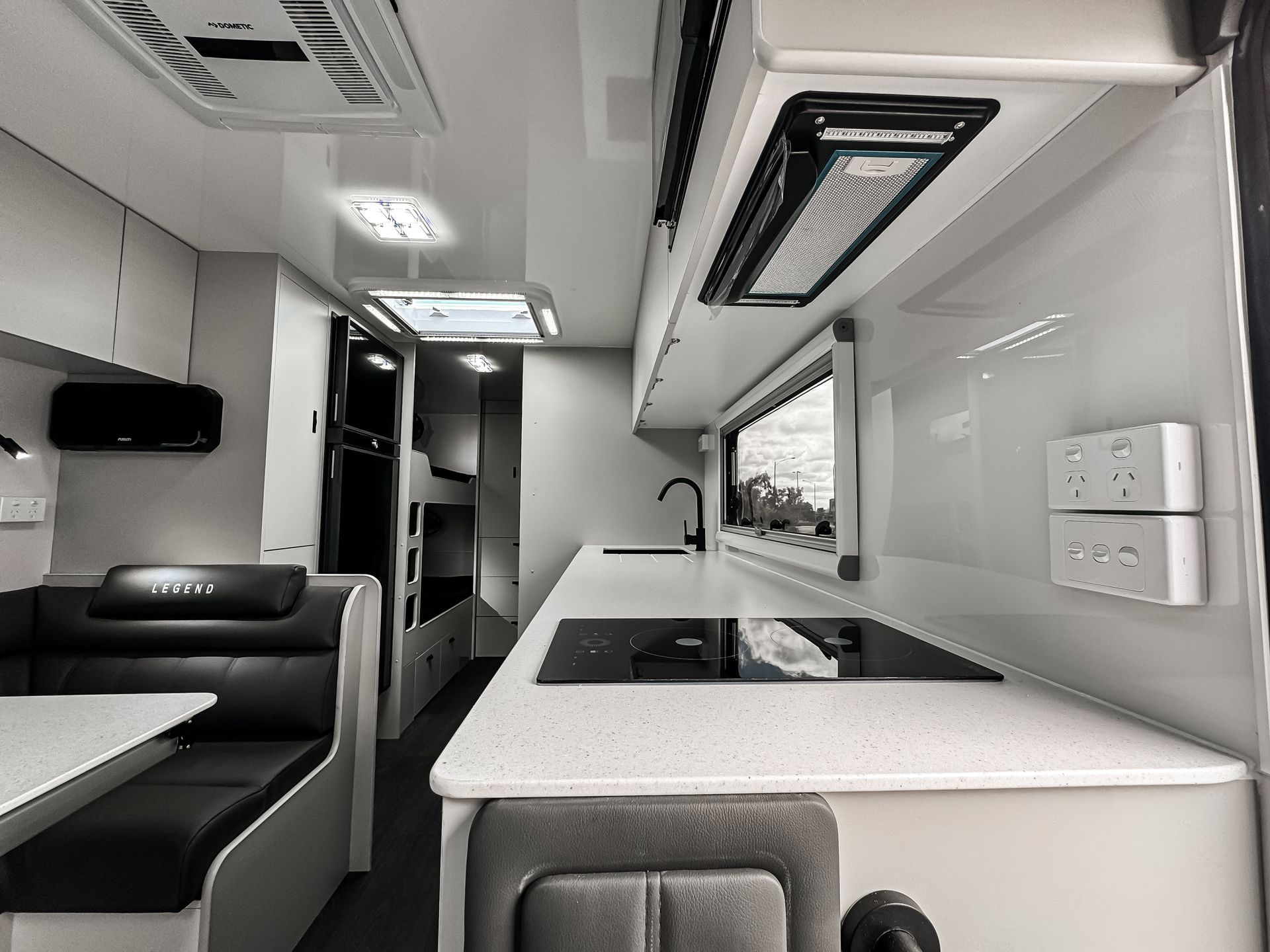

Kitchen
- Cooking: a double induction cooker.
- Fridge: a 188 litre two door fridge.
- Benchtops: solid surface.

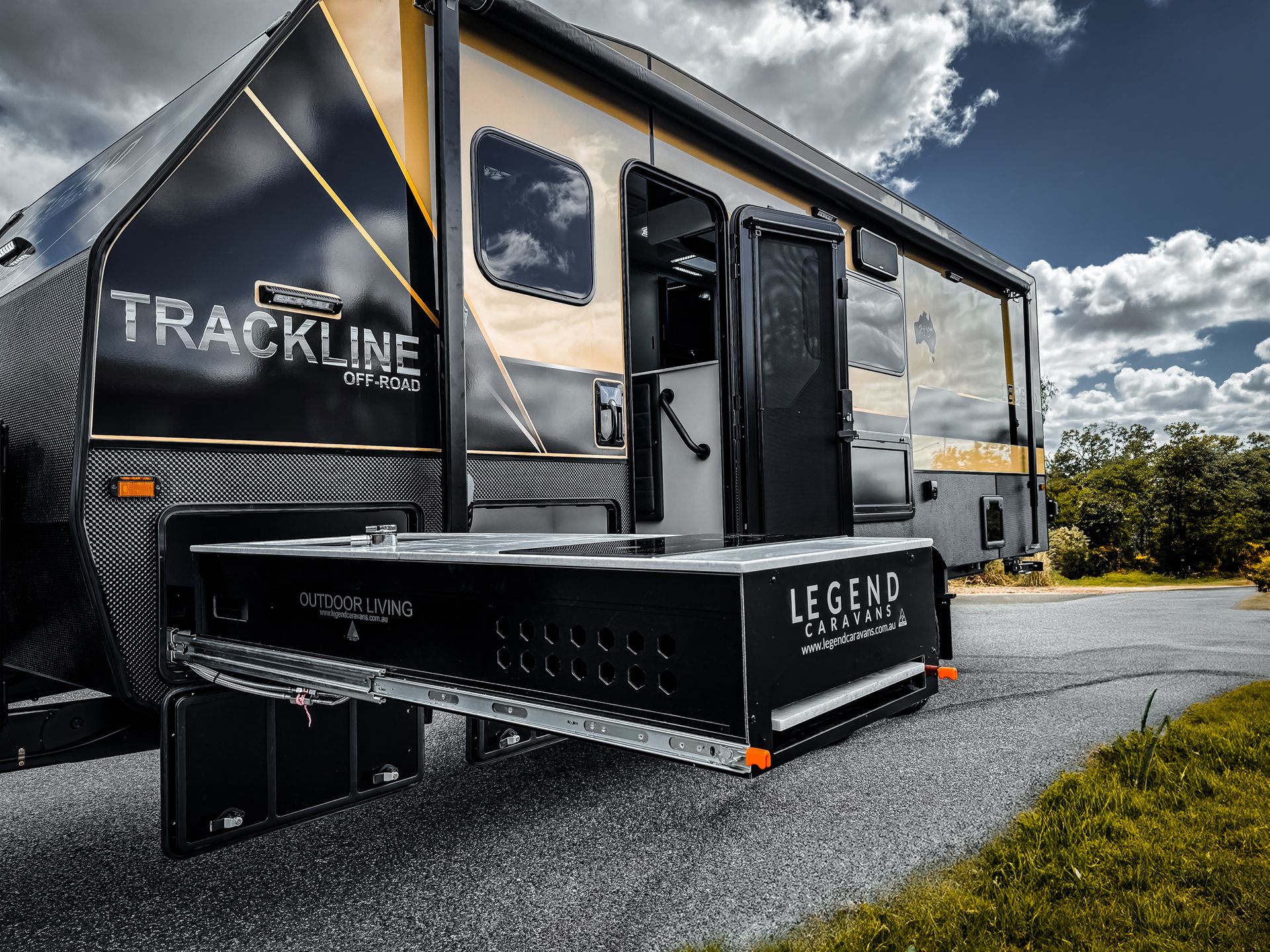

- Outside: hot and cold water outlets on models with an outdoor kitchen.
Build
- Chassis: a Legend off-road chassis with 4 inch rails, a 4 inch raiser and a 6 inch heavy duty A-frame.
- Suspension: Cruisemaster XT airbags with remote control, upgradeable to Cruisemaster ATX.
- Brakes: 12 inch electric brakes.
- Frame: aluminium joined with Hanrob self piercing rivets.
- Body: aluminium composite walls and a one piece honeycomb floor.
Power and water
- Battery: a 48 volt 5kWh lithium battery, upgradeable to 15kWh.
- Inverter: 3,600 watts continuous.
- Solar: typically four 200 watt panels, depending on size and layout.
- Charging: two MPPT solar regulators and a DC-DC charger.
- Water: two 95 litre fresh tanks and a 110 litre grey tank.
- Hot water: an instant hot water system.
What will tow it?
Legend lists a 3,500kg ATM (aggregate trailer mass) on floorplans 1 to 4. The 22 foot 6 inch and 24 foot 6 inch floorplans are 4,500kg. Your vehicle's braked towing capacity needs to cover the ATM of the floorplan you choose. Ask Legend for the tare and ball weight of the floorplan you choose, and check the ball weight against your towball limit.
How to buy
Legend's showroom is at 2 Florey Court, Somerton, in Melbourne. It also lists dealers in Victoria, Western Australia, New South Wales, South Australia and Queensland. Legend says "All Legend Caravans are made and manufactured in Australia with the latest technology and machinery that help us produce a great product."
Technical specifications
About Legend Caravans
Legend Caravans build off-road, on-road and hybrid caravans from Somerton in Melbourne's north, and state that all Legend caravans are made and manufactured in Australia. Legend says every range uses an aluminium frame assembled with a self-piercing rivet system rather than welding, with a one-piece fibreglass roof and a honeycomb floor.
Price on application - the dealers below price it to the spec you choose.
