Airlie 22 3 Bunk

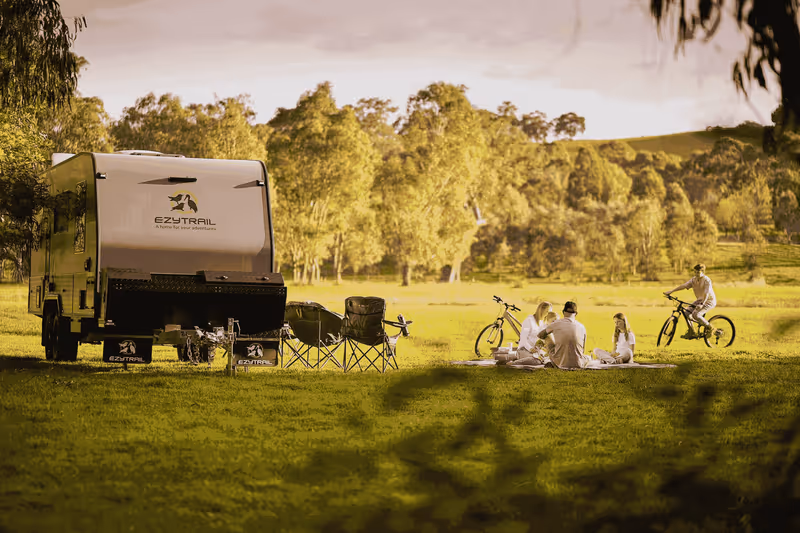

Images from Ezytrail
- From
- $80,091
- Max weight (ATM)
- 3,500kg
- Sleeps
- 5
- Length
- 22ft
About the Airlie 22 3 Bunk

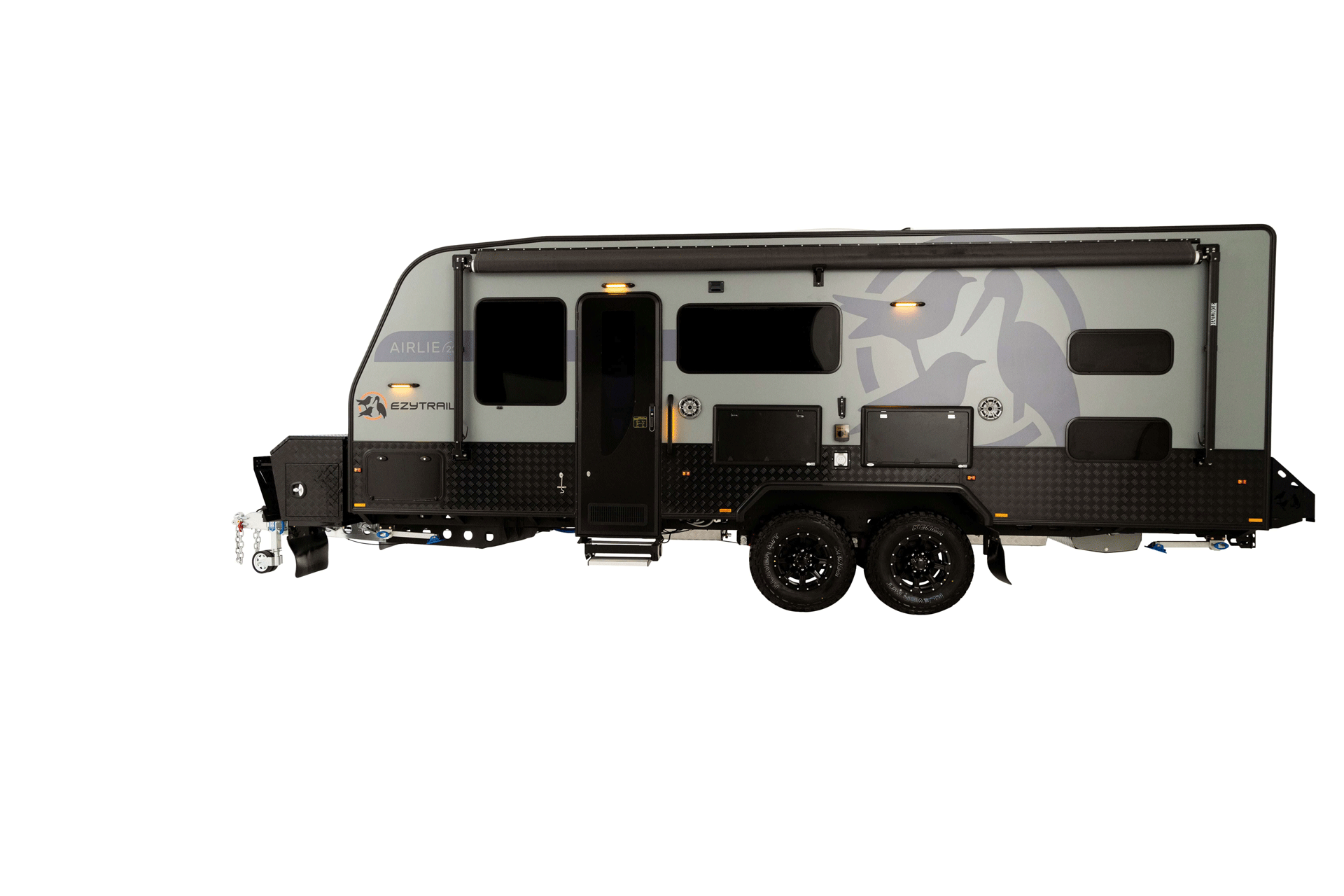

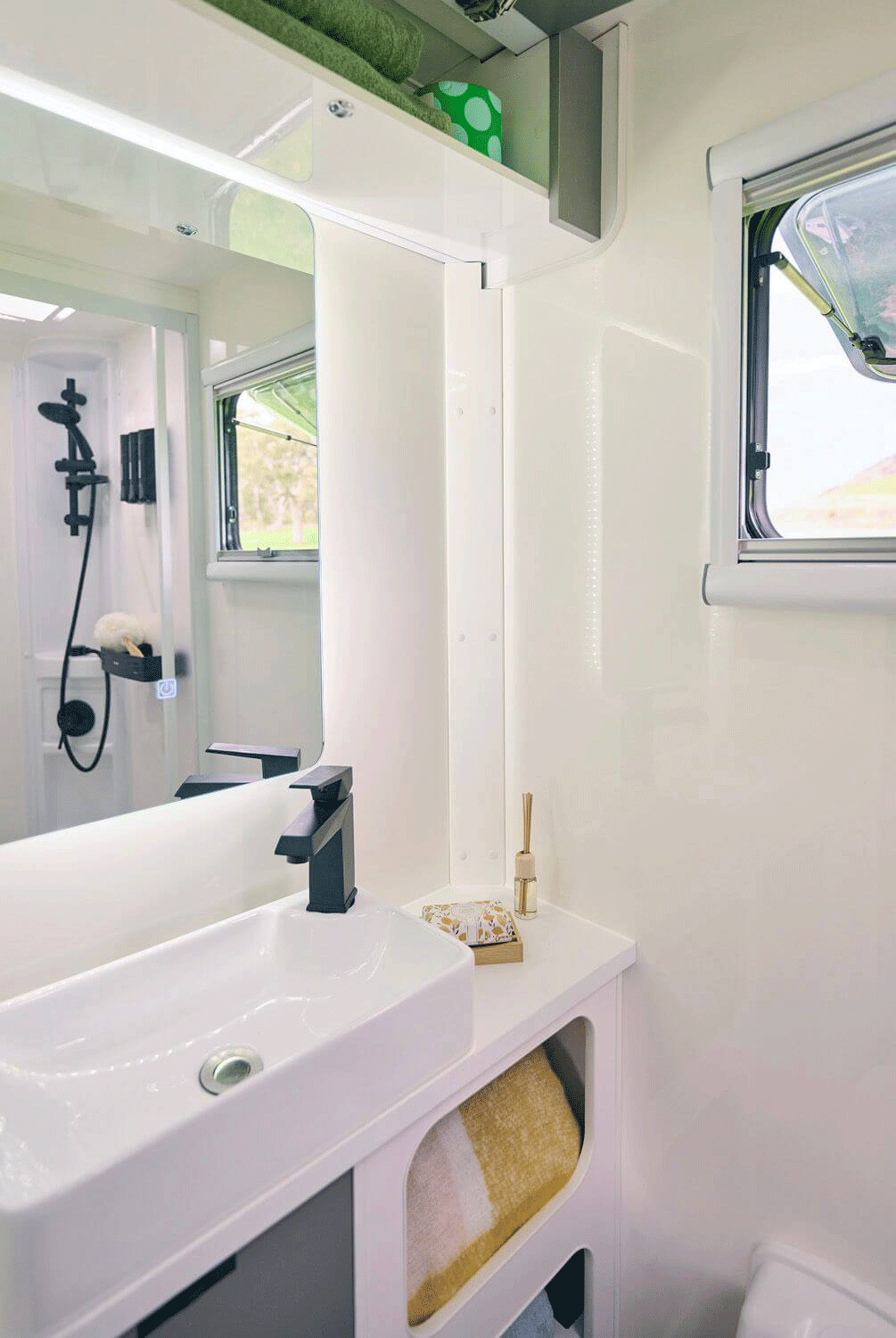

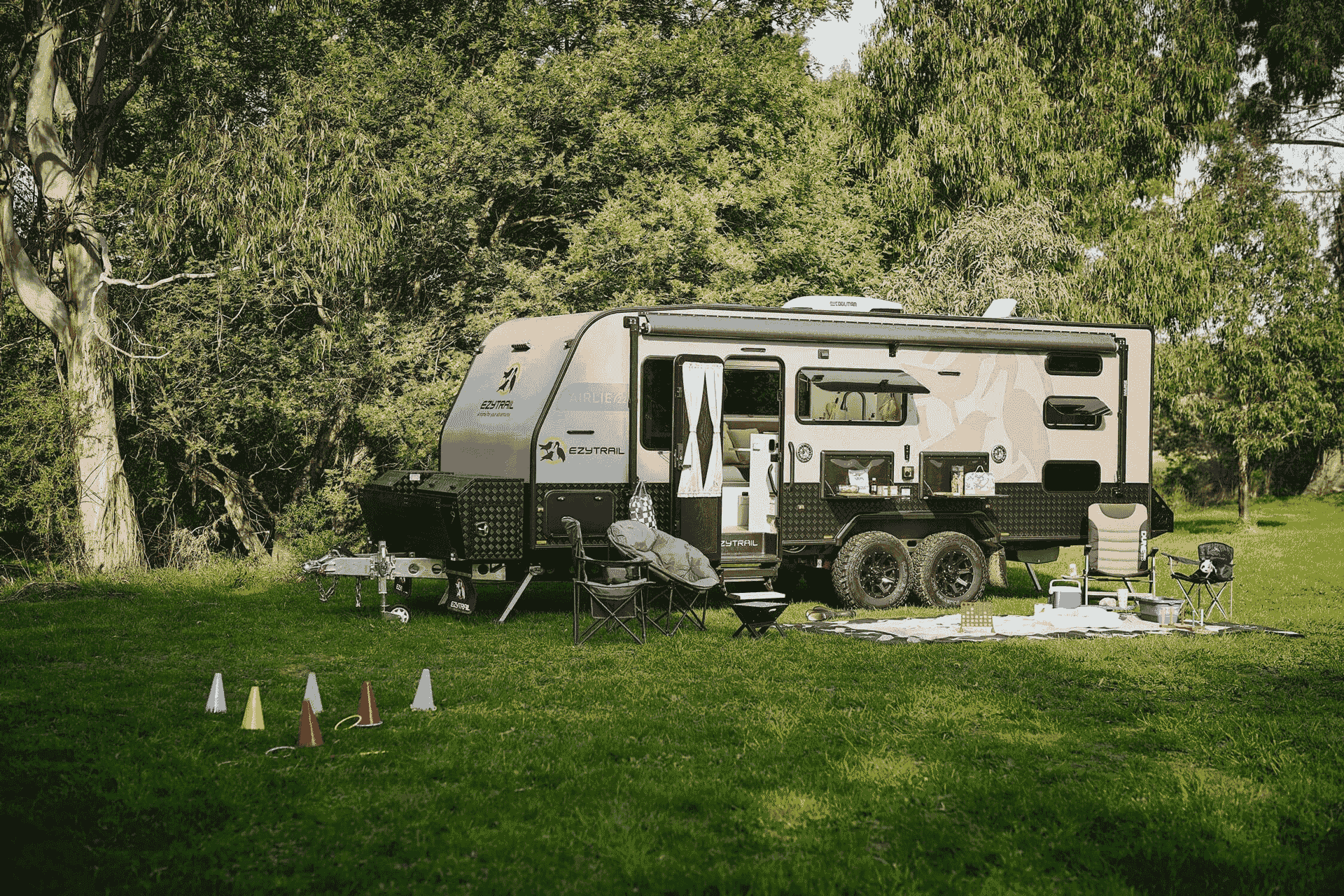

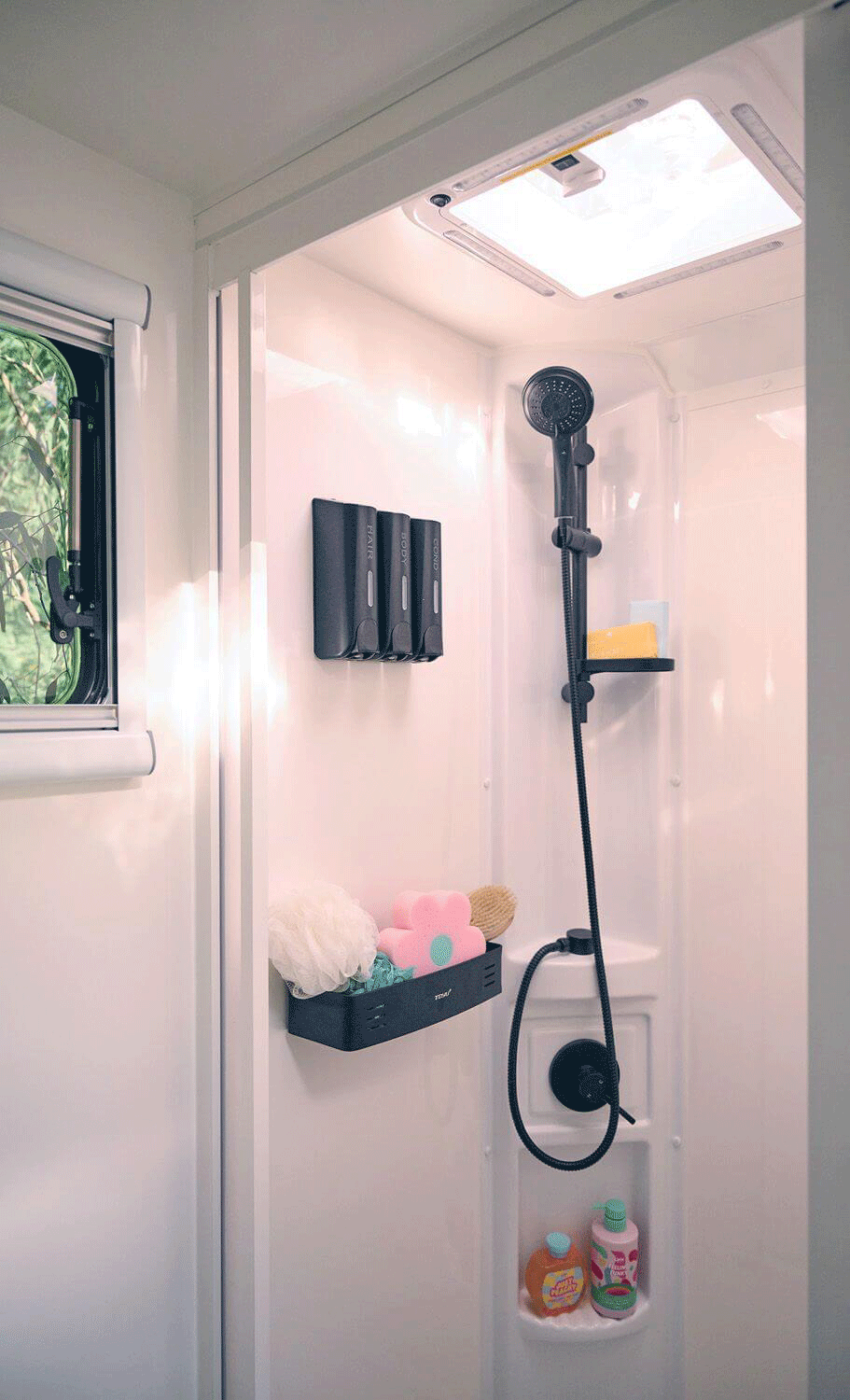

The Airlie 22 3 Bunk is a hard-top off-road caravan that sleeps five on a queen island bed and three bunks. It suits a larger family who want a washing machine and a separate shower and toilet.
It has a 2,937kg tare and a 3,500kg ATM (aggregate trailer mass), which leaves 563kg for water, gas and gear. Filling both fresh tanks uses 240kg of it, so weigh the van loaded. Ball weight is 285kg, and you need a car rated to tow 3,500kg braked.

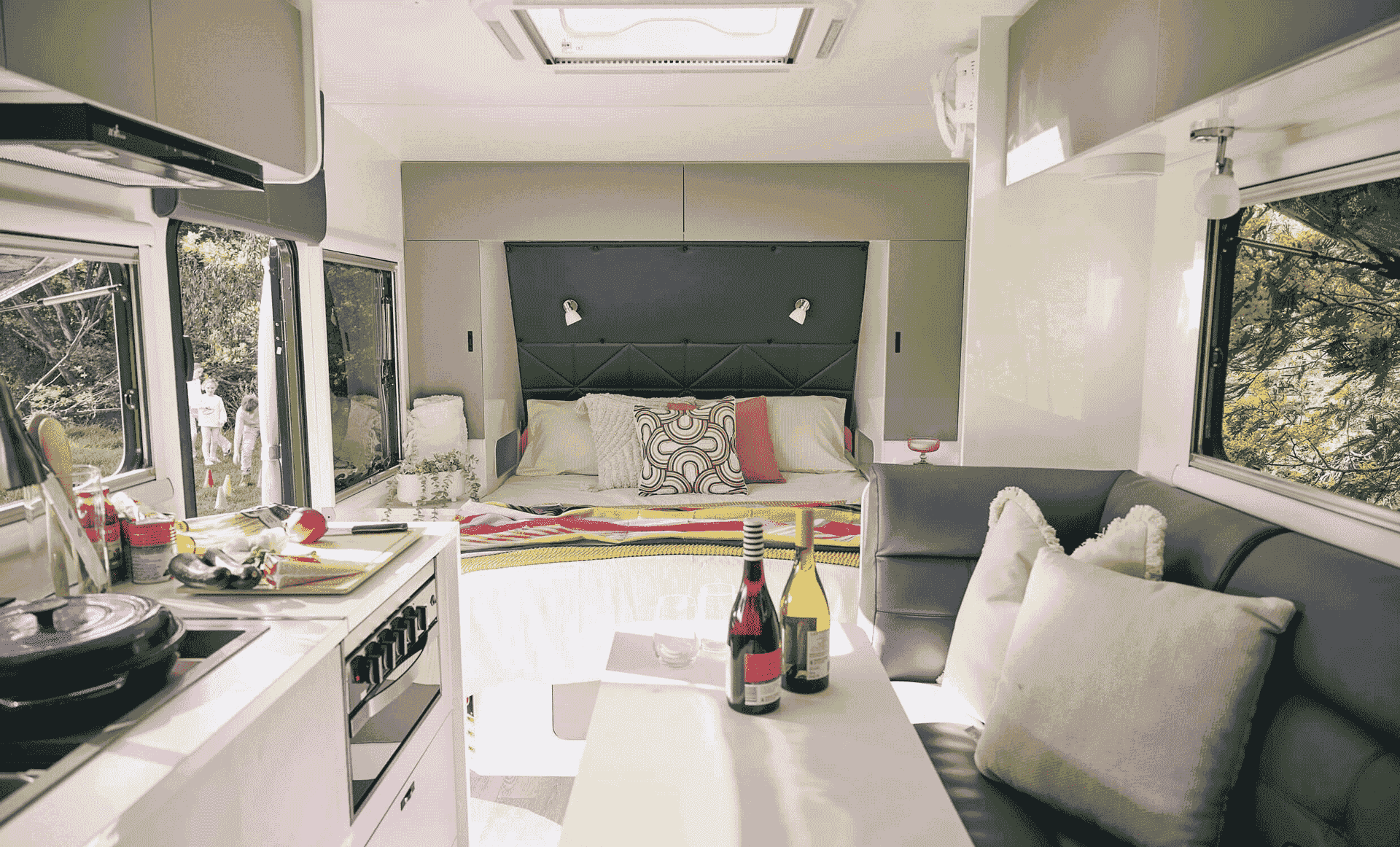

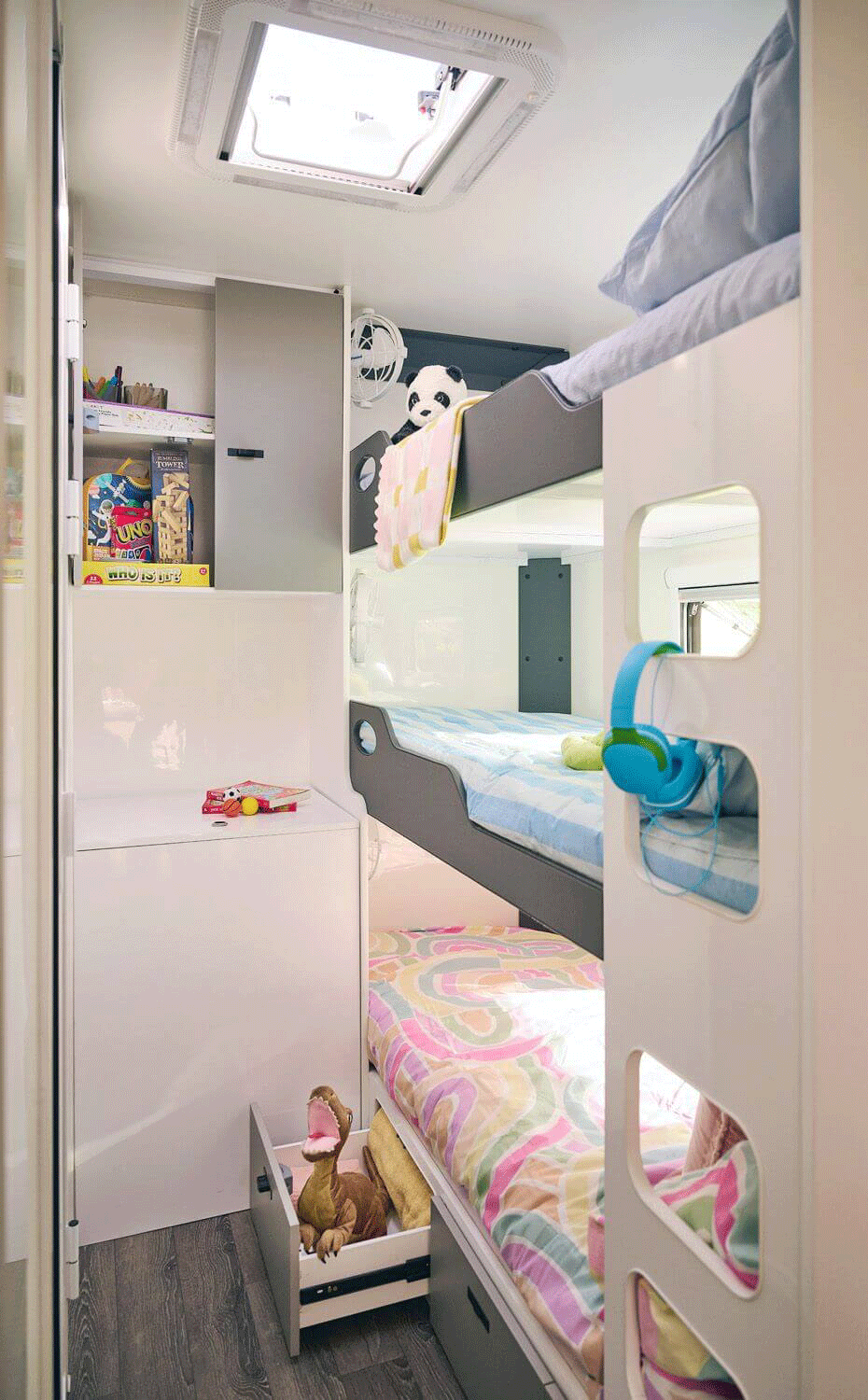

The queen island bed measures 1,570mm by 2,050mm and extends to two metres. The top and middle bunks run 1,800mm by 700mm, and the bottom bunk 1,750mm by 750mm. The kitchen has a four-burner cooktop and grill combo, an overhead microwave, a 12V rangehood and a Thetford T2208 224L fridge-freezer. A wall-mounted washing machine sits inside, and a Truma Ultrarapid gas and electric system heats the water.
It is a 12 volt system. Ezytrail fits 400W of roof solar, two 120Ah lithium batteries and a Renogy 2000W inverter charger with a 65A output. Two 120L tanks carry the fresh water and an 80L tank holds the grey, so 240 litres travel with you.
The $5,000 Extenda Pack lifts the battery bank to 470Ah and the solar to 600W. It also wires the air conditioner to the inverter and adds a 2kW diesel heater with a bluetooth controller. A MyCoolman CCA3000 air conditioner, a 28 inch smart TV and a roll-out barrel awning are standard.
Ezytrail builds the van on a fully galvanised chassis with an Alko 3,500kg off-road ball hitch. The maker gives it a dual axle for stability, eight Pedders Nitro gas shocks and a dual Bigfoot V2 12 inch brake system. Suspension is Ezyrider V2 independent, with an ARK XO-750 jockey wheel and a rear bumper bar carrying two 20L jerry can holders. The van measures 8.86m long, 2.4m wide and 3.06m tall on the road.
You collect the van from one of Ezytrail's eleven showrooms, and a flat $1,000 freight fee covers transport there. Ezytrail does not deliver to a home address, and the from-price excludes dealer delivery and on-road costs. You collect the van at that showroom, and a 10 per cent deposit holds the current price. The body carries a 12 month structural warranty for the first owner.
Technical specifications
Two people buy this van at the same price. One gets a loan rate 2% higher than the other.
Over seven years, the one with the higher rate pays about $5,500 more.
Different lenders will offer you different rates.
Jade's loan specialists compare offers from major banks and other lenders, and negotiate on your behalf.
A free two-minute quote from Jade tells you what your loan would cost, before you sign anything.
Asking commits you to nothing. You can say no thanks at any point. Jade runs no credit check to give you the quote.
Jade arranges the loan. The dealer sells you the van.
Jade Finance pays us a commission if you finance through them. About Jade
Example figures: 20% deposit, seven years, change them in the calculator.
Your shortlist keeps every saved van on one page to compare side by side, and you can email the list to yourself.
Towing and weights
A guide from this van's ATM only. The numbers that decide it are your car's towing capacity, its GCM (Gross Combination Mass) and the compliance plates.Check your car properly
What towing this van needs
A brake controller in the car. Coupled up, the Ezytrail Airlie 22 3 Bunk puts about 3,215kg on its wheels, and Australian law needs a controller above 2,000kg GTM (Gross Trailer Mass).
How to choose one →A weight distribution hitch is worth pricing. The Ezytrail Airlie 22 3 Bunk's ball weight is 285kg.
How to choose one →
Figures come from the maker's published specs.
Insurance for your Ezytrail Airlie 22 3 Bunk
Agreed value and market value pay out differently
Before you get quotes, find out what changes the amount a caravan policy pays out.
Read the insurance guideBefore you go and see it
Finance first, then the phone call, then the checks at the van.
1Walk in with the money already sorted
The same van costs about $5,500 more over seven years with a loan rate 2% higher.
Different lenders will offer you different rates.
Jade's loan specialists compare offers from major banks and other lenders, and negotiate on your behalf.
A free two-minute finance quote from Jade tells you what your loan would cost, before you ring the dealer.
Get a free finance quote to take to the yardAsking commits you to nothing. You can say no thanks at any point. Jade runs no credit check to give you the quote.
Jade arranges the loan. The dealer sells you the van.
Jade Finance pays us a commission if you finance through them. About Jade
Example figures: 20% deposit, seven years, change them in the calculator.
Or have Jade call you about this van
A Jade specialist calls you to talk it through.
2Ring ahead, then go see it
Ezytrail sells factory-direct - you deal with the factory, not a dealer network. Ring ahead to check what's on display.
When you call, ask:
- Have you got the Ezytrail Airlie 22 3 Bunk in the yard now, or is it on order?
- Can I come and walk through it this week?
- What's your best drive-away price on it?
- Is it the same build I compared, with matching layout, weights and features?
3When you get there, check
- The compliance plate - check the tare and ATM against the specs you compared here. The plate carries the legal numbers.
Where the plate is and how to read it - Water damage - soft spots in the floor, stains on the walls, or a musty smell in the cupboards.
How to spot water damage - That everything works - lights, water pump, fridge, gas, and the brakes and hitch.
The full inspection checklist, system by system - Sort your finance before you hand over a deposit, so you are never committed to a van you cannot finance.
Read before you go
Our guides for the day you go and look.
Delivery and freight
Ezytrail builds to order, so you collect from the factory or have it delivered to you. Interstate freight is a real cost, often a few thousand dollars, and it climbs with distance, so budget for it.
