Ceduna 16R 3 Bunk MK4
Images from Ezytrail
- From
- $80,990
- Max weight (ATM)
- 3,000kg
- Sleeps
- 5
- Length
- 16ft
About the Ceduna 16R 3 Bunk MK4

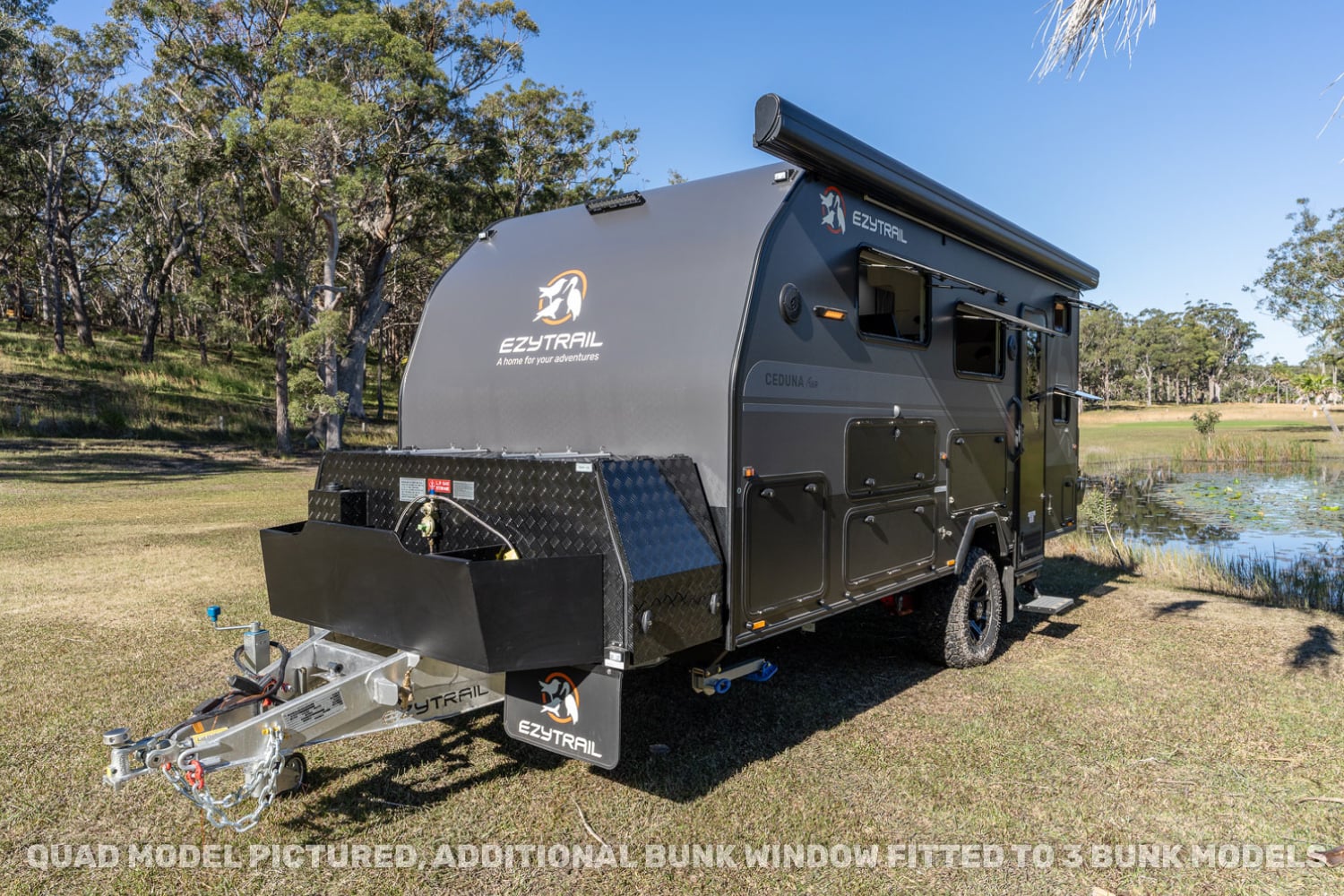

The Ceduna 16R 3 Bunk MK4 is a hard-top off-road hybrid that sleeps five on a 16 foot body. It suits a family with three children who want an internal ensuite and off-grid power.
It has a 2,399kg tare and a 3,000kg ATM (aggregate trailer mass), which leaves 601kg for water, gas and gear. Five people and full tanks will use most of that, so weigh the van loaded. Ball weight is 183kg, and you need a car rated to tow 3,000kg braked.

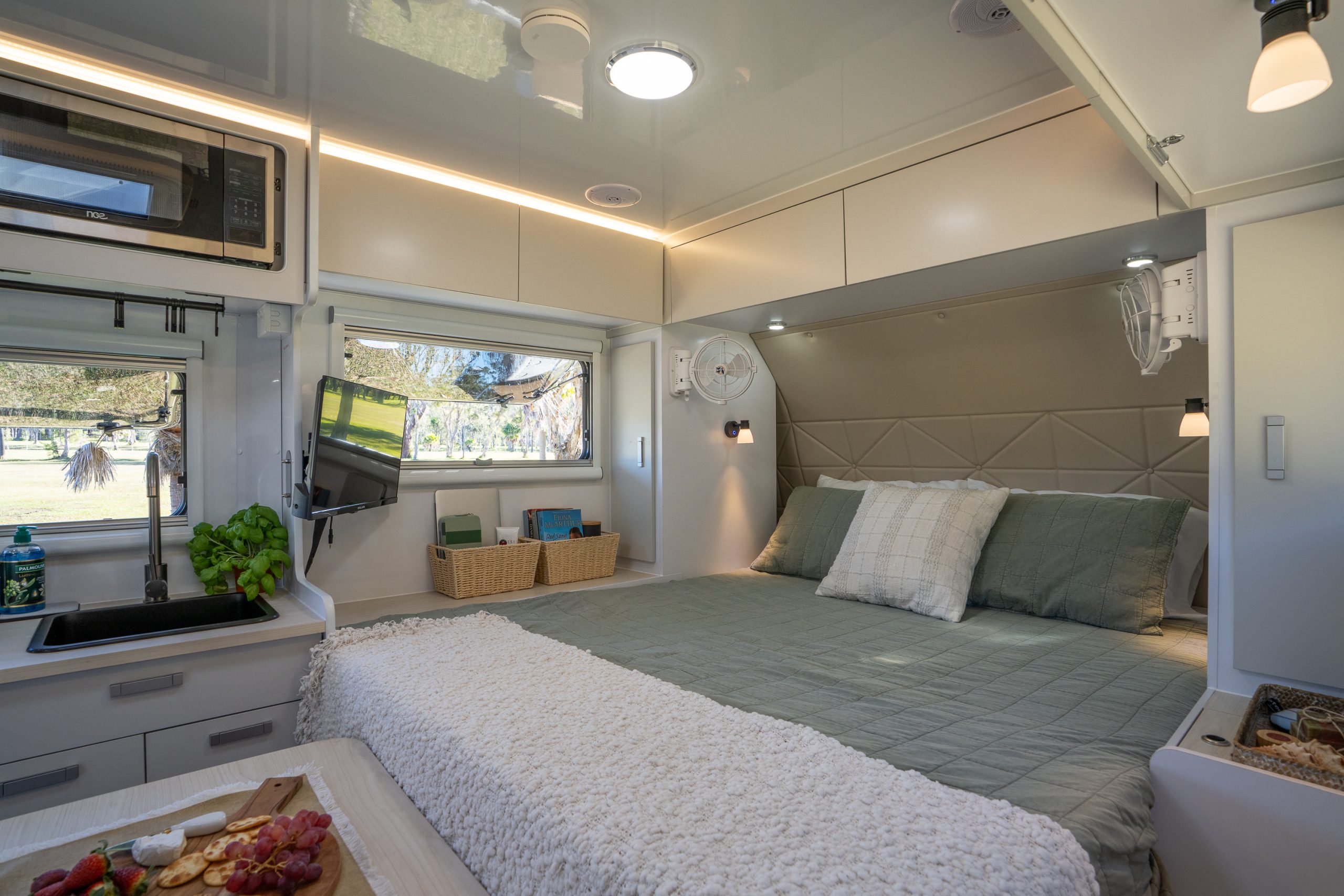

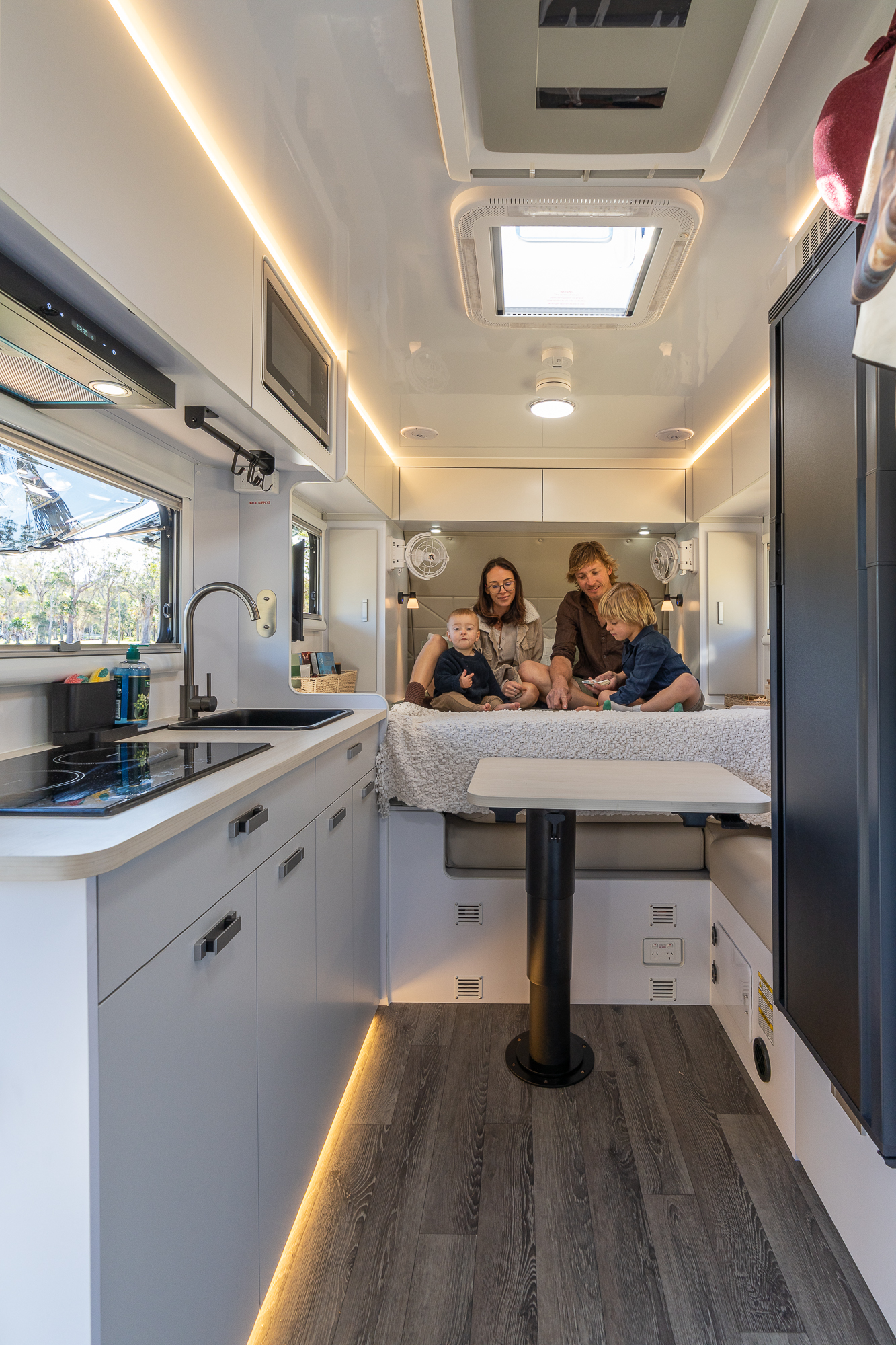

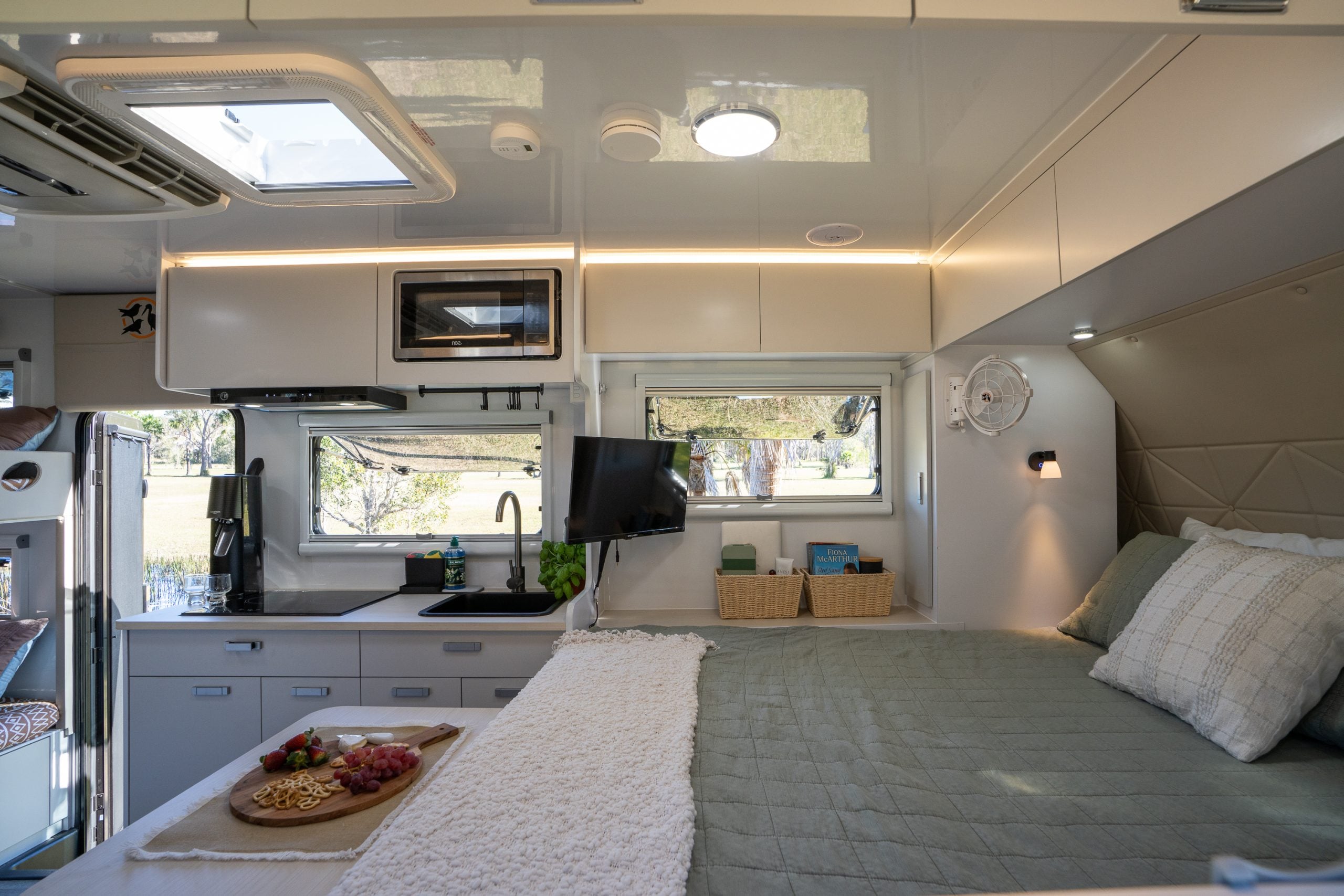

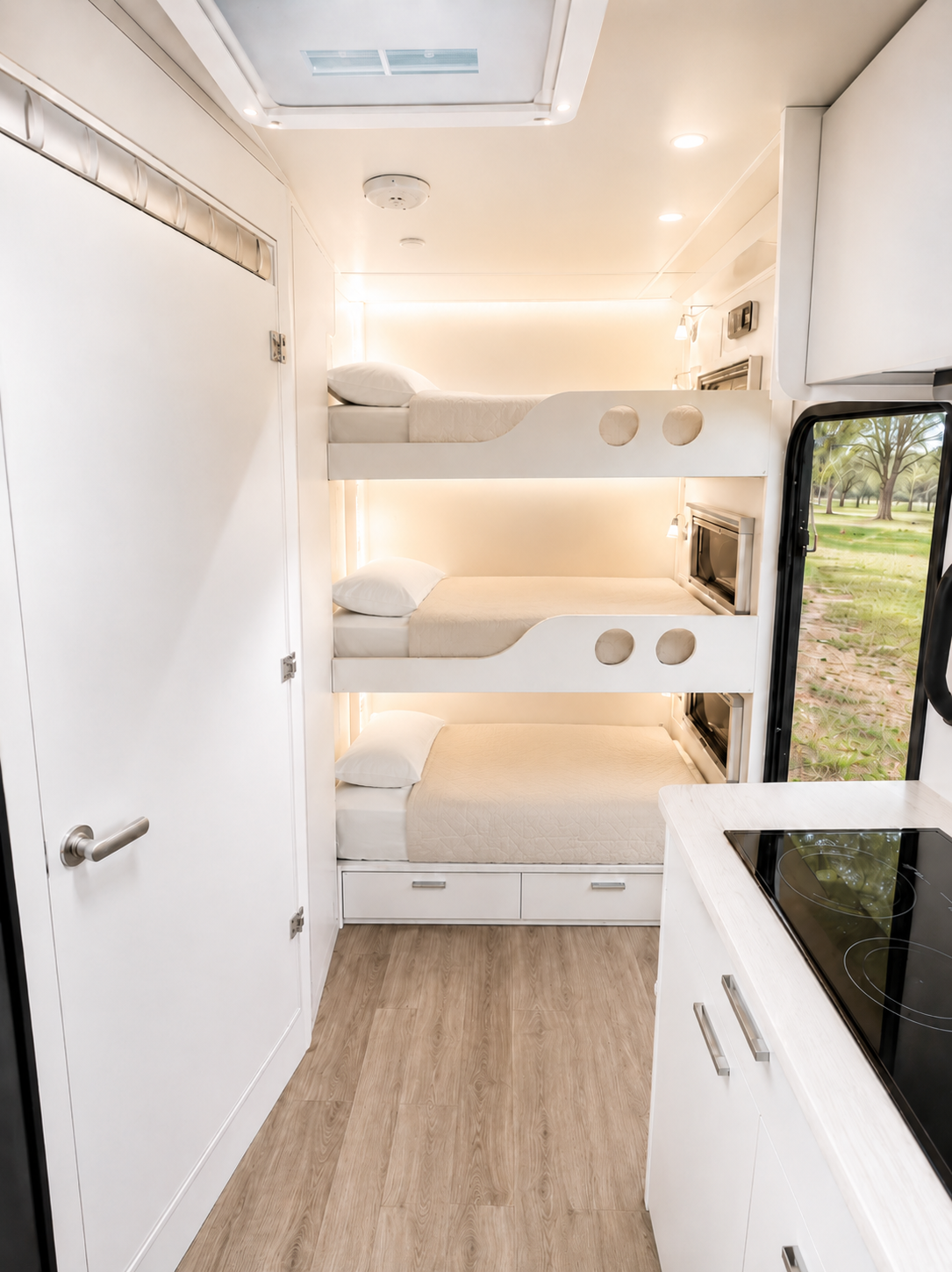

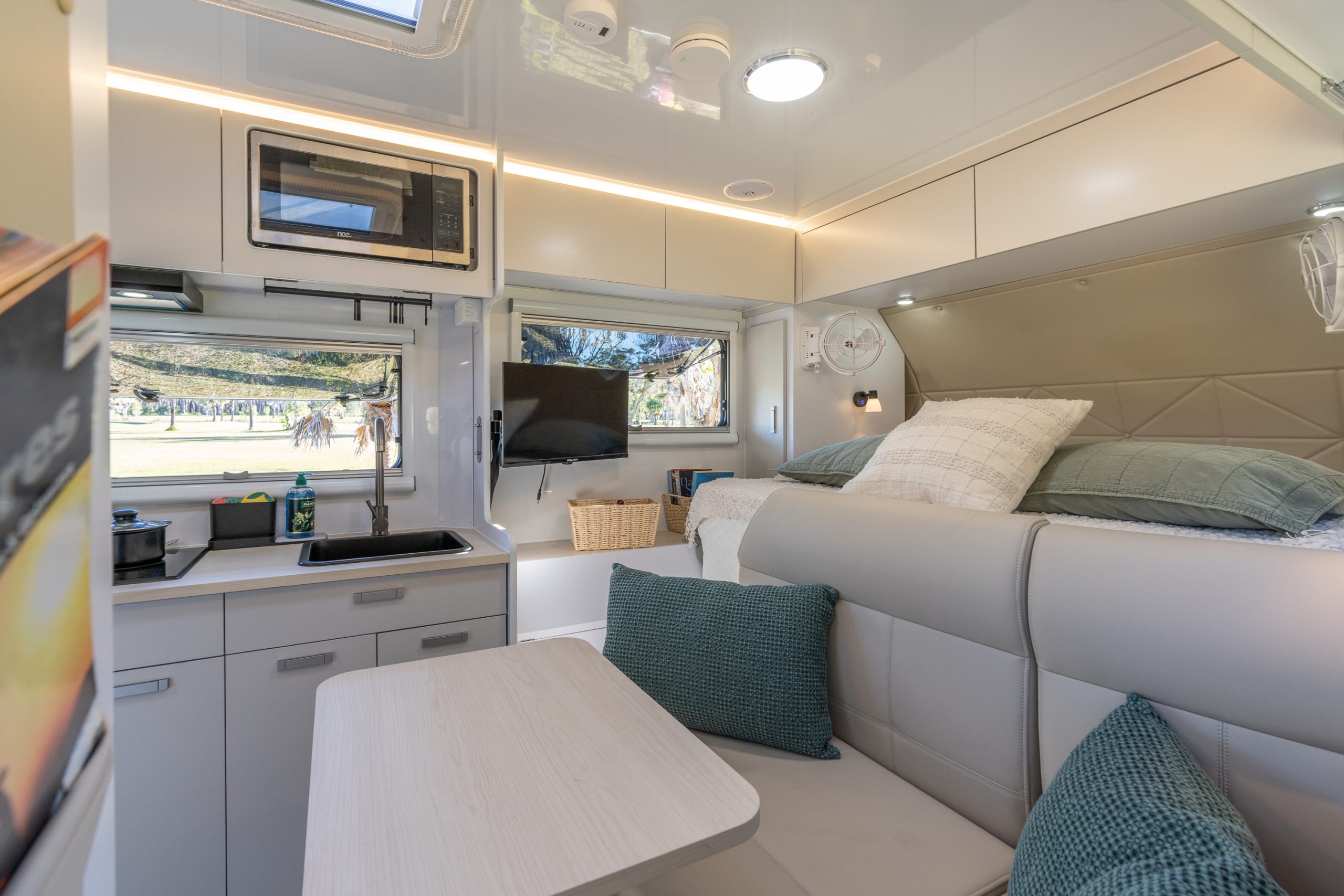

The queen master bed measures 2,000mm by 1,530mm, with a large L-shaped folding sofa beside it. Three full-length bunks run 1,950mm by 850mm each. A self-contained ensuite holds the shower and the cassette toilet. The kitchen has a dual induction cooktop, an overhead microwave and a 153L fridge-freezer. Upholstery is genuine Nappa leather over quilted mattresses.

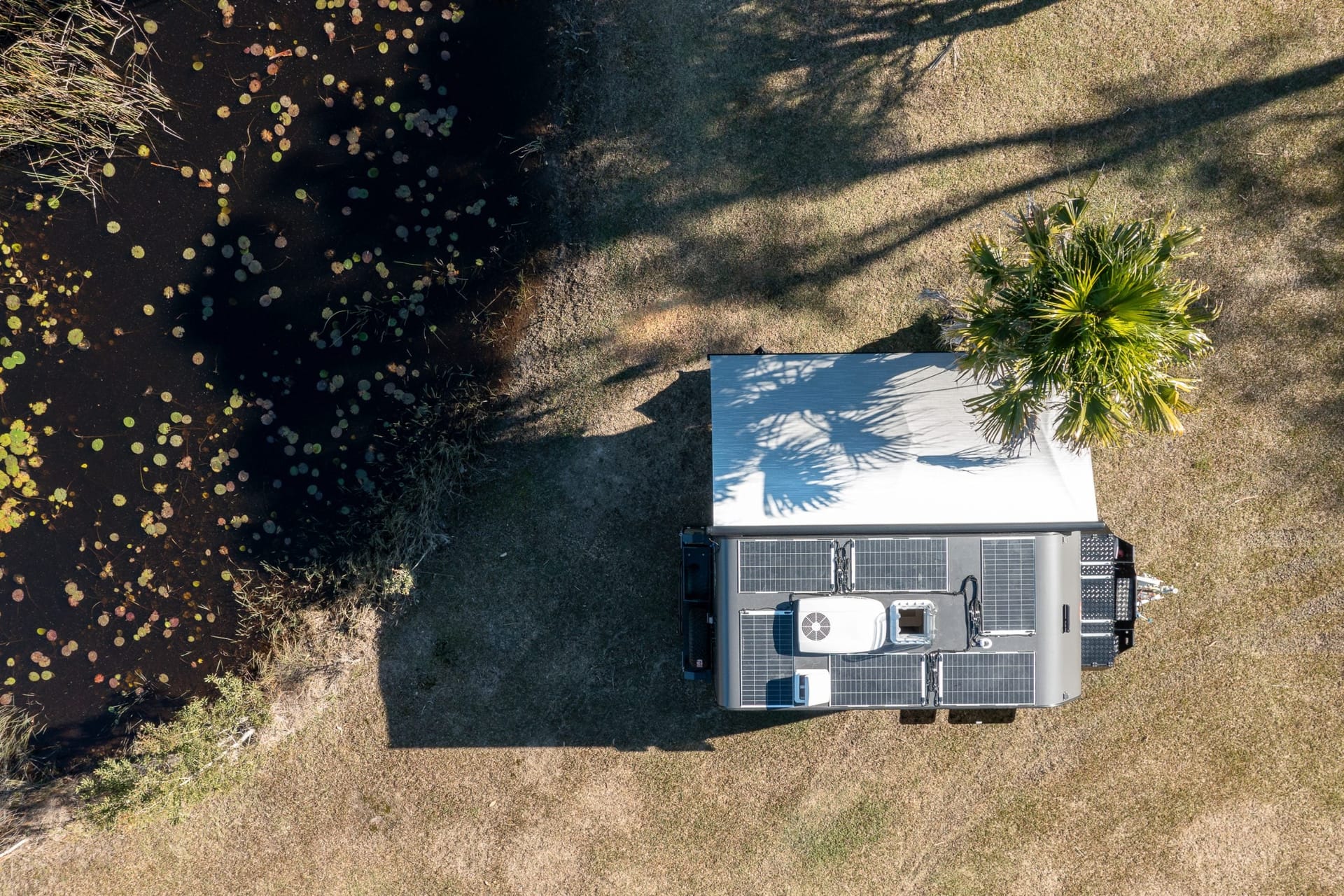

It is a 24 volt system. Ezytrail fits a 1,020W back-contact solar array, two 24V 235Ah lithium batteries and a Victron Multiplus-2 3,000VA inverter. The bank holds 12kWh, the equivalent of 940Ah at 12 volts. A Wegic smart circuit controller and a Victron SmartSolar 100/50 manage the system.
Fresh water is 240 litres across two tanks, and grey water goes to an 80L tank. A gas system heats the water on demand. Heating is a 2kW diesel unit, and cooling is a MyCoolman CCA3000 air conditioner.

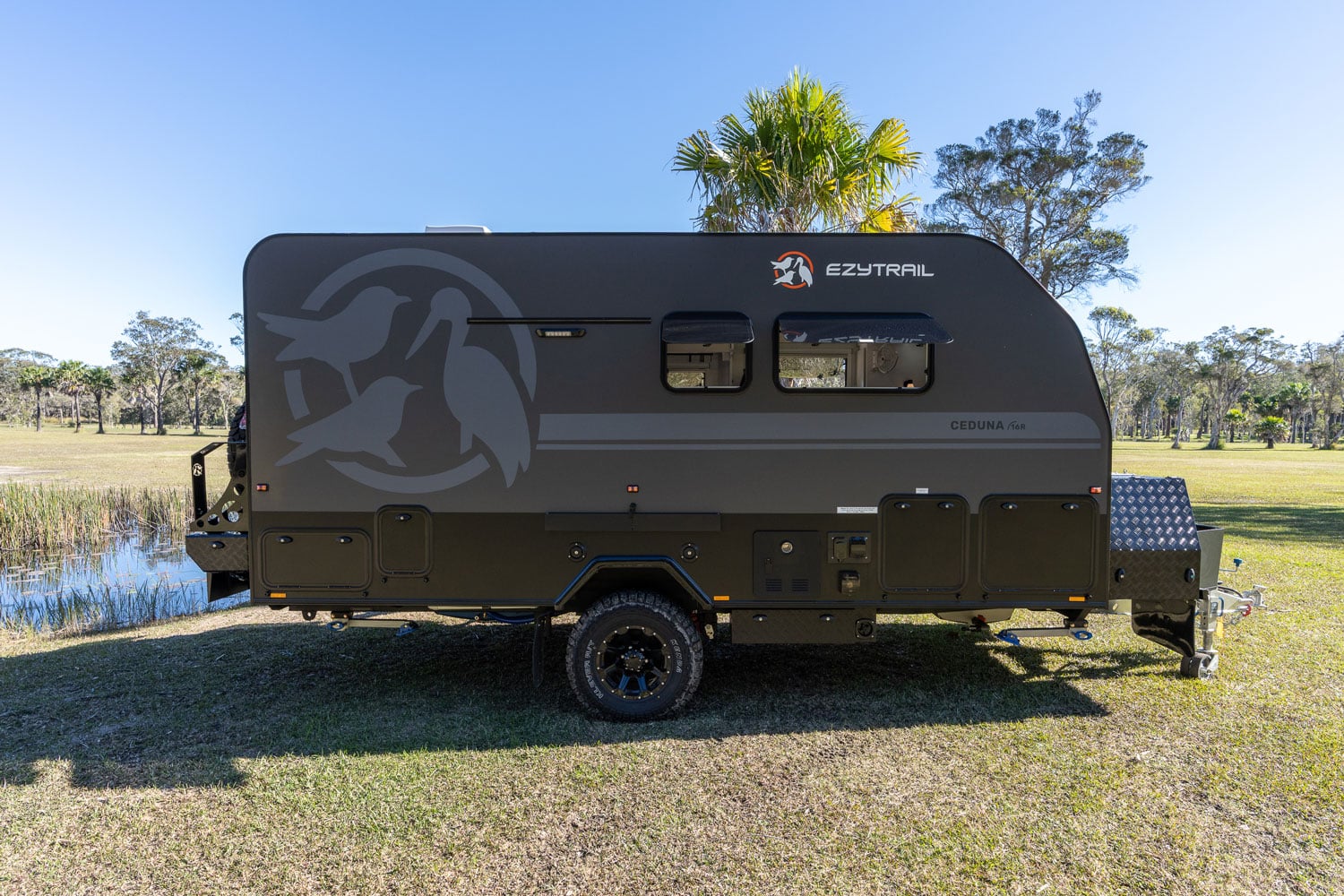

The chassis is one-piece hot-dip galvanised steel with an extended gooseneck drawbar. Ezytrail certifies it F5 and warrants it for life. It rides on Ezyrider V3 coil independent suspension, Pedders Big Bore shocks and Bigfoot V3 12 inch brakes. 16 inch alloys on off-road tyres and a matching spare carry it. The van measures 7.32m long, 2.4m wide and 3.1m tall on the road.

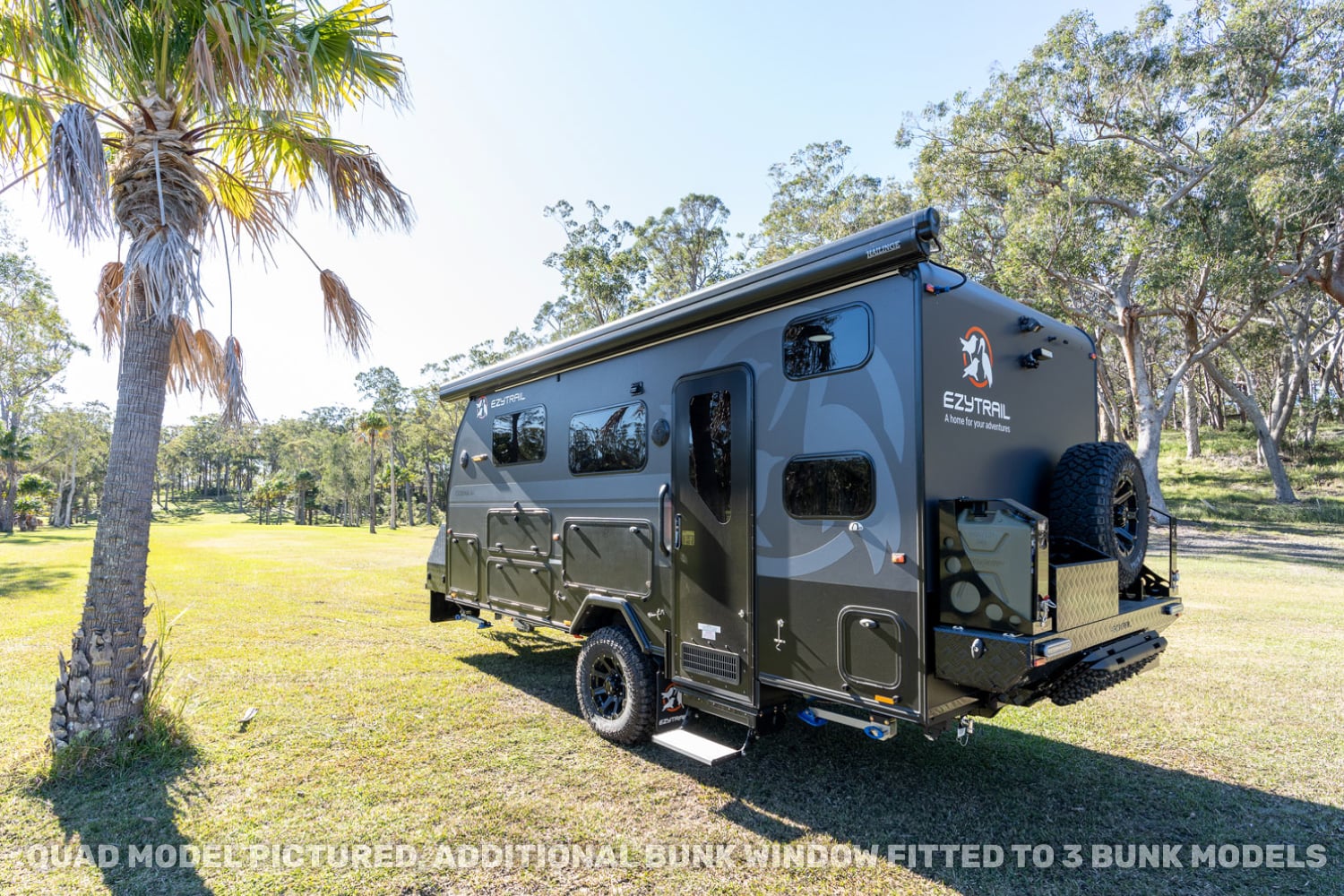

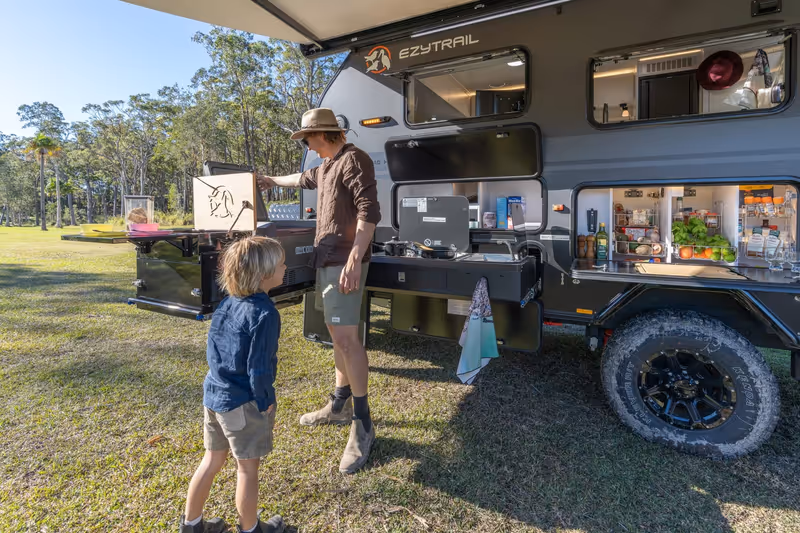

Outside, Ezytrail fits a slide-out kitchen with a three-burner cooktop, an electric cassette awning, an enclosed EzyLight awning room and a rear utility box. Ezytrail warrants structure and materials for 12 months from first ownership.
Ezytrail runs eleven showrooms, and you collect from whichever one suits you. Transport to it is a flat $1,000, and the from-price excludes dealer delivery and on-road costs.
Technical specifications
Two people buy this van at the same price. One gets a loan rate 2% higher than the other.
Over seven years, the one with the higher rate pays about $5,500 more.
Different lenders will offer you different rates.
Jade's loan specialists compare offers from major banks and other lenders, and negotiate on your behalf.
A free two-minute quote from Jade tells you what your loan would cost, before you sign anything.
Asking commits you to nothing. You can say no thanks at any point. Jade runs no credit check to give you the quote.
Jade arranges the loan. The dealer sells you the van.
Jade Finance pays us a commission if you finance through them. About Jade
Example figures: 20% deposit, seven years, change them in the calculator.
Your shortlist keeps every saved van on one page to compare side by side, and you can email the list to yourself.
Towing and weights
A guide from this van's ATM only. The numbers that decide it are your car's towing capacity, its GCM (Gross Combination Mass) and the compliance plates.Check your car properly
What towing this van needs
A brake controller in the car. Coupled up, the Ezytrail Ceduna 16R 3 Bunk MK4 puts about 2,817kg on its wheels, and Australian law needs a controller above 2,000kg GTM (Gross Trailer Mass).
How to choose one →
Figures come from the maker's published specs.
