Escape

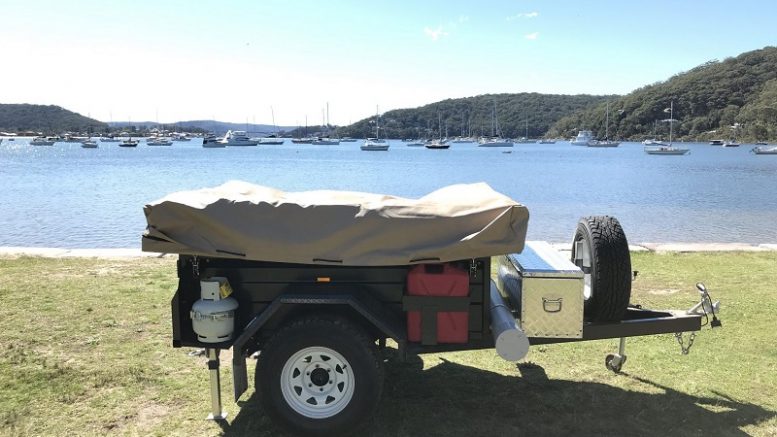

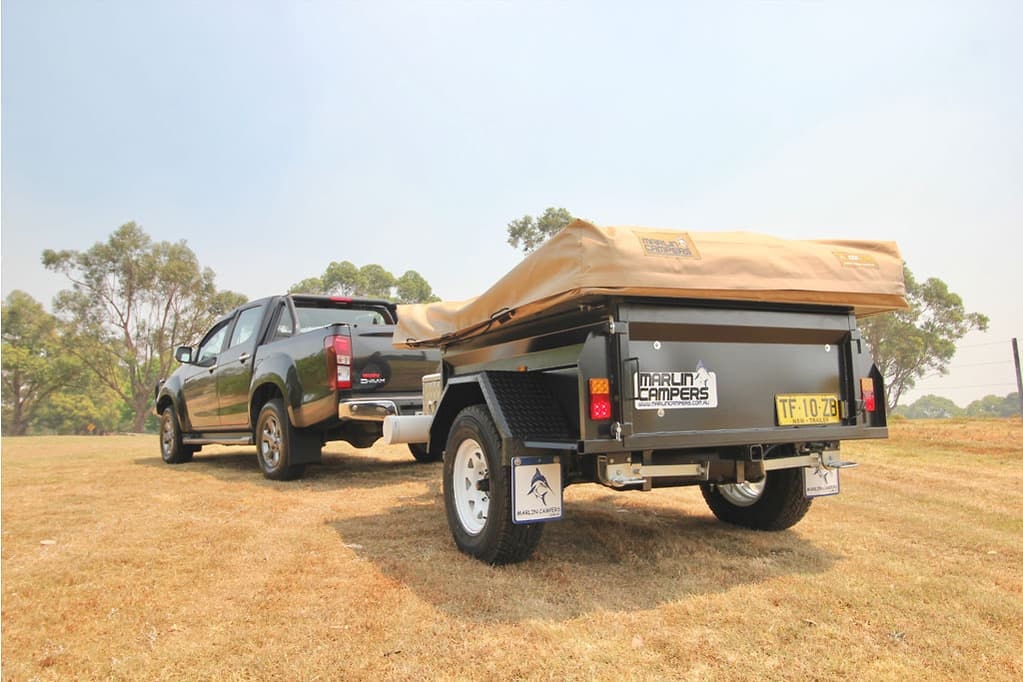

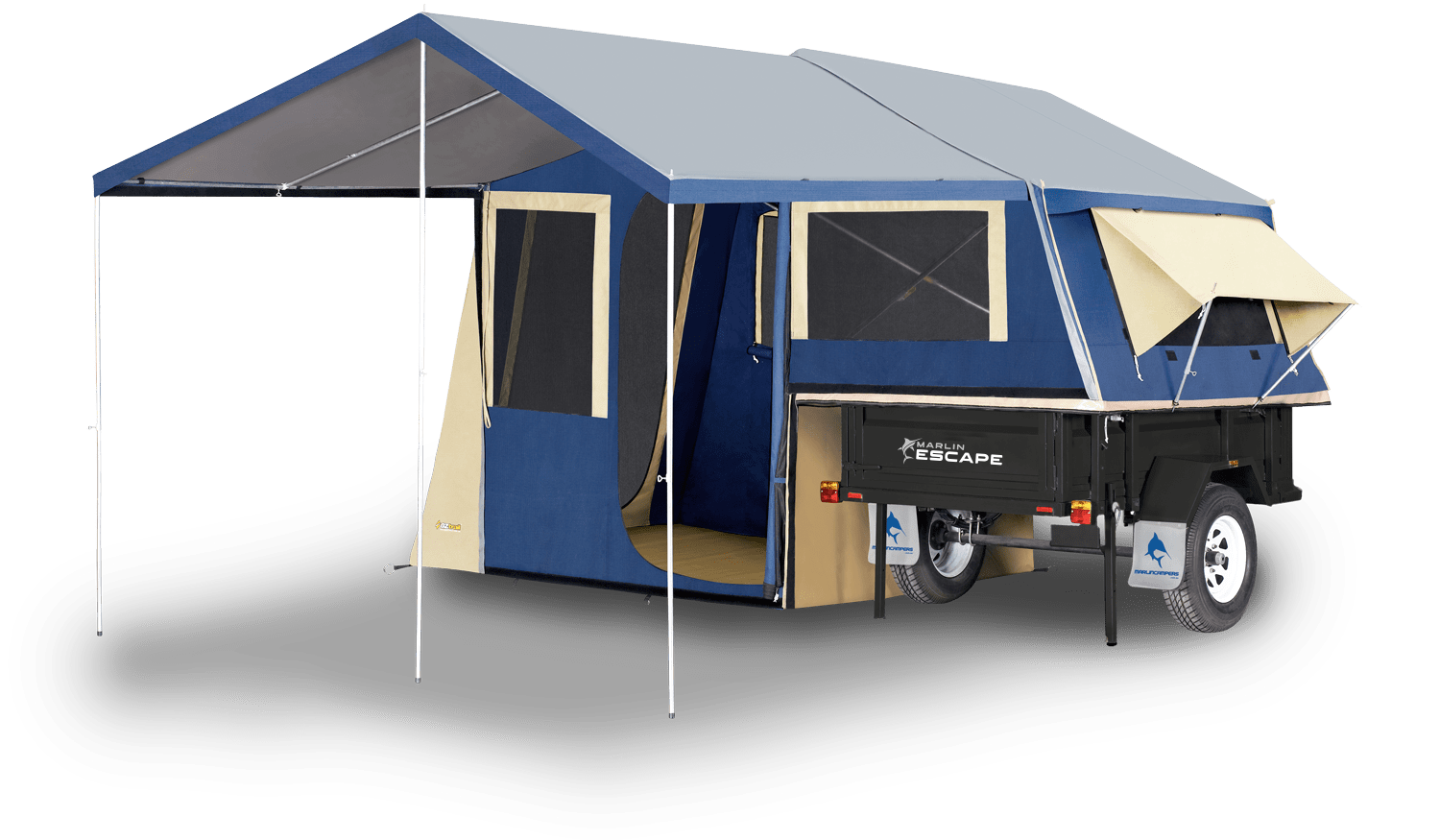

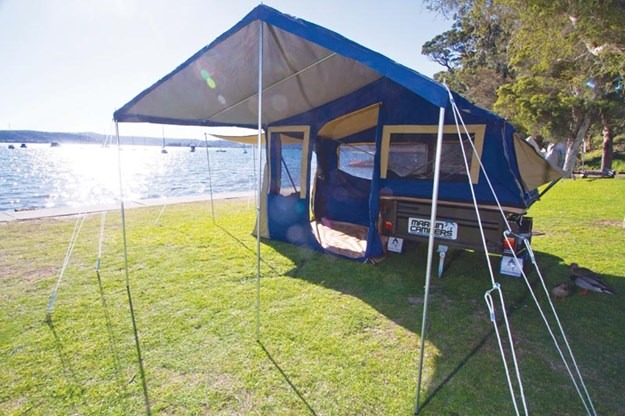

Images from Marlin Campers
- From
- $14,990
- Weight
- 450kg tare
- Sleeps
- Up to 4

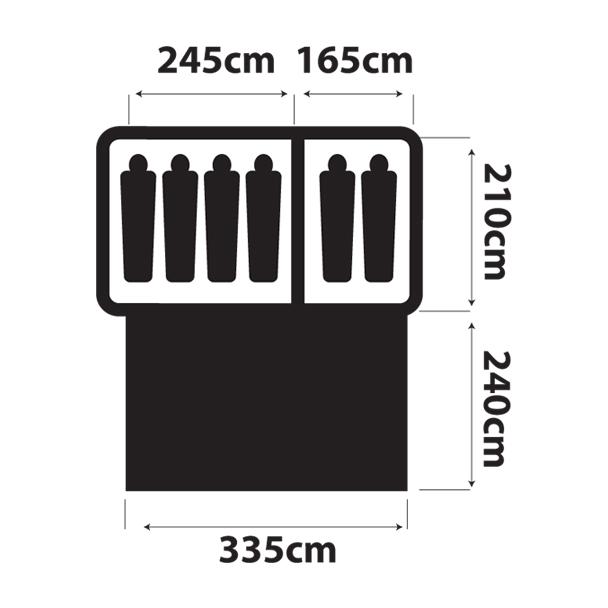

Floor plans
About the Escape
The Marlin Escape is a side-folding canvas camper trailer for two to four people, built on a 6 by 4 foot high-side trailer. It weighs 450kg empty and puts 20kg on the towball. It has a queen-size bed, a tailgate kitchen, a 60 litre water tank and a lithium power pack.
The tent
- Setup: Marlin says one person can set it up in under two minutes.
- Design: a split-level, side-folding tent with two doors into the sleeping and living areas.
- Canvas: SatProof ripstop canvas walls and a silver-impregnated canvas roof.
- Roof lining: an Insulcell triple-layer insulated roof, with a rolled edge to keep driving rain out.
- Floor and insects: a heavyweight PVC vinyl floor, and fine No-See-Um mesh on every door and window.
- Bed: a 10cm high-density foam queen mattress with a removable, washable cover.
Kitchen, power and water
- Kitchen: a tailgate kitchen with a cutlery drawer, a sink with a hand pump, room for a two or three-burner stove and under-bench storage.
- Water: a 60 litre tank with a hand pump and a lockable filler cap.
- Power: a 22.5 amp hour lithium power pack with a 330 watt inverter.
Storage and access
- Load space: apart from the kitchen, the trailer body is empty and ready to load with camping gear.
- Access: through the rear door, or a side door that opens with the tent packed or set up.
- Drawbar: an aluminium toolbox with a gas-strut lid, a vertical spare wheel holder and a PVC pole carrier.
- Extras: jerry can and gas bottle holders are standard.
Trims
- Standard: the kitchen, water tank and power pack above, a queen bed and 185R14 light truck tyres.
- Deluxe kitchen and hot water: a larger tailgate kitchen and a hot water system with a shower.
- Deluxe power: a 45 amp hour lithium battery with a 500 watt inverter, and 12 volt outlets inside and out.
- Deluxe finish: a marine-carpet trailer floor and a spare wheel cover.
- Ultimate trailer: the extreme off-road trailer, an off-road hitch, a rear recovery point, a stone guard and a dust-sealed tailgate.
- Ultimate power: a 105 amp hour lithium battery with an inverter, and a 120 watt Redarc solar panel.
- Ultimate carrying: tie-down rails, and double jerry can and gas bottle holders.
Trailer and chassis
- Trailer choice: on-road, off-road or extreme off-road.
- Chassis: Australian-milled 40mm angle steel on road, or 50mm RHS steel on the off-road trailers.
- Axle: a 39mm solid round axle on road, 40mm square off-road, or 45mm square extreme off-road.
- Springs: five-leaf slipper springs on road, five-leaf eye-to-eye off-road, or seven-leaf eye-to-eye rebound springs extreme off-road.
- Coupling: a 50mm ball rated to 2,000kg, or an off-road ball coupling rated to 3,000kg on the extreme off-road trailer.
Body and warranty
- Body: fully seam-welded between the corner pillars, with a checker plate floor and wheel guards.
- Tailgate: swing-out, on twin heavy-duty hinges, with lockable latches and dust sealing.
- Rear: a swing-down AL-KO stabiliser leg.
- Warranty: two years from the date you collect it.
What will tow it?
- Tare: 450kg, its empty weight as built.
- Ball weight: 20kg.
Marlin says the Escape suits all-wheel-drive cars such as the Subaru Outback or Nissan X-Trail. Check your vehicle's towing capacity and towball limit before you buy.
How to buy
Marlin sells direct from its base at Somersby on the NSW Central Coast, and delivers Australia-wide. Marlin says: "all our camper trailers are custom-built, right here at our premises on the NSW Central Coast, tailored for the individual order requirements".
Technical specifications
About Marlin Campers
Marlin Campers builds lightweight camper trailers to order at Somersby on the NSW Central Coast, and has since 2006. The five ranges run from the 350kg Cruiser for singles and couples to the Explorer family camper and the open-top Utility Trailer. Trims run Standard, Deluxe and Ultimate on a choice of on-road, off-road or extreme off-road trailers, so you pay only for the gear you want.
