Maxxi 501-3 PT
Images from Golf Caravans
- Max weight (ATM)
- 1,970kg
- Sleeps
- 8
- Length
- 6.9 m

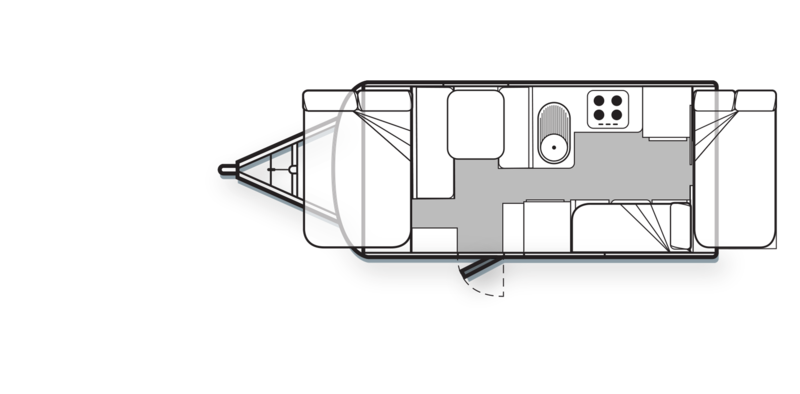

Floor plans

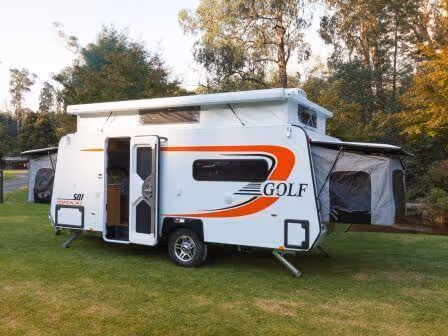

About the Maxxi 501-3 PT
The Golf Maxxi 501-3 PT is a 6.9 metre pop-top caravan that sleeps eight, with fold-out beds at both ends. It weighs about 1,570kg empty and up to 1,970kg loaded. It has roof-top air conditioning, a wind-out awning and a microwave.
Layout
The end beds fold out from the body when you set up camp.
- Beds: fold-out beds at the front and rear.
- Dining: a dinette near the front.
- Bathroom: none in this layout.
Kitchen and inside
- Cooking: a four-burner cooktop, a 12 volt range hood and a microwave.
- Fridge: a three-way fridge-freezer inside.
- Lighting: an LED lighting pack and USB charging points.
- TV: a wind-up TV aerial with a signal booster.
- Cupboards: plain timber overhead doors.
Outside and chassis
- Chassis: a hot-dipped, heavy-duty off-road chassis.
- Suspension: a beam axle with leaf springs.
- Body: a fibreglass front and flat black windows.
- Wheels: alloy wheels, with a spare wheel, jack and wheel brace.
- Awning: a wind-out awning and an LED patio light.
- Storage: a tunnel boot.
- Door: a security door.
Power, water and gas
- Battery: a house battery with a 7 amp charger.
- Mains: a 240 volt external power point.
- Water: one fresh water tank, as fitted to Maxxi vans without a shower.
- Gas: two 4kg gas bottles.
Optional packs
- Style Pack: two-tone cupboard finishes, soft-close hinges, polished chrome handles and a feature splashback.
- Allure Pack: a white laminate interior, high-gloss cupboard doors, a feature splashback and leatherette upholstery.
- Lighting and entertainment: an Ambiance lighting pack and an internal entertainment pack.
How big is it?
- Length: 6.9 metres overall, with a 5.01 metre body.
- Inside: 4.07 metres long and 2.04 metres high.
- Width: 2.415 metres, including the awning.
- Travel height: 2.65 metres.
What will tow it?
- ATM (aggregate trailer mass): 1,970kg, the most it can weigh fully loaded.
- Tare: about 1,570kg, its empty weight as built.
- Payload: 400kg for water, gas and gear.
- Ball weight: about 170kg.
To tow it fully loaded, your vehicle needs a braked towing capacity of at least 1,970kg. Golf says its weights and dimensions are a guide only, and they change with the accessories fitted.
Where to buy
Golf sells through an Australia-wide dealer network, and you can book a showroom tour.
Technical specifications
About Golf Caravans
Golf Caravans sells pop-top and hard-top caravans across six ranges: Maxxi, Tourer, Grand Tourer, GTX, Savannah and Savannah Maxxi. Each range comes in several floorplans, from compact pop-tops for two to family vans with bunks. Golf sells through a dealer network, and its website has a dealer locator, brochure downloads and showroom bookings.
Price on application - this one is priced to the spec you choose.
