Nano 10
Images from Fantasy Caravan
- From
- $35,990
- Max weight (ATM)
- 1,500kg
- Sleeps
- 2
- Length
- 4.75 m

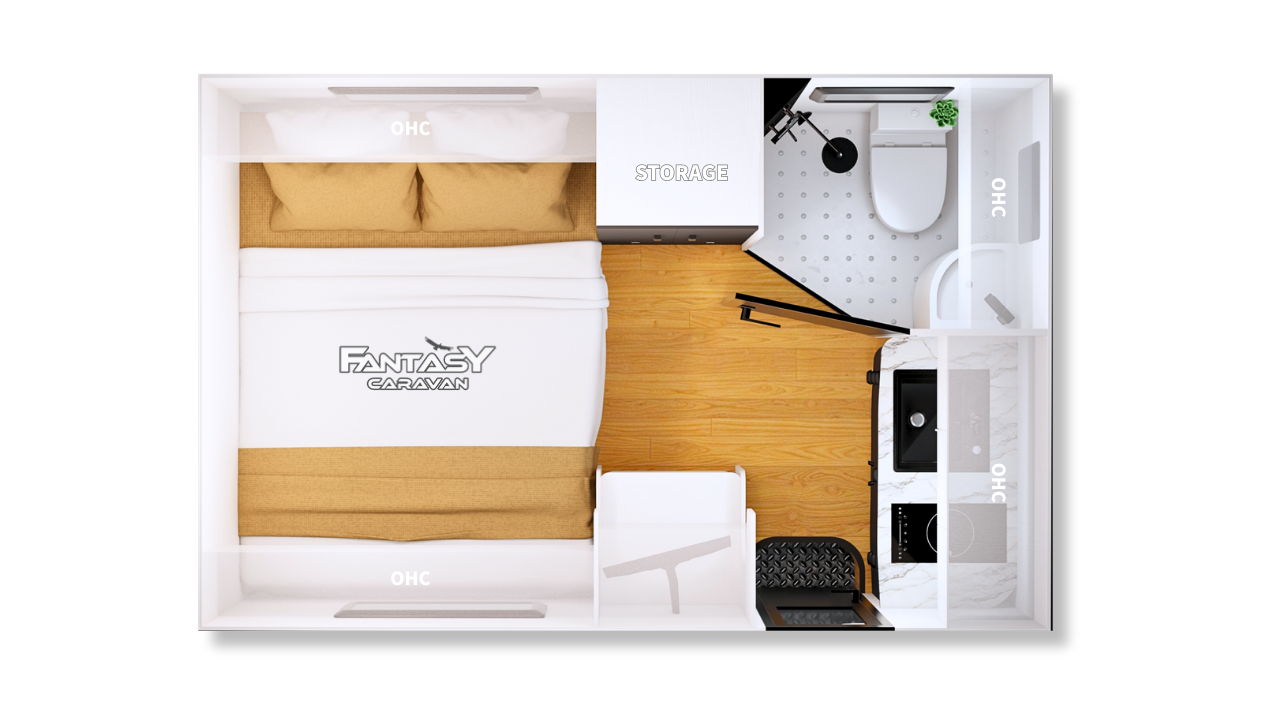

Floor plans
About the Nano 10

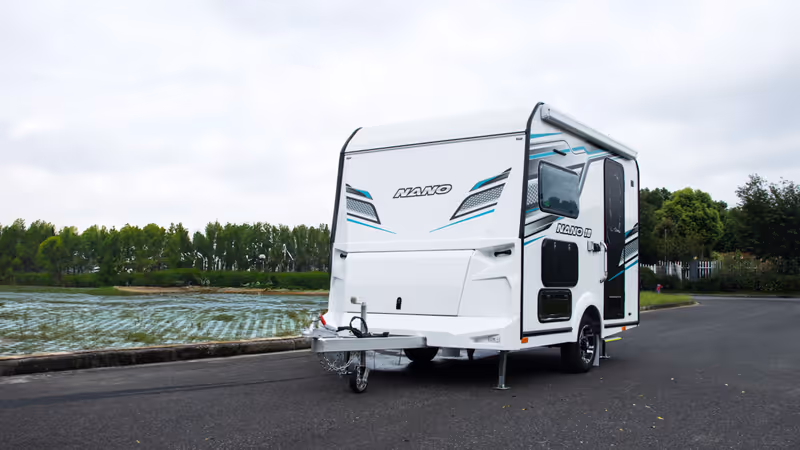

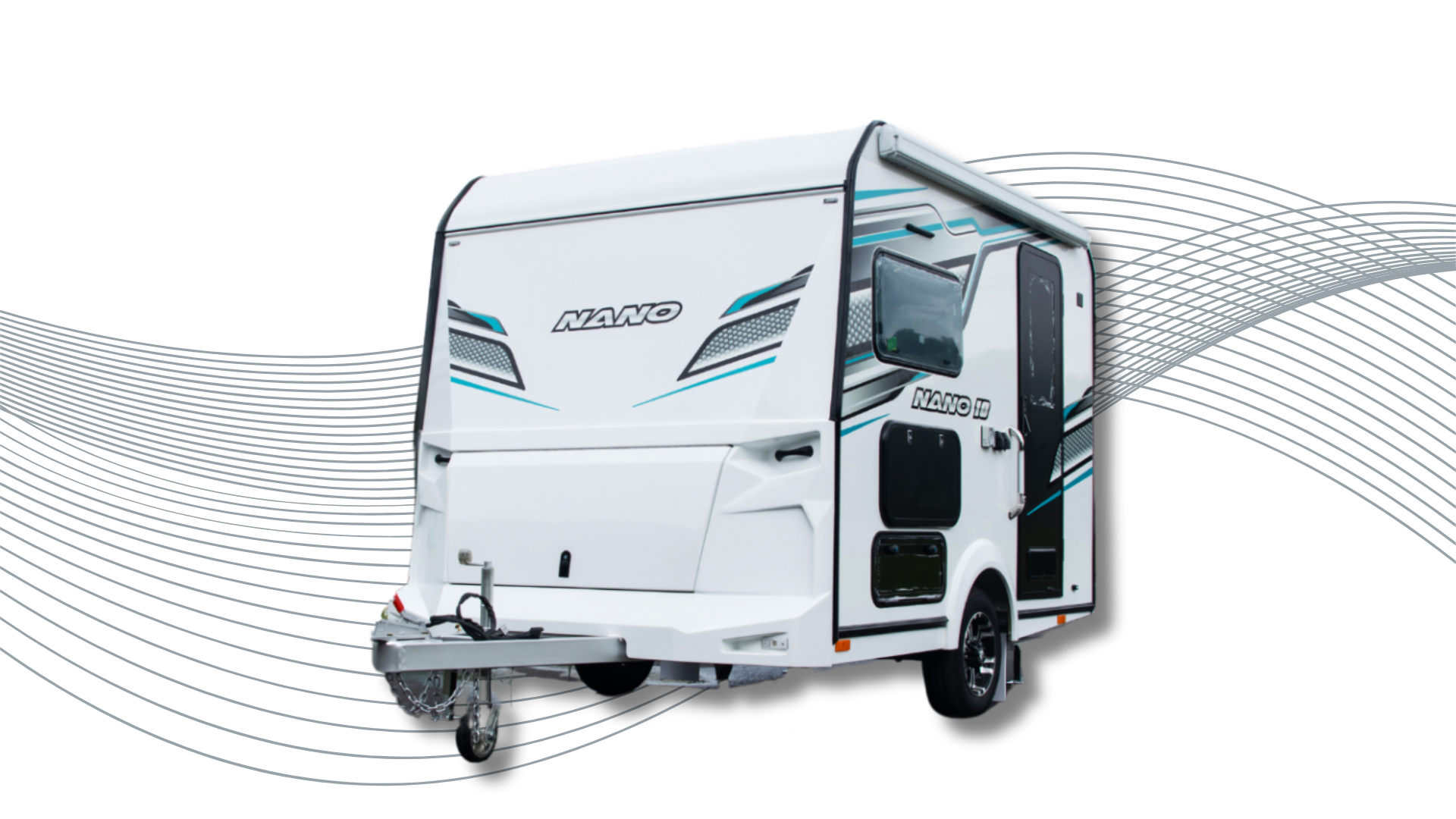

The Fantasy Nano 10 is a 10 foot caravan for a couple, with an internal shower and toilet. A myCOOLMAN rooftop air conditioner, a 200 amp hour lithium battery and 200 watts of solar are standard. It weighs 1,247kg empty and up to 1,500kg fully loaded.
Who does it sleep?

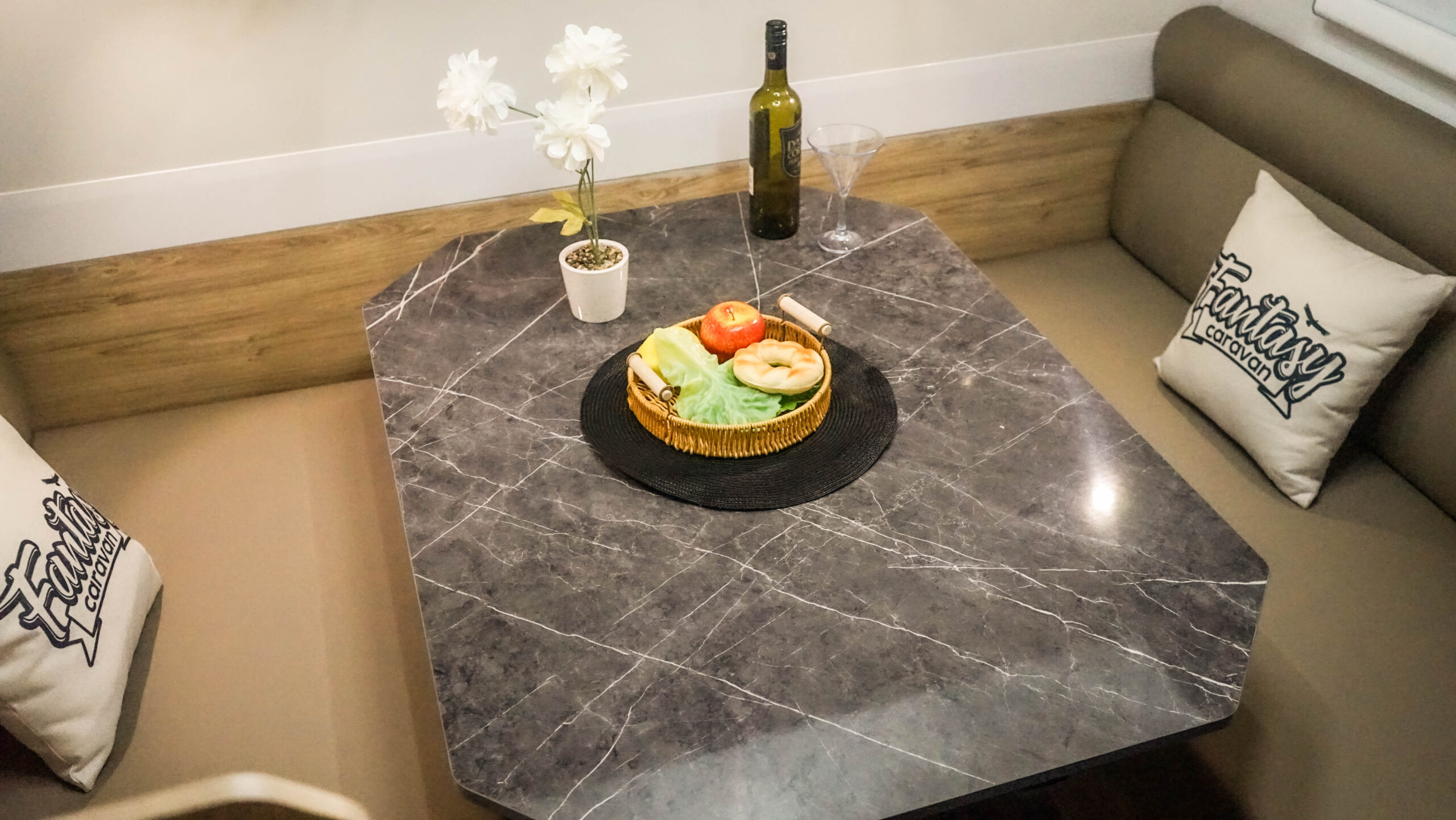

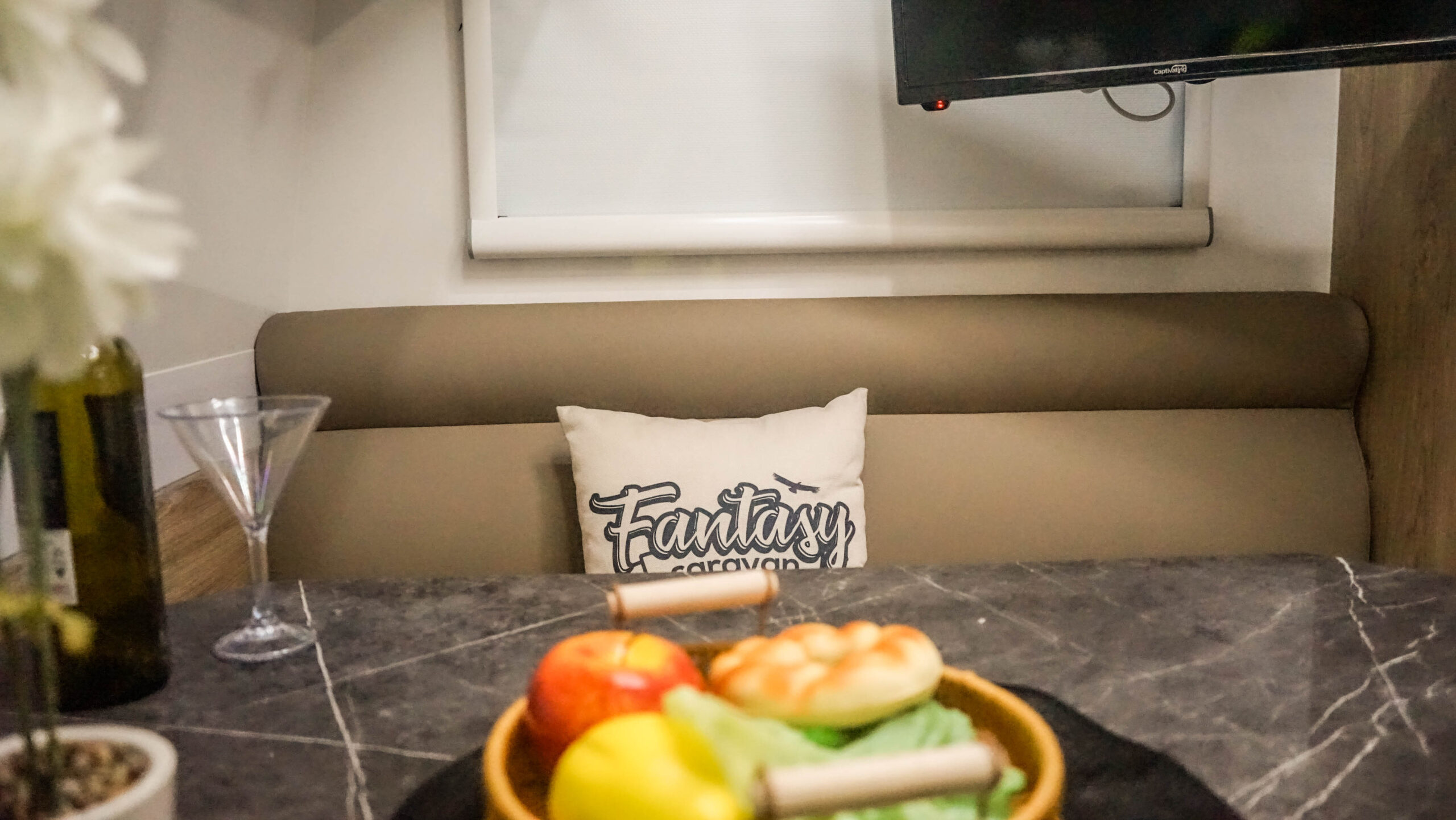

- Bed: the sofa converts into a 1,370 x 2,090mm bed for two.
Inside

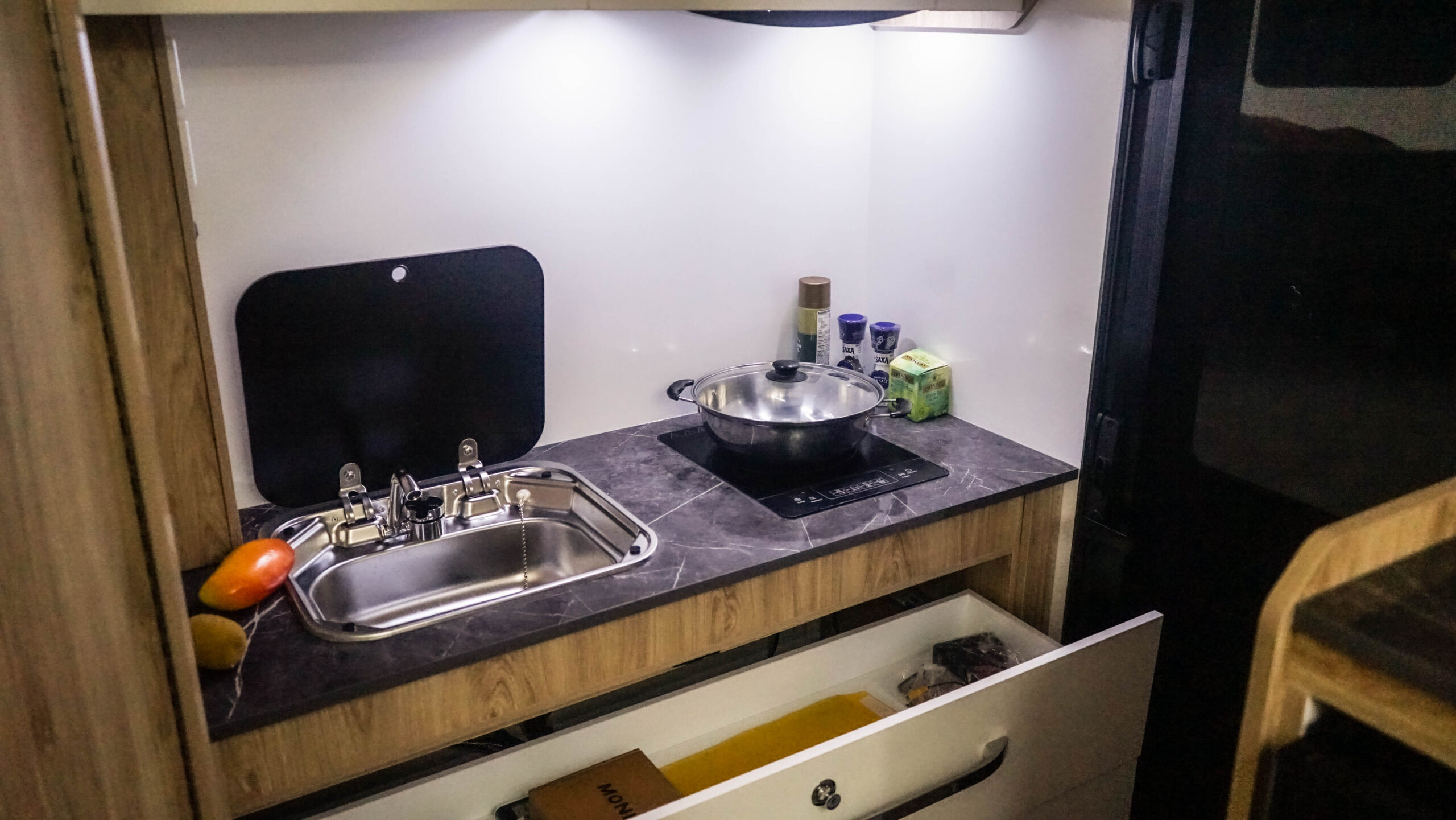

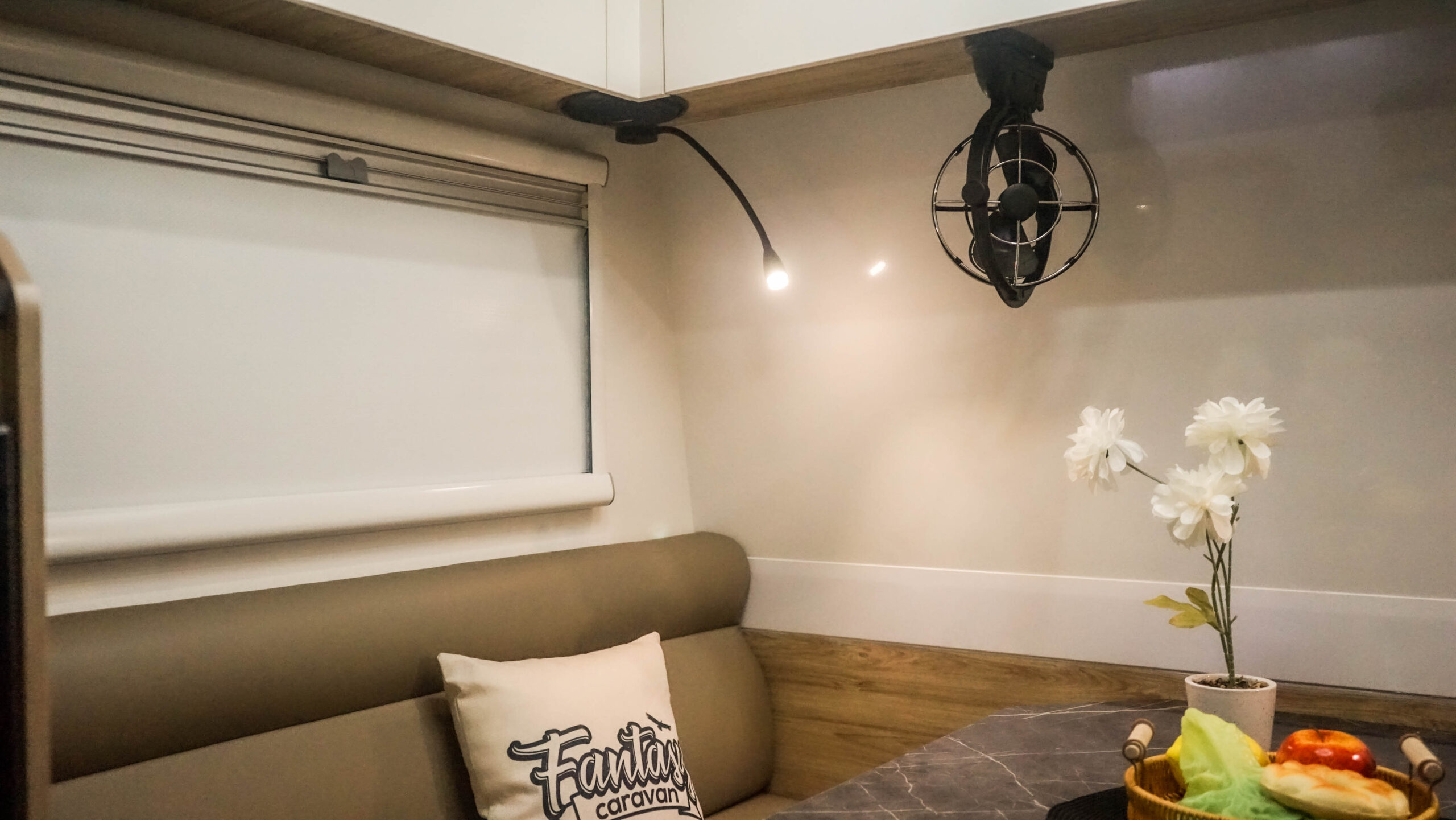

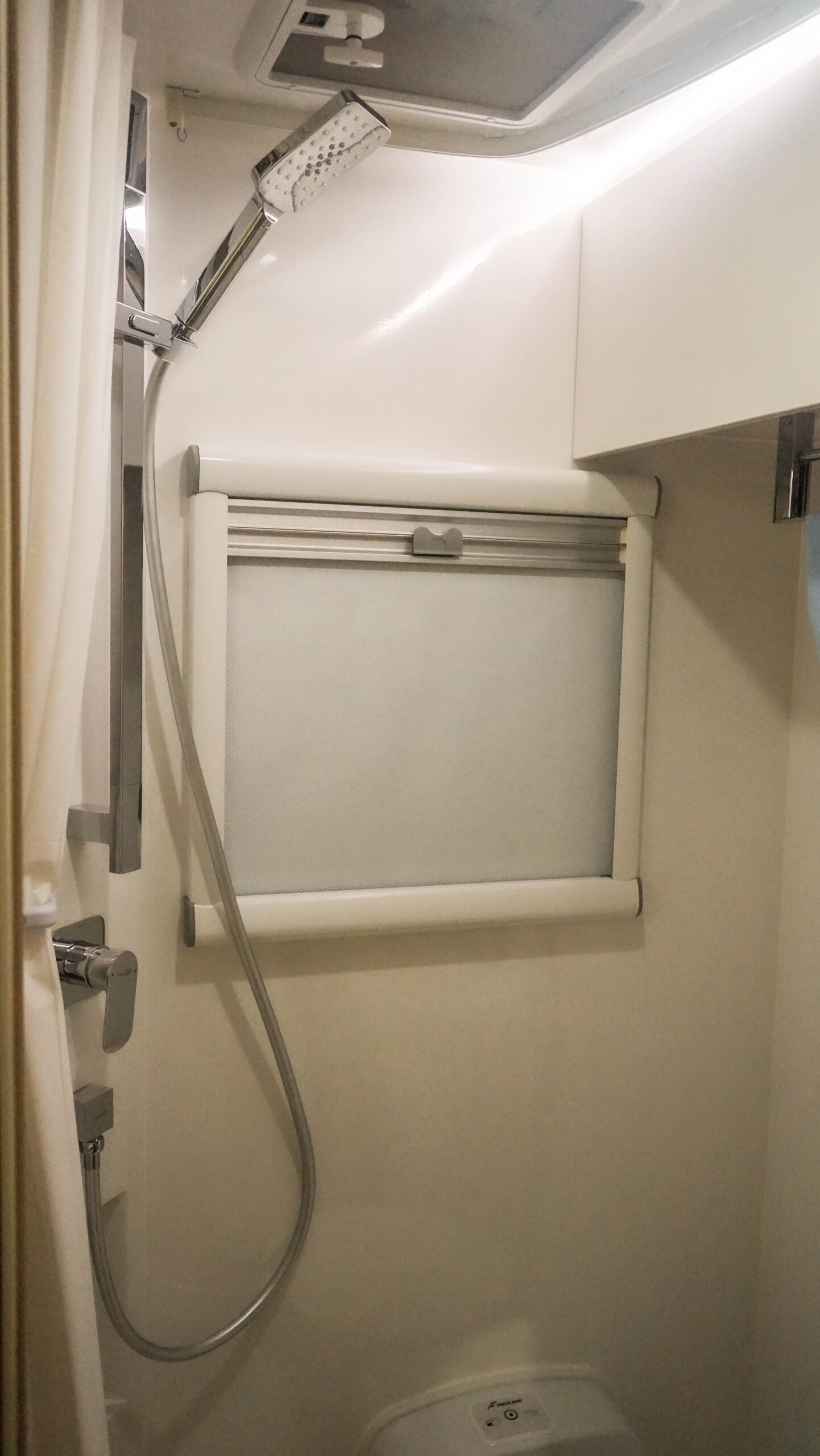

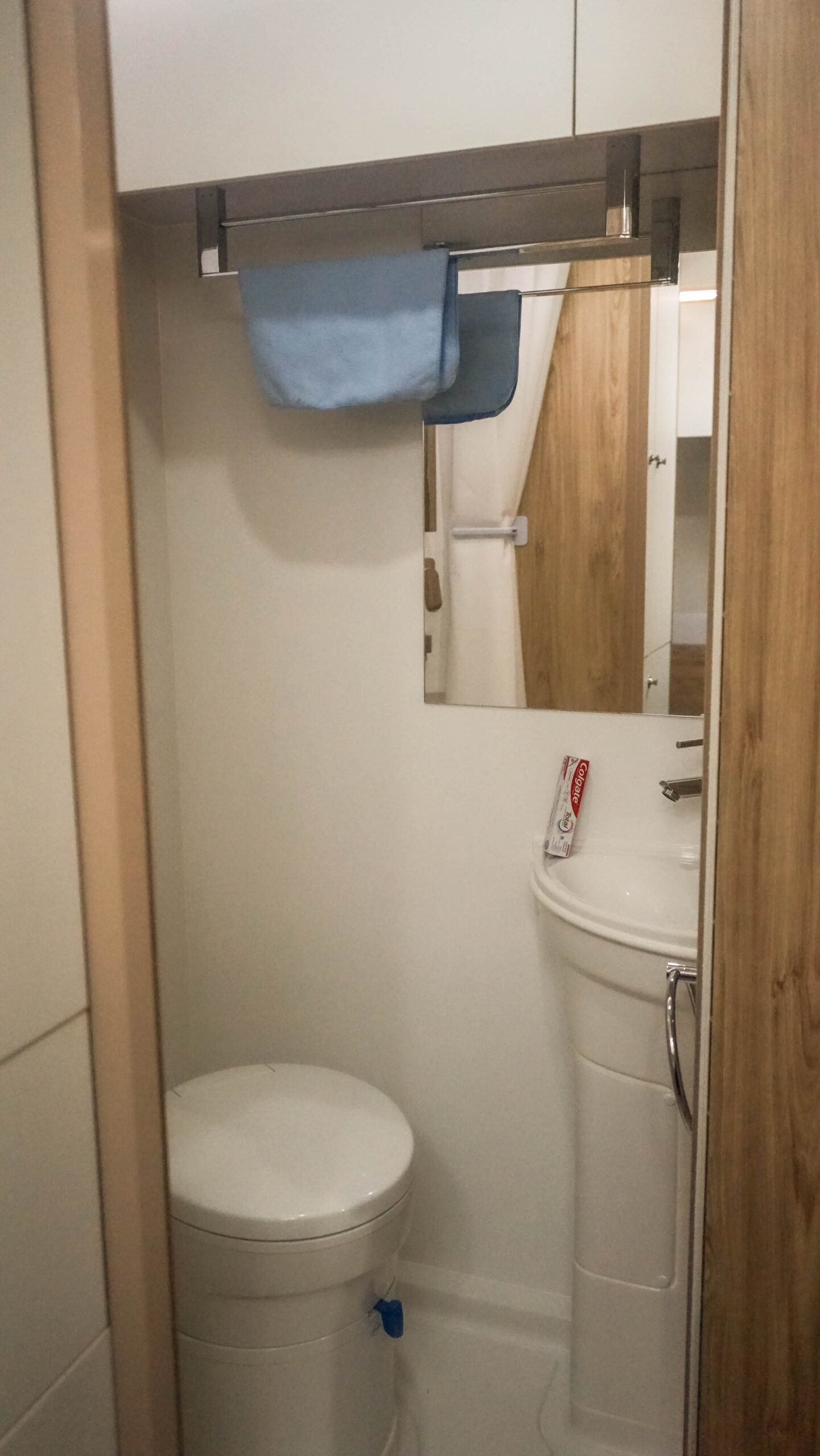

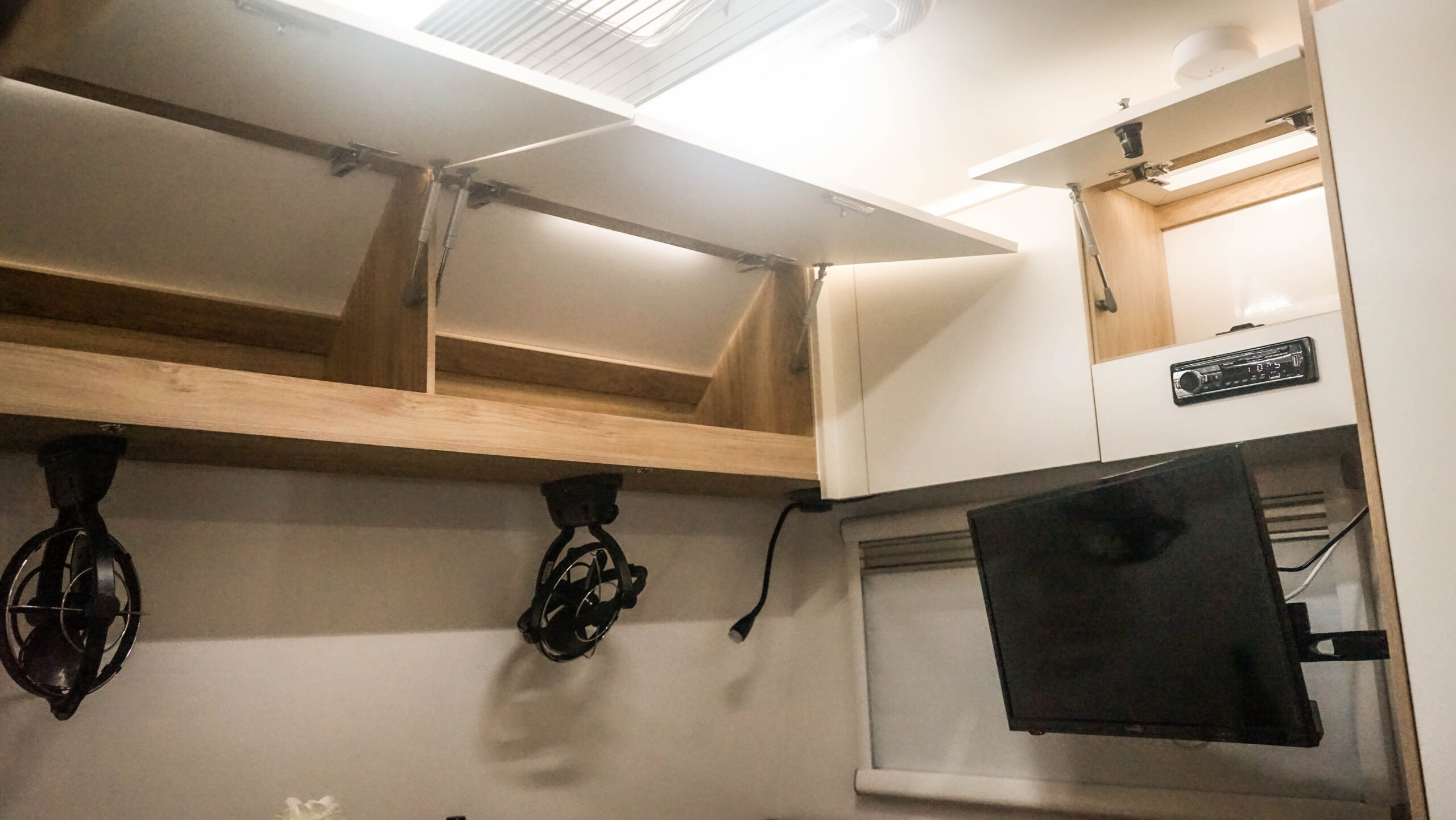

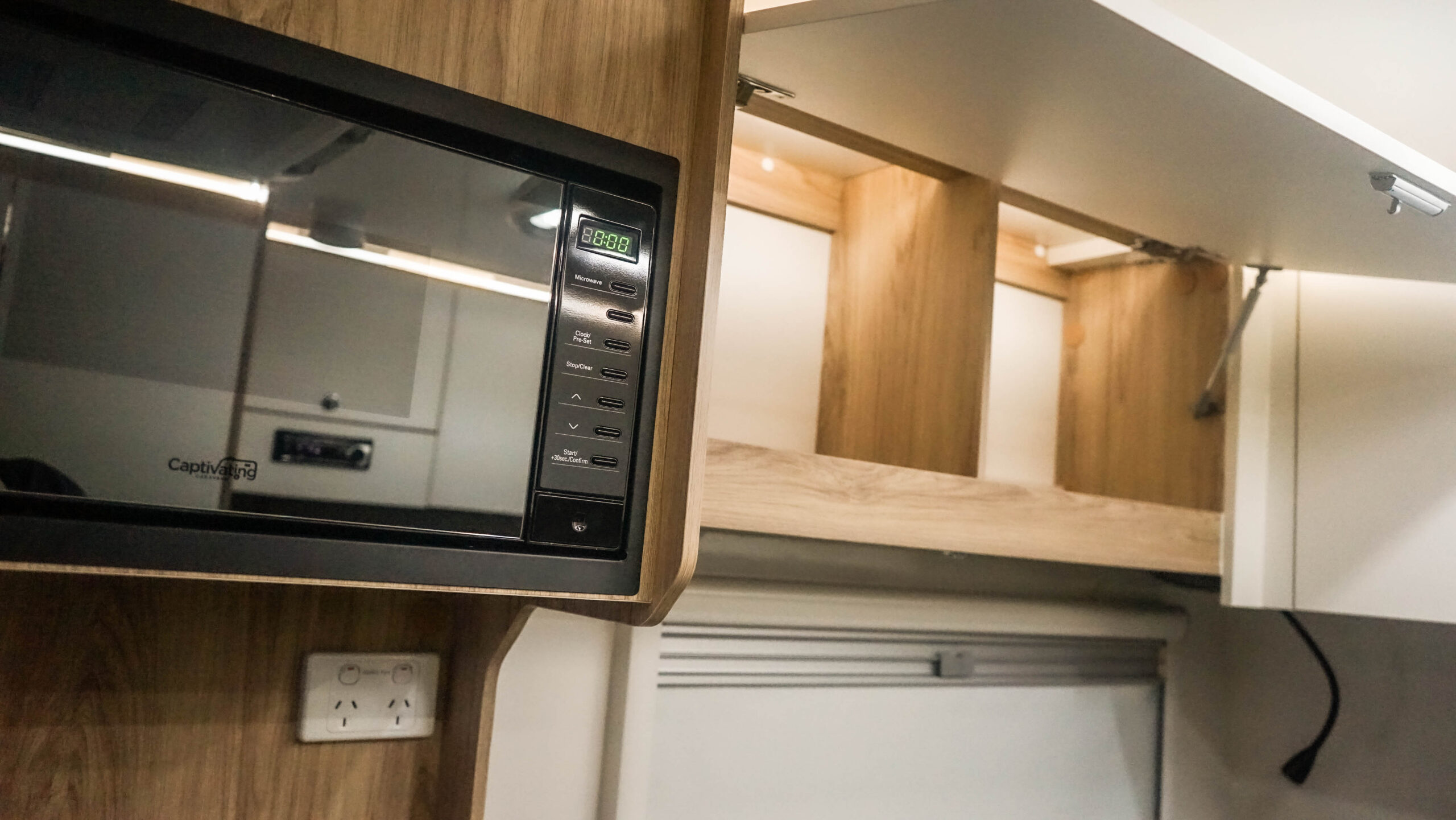

The kitchen has an induction cooktop, a sink with a glass lid, a 102 litre compressor fridge and a 20 litre microwave. The ensuite combines a shower with a Sanjo W5000 cassette toilet and a vanity sink, with a 12 volt fan in the ensuite hatch. A myCOOLMAN 3 kilowatt rooftop reverse-cycle air conditioner is standard, with two Ranger swivel fans. A 24 inch smart TV sits on a swing arm, and a stereo with USB, Bluetooth and FM plays through two speakers.
Chassis and build
- Drawbar: 4 inch, with a 50mm towball coupling.
- Suspension: an ALKO 1.6 tonne torsion axle.
- Brakes: 10 inch electric.
- Setting up: an electric step and four stabiliser legs.
- Body: XPS foam insulation, Geson windows with blinds and flyscreens, and a small roof hatch with a light.
- Outside: a 2.5 metre manual cassette awning, a picnic table and a tap on the drawbar.
Power and water
- Battery: a 200 amp hour lithium battery, managed by a Projecta PM200 system.
- Charging: a 200 watt roof solar panel and a Renogy 40 amp DC-DC charger.
- Power points: several 240 volt outlets, and a 7-pin flat trailer plug with an Anderson plug.
- Water: a 70 litre fresh tank and a 70 litre grey water tank.
- Hot water: a Truma 14 litre gas and electric system, with one 4.5kg gas bottle holder.
- Reversing: a wireless reverse camera with a 5 inch screen.
Optional extras
- Solar: an extra 200 watt panel.
- Battery: an extra 200 amp hour lithium battery.
- Heating: a diesel heater.
Warranty and where to buy
Fantasy gives it a five-year structural warranty on the chassis and drawbar, plus a one-year manufacturer's warranty. Fantasy Caravan has showrooms at Pakenham in Victoria, Heatherbrae in New South Wales and Coopers Plains in Queensland. Evoace Horse Floats in Cannington sells Fantasy caravans in Western Australia.
How big is it?
- Length: 4.75 metres overall.
- Width: 2.3 metres.
- Height: 2.8 metres.
- Inside: 2.96 metres long, 2.09 metres wide and 1.98 metres high.
What will tow it?
- ATM (aggregate trailer mass): 1,500kg, the most it can weigh fully loaded.
- Tare: 1,247kg, its empty weight as built.
- Payload: 253kg for water, gas and gear. A full 70 litre fresh water tank uses about 70kg of it.
- Ball weight: 40kg, the load on your towball.
To tow it fully loaded, your vehicle needs a braked towing capacity of at least 1,500kg.
Technical specifications
About Fantasy Caravan
Fantasy Caravan builds caravans, hybrid campers and pods from 9ft to 22ft. It sells them through its own showrooms at Pakenham in Victoria, Heatherbrae in New South Wales and Coopers Plains in Brisbane. A reseller in Cannington covers Western Australia.
