Savannah 563 PT
- Max weight (ATM)
- 2,680kg
- Sleeps
- 2
- Length
- 7.43 m

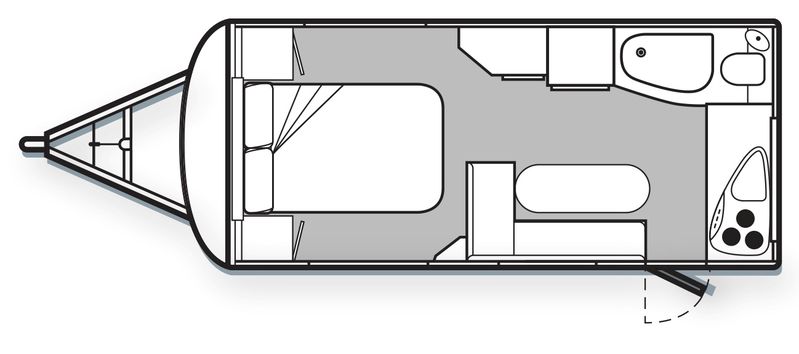

Floor plans
About the Savannah 563 PT
The Golf Savannah 563 PT is a 7.43 metre pop-top caravan that sleeps two, with a front island bed. It weighs about 2,080kg empty and up to 2,680kg loaded. It has a shower and toilet, an 80 watt solar panel, a slide-out kitchen and roof-top air conditioning.
Layout
Golf also builds this floor plan as the Savannah 563 HT.
- Bed: an island bed at the front.
- Dining: a dinette in the middle.
- Bathroom: a shower and toilet at the rear.
Kitchen and inside
- Cooking: a cooktop, a 12 volt range hood and a microwave.
- Fridge: a three-way fridge inside, plus a compressor drawer fridge on the slide-out kitchen.
- Hot water: a gas and electric hot water service.
- Cupboards: two-tone overhead doors with soft-close hinges.
- Lighting: an ambiance LED lighting pack and USB charge points.
- TV: a wind-up TV antenna with a signal booster.
- Mattress: innerspring, on fixed beds.
Outside and chassis
- Chassis: an Adventure Pack chassis with an extended drawbar.
- Suspension: AL-KO Enduro Outback suspension and an AL-KO off-road coupling.
- Wheels: alloy wheels, with a spare wheel and jack.
- Awning: a box-style awning and an LED patio light.
- Outdoor kitchen: a slide-out kitchen with a water connection and a gas bayonet.
- Outdoors: an external shower, a radio and CD player with external speakers, and drop-down stabiliser legs.
- Door: a lockable security door, with flat black windows.
Power, water and gas
- Battery: a house battery with a 20 amp charger and a DC to DC charger.
- Solar: an 80 watt solar panel.
- Outside points: a 240 volt power point, and a 12 volt point with an antenna connection.
- Water: two water tanks, with a lockable filler and a mains pressure inlet.
- Gas: two 4.5kg gas bottles.
Optional packs
- Allure pack: polished chrome fittings, leatherette upholstery, feature splashbacks and high-gloss cupboard doors.
How big is it?
- Length: 7.43 metres overall, with a 5.64 metre body.
- Inside: 5.26 metres long and 1.91 metres high.
- Width: 2.45 metres, including the awning.
- Travel height: 2.66 metres.
What will tow it?
- ATM (aggregate trailer mass): 2,680kg, the most it can weigh fully loaded.
- Tare: about 2,080kg, its empty weight as built.
- Payload: 600kg for water, gas and gear.
- Ball weight: about 185kg.
To tow it fully loaded, your vehicle needs a braked towing capacity of at least 2,680kg. Golf says its weights and dimensions are a guide only, and they change with the accessories fitted.
Where to buy
Golf sells through an Australia-wide dealer network, and you can book a showroom tour.
Technical specifications
About Golf Caravans
Golf Caravans sells pop-top and hard-top caravans across six ranges: Maxxi, Tourer, Grand Tourer, GTX, Savannah and Savannah Maxxi. Each range comes in several floorplans, from compact pop-tops for two to family vans with bunks. Golf sells through a dealer network, and its website has a dealer locator, brochure downloads and showroom bookings.
Price on application - this one is priced to the spec you choose.
