T-Rex T13 Double Bunks

The Long Haul Campers T-Rex T13 Double Bunks is a family off-road pop-top caravan, 5.9 metres long, with a king bed and two bunks. It has a shower and toilet inside, an internal fridge and a slide-out outdoor kitchen. Long Haul Campers built it for families who want bunks and off-grid ability in an easy-to-tow size.

Who does it sleep?

Long Haul Campers calls it a family bunk layout.

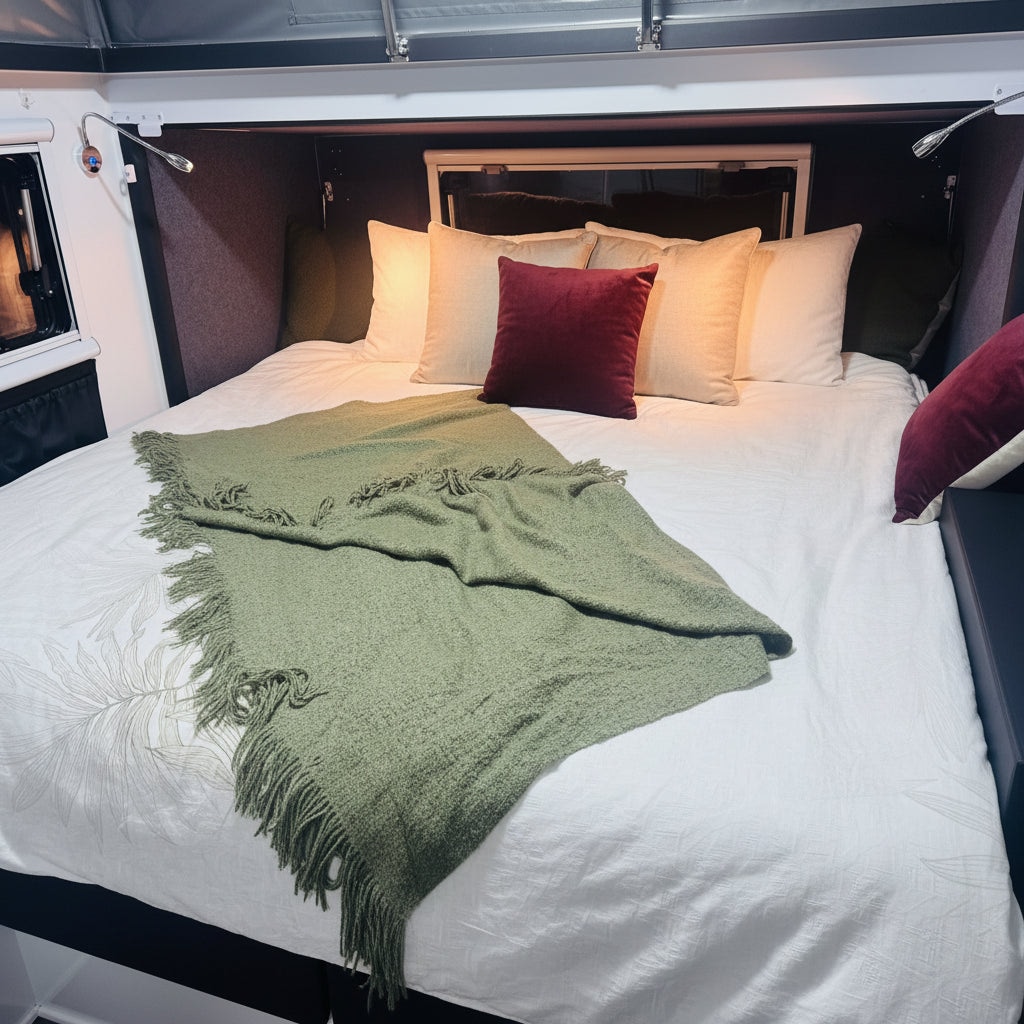

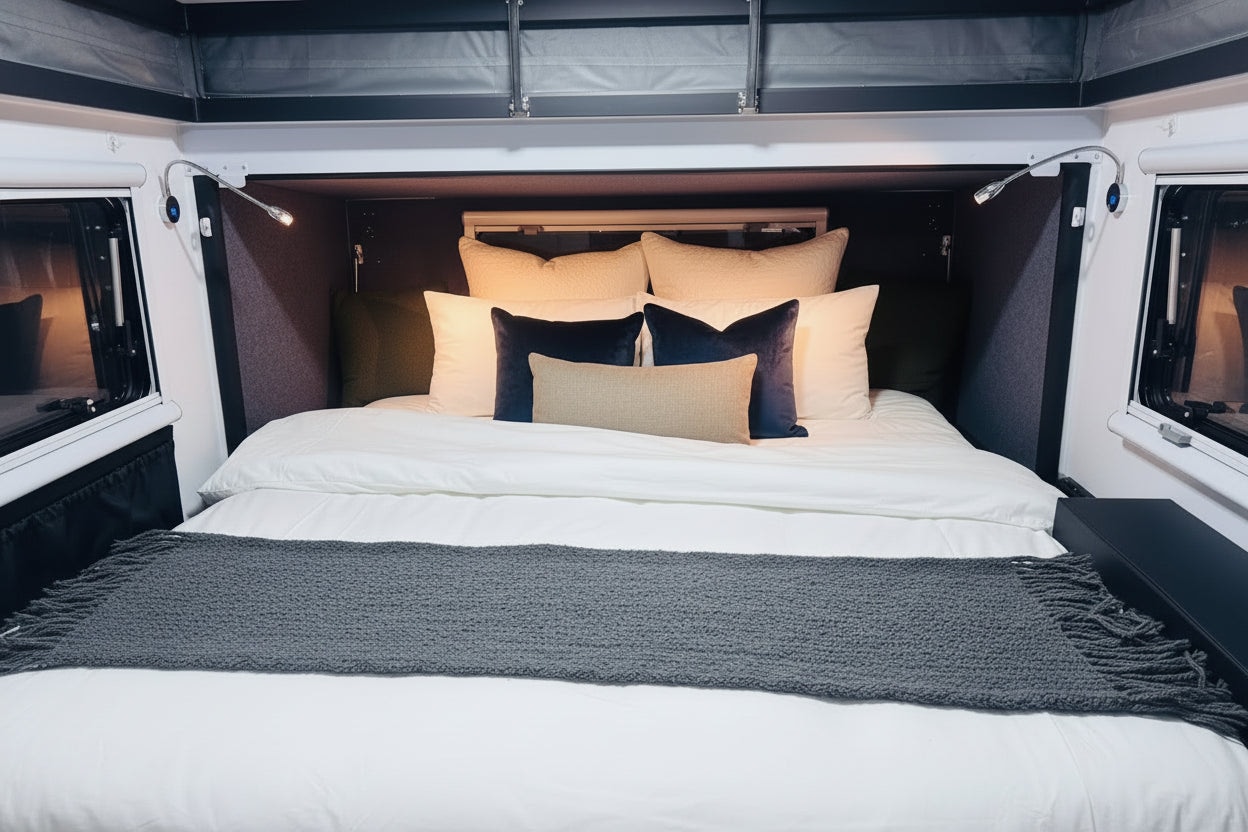

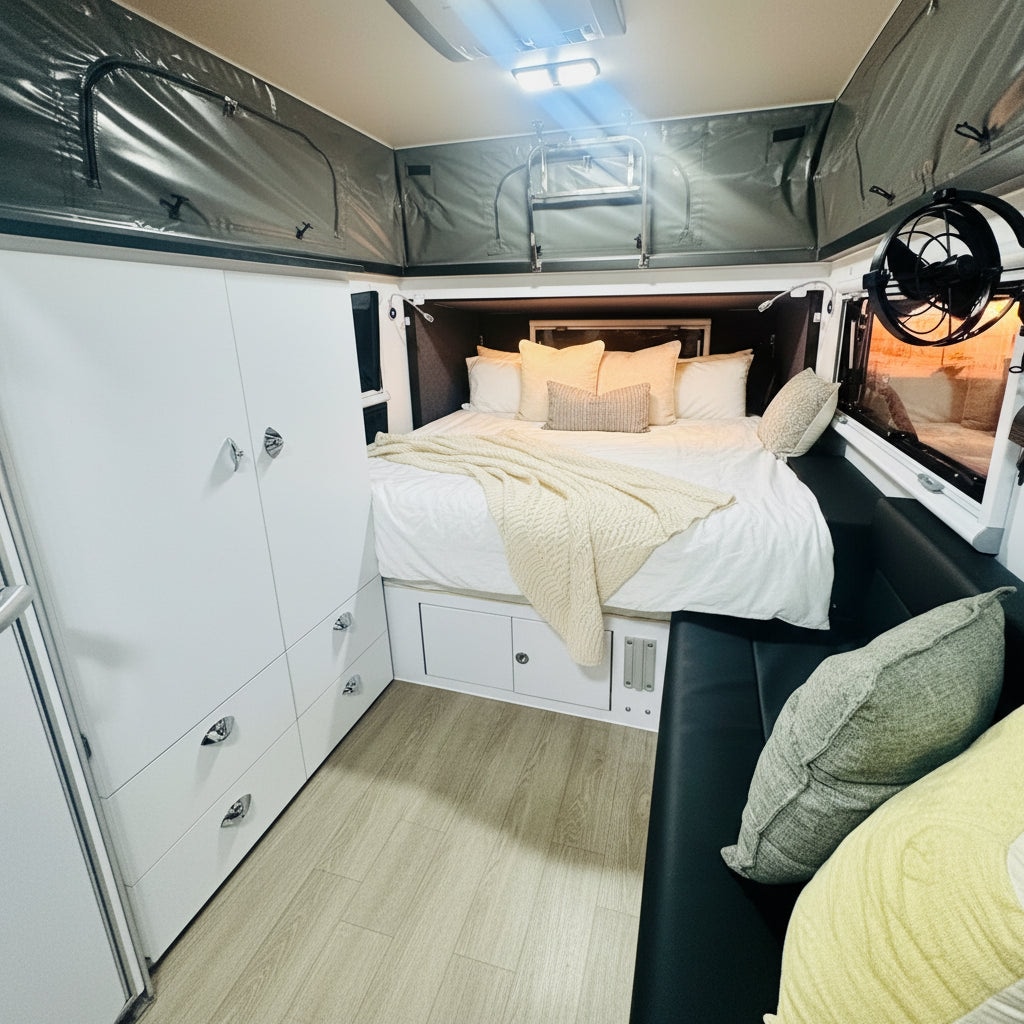

• Main bed: a king bed.

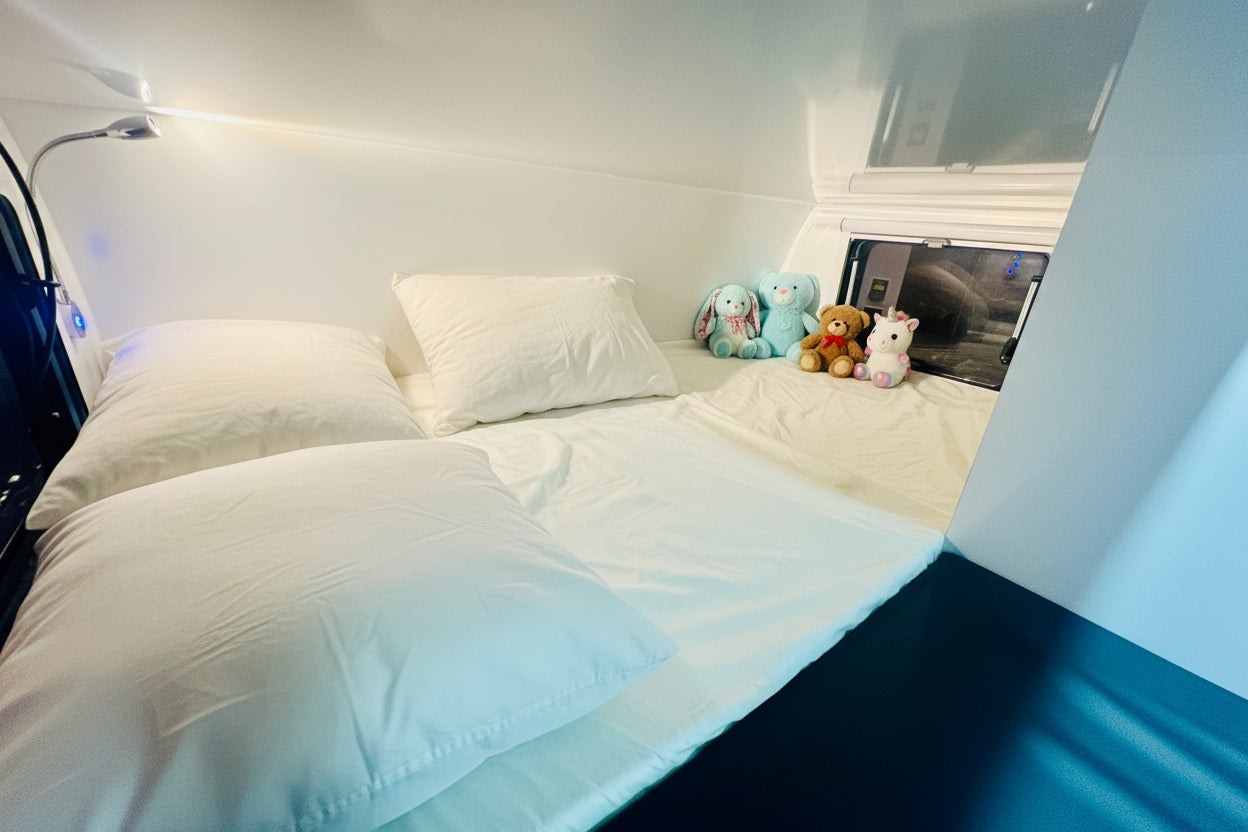

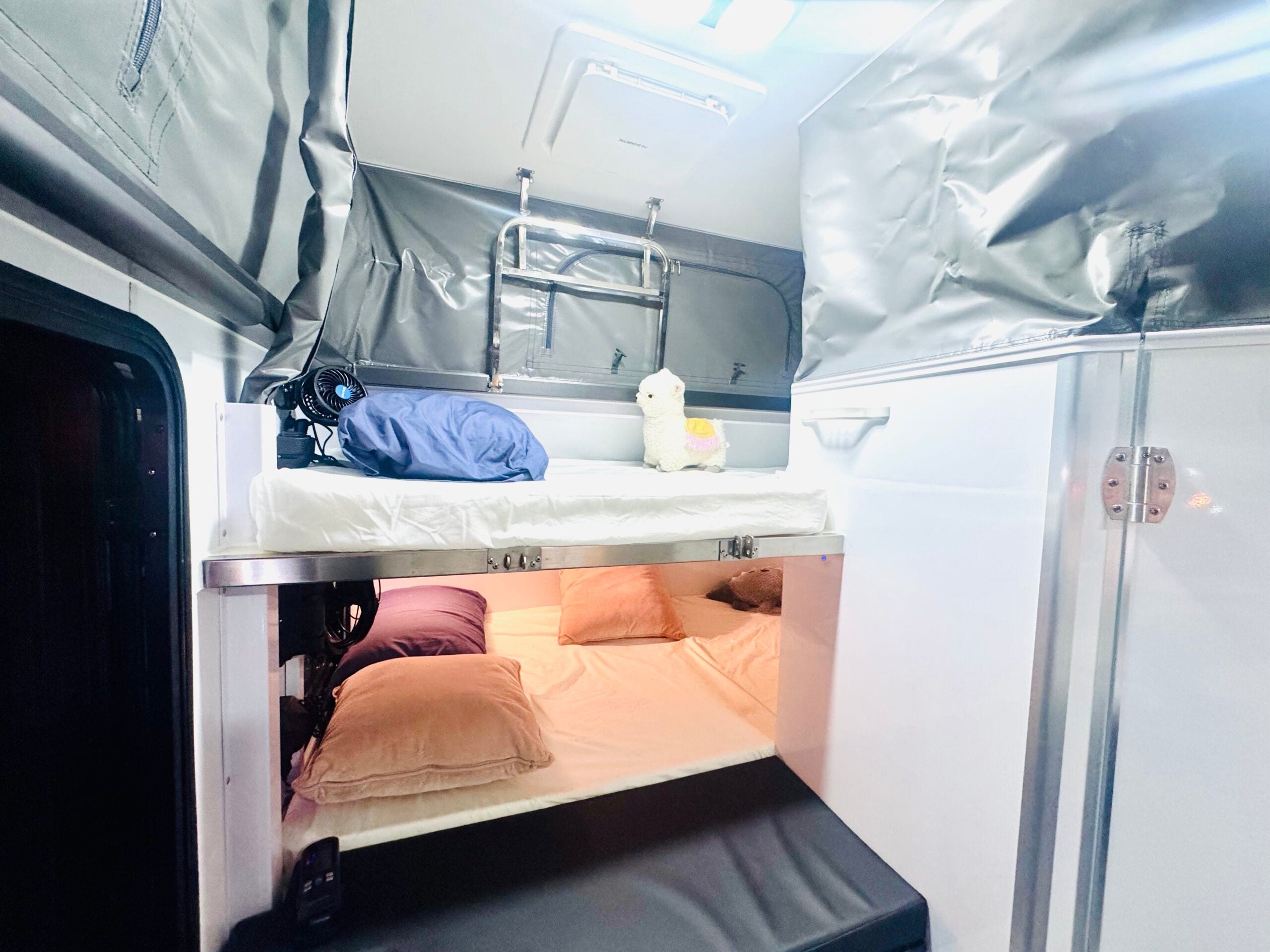

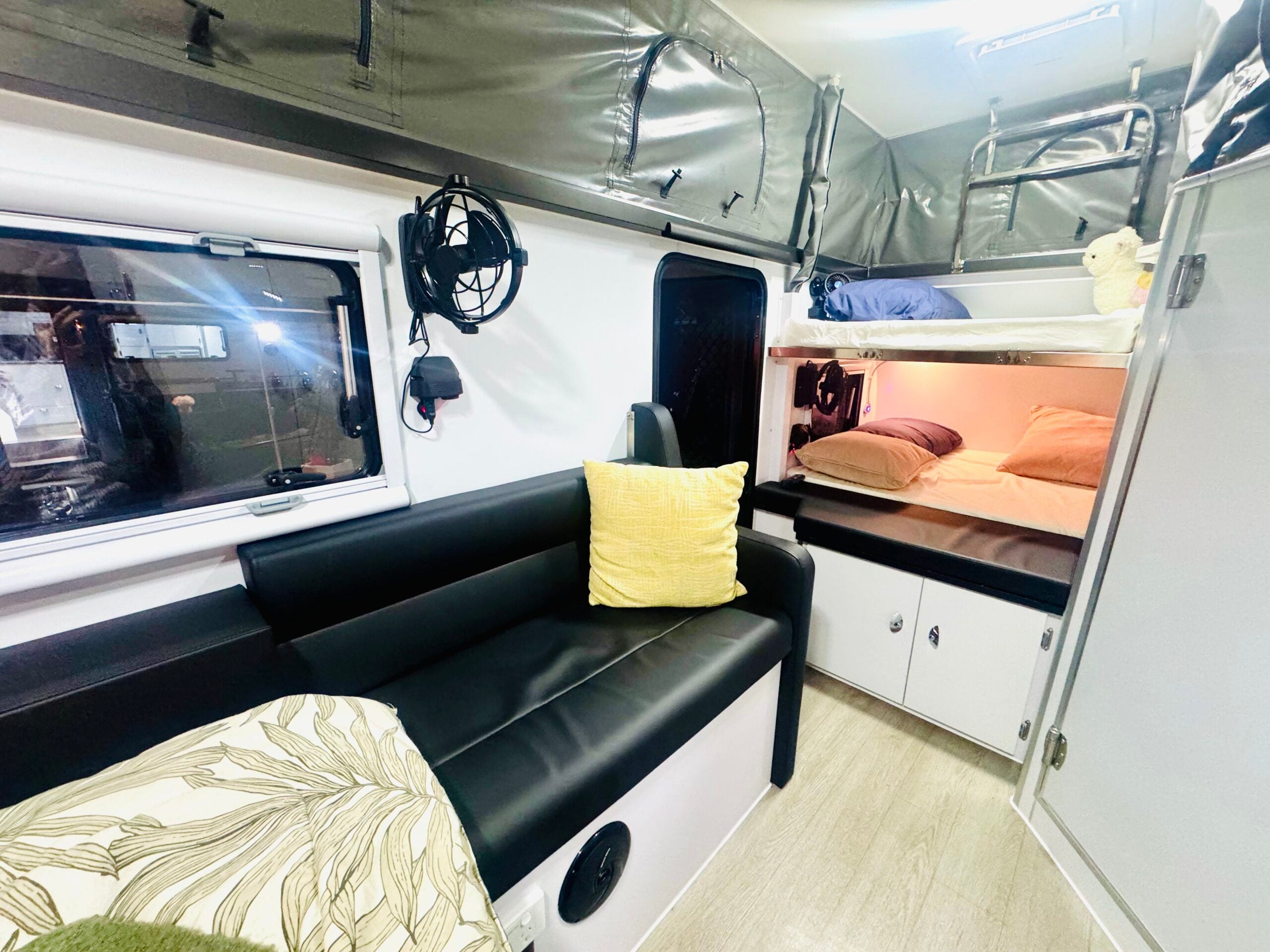

• Bunks: an upper and a lower bunk.

Inside

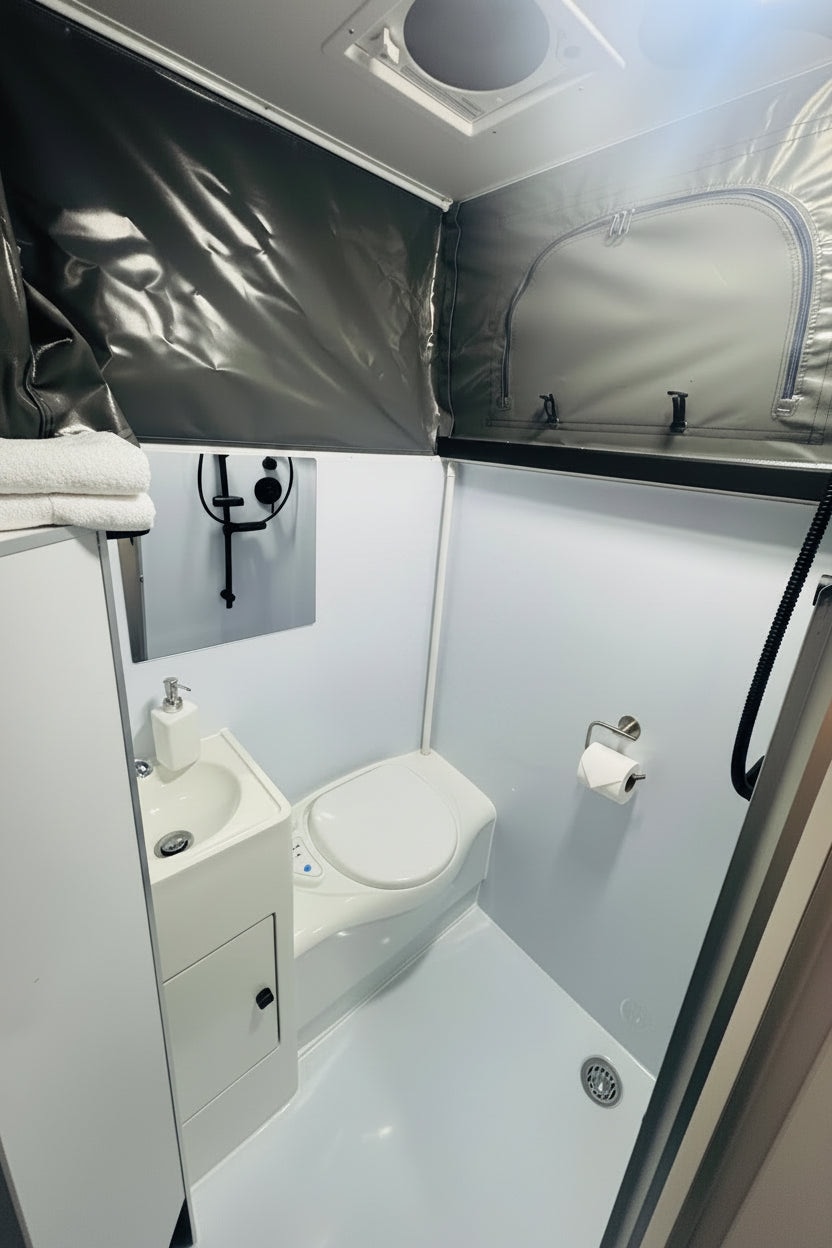

• Bathroom: a shower and a Thetford toilet, with a cassette you remove from outside.
• Fridge: an internal fridge.

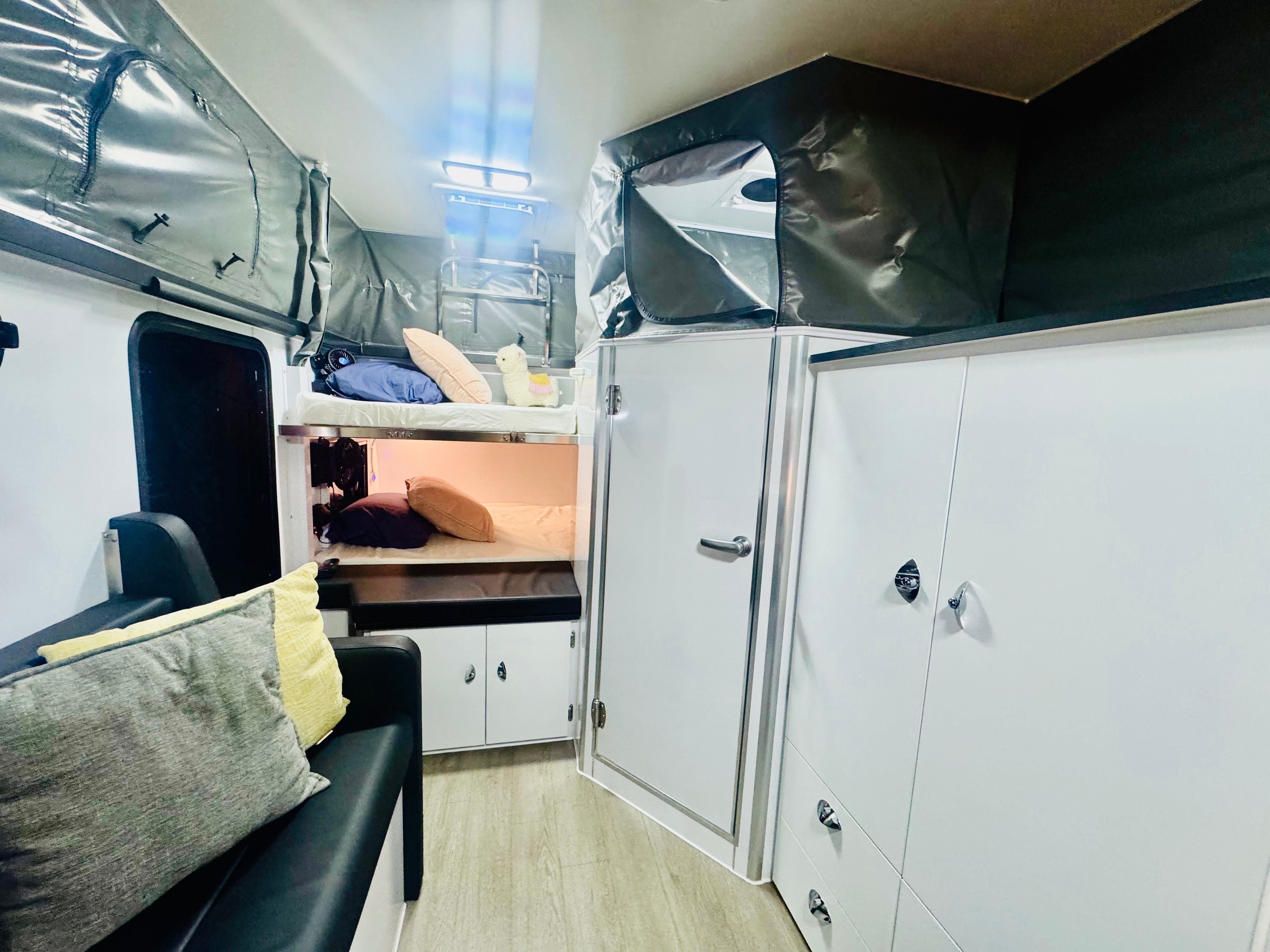

• Storage: cupboards and a wardrobe.
• Windows and door: double glazed windows, reflective curtains and a security screen door.

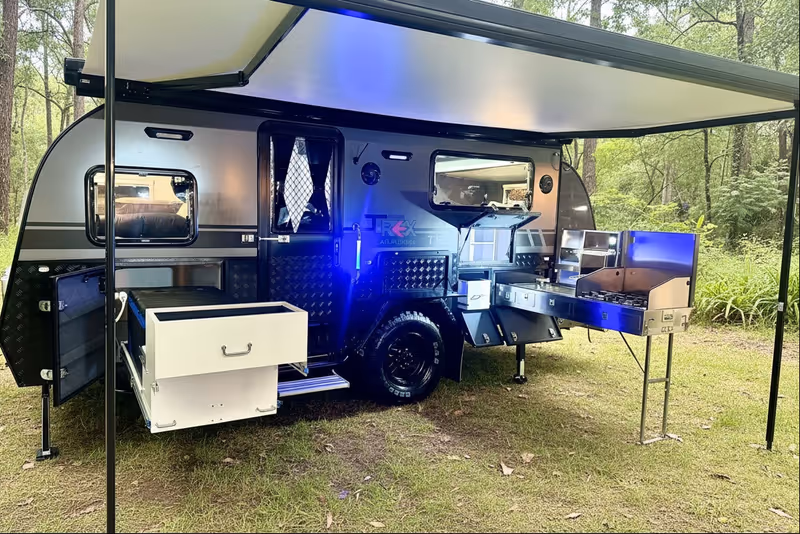

Outdoor kitchen

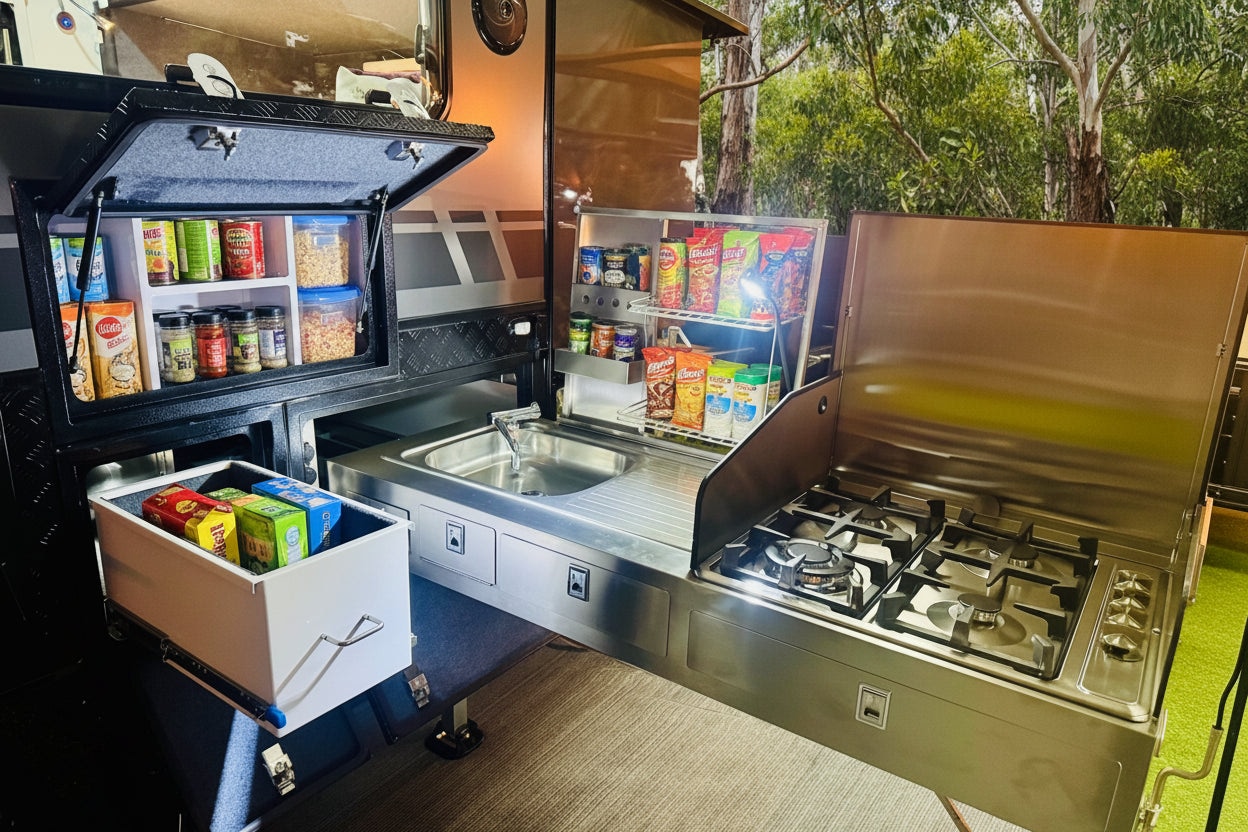

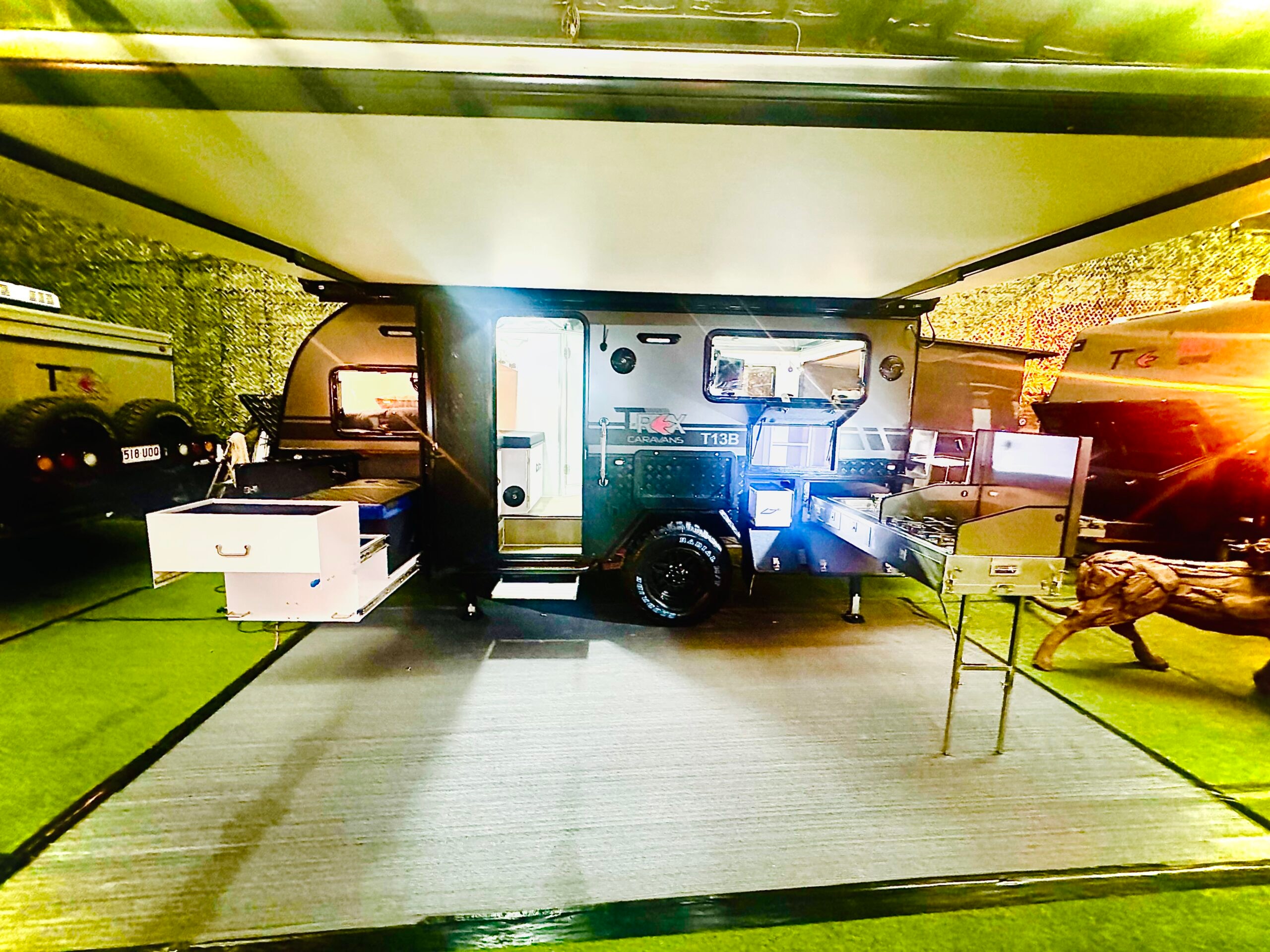

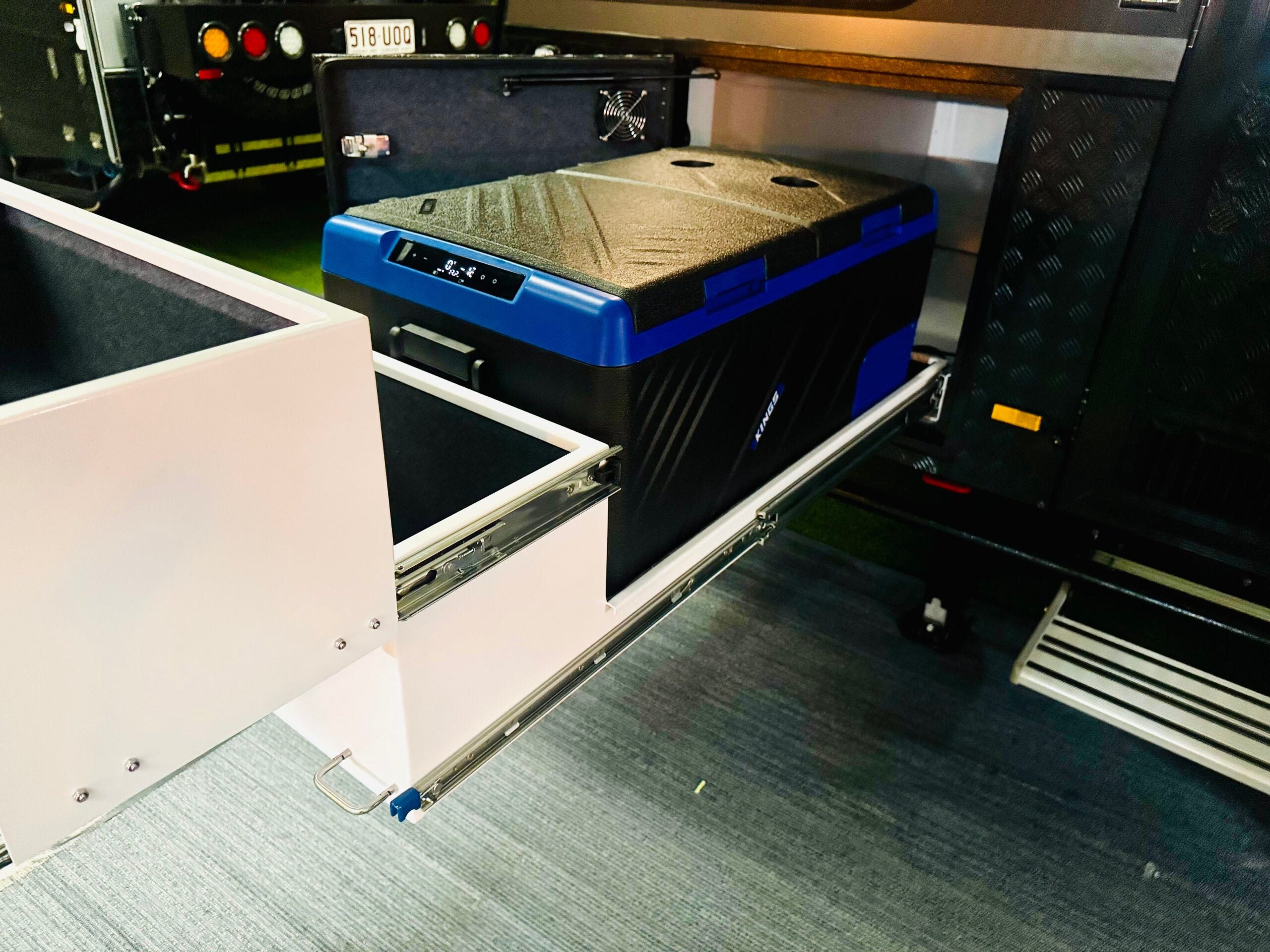

The stainless steel kitchen slides out, with an AGA-approved four-burner gas stove, a sink and a wind deflector. It has a pull-out fridge tray, and an electric awning. A full annexe with walls and poles is optional. An ensuite tent with a shower sets up outside.

Chassis and off-road gear

• Chassis: hot-dip galvanised, with a 150 x 50 x 4mm drawbar.
• Suspension: heavy-duty independent coil springs, with four shock absorbers.
• Coupling: a 3.5 tonne AL-KO heavy-duty off-road coupling.
• Brakes: 12 inch electric drums.
• Wheels: 16 inch black alloys with mud terrain tyres, plus one 16 inch spare.
• Protection: rock rails, a checker plate stone guard and underbody deadener.
• Body: aluminium composite walls and a fibreglass roof.
• Carriers: holders for two gas bottles and two jerry cans.
• Warranty: 5 years structural on the chassis and drawbar, and 12 months on other parts.

Power and water

• Solar: 400 watts of panels.
• Battery: 300 amp hours of lithium.
• Charging: Enerdrive lithium AC and DC/DC chargers, and a 50 amp Anderson plug.
• Mains: a 2,000 watt inverter and 240 volt power.
• Water: 220 litres of fresh water and an 80 litre grey water tank.
• Hot water: a Truma Ultra-Rapid gas and electric system.
• Climate: a Truma rooftop air conditioner and roof fan ventilation.

How big is it?

• Length: 5.9 metres overall.
• Width: 2.1 metres.
• Height: 2.51 metres.

What will tow it?

• ATM (aggregate trailer mass): 2,760kg, the most it can weigh fully loaded.
• Tare: about 2,200kg, its empty weight as built. Long Haul Campers gives it as approximate.
• Payload: about 560kg for water, gas and gear. Full fresh water tanks use about 220kg of it.

To tow it fully loaded, your vehicle needs a braked towing capacity of at least 2,760kg.

Where to buy

Long Haul Campers sells from showrooms in Sumner, Brisbane, and in Caboolture, Queensland. It asks buyers to call first to confirm stock before visiting. Its website shows every price.
