Single Axle
Floor plans
About the Single Axle
The Titan Single Axle range is a group of compact, fully fitted caravans for couples and weekend travellers. Each van has 600 amp hours of lithium, 800 watts of solar and independent suspension rated to 3,000kg. Titan builds every van to order in Australia.

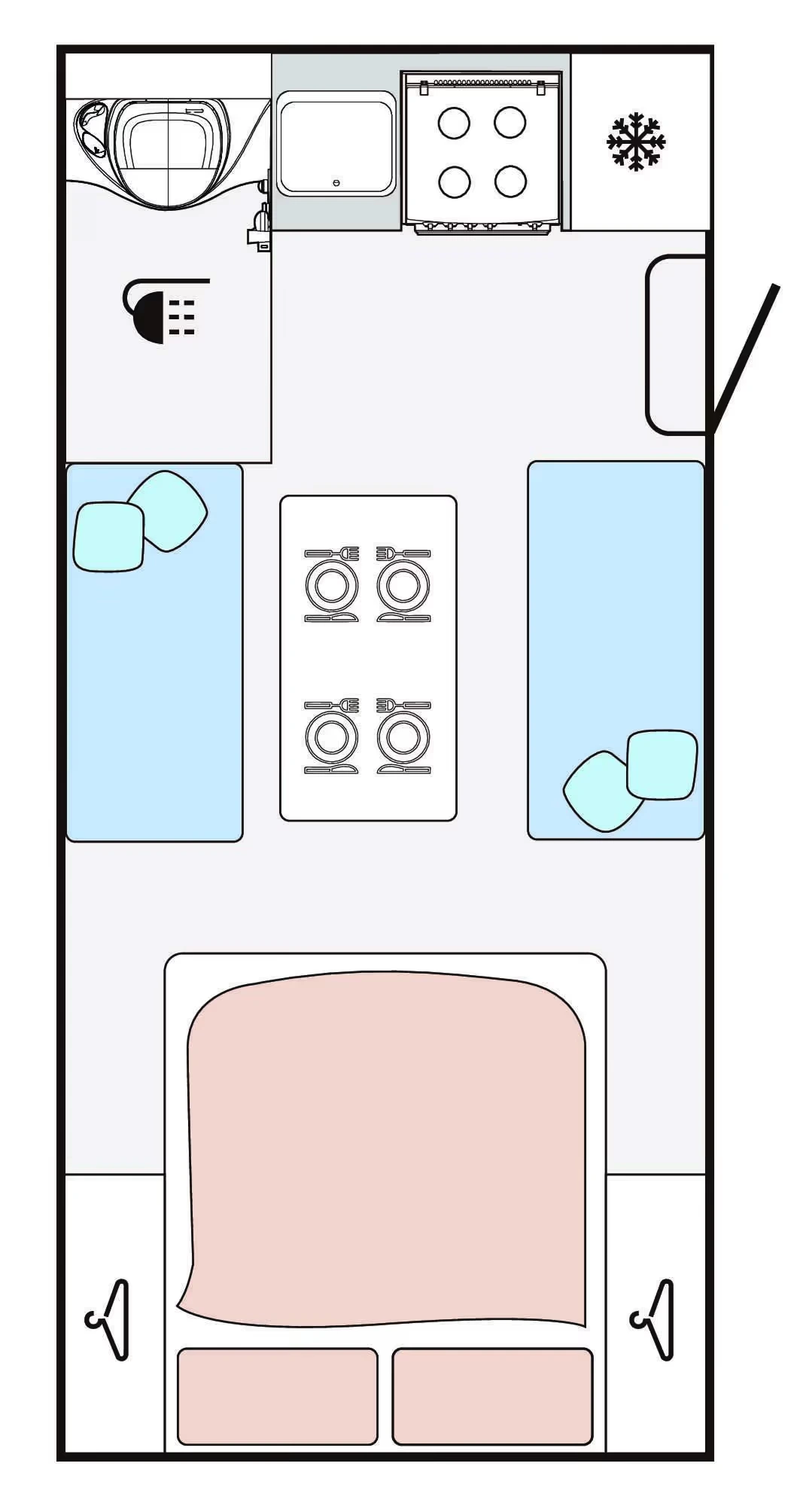

Floor plans
Titan lists seven models in the Single Axle range.
- Sierra 480
- Hybrid 480
- Aerolite 451
- 490 Blackhawk Family Bunk
- 510 Blackhawk
- 540 Blackhawk
- 540 Edge

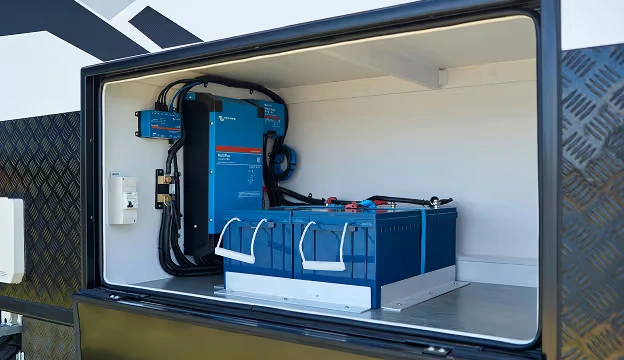

Power
- Batteries: a 600 amp hour lithium package, LiFePO4 and IP67 rated.
- Solar: a 800 watt package, with two Victron SmartSolar MPPT controllers.
- Inverter: a Victron Multiplus-II 3,000 watt inverter charger.
- DC charging: a Victron Orion XS 50 amp DC-DC charger.
- Monitoring: a Victron SmartShunt and a BMV-712 battery monitor.
Water, kitchen and bathroom
- Fresh water: two poly tanks, filled through the Titan Smart Fill manifold.
- Grey water: one poly tank.
- Hot water: a Truma AquaGo instant hot water system.
- Cooking: a gas and electric cooktop with a rangehood, and a flatbed microwave.
- Fridge: a Thetford compressor fridge, 151 or 274 litres depending on the van.
- Toilet: a cassette toilet, with an outdoor shower as well.
- Basin: a ceramic vanity basin.
- Entertainment: a 24 or 32 inch smart TV, and a Fusion stereo with inside and outside speakers.
Build
- Chassis and A-frame: 150 x 50mm hot-dipped galvanised steel.
- Suspension: independent coil springs with twin shock absorbers, rated to 3,000kg.
- Coupling: a DO-35 V3Plus off-road coupling.
- Wheels: 16 inch alloys with 265/65 R16 all-terrain tyres.
- Walls: 35mm heat-laminated fibreglass composite with an XPS foam core.
- Protection: two rear recovery points, a stone guard and a Dometic dust reduction system.
- Storage: a toolbox with a slide-out barbecue tray, and a galvanised rear bumper with a wood box and two jerry can holders.
- Gas: two 9kg bottles.
Options
- Heating: a diesel heater.
- Legs: BOSS stabiliser legs.
- Suspension: AirBag Man Stage 4.
- Kitchen: an induction cooktop.
- Toilet: an OGO or Clesana toilet.
- Grey water: a second tank.
How to buy
Titan builds every van to order and sells from its dealership at Burpengary East, Queensland. It delivers Australia-wide, and one salesperson looks after you from start to finish. Ask Titan for a quote, and for the tare and ATM (aggregate trailer mass) of the floor plan you choose.
Technical specifications
About Titan Caravans
Titan Caravans builds caravans to order and sells them from Burpengary East, Queensland, with delivery Australia-wide. It sells three ranges: Single Axle, Dual Axle and Premium. Titan says it is a family-owned Australian manufacturer that designs and builds every van for Australian conditions.
Price on application - this one is priced to the spec you choose.
