About the Dual Axle
The Titan Dual Axle range is a group of larger tandem-axle caravans, which Titan says are built for the long haul. Each van has 900 amp hours of lithium, 1,000 watts of solar and three fresh water tanks. Floor plans include family bunk vans and the Warrior toy hauler.

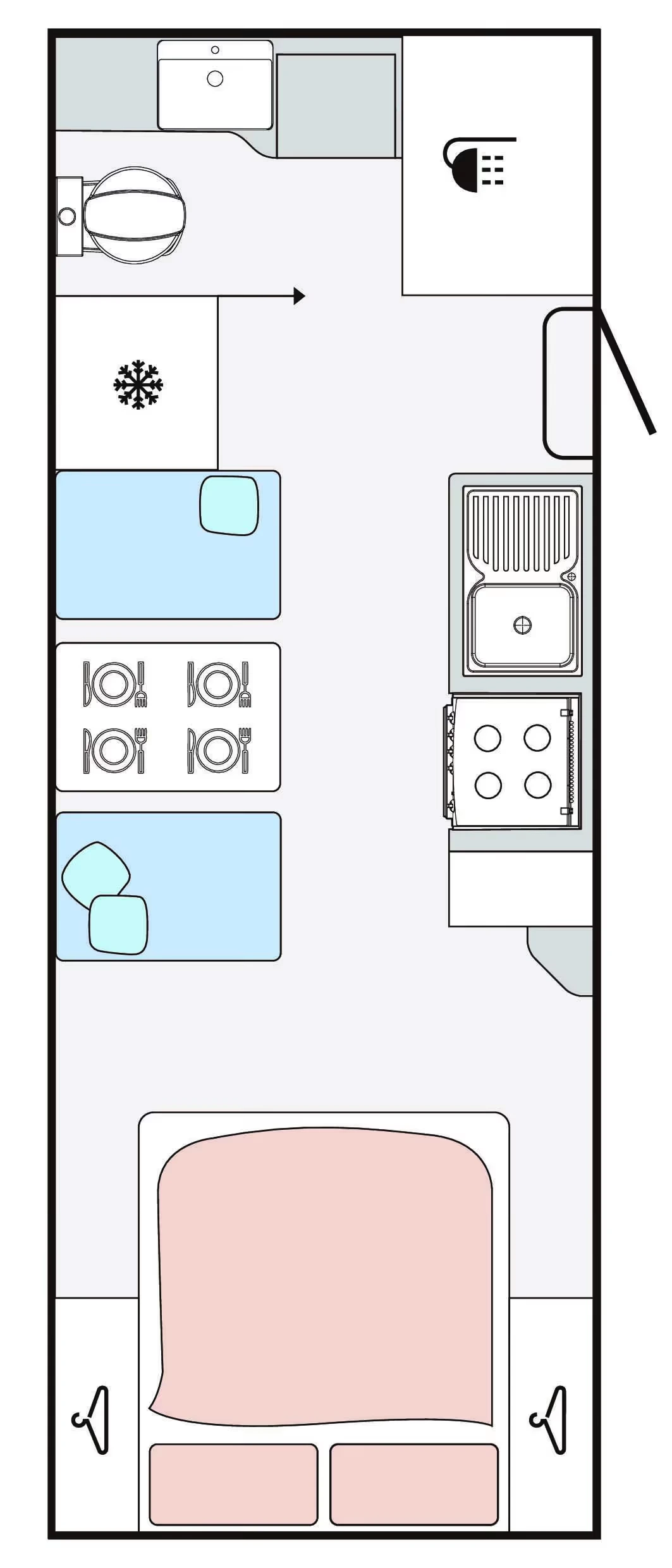

Floor plans
Titan lists six models in the Dual Axle range.
- 570 Aerolite
- 595 Blackhawk
- 660 Blackhawk
- 575 Family Bunk
- 660 Family Bunk
- Warrior Toy Hauler
Power
- Batteries: a 900 amp hour lithium package, LiFePO4 and IP67 rated.
- Solar: a 1,000 watt package, with two Victron SmartSolar MPPT controllers.
- Inverter: a Victron Multiplus-II 3,000 watt inverter charger.
- DC charging: a Victron Orion XS 50 amp DC-DC charger.
- Monitoring: a Victron SmartShunt and a BMV-712 battery monitor.
Water, kitchen and bathroom
- Fresh water: three poly tanks, filled through the Titan Smart Fill manifold.
- Grey water: one poly tank.
- Hot water: a Truma AquaGo instant hot water system.
- Cooking: a gas and electric cooktop with a rangehood, and a flatbed microwave.
- Fridge: a Thetford compressor fridge, 151 or 274 litres depending on the van.
- Toilet: a cassette toilet, with an outdoor shower as well.
- Entertainment: a 24 or 32 inch smart TV, and a Fusion stereo with inside and outside speakers.
Build
- Chassis and A-frame: 150 x 50mm hot-dipped galvanised steel.
- Suspension: rated to 3,500kg.
- Coupling: a DO-35 V3Plus off-road coupling.
- Wheels: 16 inch alloys with 265/65 R16 all-terrain tyres.
- Walls: 35mm heat-laminated fibreglass composite with an XPS foam core.
- Protection: two rear recovery points, a stone guard and a Dometic dust reduction system.
- Storage: a toolbox with a slide-out barbecue tray, and a galvanised rear bumper with a wood box and two jerry can holders.
- Gas: two 9kg bottles.
Options
- Heating: a diesel heater.
- Legs: BOSS stabiliser legs.
- Basin: a ceramic vanity basin.
- Suspension: AirBag Man Stage 4.
- Kitchen: an induction cooktop.
- Toilet: an OGO or Clesana toilet.
How to buy
Titan builds every van to order and sells from its dealership at Burpengary East, Queensland. It delivers Australia-wide, and one salesperson looks after you from start to finish. Ask Titan for a quote, and for the tare and ATM (aggregate trailer mass) of the floor plan you choose.
Technical specifications
About Titan Caravans
Titan Caravans builds caravans to order and sells them from Burpengary East, Queensland, with delivery Australia-wide. It sells three ranges: Single Axle, Dual Axle and Premium. Titan says it is a family-owned Australian manufacturer that designs and builds every van for Australian conditions.
