Island 19.6
Images from SUV Caravans
- From
- $94,995
- Max weight (ATM)
- 3,500kg
- Sleeps
- Up to 3
- Length
- 7.6 m

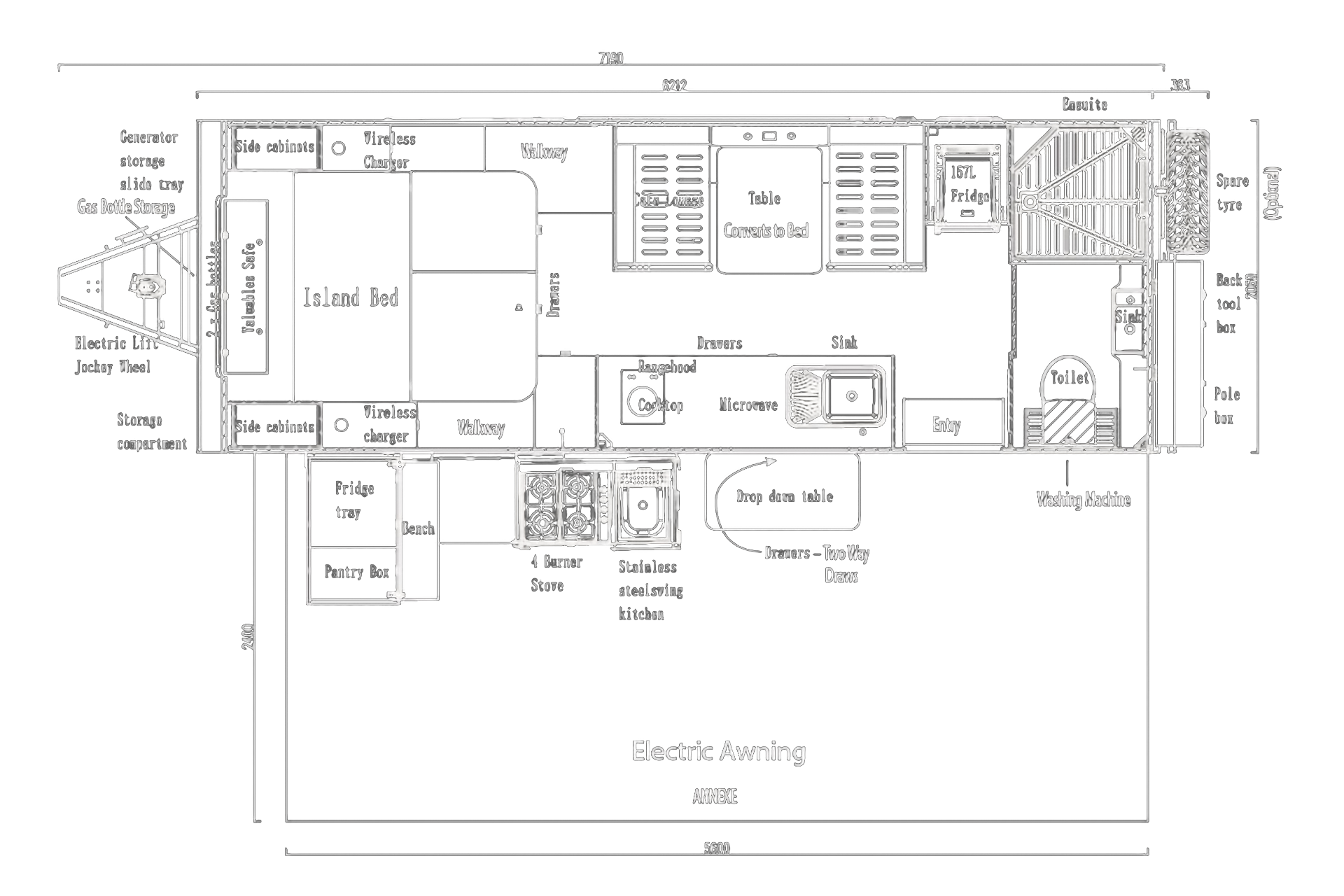

Floor plans
About the Island 19.6
The Island 19.6 is a 7.6 metre caravan that sleeps two or three, and SUV Caravans calls it the largest couples' caravan in its range. It has an island queen bed, a separate shower and toilet, and a choice of lounge layouts. The cafe lounge converts into an extra bed when you need one.
Who does it sleep?
- Main bed: a queen island bed with an innerspring mattress.
- Extra bed: the cafe-style lounge converts into a bed for a third person.
Lounge layouts
SUV Caravans describes three lounge options: an L-shaped lounge, a club lounge or a cafe-style lounge. Its inclusions list names cafe seating or L-shaped seating.
Inside
The ensuite has a separate toilet and shower cubicle, plus a wall-mounted washing machine. An inside kitchenette has an induction cooktop, a sink, a microwave and a rangehood. Food keeps in a 157 litre upright fridge freezer and a fridge drawer. Roof-mounted air conditioning and 12 volt fans are standard.
Outdoor kitchen
The outside kitchen swings out 90 degrees, with a four-burner gas stove and a wind guard. A pantry slide suits a 95 litre Trakmate fridge freezer. A full-length electric roll-out awning covers the area.
Chassis and running gear
- Chassis: fully galvanised, with galvanised suspension arms, approved by an Australian engineer.
- Suspension: SUV's Series 4 Recovery Suspension with twin shocks and heavy-duty springs.
- Wheels: 17 inch alloys with 265/70R17 all-terrain tyres, and a spare underneath.
- Brakes: 12 inch electric brakes with a breakaway system.
- Body: XPS high-density foam walls on a honeycomb floor.
- Storage: external compartments and a generator slide.
Power and water
- Batteries: 628 amp hours of lithium batteries.
- Solar: 950 watts of roof-mounted panels.
- Inverter: a 3000 watt Renogy Rego with a 150 amp mains charger.
- Charging: a 50 amp DC-DC charger, and 50 amp and 60 amp solar charge controllers.
- Fresh water: two tanks, about 200 litres in total, plus a mains water connection.
- Grey water: a 70 litre tank.
- Gas and hot water: two gas bottle holders and an integrated gas hot water system.
Optional extras
- TV: a 12 volt smart TV.
- Fridge: a 95 litre Trakmate fridge freezer for the pantry slide.
- Annexe: an enclosable annexe with a floor, walls, skirt and anti-flapper kit.
- Toilet: a composting toilet.
What will tow it?
- ATM (aggregate trailer mass): 3,500kg, the most it can weigh fully loaded.
- Tare: 3,000kg, its empty weight as built.
- GTM (gross trailer mass): 3,330kg, the most its axles can carry when hitched.
- Payload: 500kg for water, gas and gear. Full water tanks use about 200kg of it.
To tow it fully loaded, your vehicle needs a braked towing capacity of at least 3,500kg. SUV Caravans lists its weights as approximate.
Where to buy
SUV Caravans has showrooms in Caboolture, Cairns, Coffs Harbour, Rockhampton and Townsville. It recommends collecting from a dealership, so you get a full handover. Freight delivery is available on request.
Warranty
- Whole van: 12 months from delivery, on defects in material and workmanship.
- Chassis: a 5-year fatigue warranty, on vans from 2025 onwards.
- Cover: new vans only.
Technical specifications
About SUV Caravans
SUV Caravans sells off-road caravans, pop-tops and camper trailers. It has showrooms in Queensland and New South Wales, including Caboolture, Cairns and Coffs Harbour. Its range runs from compact hybrids for couples to family vans with triple bunks, and camper trailers with slide-out beds.
