Gator X
Images from JB Caravans
- From
- $129,600
- Max weight (ATM)
- 3,000kg
- Sleeps
- 2

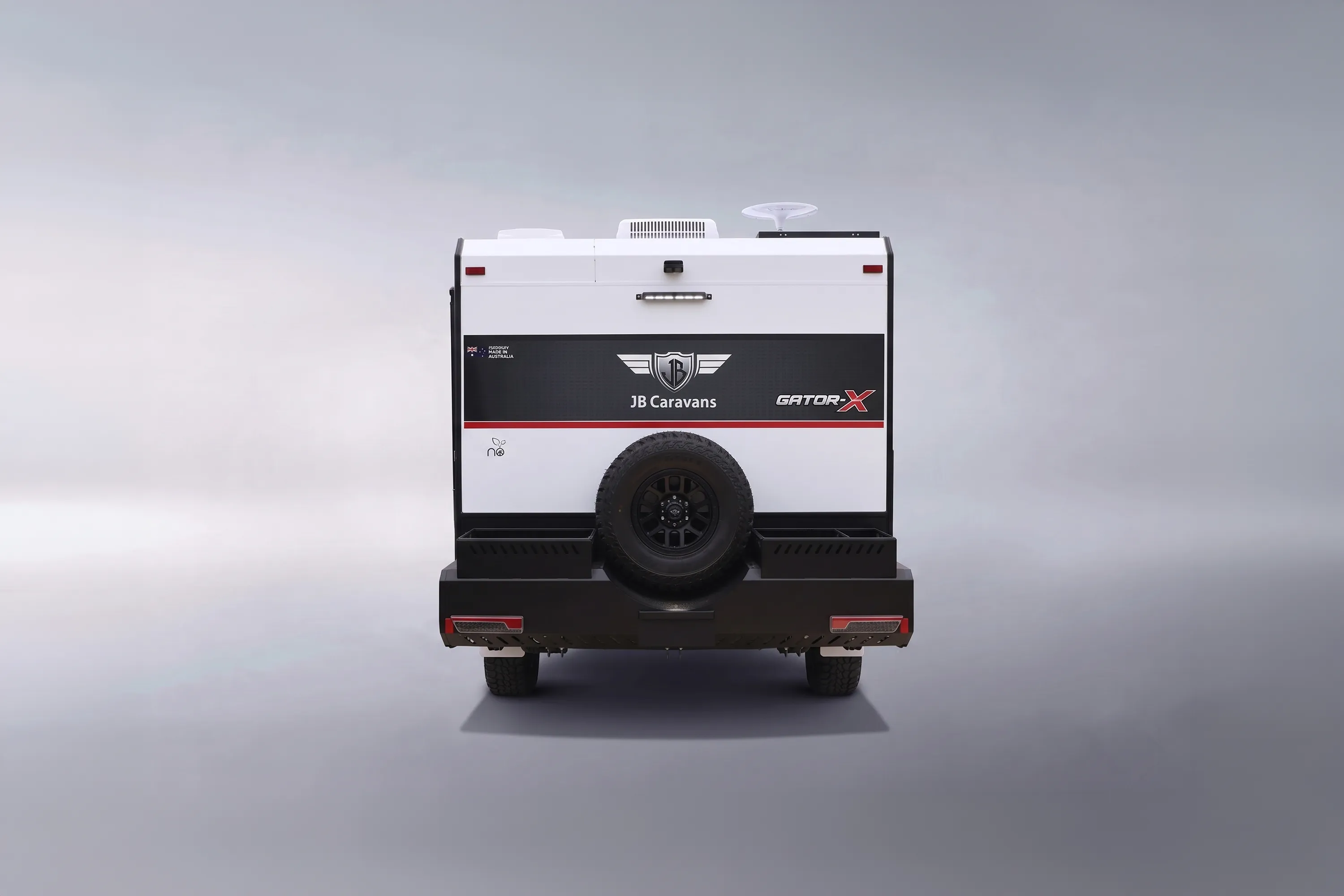

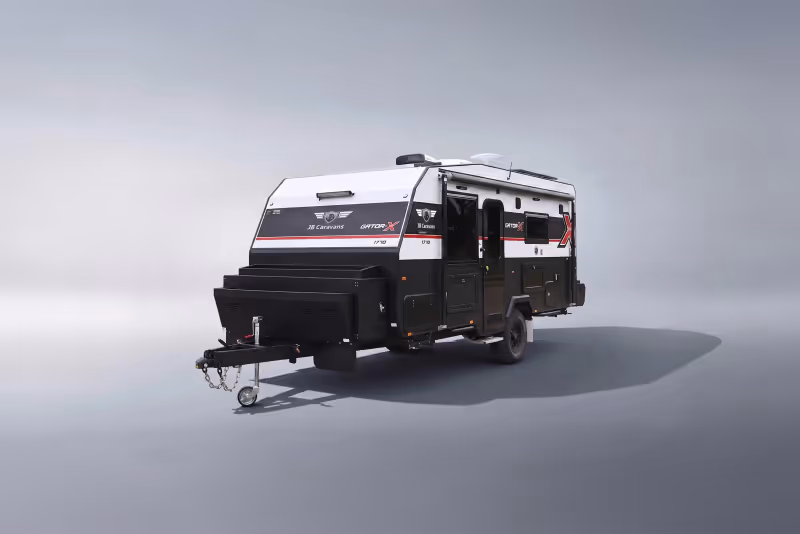

About the Gator X

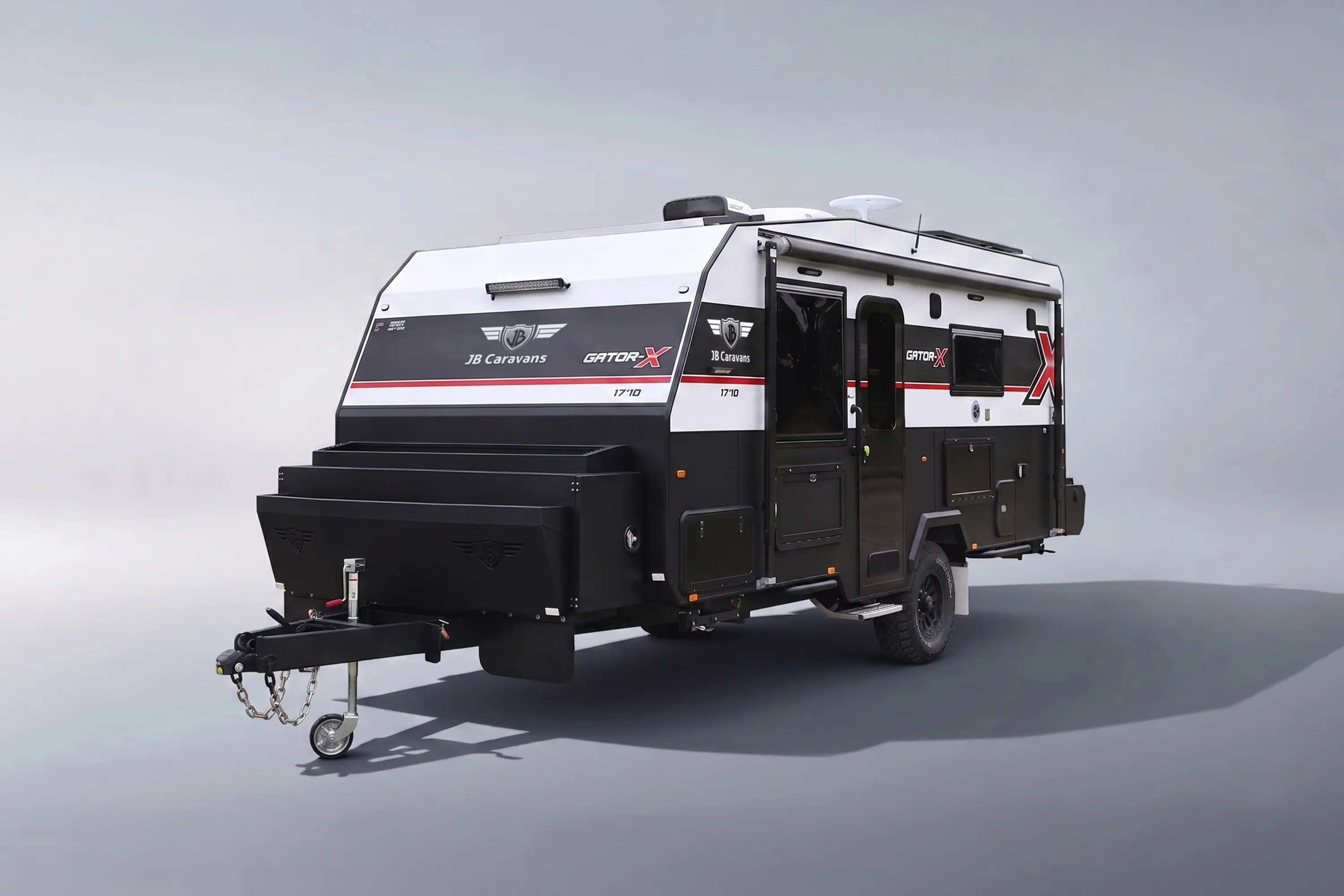

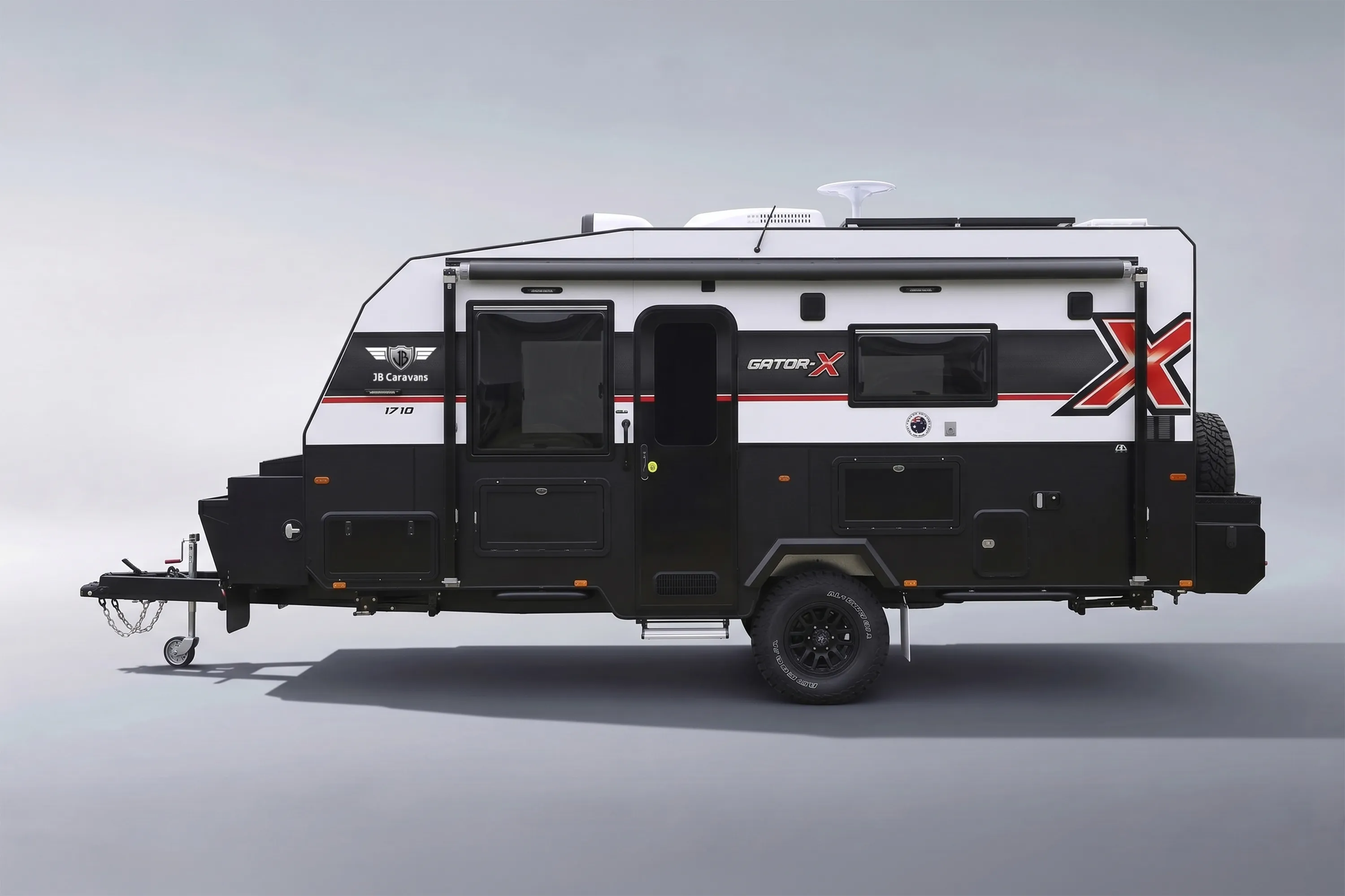

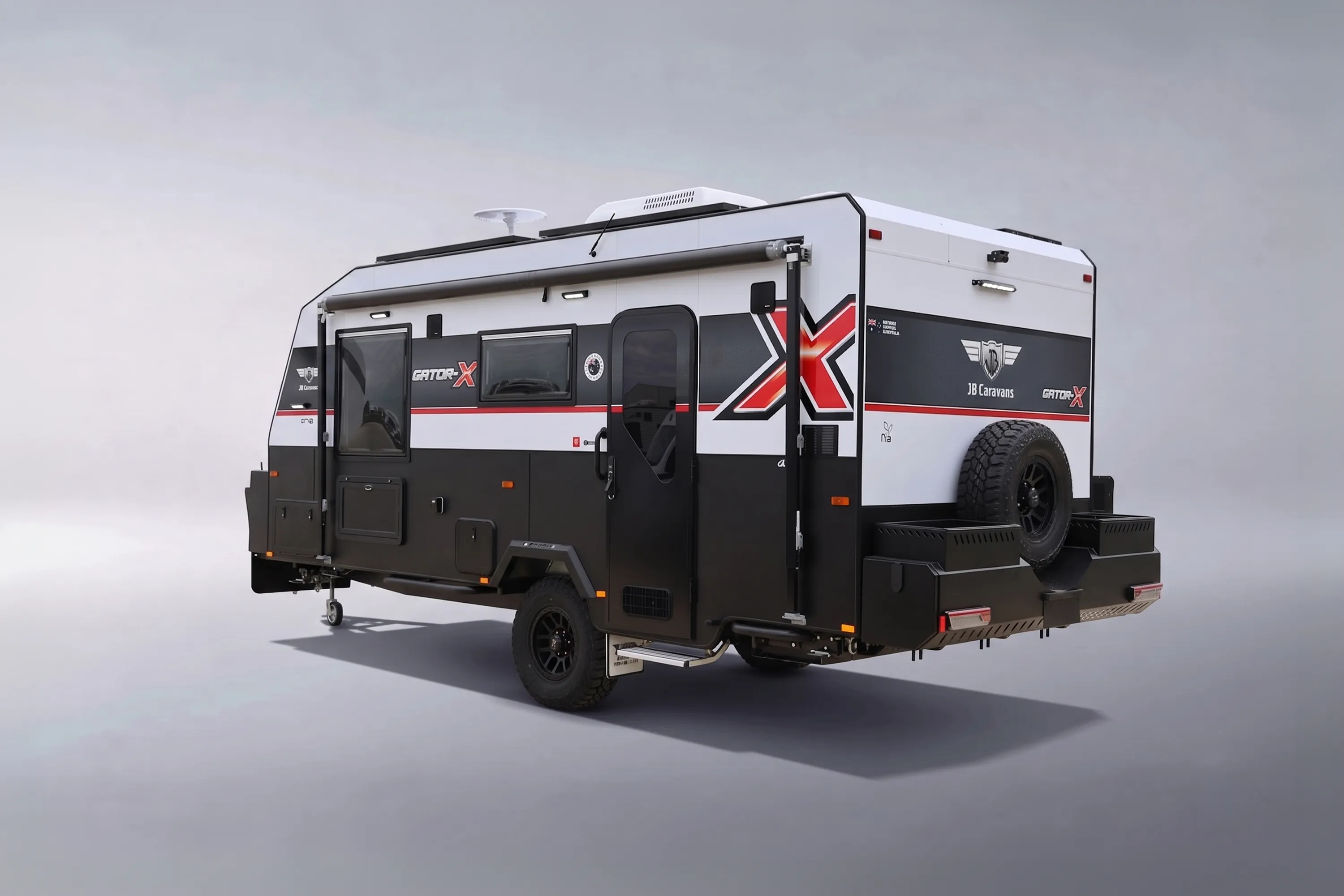

The JB Gator X is an Australian-made full off-road caravan of 16ft to 18ft 6in, built to order in 11 layouts. It rides on Cruisemaster ATX airbag suspension. JB sizes it for mid-size 4WDs such as the Ranger, HiLux, D-MAX, Prado and MU-X. Tare runs from 2,325kg to 2,795kg by layout, with ATM (aggregate trailer mass) from 3,000kg to 3,500kg and ball weight from 157kg to 280kg.

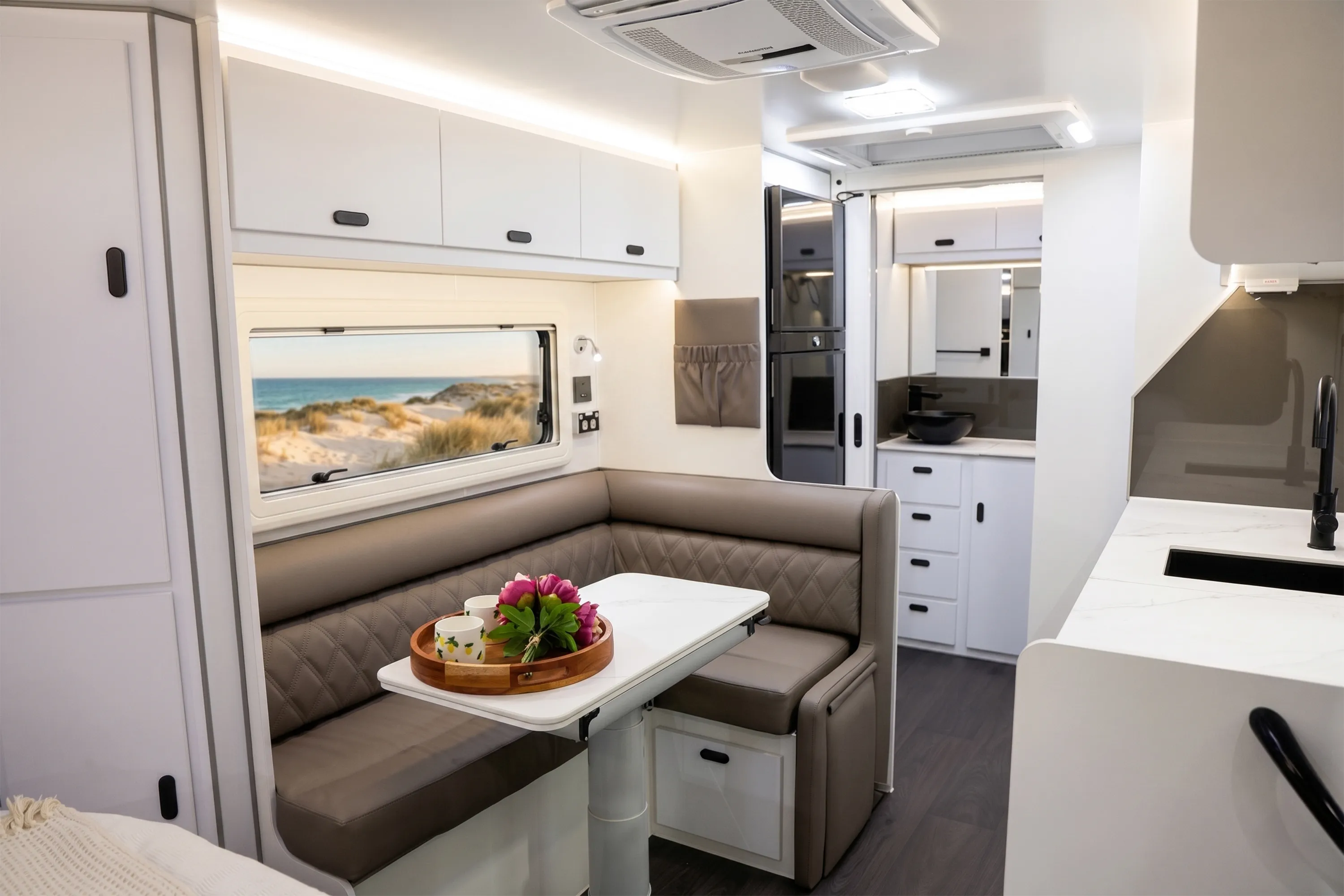

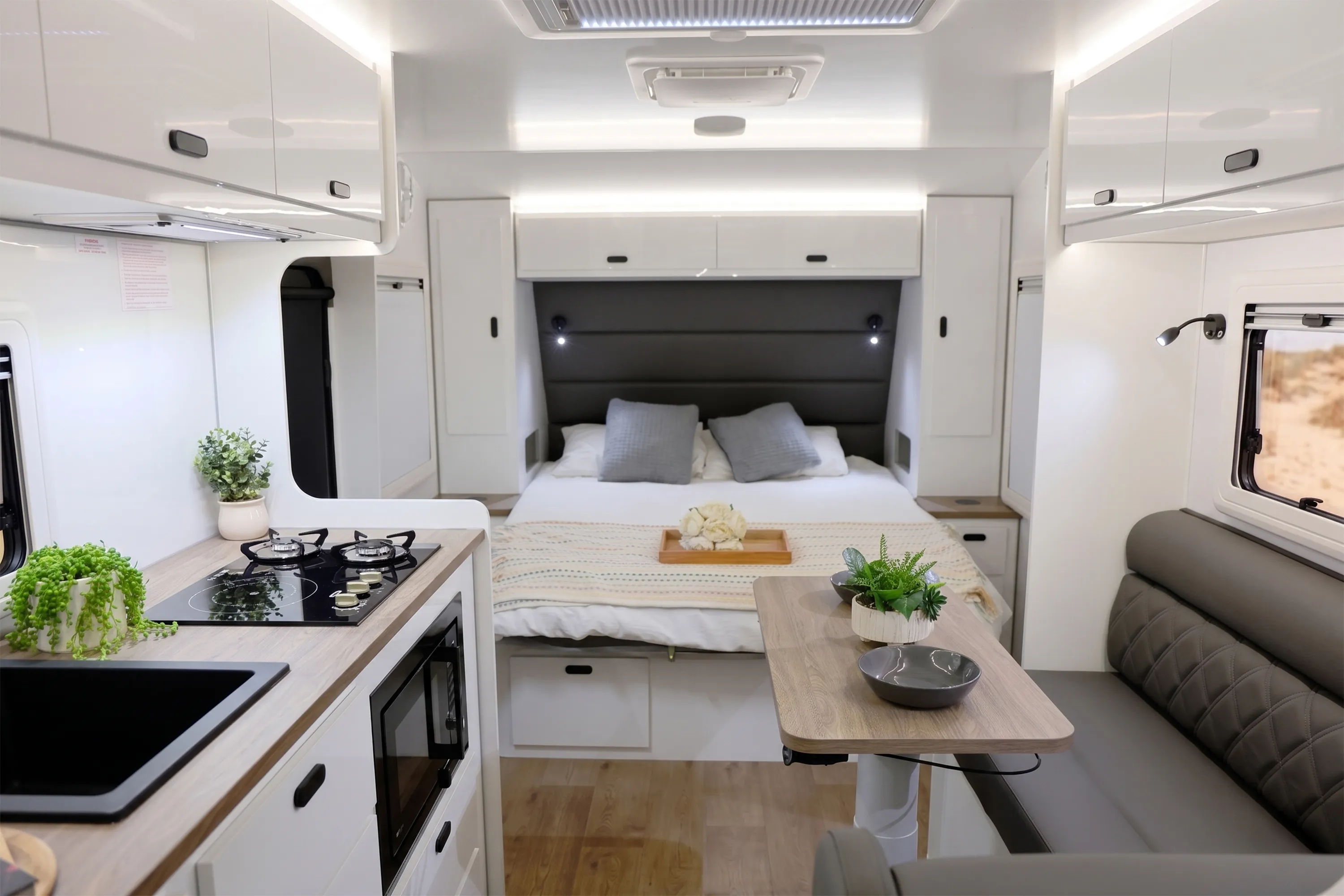

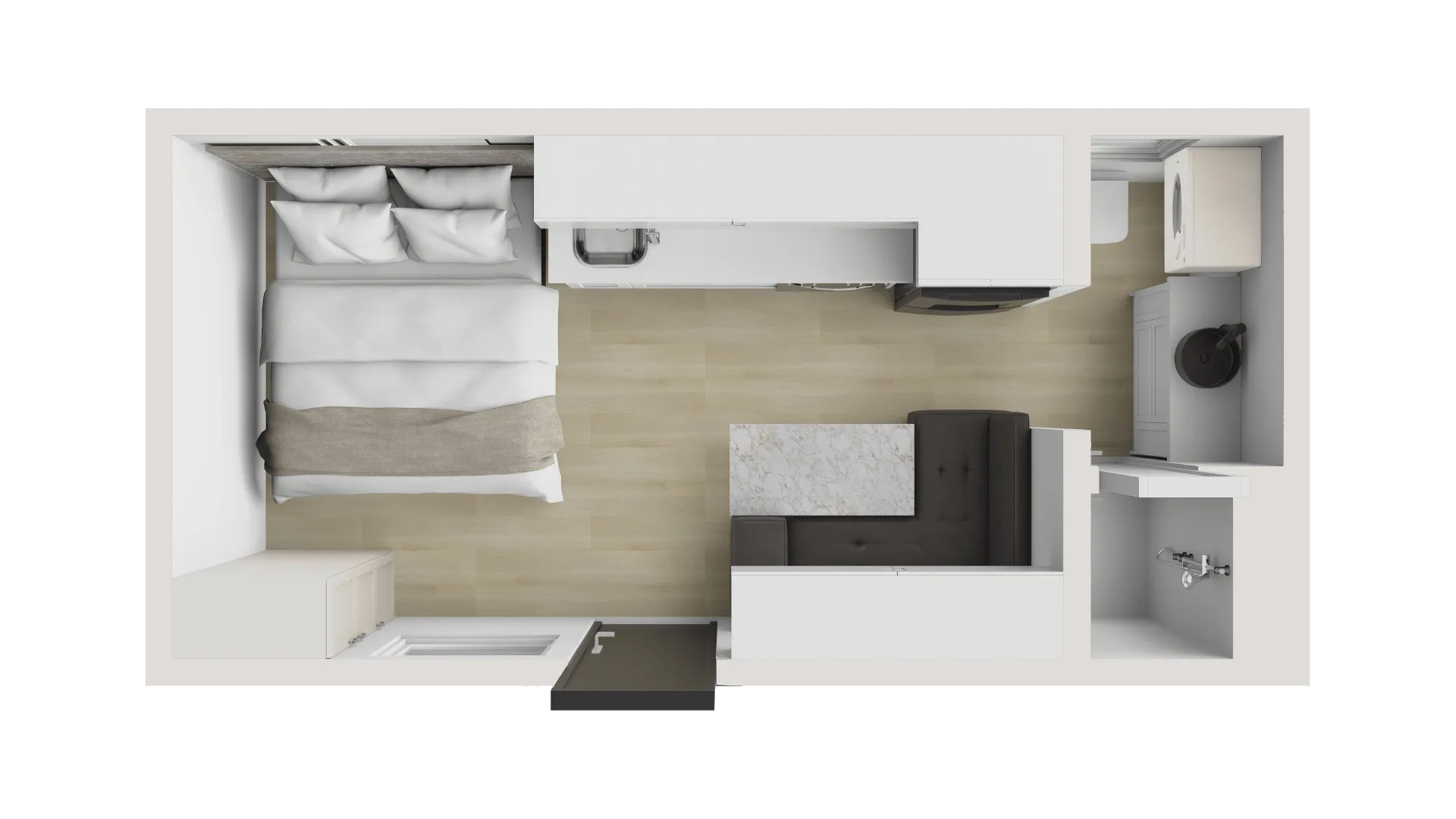

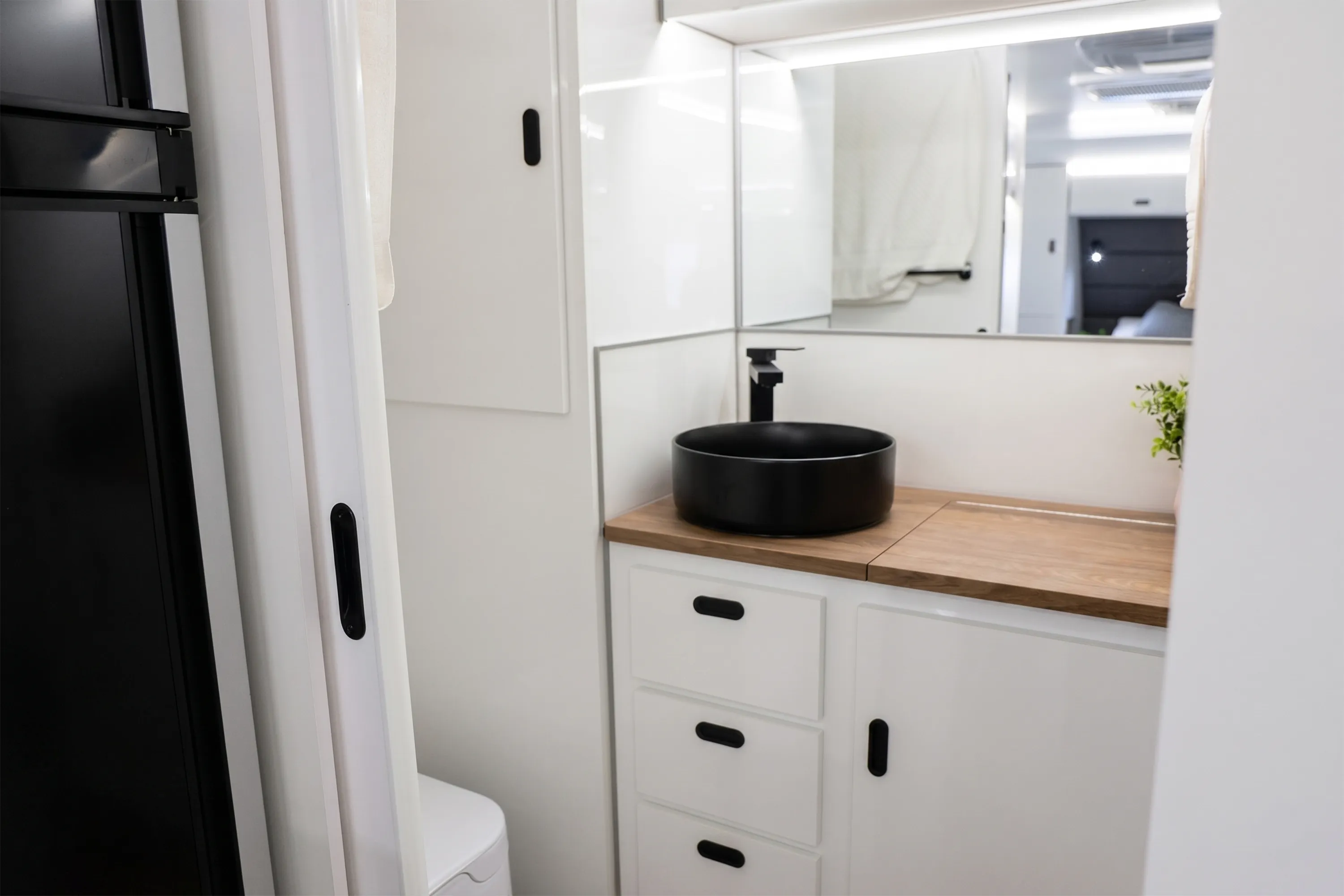

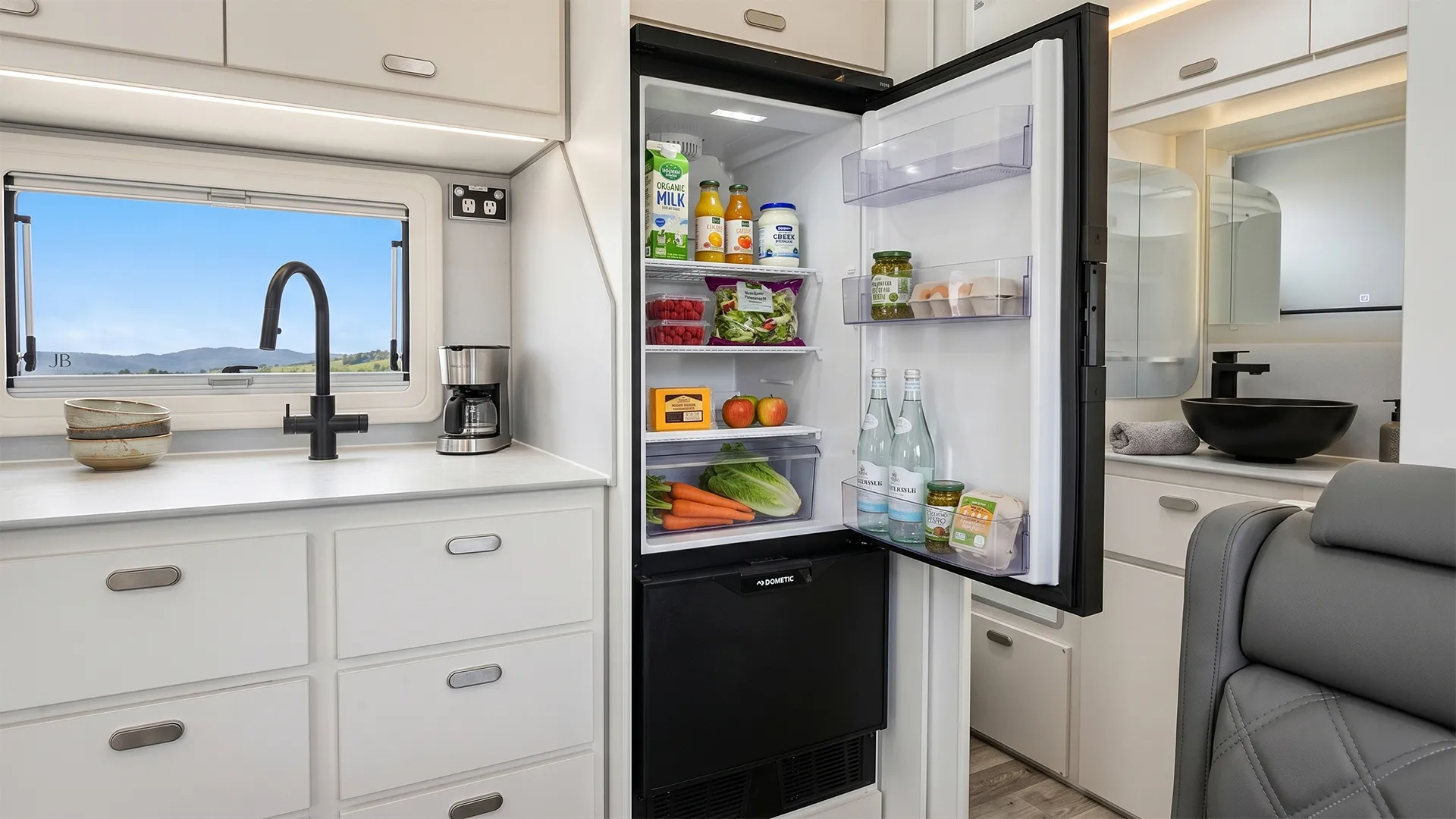

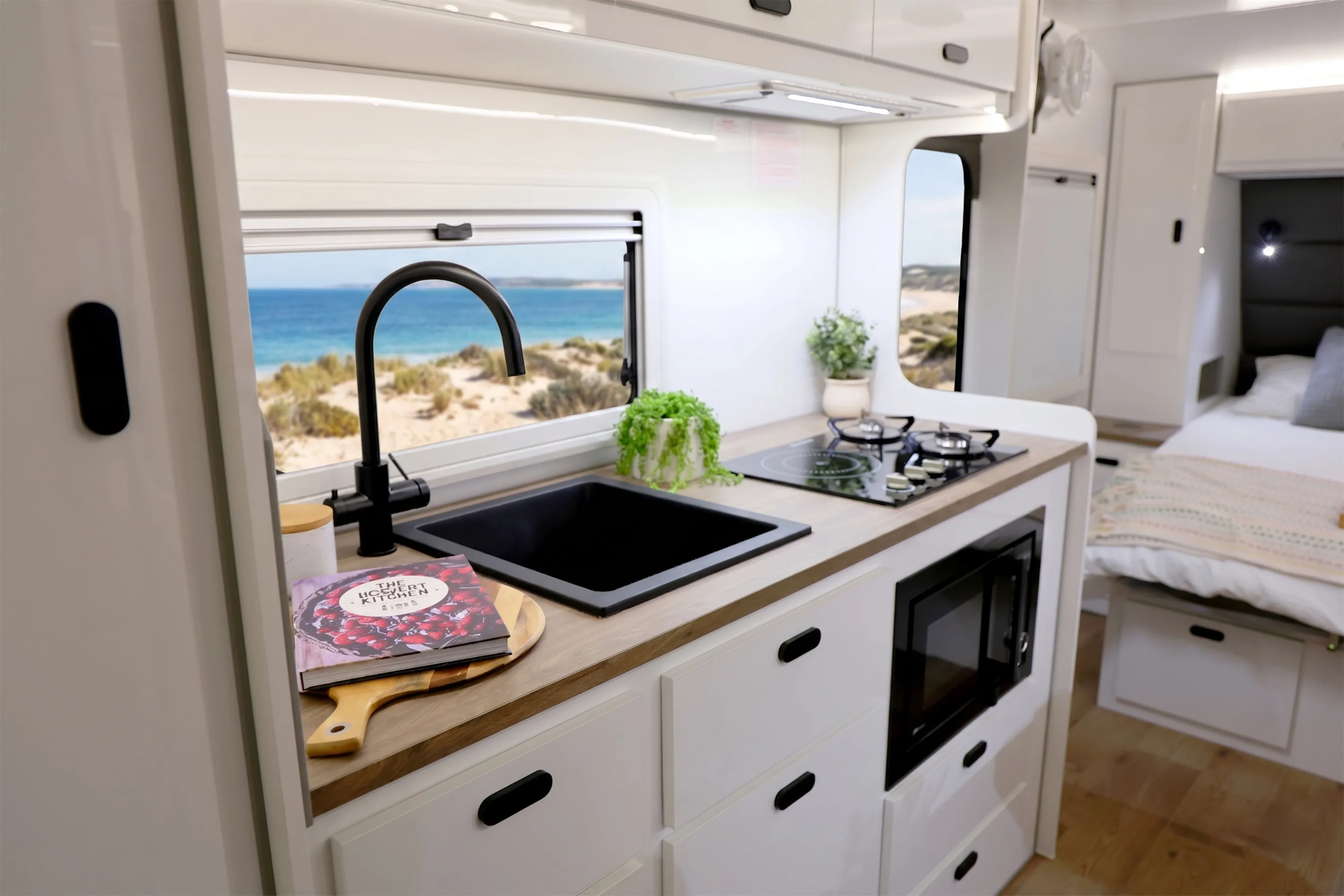

Layouts include L lounge, cafe and club lounge couples plans, a single-beds plan and family plans with two or three bunks. The 16ft L Lounge is the lightest: 2,325kg tare, 235kg ball weight, 7.215m overall, 2.48m wide, 1.98m of headroom, sleeping three. Every layout keeps a 216L Dometic compressor fridge, with black sink and tapware and a choice of exterior, cabinetry and benchtop finishes.

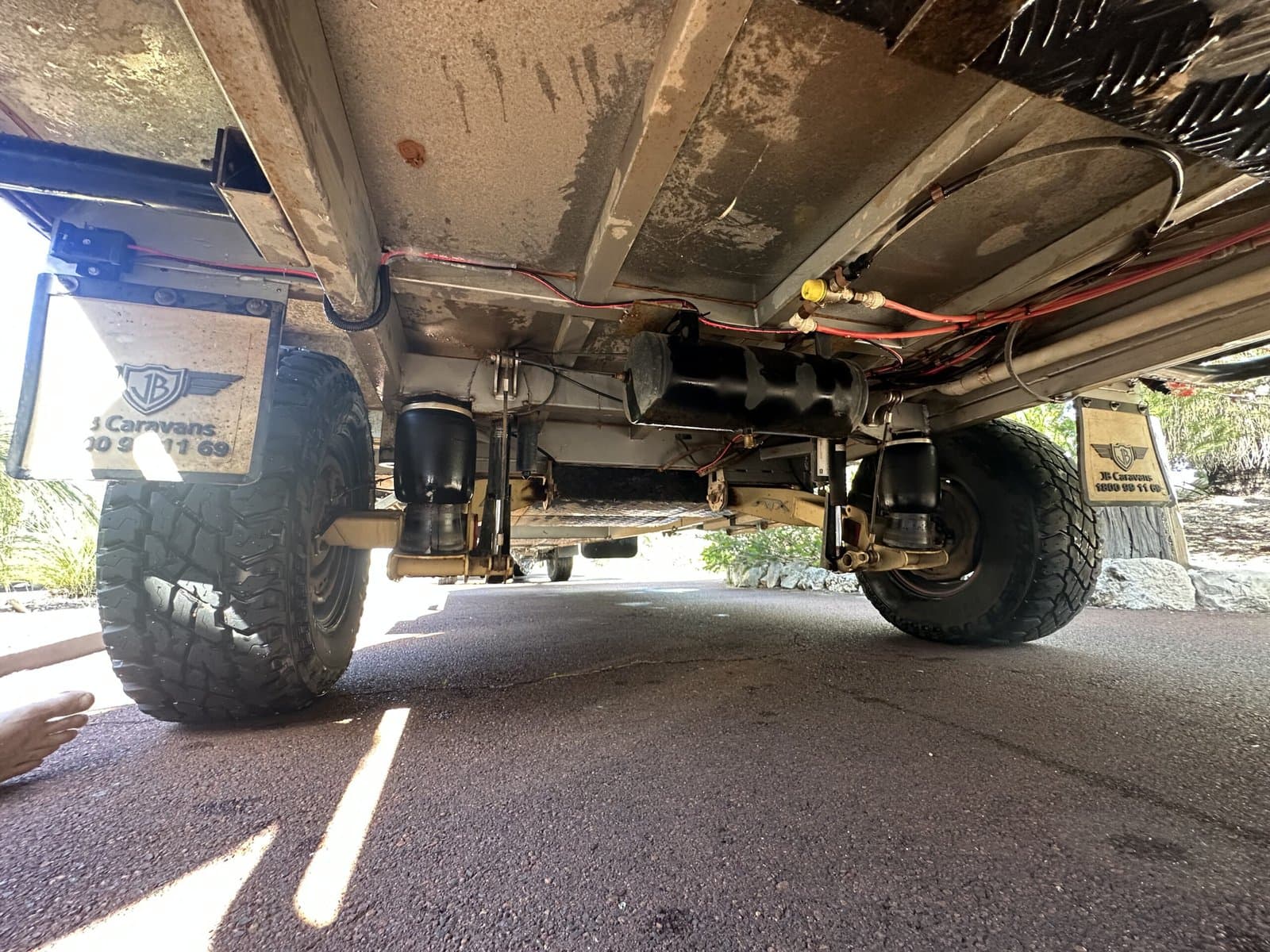

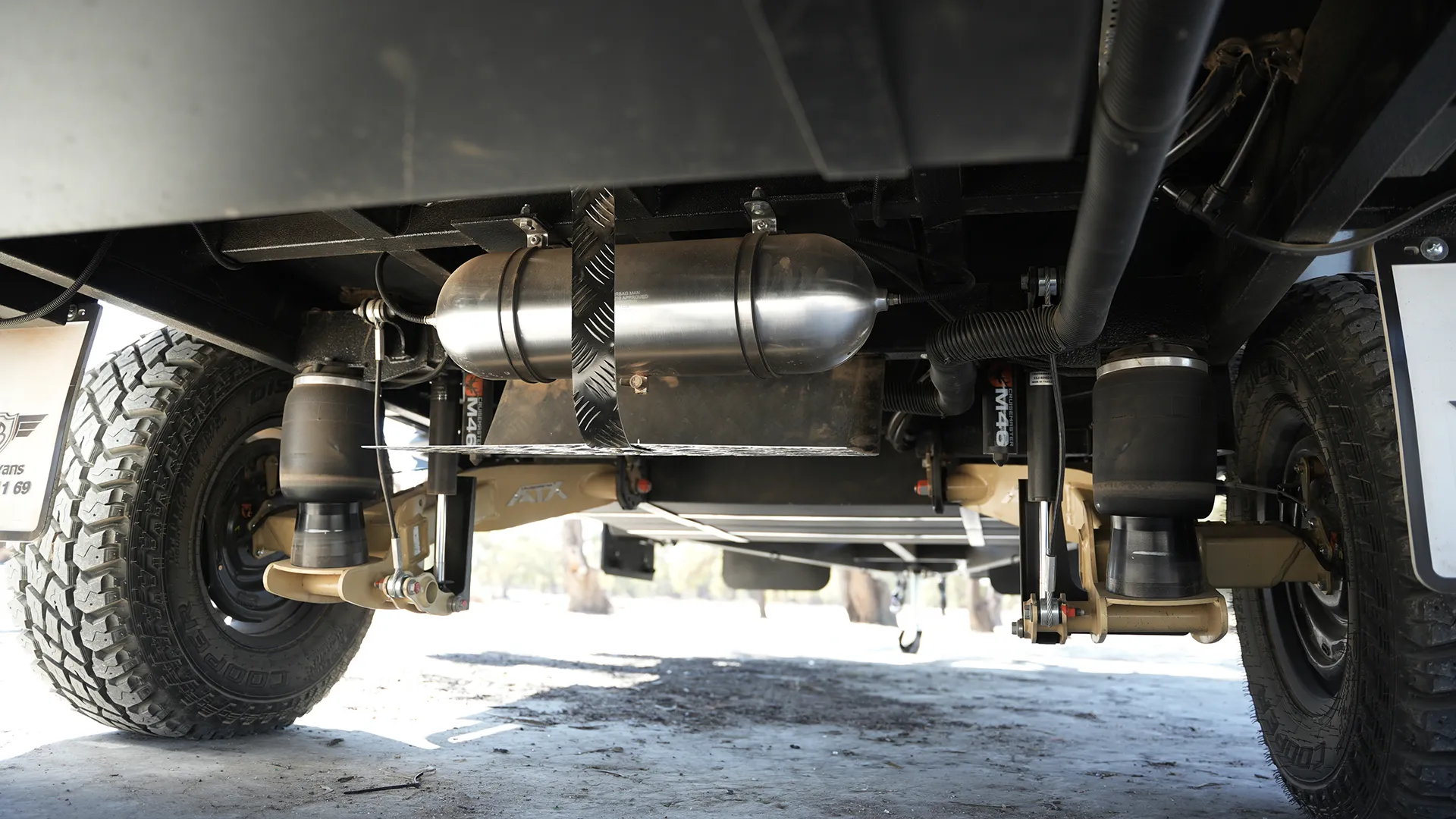

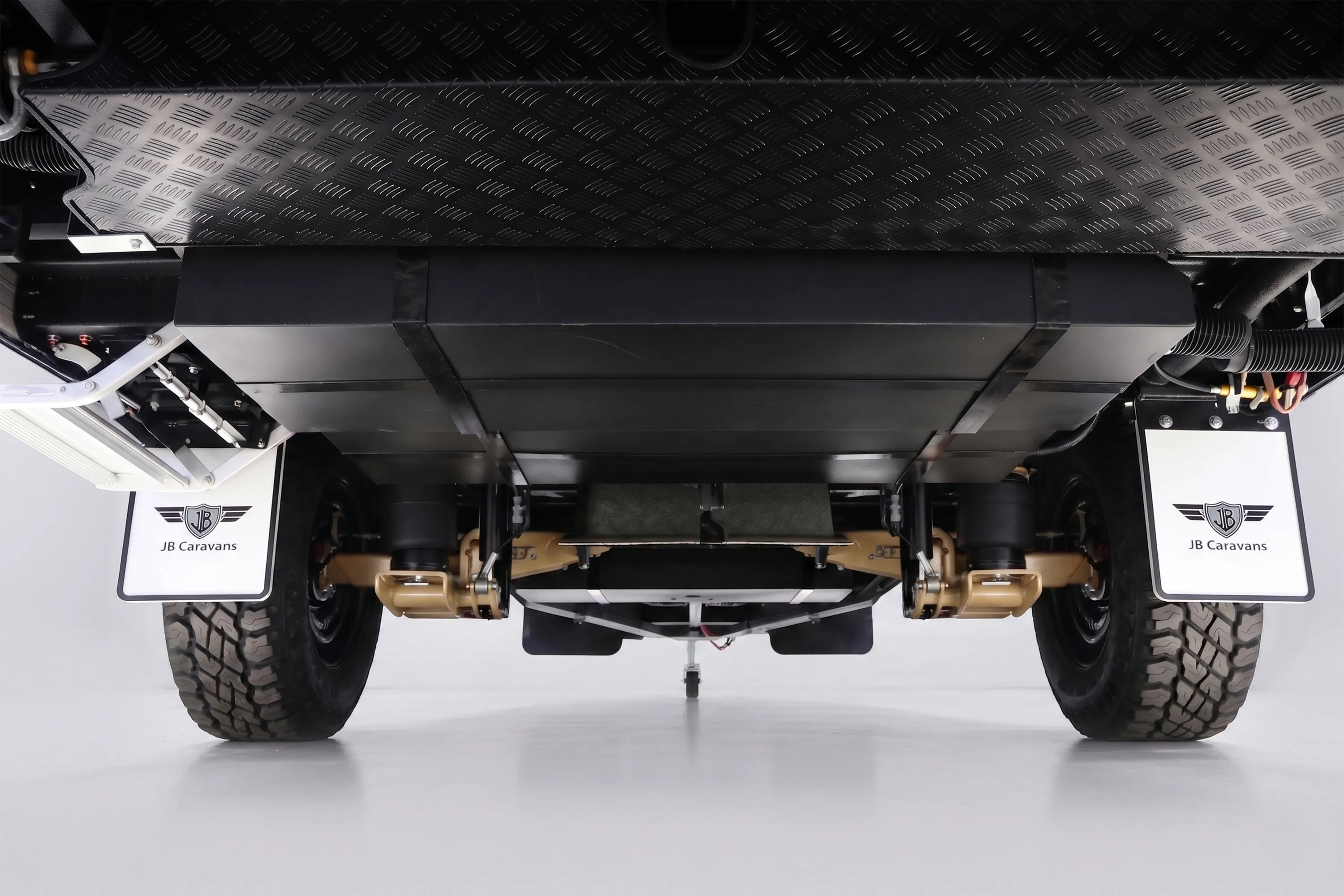

The body is Duratec composite on a chassis coated in black Raptor, which resists impact, abrasion, UV and corrosion. Suspension is Cruisemaster ATX airbag rated to 4.5 tonnes with active levelling, on single or tandem axles by layout. JB gives a five-year structural warranty.
Power is an EcoFlow 5kW system with 416Ah of battery and 800W of solar in four panels. Water is two 110L fresh tanks and a 110L grey tank. JB's own estimate is about 18 days off-grid, with fresh water running out first.
JB sells through 15 dealers nationwide, where you can walk through every layout, and some dealers offer free delivery. Tare, payload and tow figures change by layout, so confirm your build's weights with the dealer and at a weighbridge.
- 675kg of payload - room for water, gear, and the extras without going over ATM
- 3T ATM - suited to a 3.0T-rated 4WD (Prado, Everest, MU-X)
- Full off-road build - engineered for corrugations, river crossings, and genuine remote touring
- Couples layout - the bed and living space of a bigger van without the length
- 25ft overall - generous full-height living space
- Australian-made and built for local conditions
Technical specifications
About JB Caravans
Two people buy this van at the same price. One gets a loan rate 2% higher than the other.
Over seven years, the one with the higher rate pays about $8,800 more.
Different lenders will offer you different rates.
Jade's loan specialists compare offers from major banks and other lenders, and negotiate on your behalf.
A free two-minute quote from Jade tells you what your loan would cost, before you sign anything.
Asking commits you to nothing. You can say no thanks at any point. Jade runs no credit check to give you the quote.
Jade arranges the loan. The dealer sells you the van.
Jade Finance pays us a commission if you finance through them. About Jade
Example figures: 20% deposit, seven years, change them in the calculator.
Your shortlist keeps every saved van on one page to compare side by side, and you can email the list to yourself.
Towing and weights
A guide from this van's ATM only. The numbers that decide it are your car's towing capacity, its GCM (Gross Combination Mass) and the compliance plates.Check your car properly
What towing this van needs
A brake controller in the car. Coupled up, the JB Caravans Gator X puts about 2,765kg on its wheels, and Australian law needs a controller above 2,000kg GTM (Gross Trailer Mass).
How to choose one →
Figures come from the maker's published specs.
Insurance for your JB Caravans Gator X
Agreed value and market value pay out differently
Before you get quotes, find out what changes the amount a caravan policy pays out.
Read the insurance guideBefore you go and see it
Finance first, then the phone call, then the checks at the van.
1Walk in with the money already sorted
The same van costs about $8,800 more over seven years with a loan rate 2% higher.
Different lenders will offer you different rates.
Jade's loan specialists compare offers from major banks and other lenders, and negotiate on your behalf.
A free two-minute finance quote from Jade tells you what your loan would cost, before you ring the dealer.
Get a free finance quote to take to the yardAsking commits you to nothing. You can say no thanks at any point. Jade runs no credit check to give you the quote.
Jade arranges the loan. The dealer sells you the van.
Jade Finance pays us a commission if you finance through them. About Jade
Example figures: 20% deposit, seven years, change them in the calculator.
Or have Jade call you about this van
A Jade specialist calls you to talk it through.
2Ring ahead, then go see it
Dealers that carry JB Caravans, from the brand's own list. Stock moves all the time, so call before you drive out.
When you call, ask:
- Have you got the JB Caravans Gator X in the yard now, or is it on order?
- Can I come and walk through it this week?
- What's your best drive-away price on it?
- Is it the same build I compared, with matching layout, weights and features?
3When you get there, check
- The compliance plate - check the tare and ATM against the specs you compared here. The plate carries the legal numbers.
Where the plate is and how to read it - Water damage - soft spots in the floor, stains on the walls, or a musty smell in the cupboards.
How to spot water damage - That everything works - lights, water pump, fridge, gas, and the brakes and hitch.
The full inspection checklist, system by system - Sort your finance before you hand over a deposit, so you are never committed to a van you cannot finance.
Read before you go
Our guides for the day you go and look.
Delivery and freight
If there's no dealer in your state, most brands deliver Australia-wide. You can also collect from the factory. Interstate freight is a real cost, often a few thousand dollars, and it climbs with distance, so factor it in before you commit.
