Sanctuary 20'3
Images from Highclere Caravans
- Price
- POA
- Max weight (ATM)
- 3,200kg
About the Sanctuary 20'3

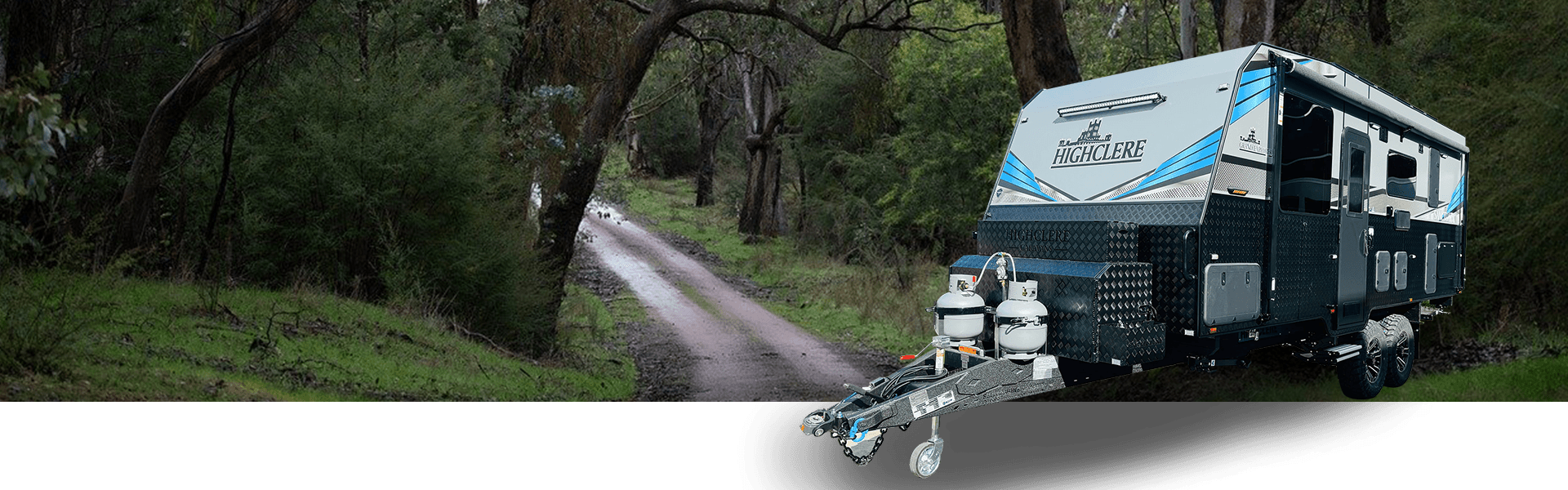

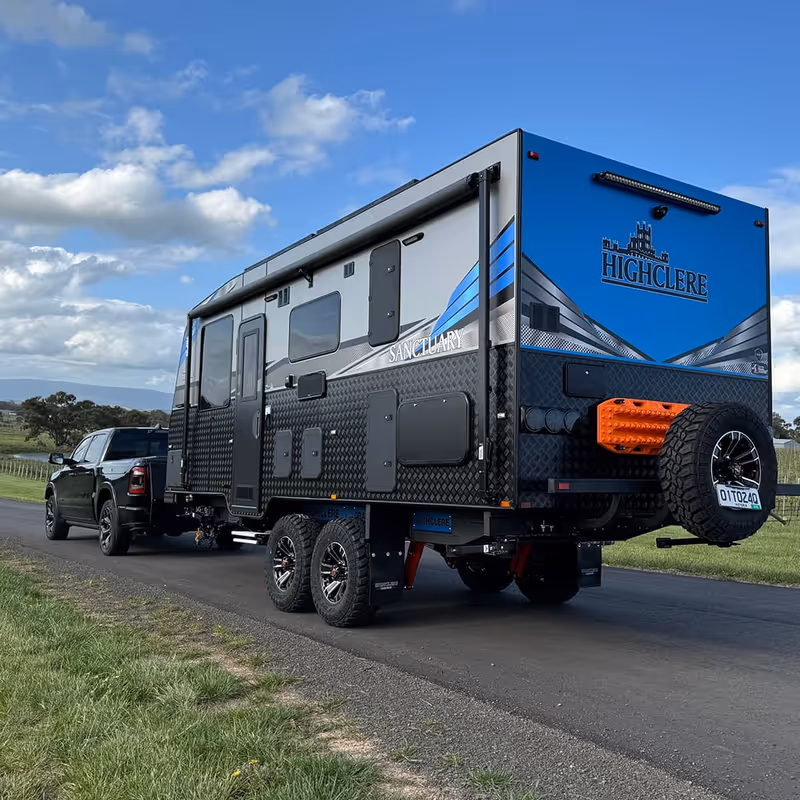

The Sanctuary is a 20ft 3in tandem-axle van entered through a mid door. It suits a couple who want more bathroom than most vans this size carry.
Tare is 2,360kg and Highclere quotes ATM at 3.2 to 3.5 tonnes, a range that spans the three build tiers. Ball weight is 230kg. A dealer can confirm which tier your quoted figure covers.

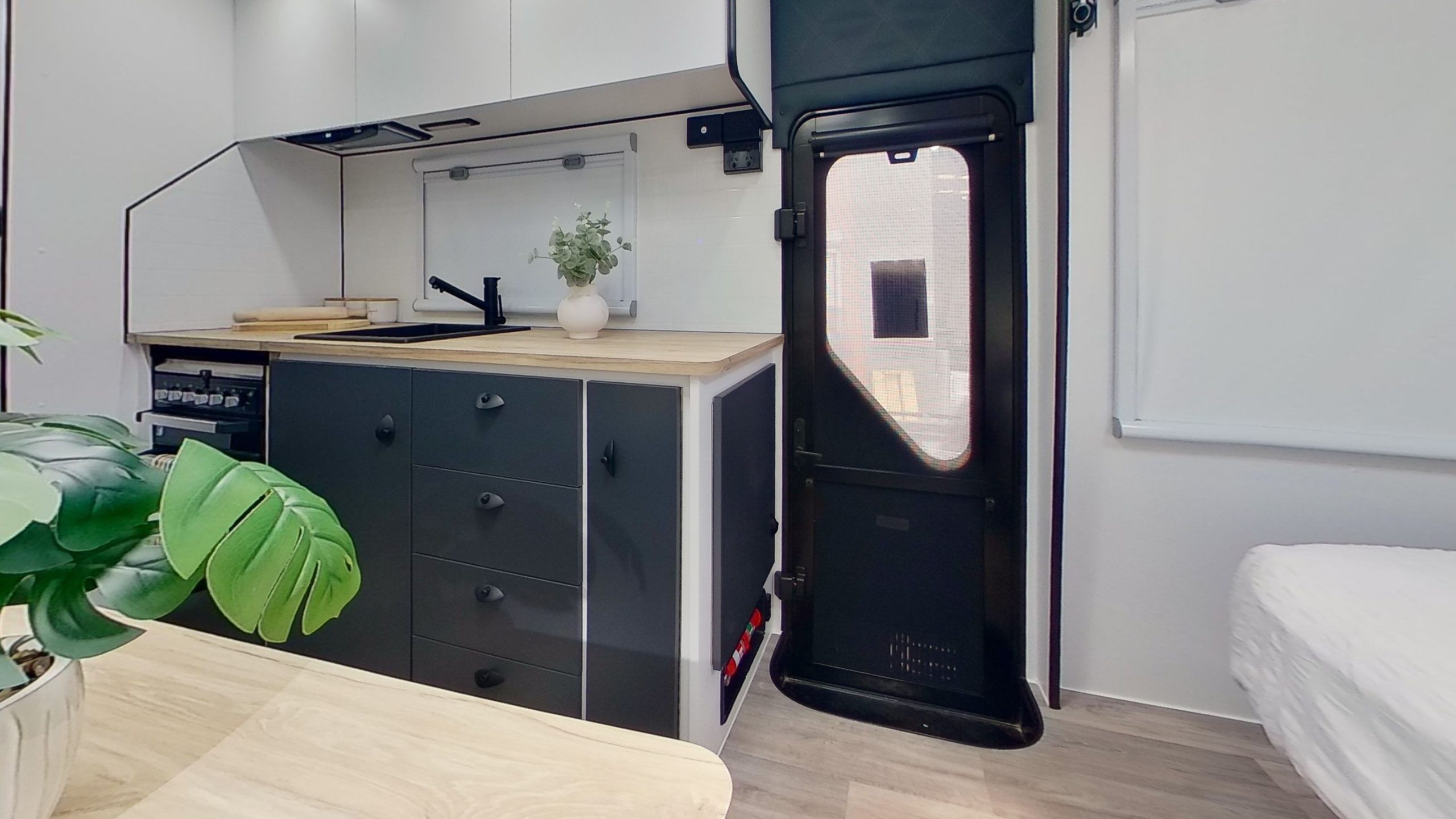

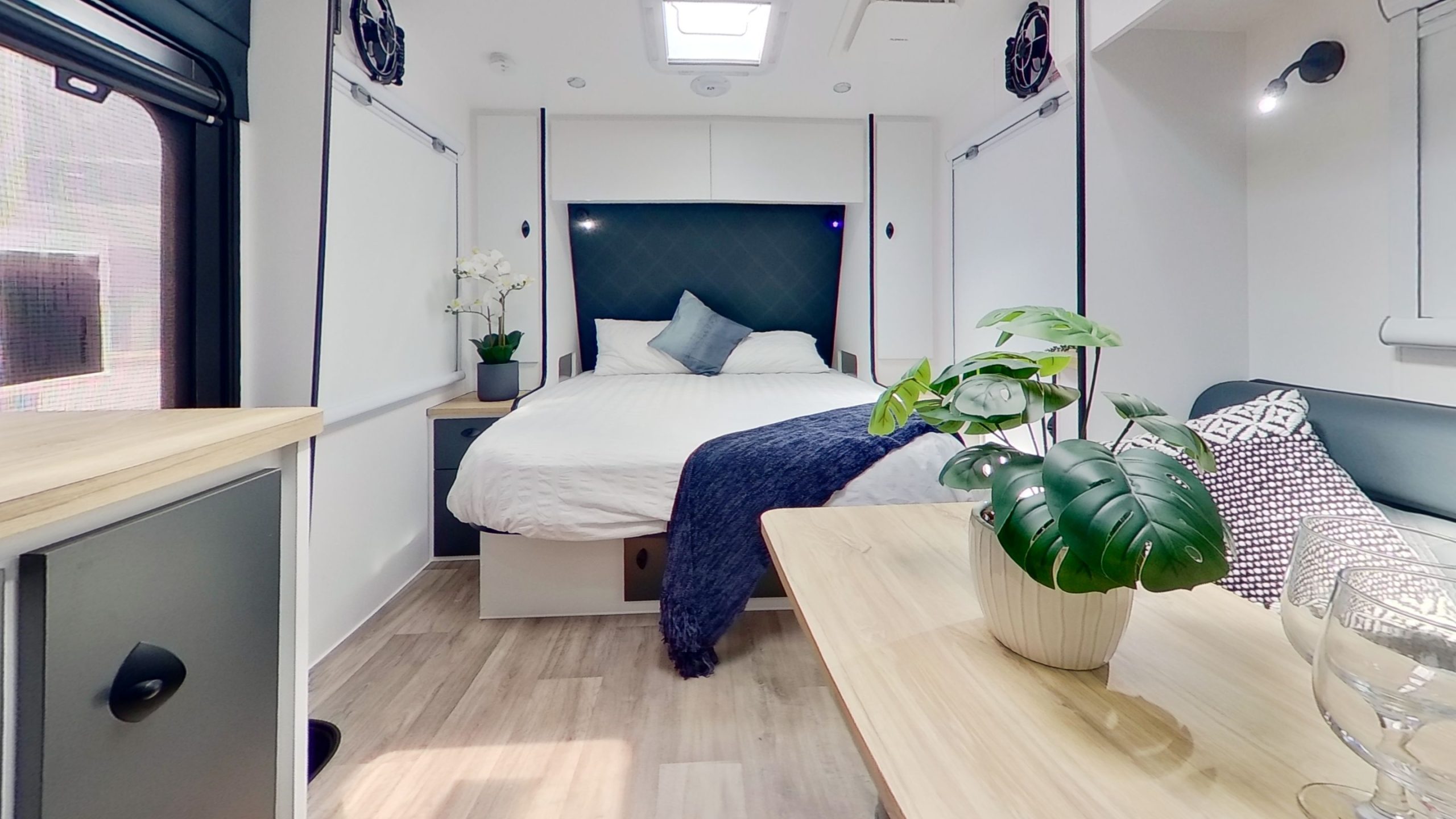

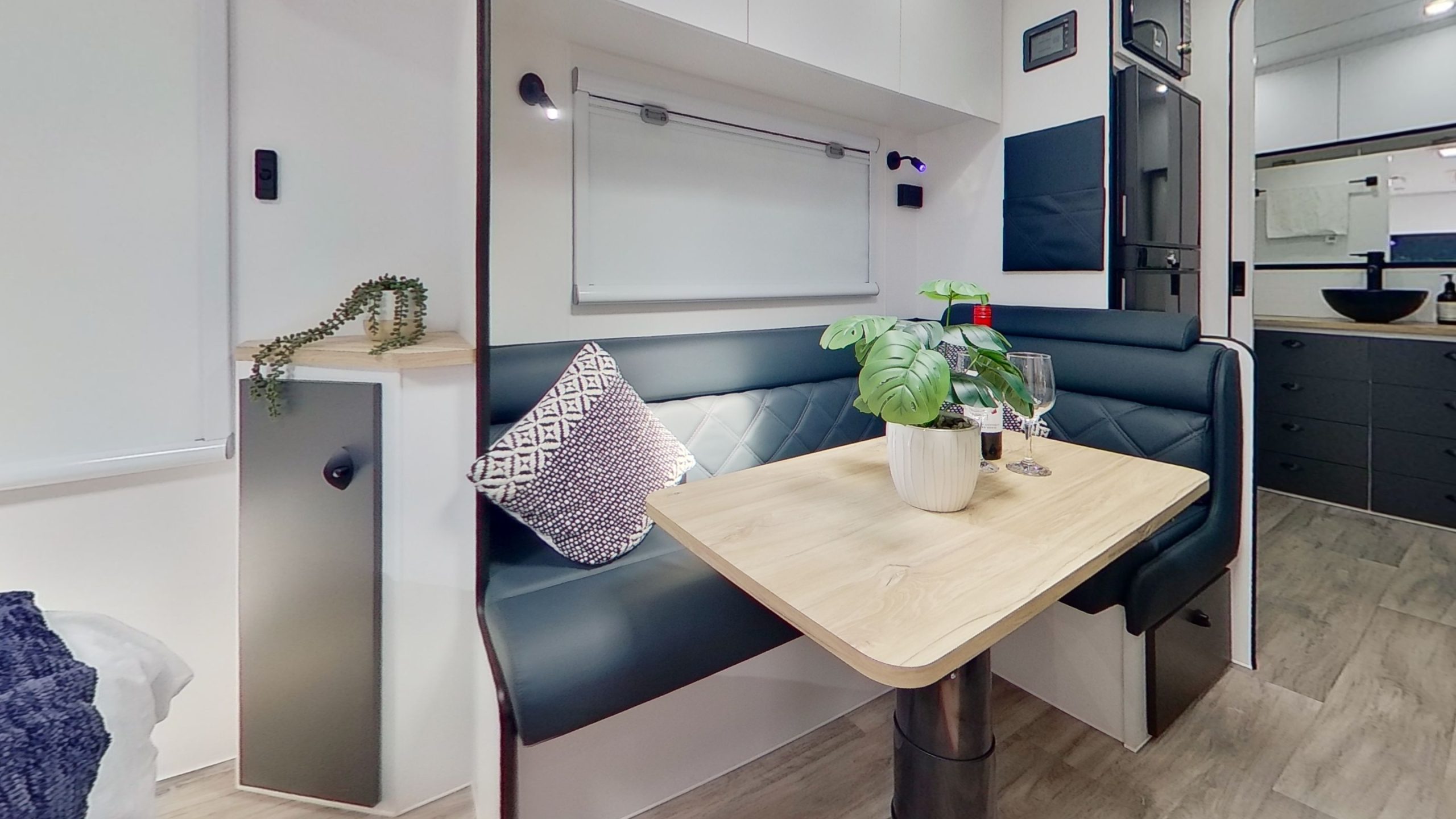

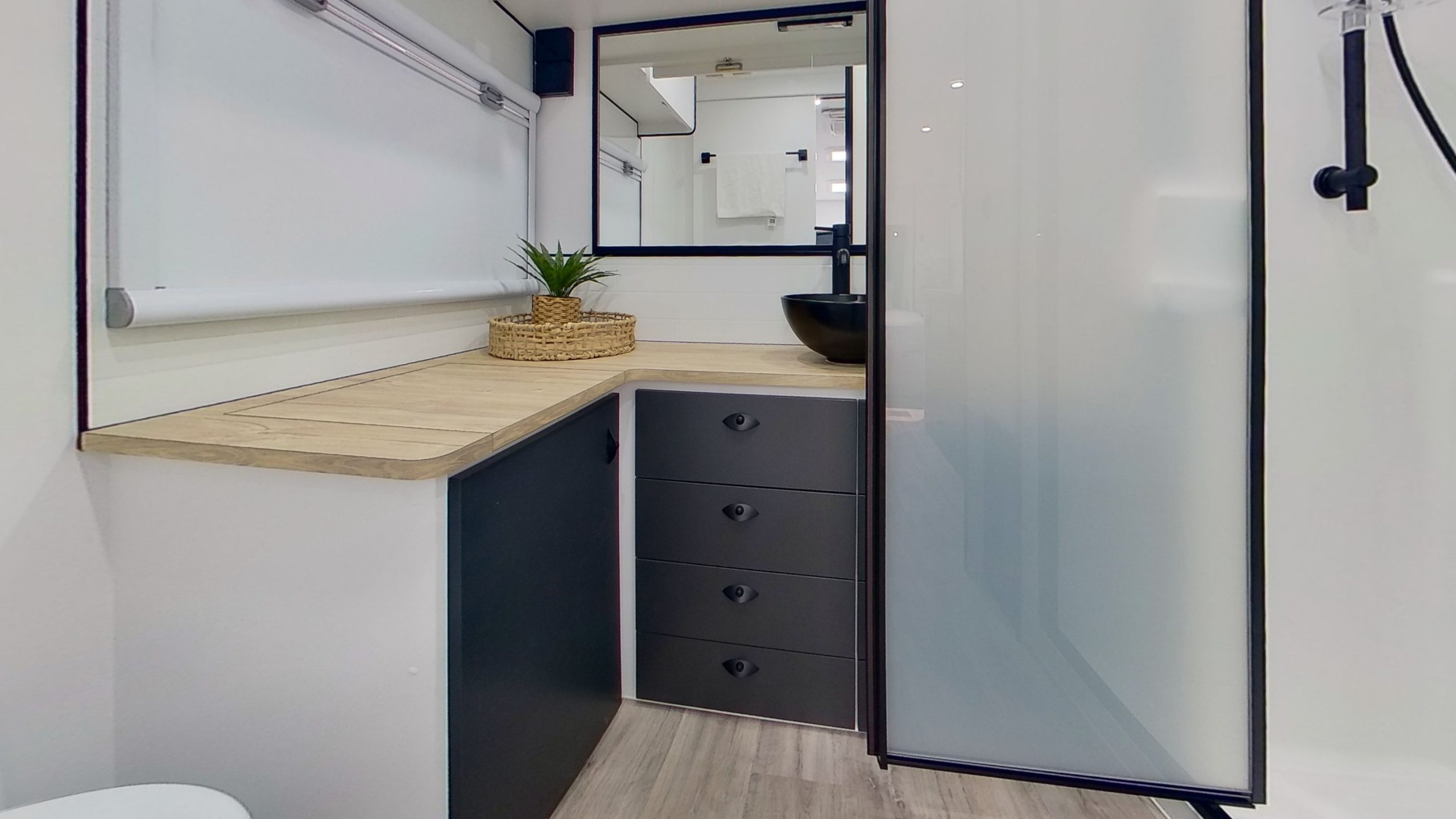

Highclere fits a 6ft 2in pillow top mattress to the front island queen. Inside, a large rear ensuite sits behind a road-side L-shaped lounge and door-side kitchen. The rear ensuite holds a full-height fibreglass shower and cassette toilet, plus a 3.5kg top-loading washer.
A gas and electric mini grill with a pot drawer cooks on Dynasty. Carnarvon and Grand Explorer XT trade up to a full oven. Every tier runs a reverse cycle air conditioner. Only Grand Explorer XT lifts the fridge past 188 litres, to 224 litres.
Entry-level power is one 100Ah AGM battery and 210W of solar. Carnarvon lifts that to two 120Ah AGM batteries, 420W of solar and a BMPro monitor. Grand Explorer XT goes lithium, with two 150Ah cells, 630W of solar and a Victron 3000W inverter.
Fresh water runs to two 95 litre tanks as standard. Carnarvon takes a separate 100 litre grey tank too. A gas and electric system supplies the hot water.

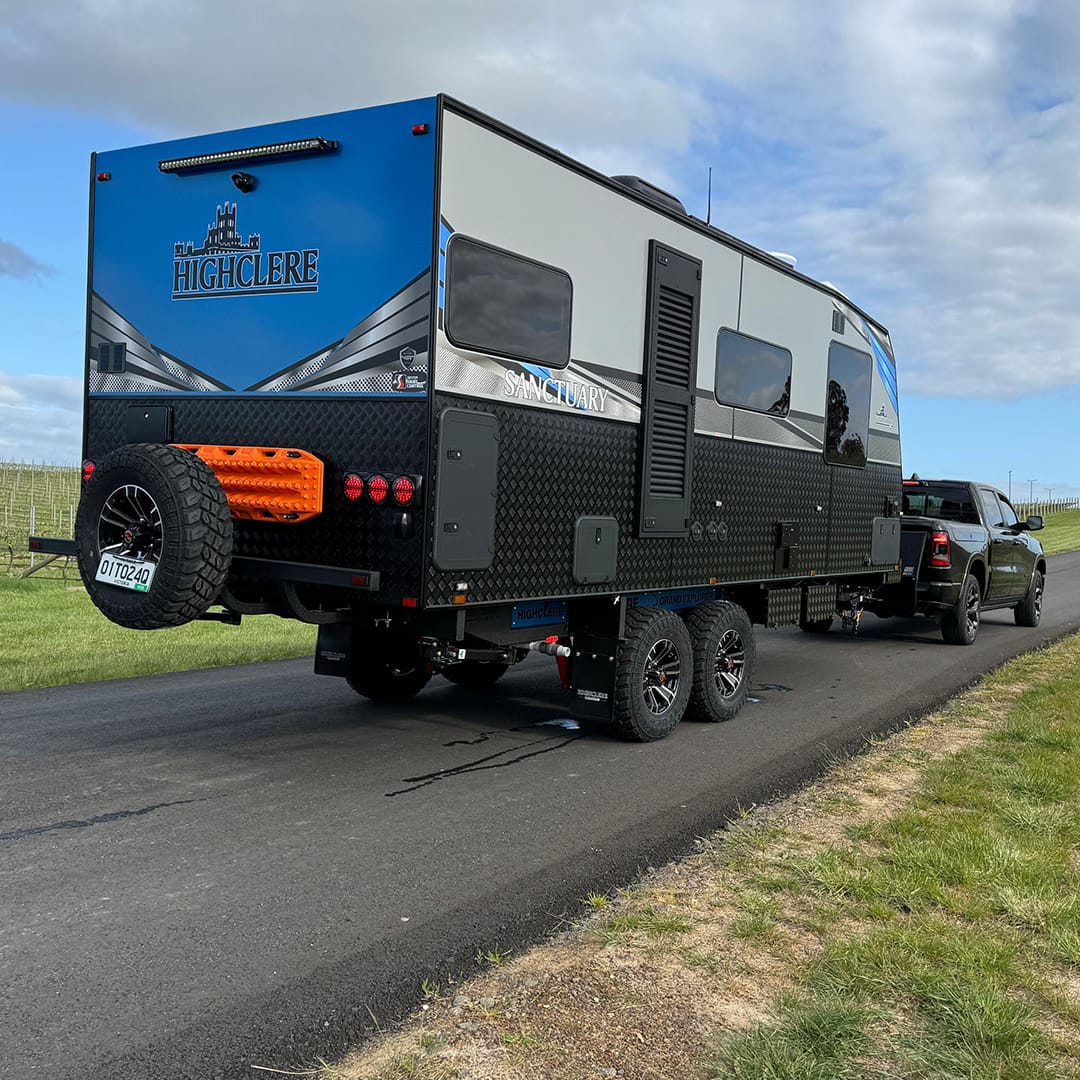

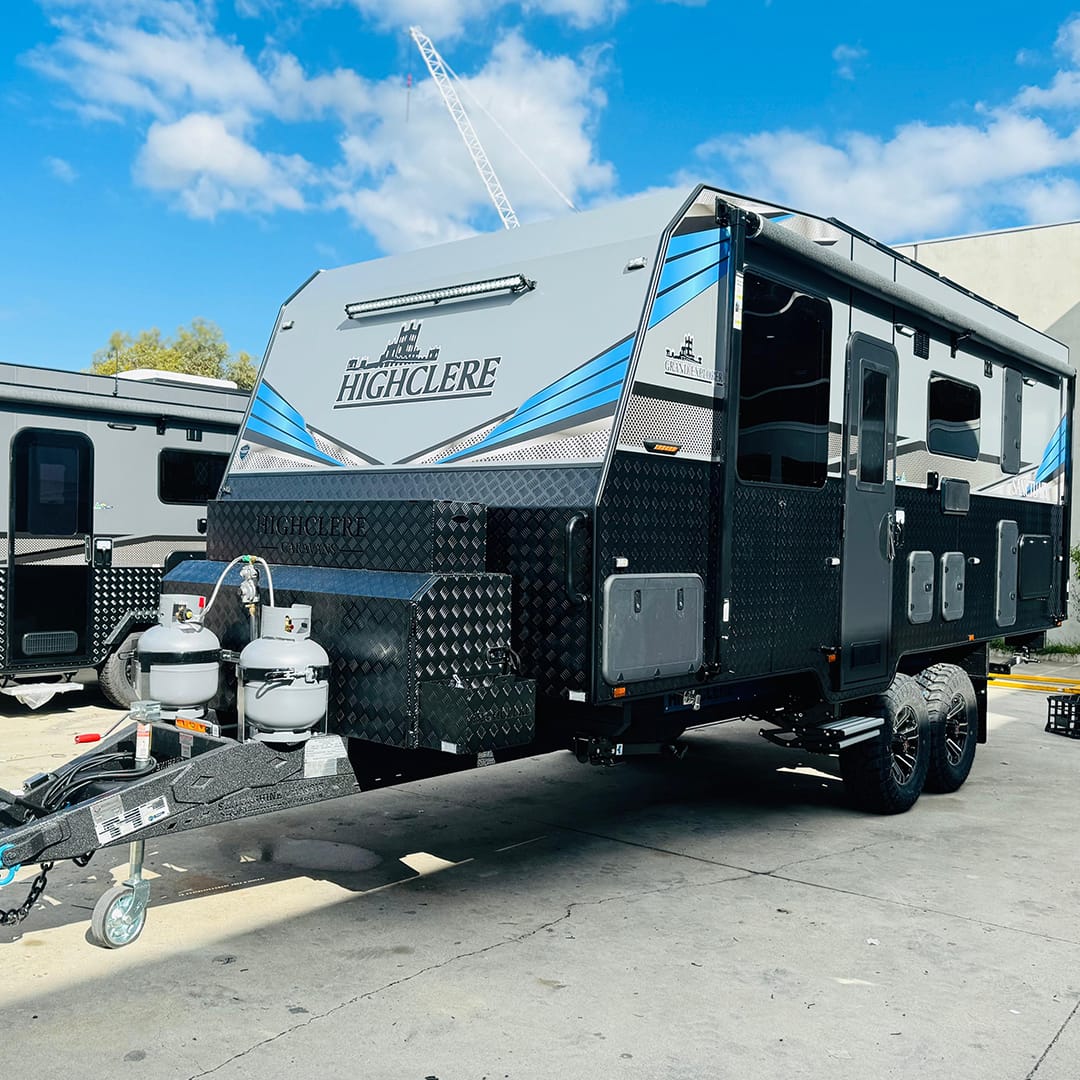

Highclere cuts the chassis from Australian Supagal steel on a 6 inch main frame and A-frame. Semi off-road suspension covers Dynasty, full off-road covers Carnarvon. Grand Explorer XT steps up again with its own truss chassis and air bag suspension. Dynasty runs ribbed aluminium sides and a one-piece fibre roof. Carnarvon and Grand Explorer XT both run composite aluminium sides and roof.
Highclere's 5 year warranty covers the whole caravan regardless of tier. Highclere builds the Sanctuary in Epping, Victoria and leaves the sale to a dealer network, one per state. A dealer sets the price, and Epping fields Northern Territory enquiries itself.
Technical specifications
About Highclere Caravans
Price on application - the dealers below price it to the spec you choose.
Your shortlist keeps every saved van on one page to compare side by side, and you can email the list to yourself.
Towing and weights
A guide from this van's ATM only. The numbers that decide it are your car's towing capacity, its GCM (Gross Combination Mass) and the compliance plates.Check your car properly
What towing this van needs

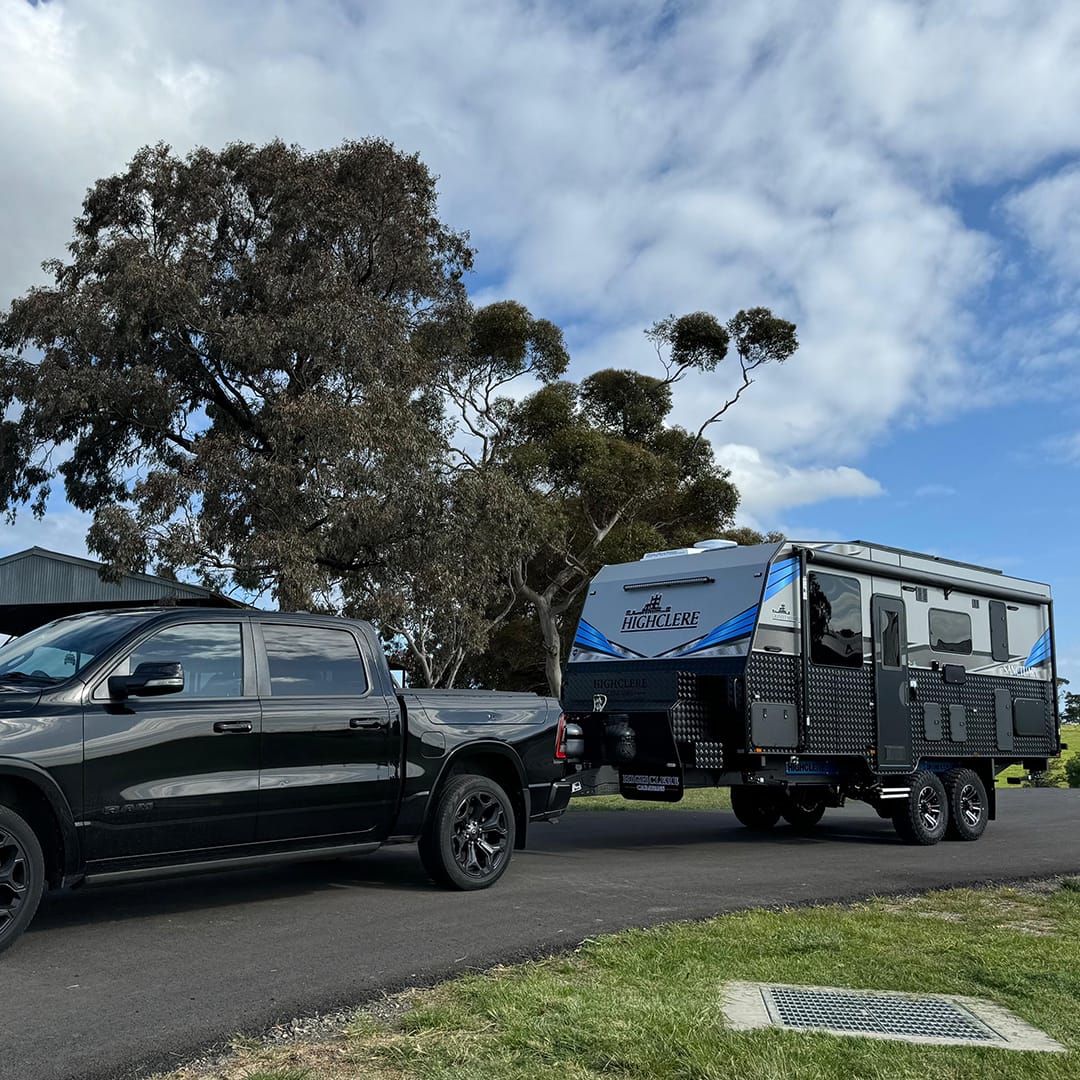

A brake controller in the car. Coupled up, the Highclere Caravans Sanctuary 20'3 puts about 2,970kg on its wheels, and Australian law needs a controller above 2,000kg GTM (Gross Trailer Mass).
How to choose one →
Figures come from the maker's published specs.
