About the Royal 22'

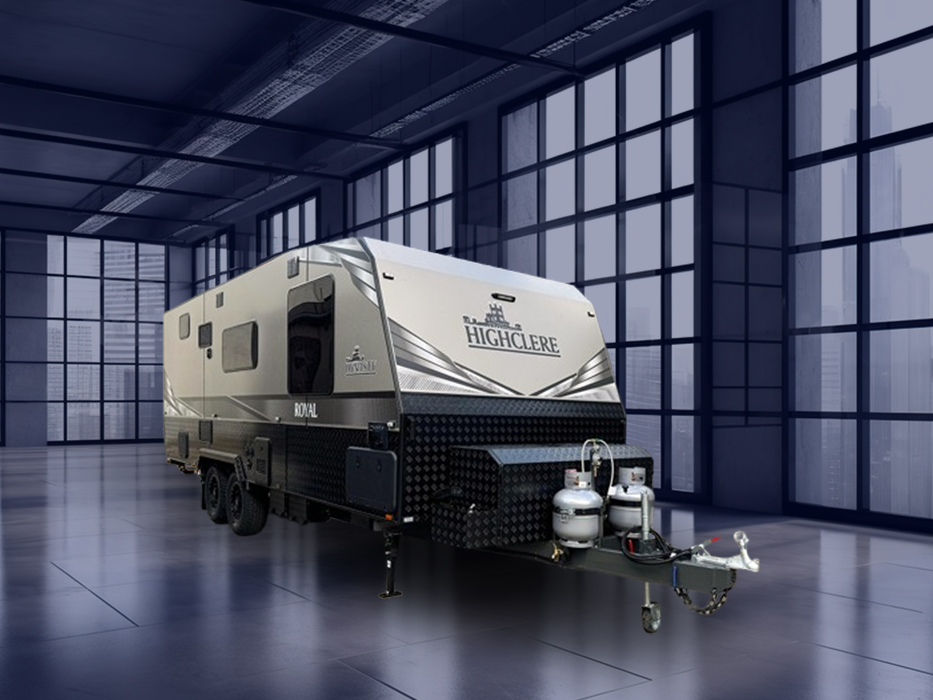

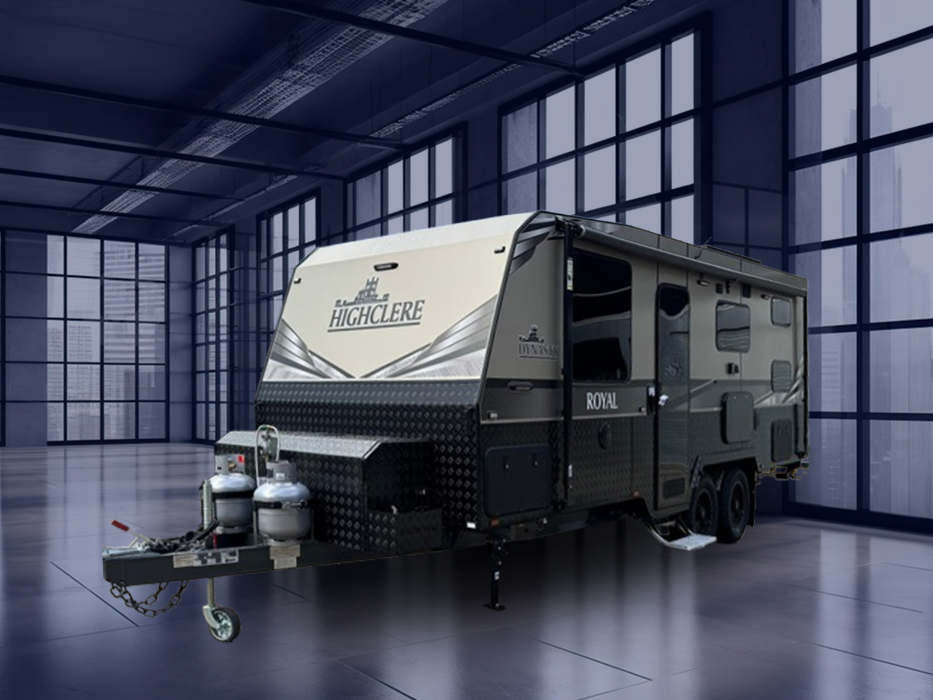

The Royal is a 22ft tandem-axle van entered through a mid door. It suits a family who want bunks, a full lounge and a proper kitchen in one 22 foot body.
Tare is 2,610kg and Highclere quotes ATM at 3.5 to 3.7 tonnes, a range that spans the three build tiers. Ball weight is 240kg. Check the tier behind any quoted weight, particularly with a family and bunks aboard.

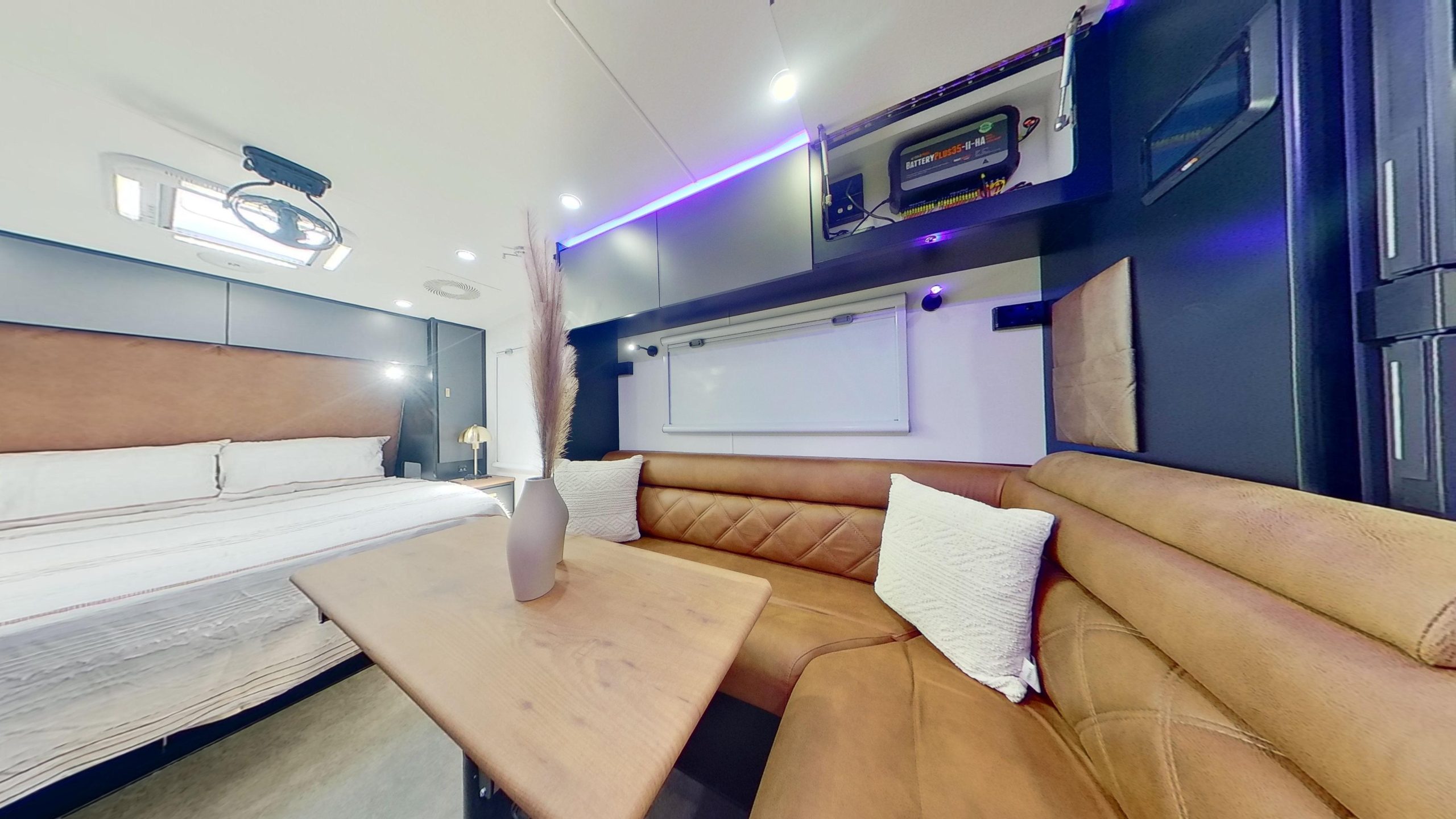

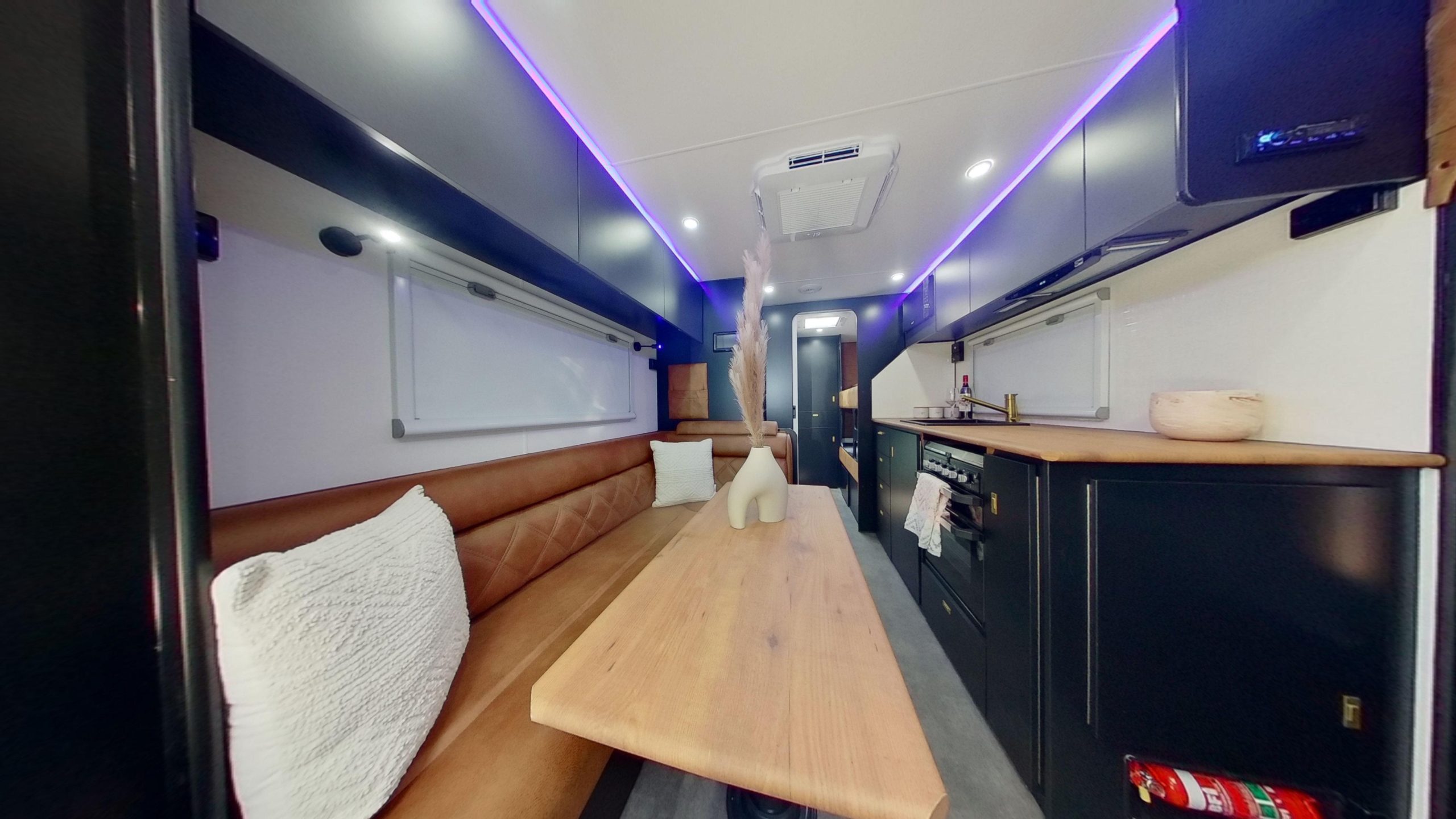

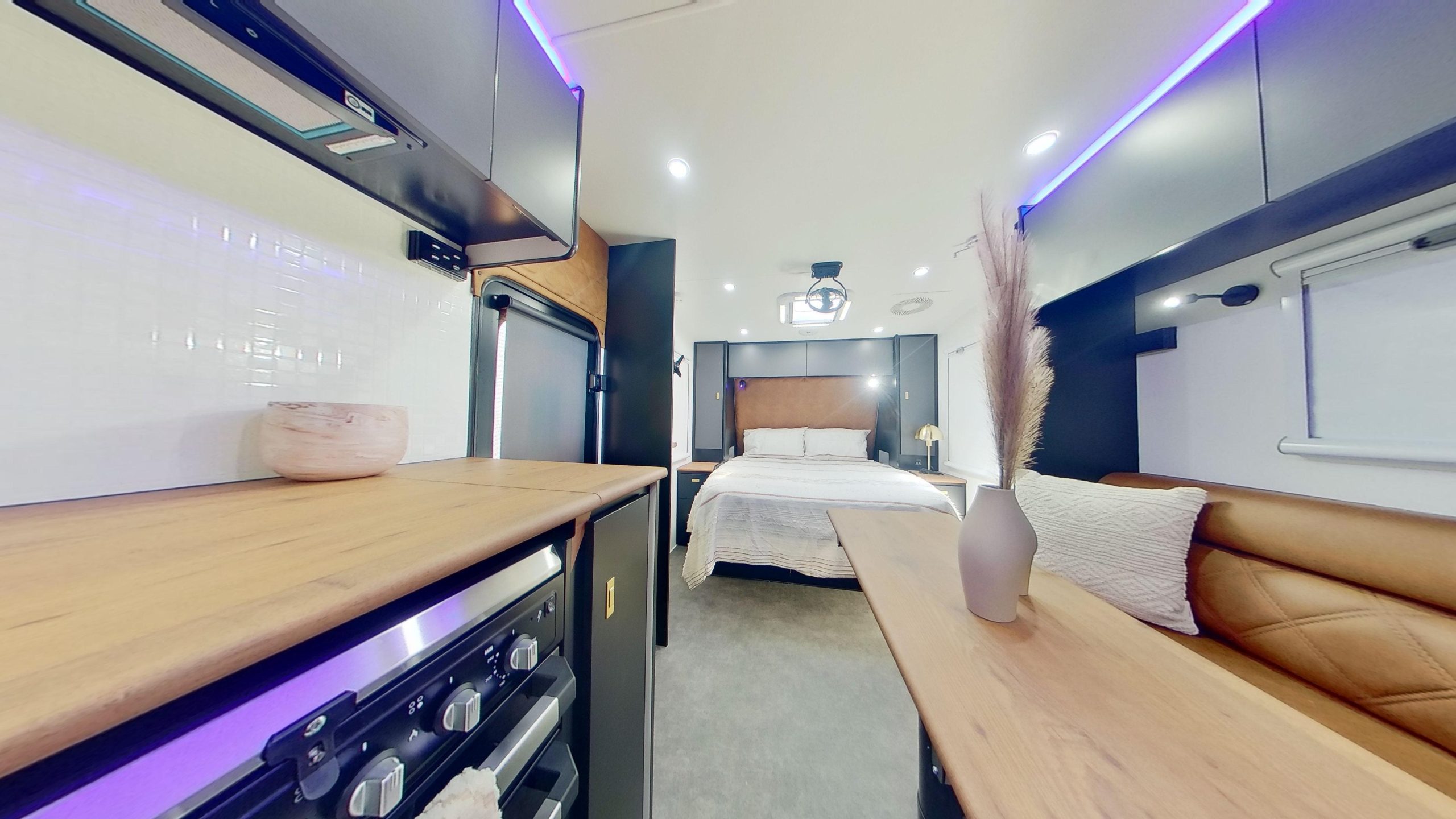

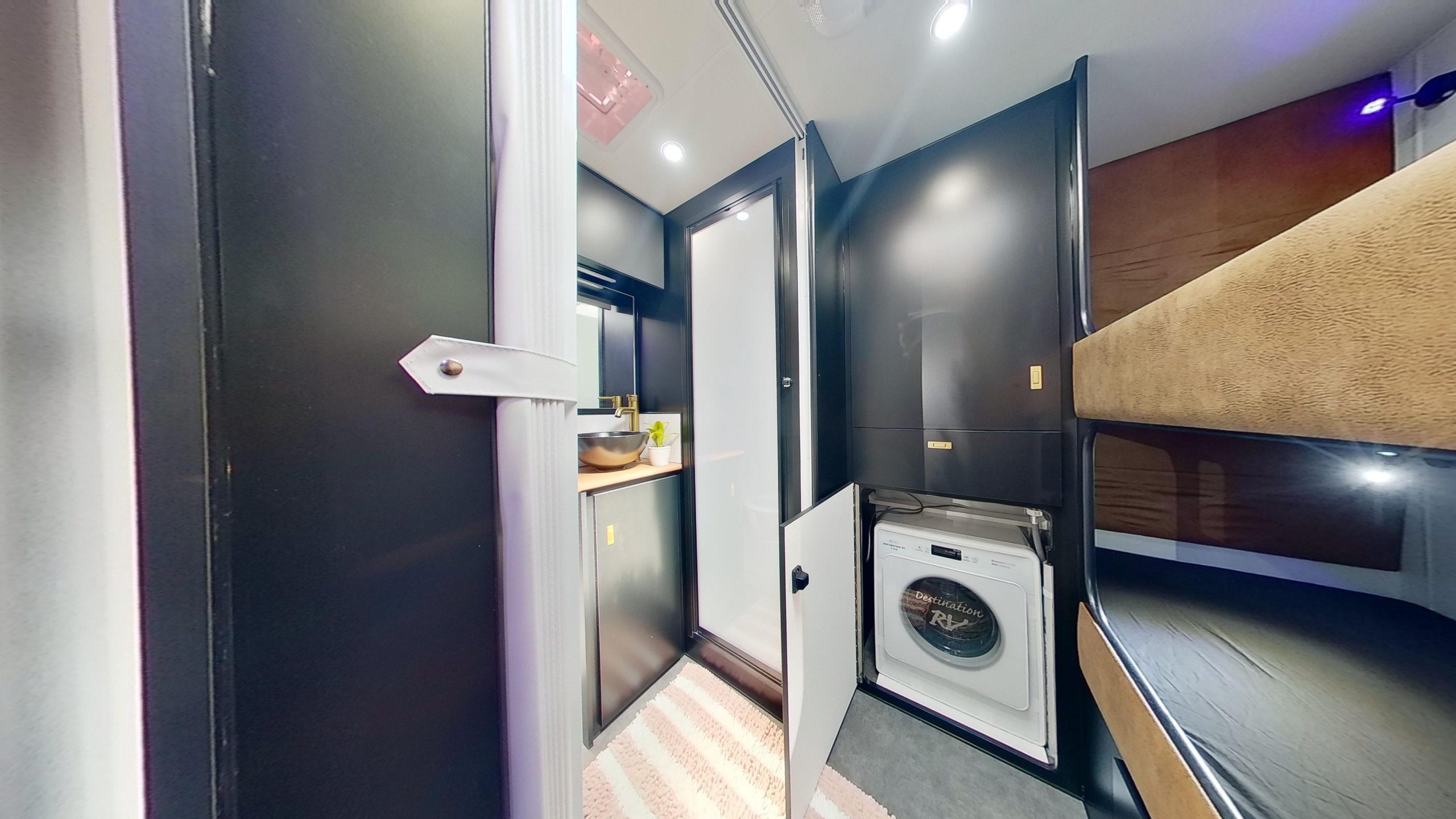

Up front, the island queen carries a 6ft 2in pillow top mattress. Inside, rear door-side bunks sit behind a road-side L-shaped lounge, with the fridge at the rear. Highclere fits a full-height fibreglass shower, cassette toilet and 3.5kg top-loading washer in the rear ensuite.

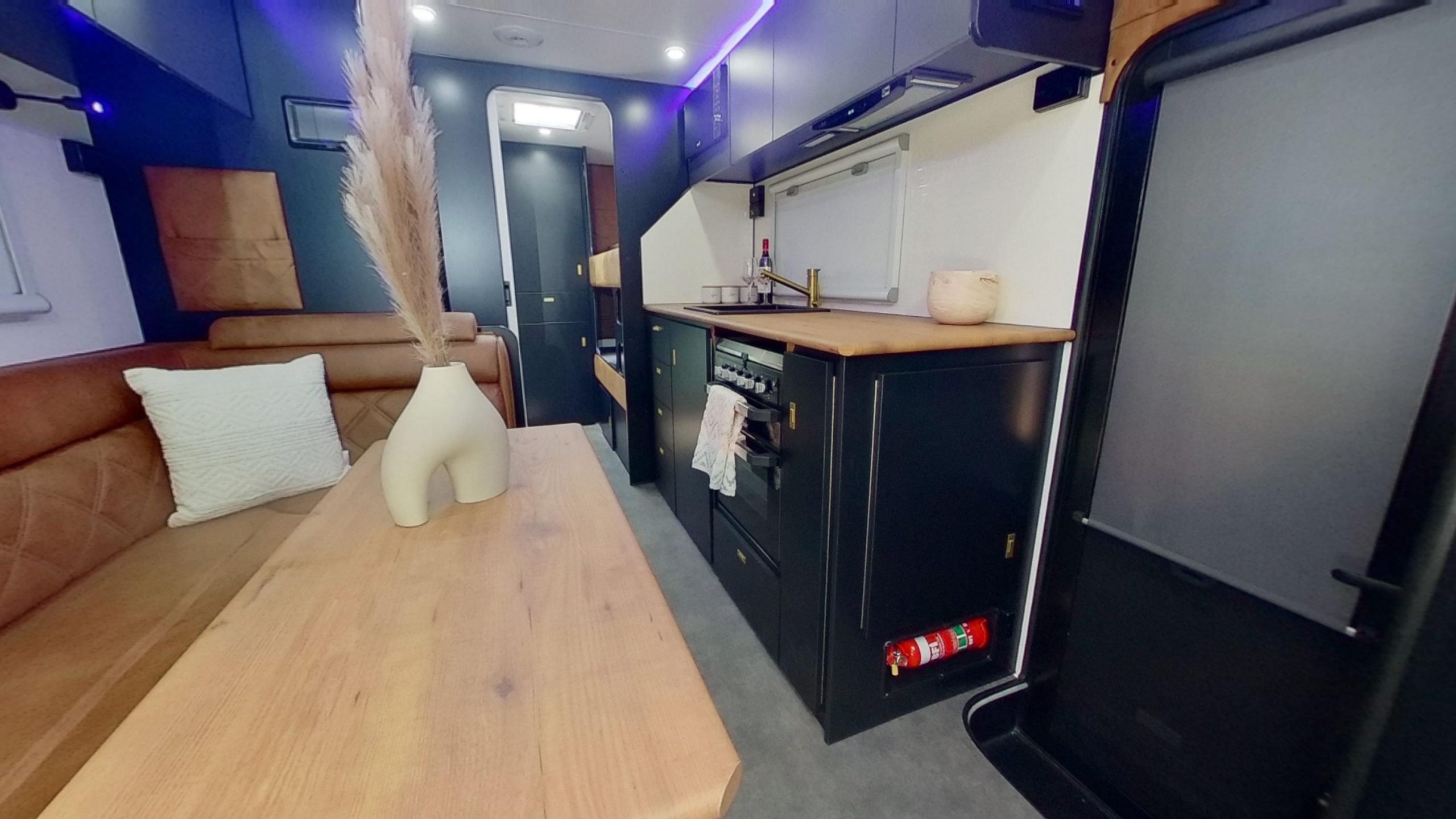

Dynasty cooks on a gas and electric mini grill with a pot drawer. A full oven replaces it on Carnarvon and Grand Explorer XT. Reverse cycle air conditioning is standard at every tier. The fridge, at the rear on this model, runs 188 litres on the first two tiers and 224 litres on Grand Explorer XT.
Battery size climbs with the tier you choose. Dynasty runs one 100Ah AGM cell and 210W of solar; Carnarvon runs two 120Ah AGM cells and 420W with BMPro monitoring. Grand Explorer XT runs two 150Ah lithium cells, 630W of solar and a Victron 3000W inverter.
Every tier carries two 95 litre fresh tanks. Only Carnarvon adds a separate 100 litre grey tank. Gas and electric power the hot water system.

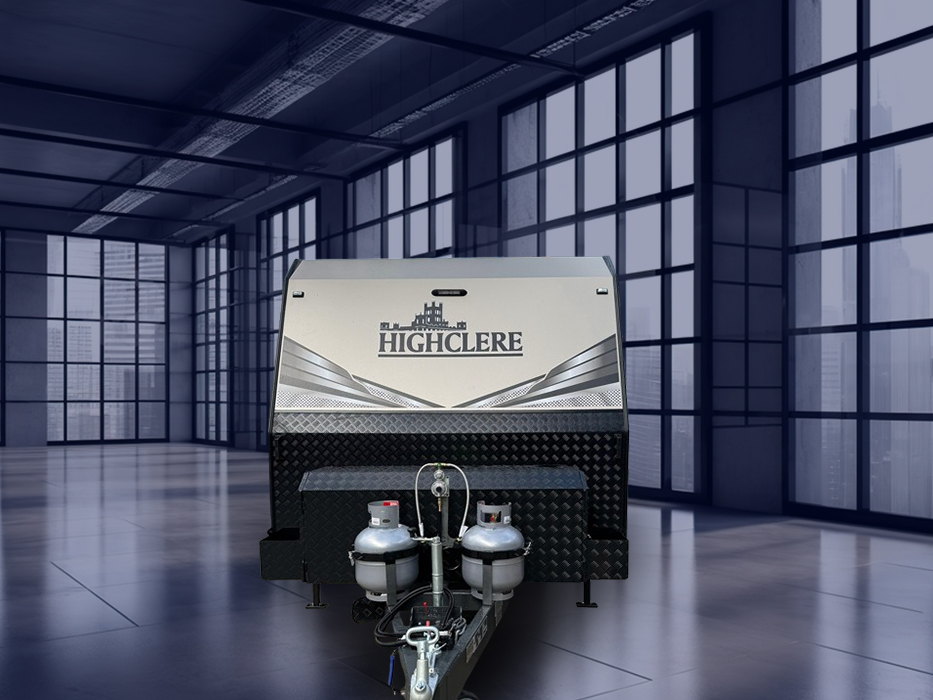

Australian Supagal steel forms the chassis, on a 6 inch main frame and A-frame. Dynasty gets semi off-road suspension, Carnarvon gets full off-road. Grand Explorer XT tops out with its own truss chassis and air bag suspension. Entry-level Dynasty gets ribbed aluminium sides and a fibre roof. The two higher tiers get composite aluminium sides and a composite roof.
Highclere's 5 year warranty covers the whole caravan regardless of tier. One authorised dealer per state sells the Royal, straight from Highclere's Epping, Victoria factory. Ask your dealer for the price, and Northern Territory buyers can reach Epping directly.
Technical specifications
About Highclere Caravans
Price on application - the dealers below price it to the spec you choose.
Your shortlist keeps every saved van on one page to compare side by side, and you can email the list to yourself.
Towing and weights
A guide from this van's ATM only. The numbers that decide it are your car's towing capacity, its GCM (Gross Combination Mass) and the compliance plates.Check your car properly
What towing this van needs
A brake controller in the car. Coupled up, the Highclere Caravans Royal 22' puts about 3,260kg on its wheels, and Australian law needs a controller above 2,000kg GTM (Gross Trailer Mass).
How to choose one →
Figures come from the maker's published specs.
