Fraser
Images from Retreat Caravans
- From
- $159,990
- Max weight (ATM)
- 3,500kg
- Sleeps
- 2
About the Fraser

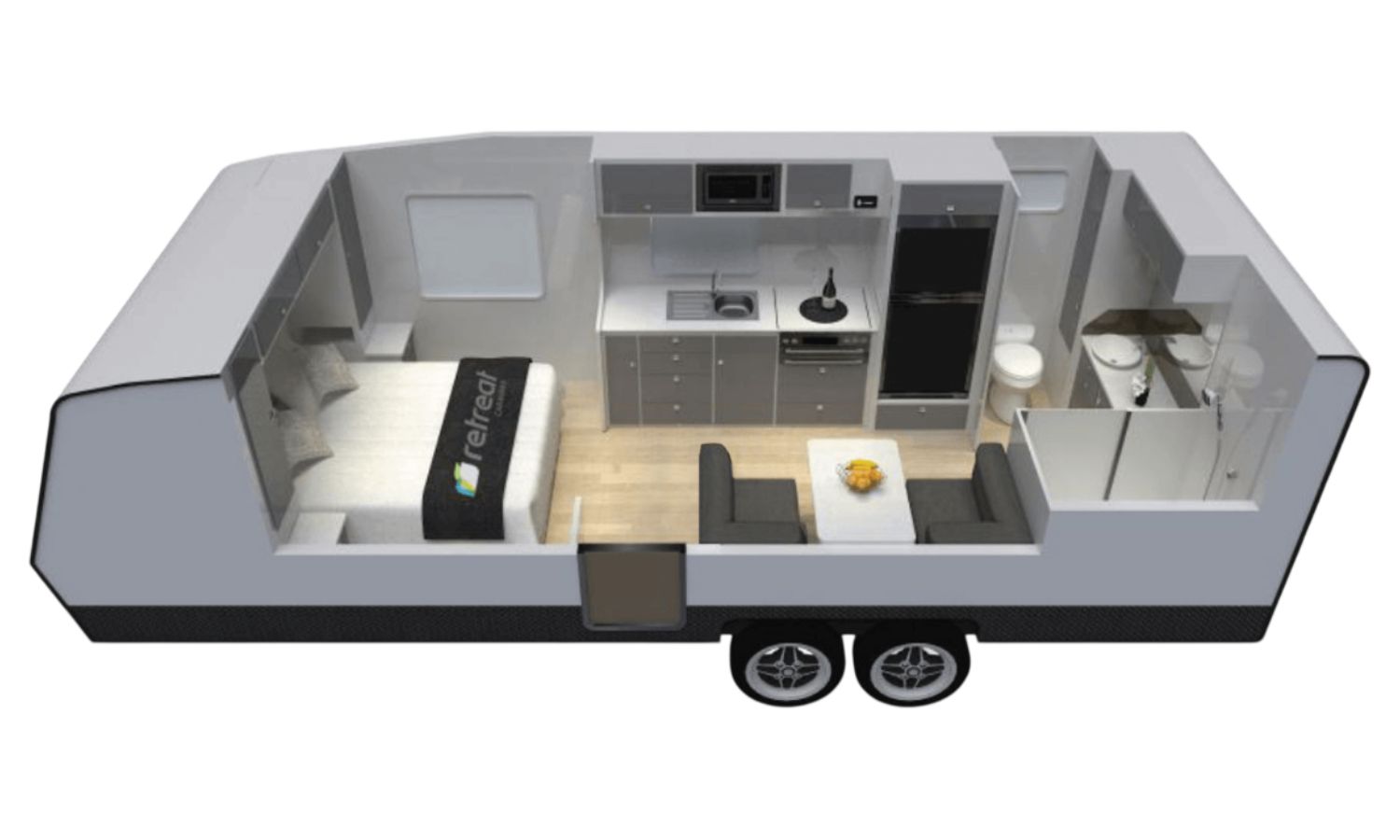

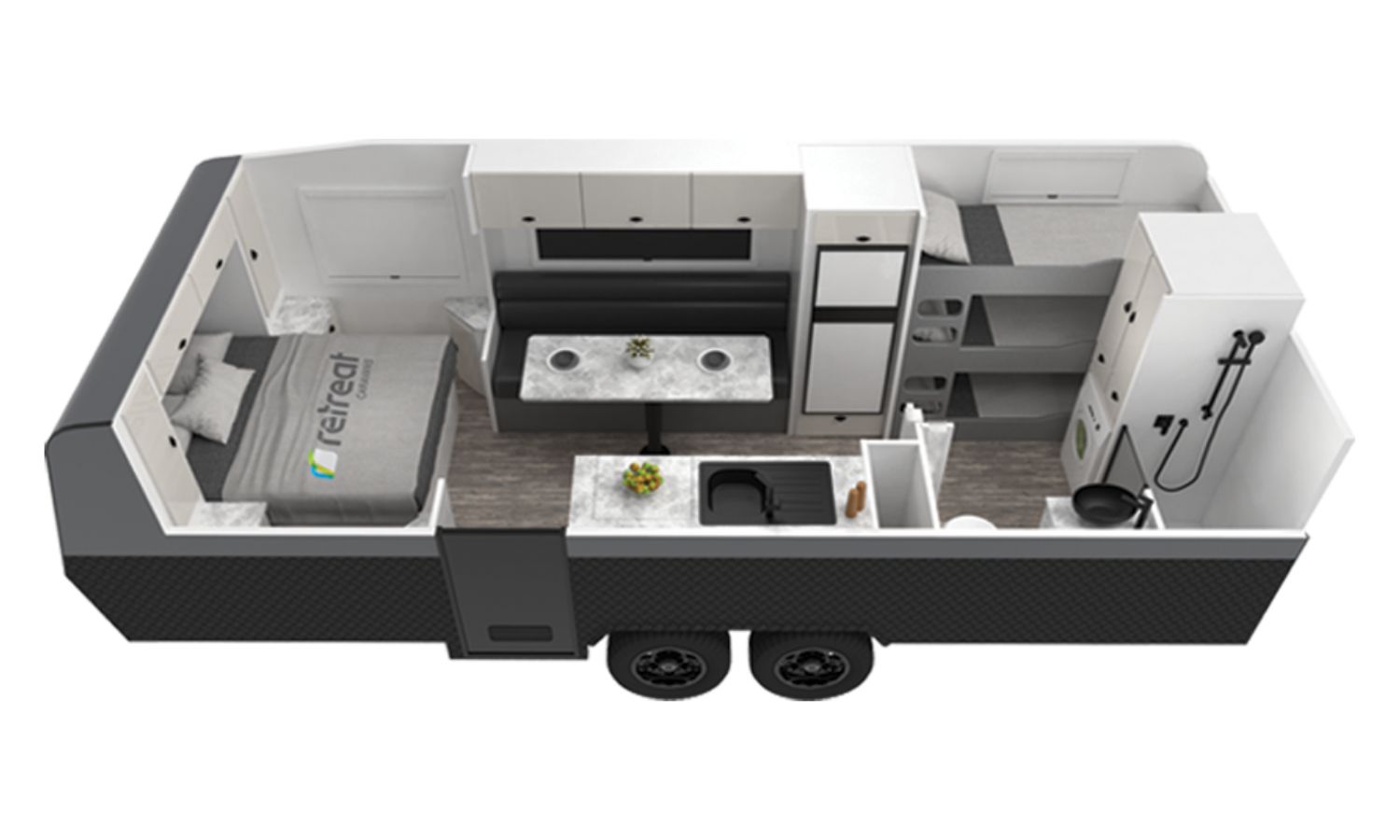

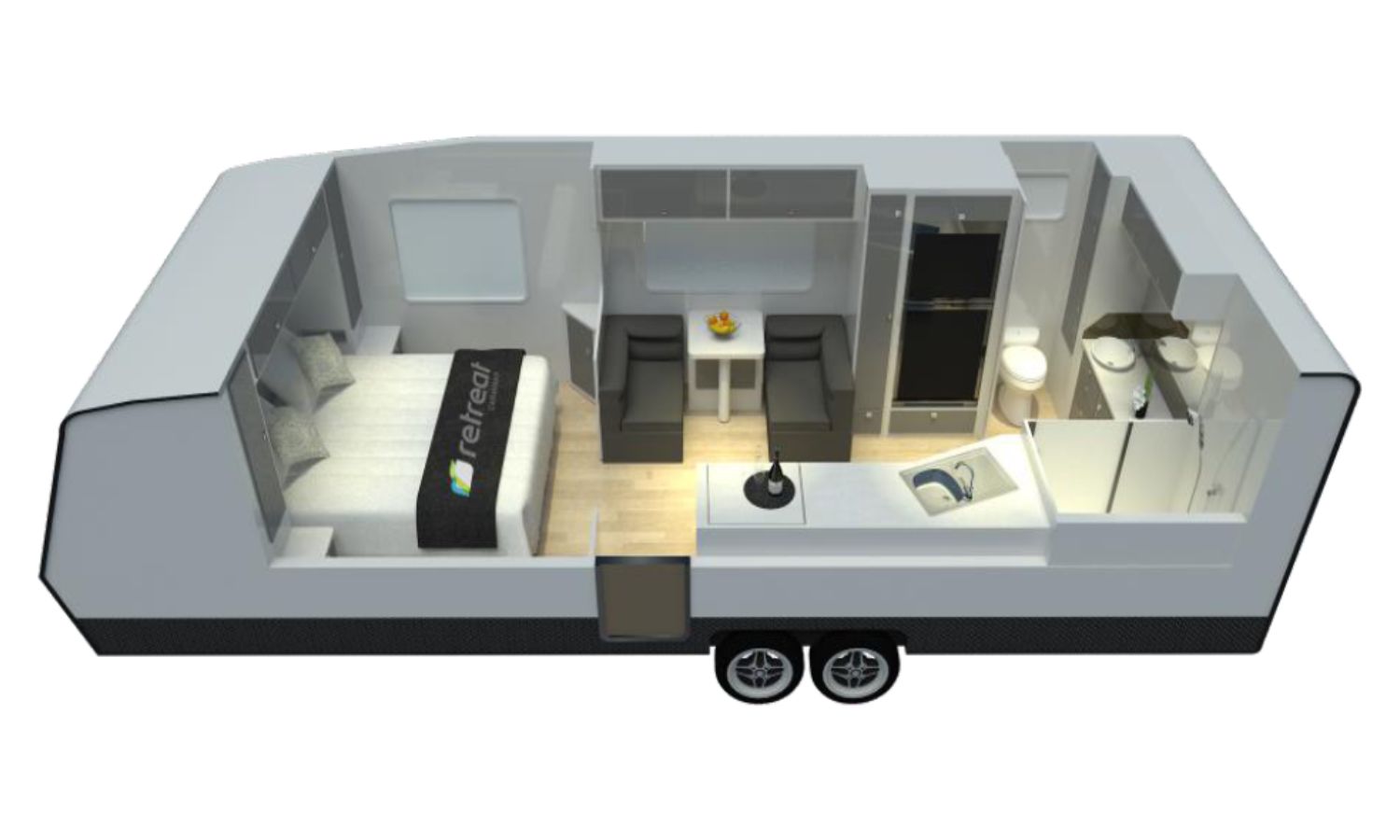

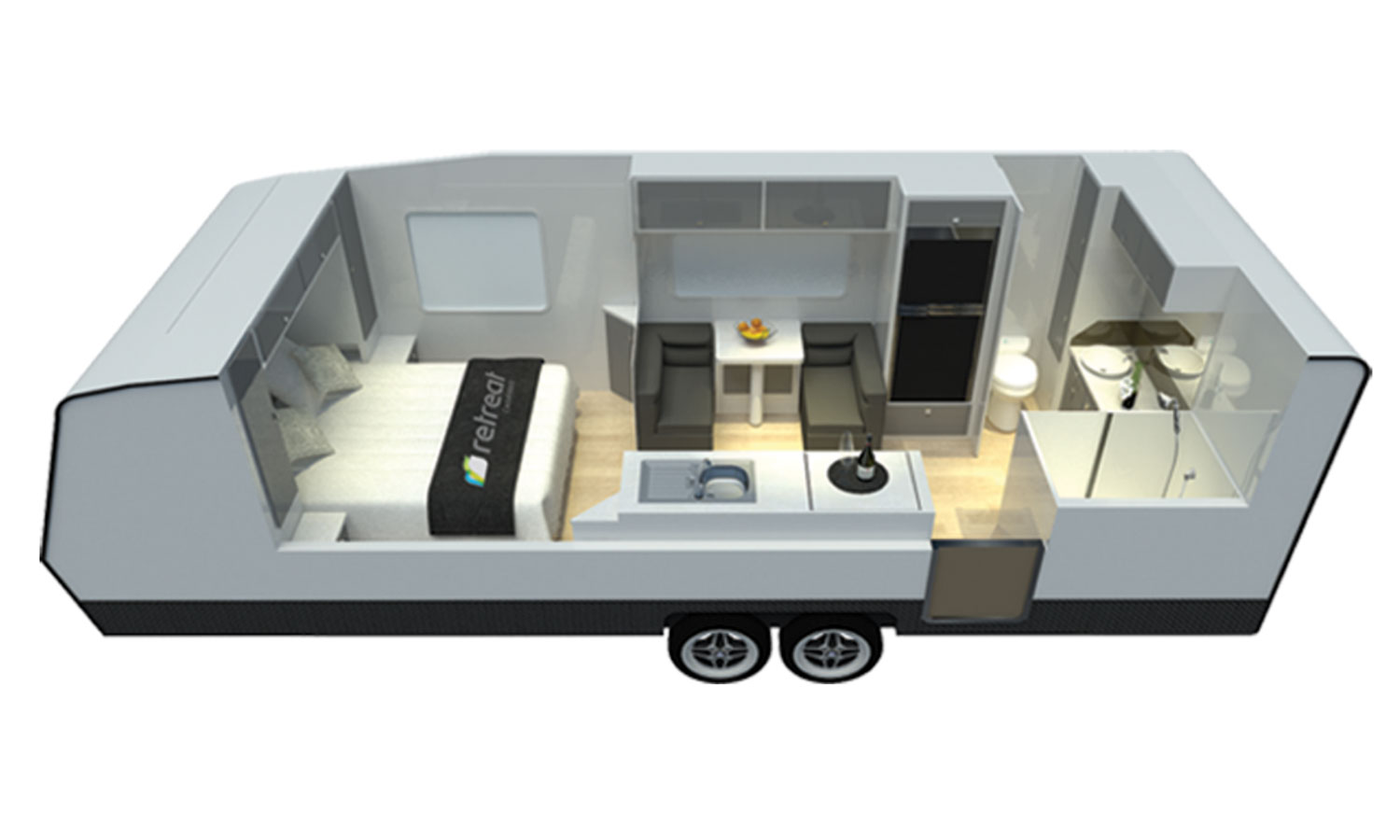

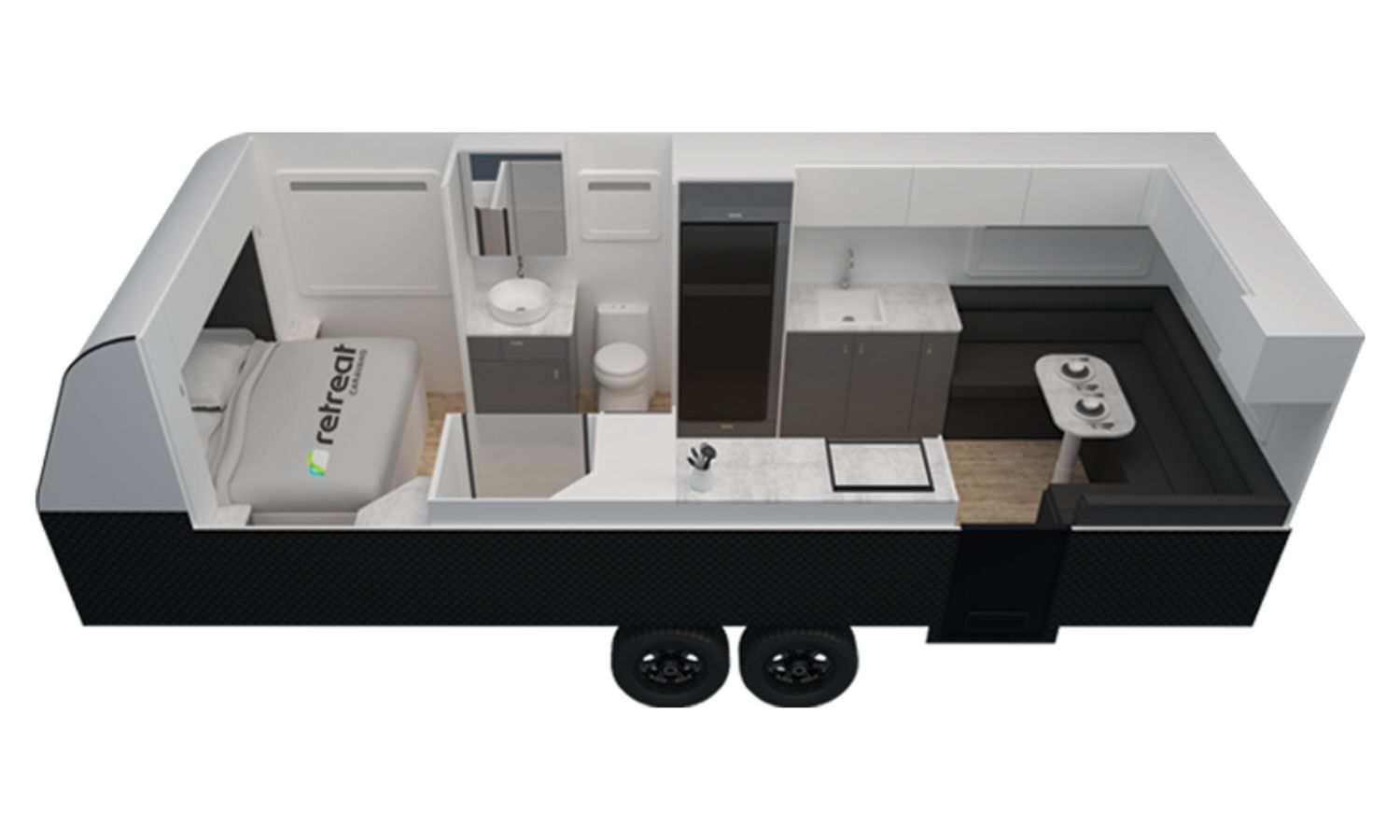

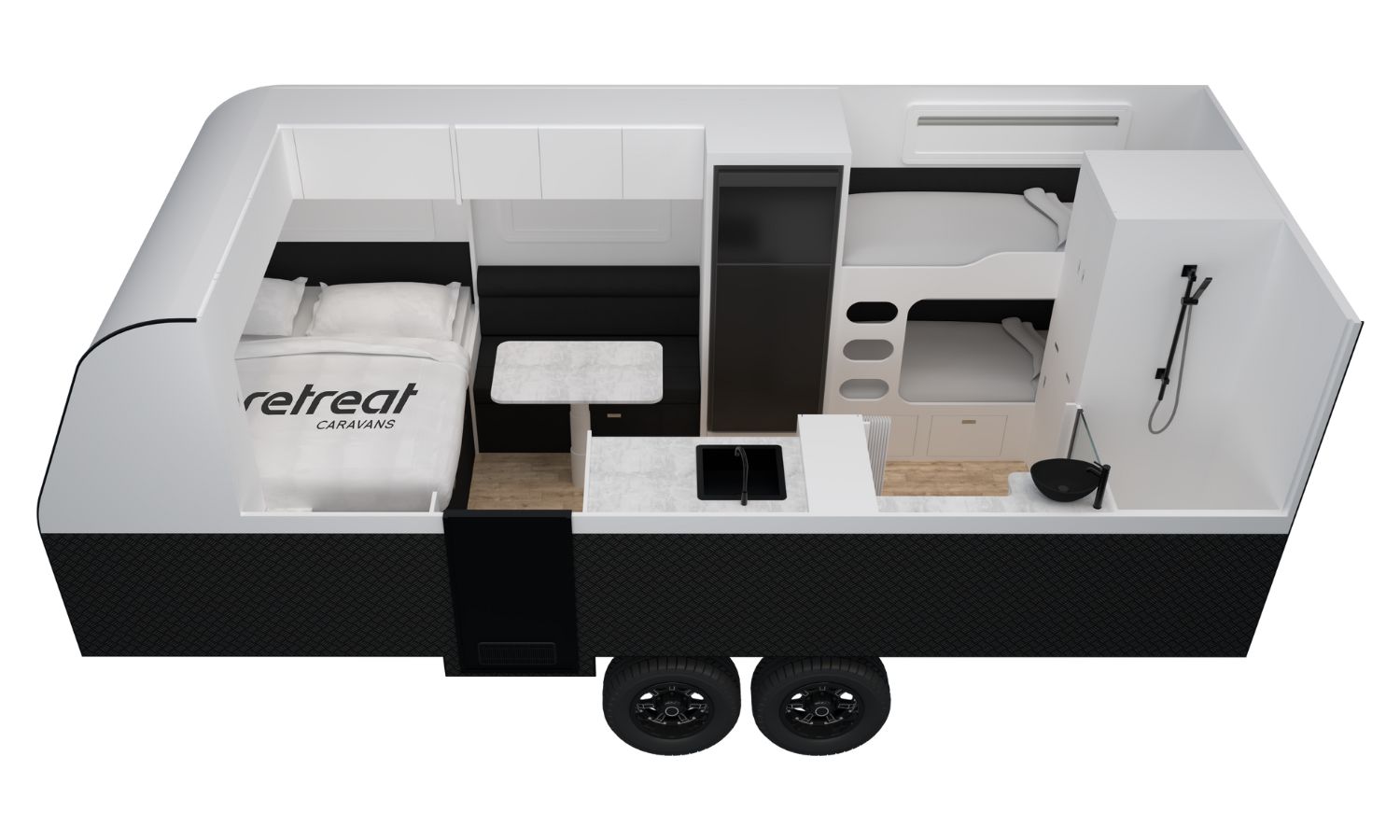

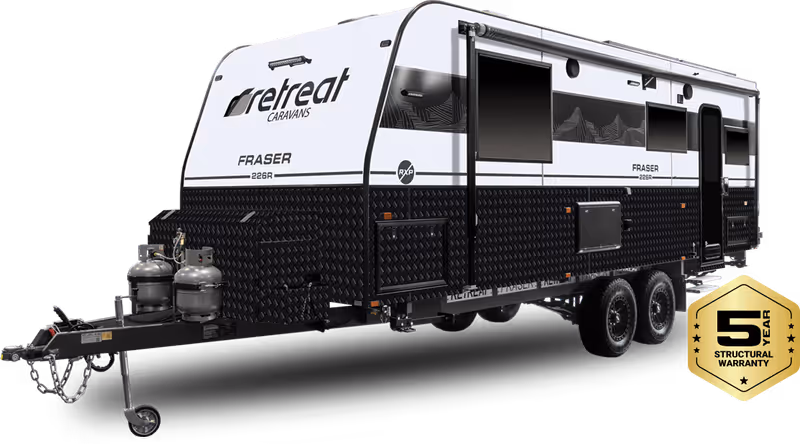

The Retreat Fraser is a semi off-road touring caravan built in 24 floor plans, from the 18ft 180B to the 24ft 9in 249DD. The plans include rear-bed, club-lounge, cafe and bunk layouts, so it suits couples and families.

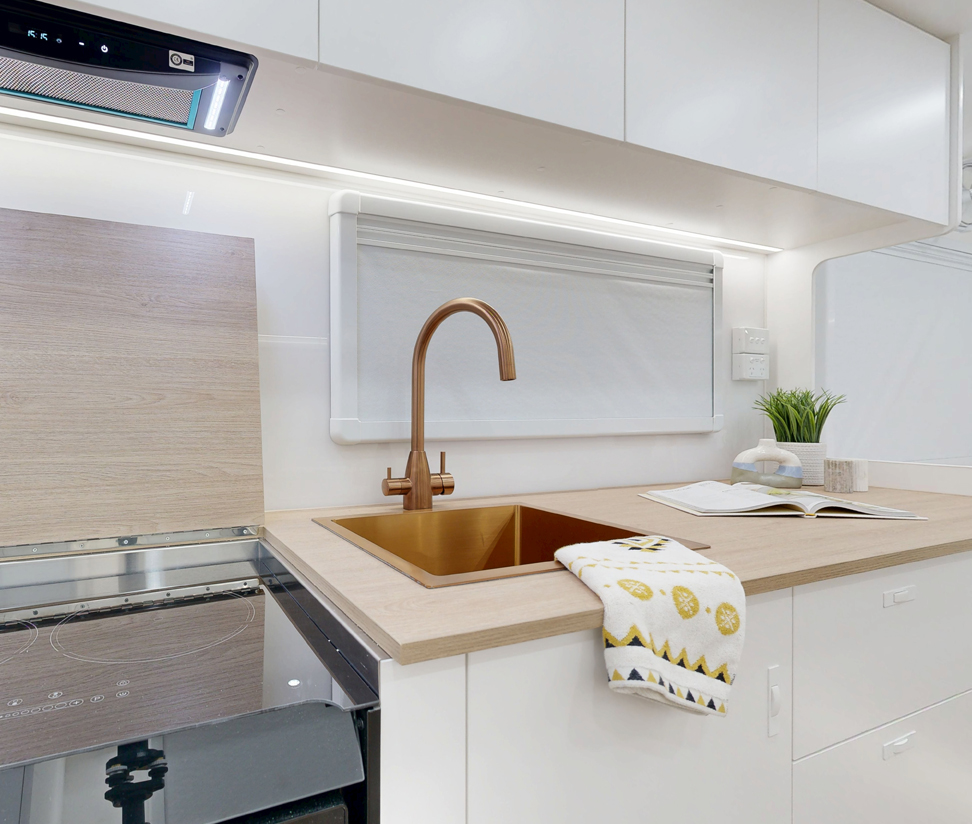

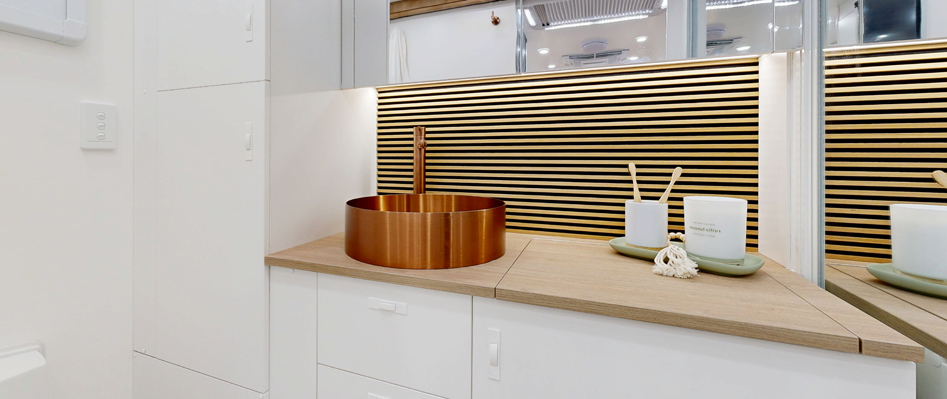

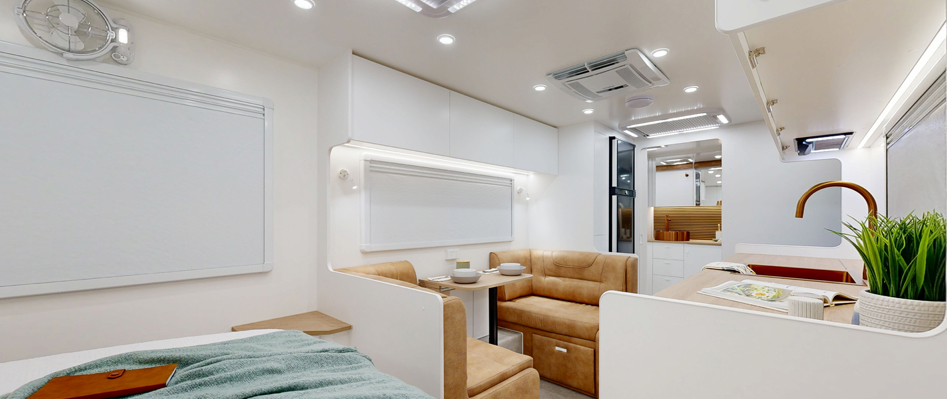

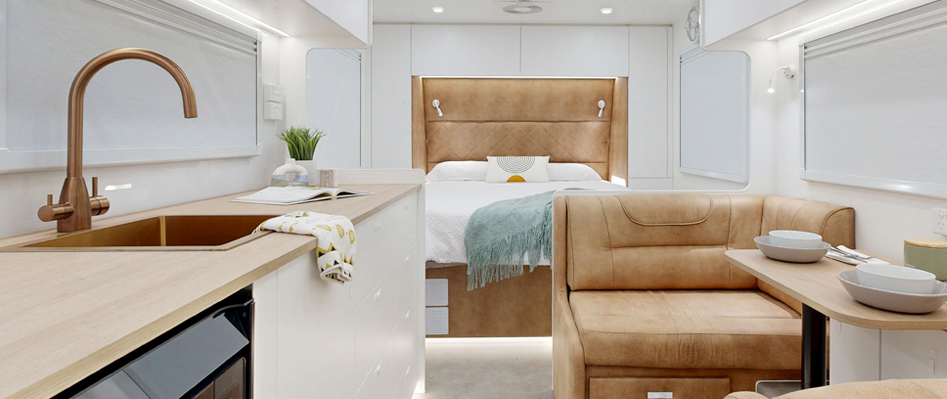

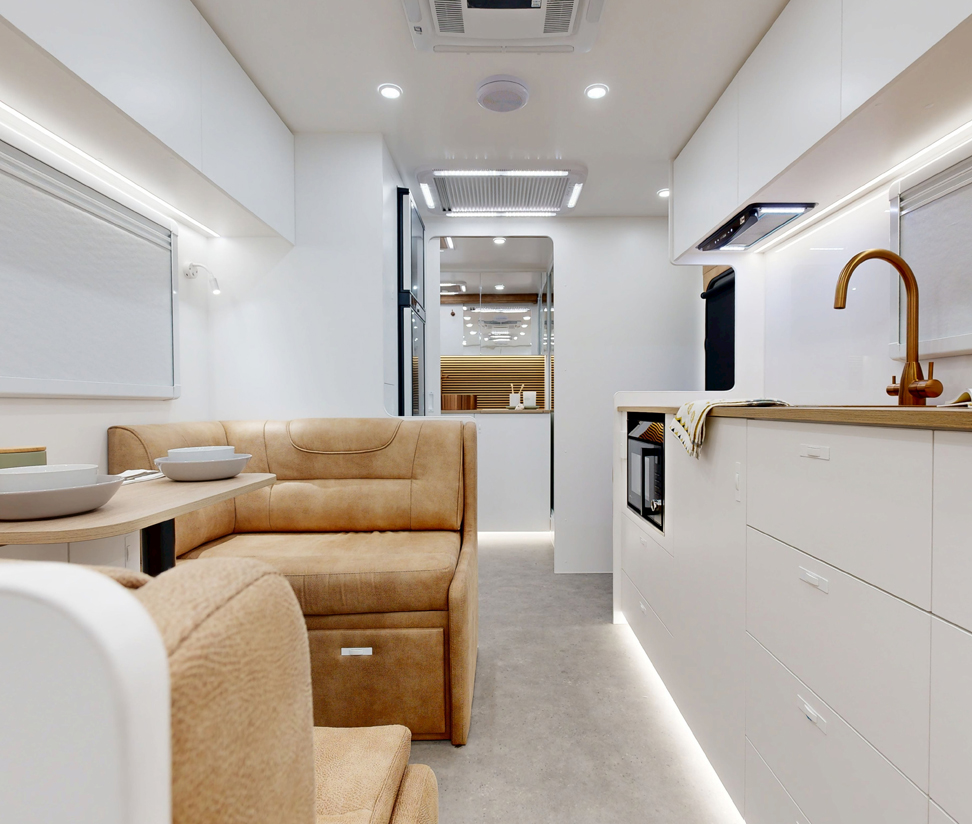

Every Fraser has a pillowtop mattress on an upholstered base with a full-height bedhead. The kitchen runs a four-in-one induction cooktop, convection oven, grill and microwave combination. The bathroom has a fully fibreglassed shower, a ceramic cassette toilet and a 3.5kg top-loading washing machine. A Dometic Series 7 air conditioner, a 28-inch smart TV with a premium audio system and a Starlink Mini provision are standard. Outside are a tub-lined tunnel boot and a powder-coated toolbox.
The walls are Retreat's RXP 2.0 construction under a one-piece 40mm composite roof, on an 18mm high-density composite floor. The SuperGal hollow-channel chassis has 4 x 2in main bearers, a 2in riser and a 6in A-frame extended 500mm. It rides on 3.7-tonne Titan X Plus suspension with 12-inch brakes, 16-inch rims on 265 tyres, a DO35 coupling and sway control. Checkerplate protects the sides, wheel spats and rear, with galvanised guards over the water tanks and the plumbing.
Power is an 880W solar array and a 600Ah chassis-integrated lithium battery with a 3,000W inverter and a DC to DC charger. Water is two 110L fresh tanks and a 110L grey tank, with instant gas hot water, mains quick fill, a filter and an outside shower. The fridge is a 224L compressor unit.
A few plans change the spec. The 180R and 180C run 3-tonne independent suspension, and the 180B has a single portable induction cooktop. The 226R and 236R sit on a truss chassis with a flat floor. The rear-bunk plans, 219B SE and 194B, carry a 4kg washing machine.
Retreat sells through dealers, with a Build My Retreat tool, a virtual showroom and the 2026 brochure and spec sheet on its website. The factory is in Somerton, Victoria.
- 622kg of payload - room for water, gear, and the extras without going over ATM
- 3.5T ATM - suited to a 3.5T-rated 4WD (Ranger, Hilux, LandCruiser)
- Semi off-road - confident on gravel, formed dirt roads, and station tracks
- Off-grid ready: 880W of solar, 600Ah battery, 220L fresh water - stay out longer between hook-ups
- Full internal ensuite - your own bathroom, no shared amenities block
- Couples layout - the bed and living space of a bigger van without the length
Technical specifications
About Retreat Caravans
Two people buy this van at the same price. One gets a loan rate 2% higher than the other.
Over seven years, the one with the higher rate pays about $10,900 more.
Different lenders will offer you different rates.
Jade's loan specialists compare offers from major banks and other lenders, and negotiate on your behalf.
A free two-minute quote from Jade tells you what your loan would cost, before you sign anything.
Asking commits you to nothing. You can say no thanks at any point. Jade runs no credit check to give you the quote.
Jade arranges the loan. The dealer sells you the van.
Jade Finance pays us a commission if you finance through them. About Jade
Example figures: 20% deposit, seven years, change them in the calculator.
Your shortlist keeps every saved van on one page to compare side by side, and you can email the list to yourself.
Towing and weights
A guide from this van's ATM only. The numbers that decide it are your car's towing capacity, its GCM (Gross Combination Mass) and the compliance plates.Check your car properly
What towing this van needs
A brake controller in the car. Coupled up, the Retreat Caravans Fraser puts about 3,370kg on its wheels, and Australian law needs a controller above 2,000kg GTM (Gross Trailer Mass).
How to choose one →
Figures come from the maker's published specs.
